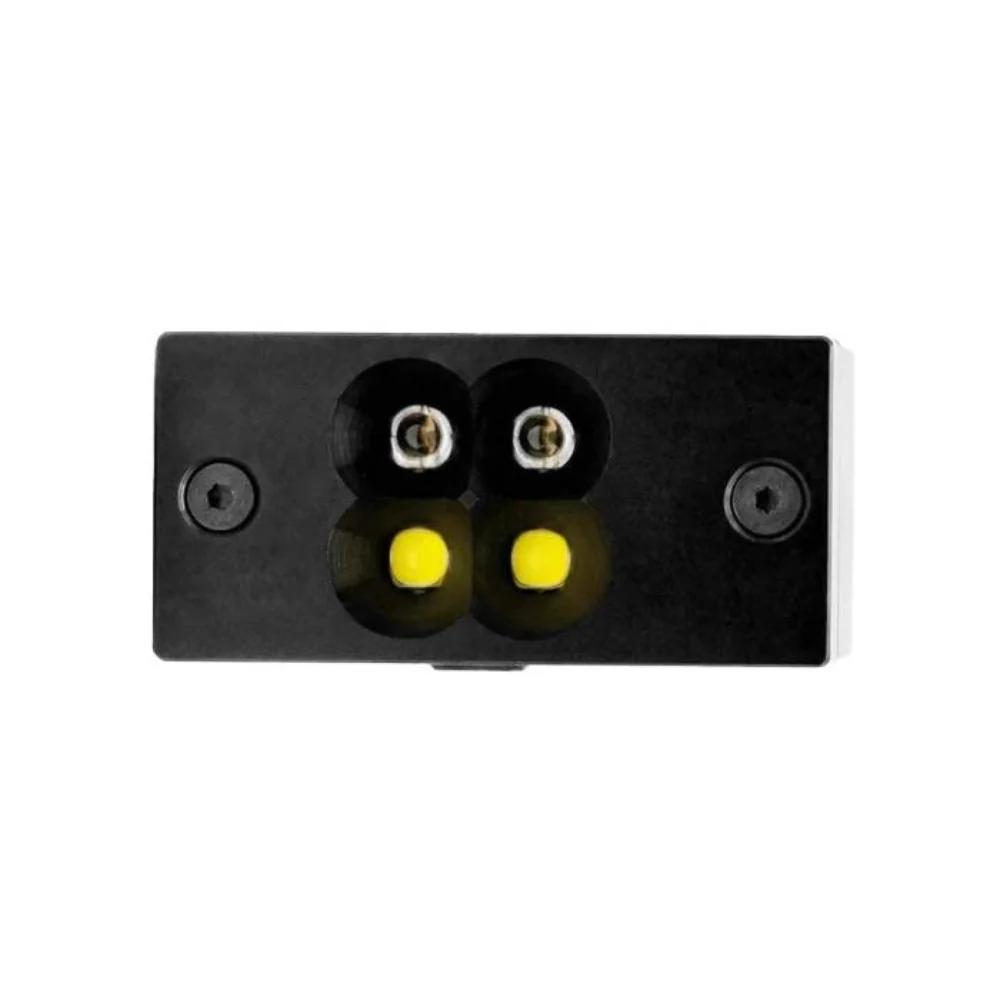

Introducing the Patrios 2-in-1 Tactical LED, your ultimate NDAA-compliant lighting option for drone use. With a versatile voltage range of 6-28V and a maximum power output of 6W, this LED illuminates with precision, offering over 700 lumens of overt light at 5700K and 760 mW/sr of IR light at 850nm. Its PWM control allows for customizable brightness levels, while thermal protection ensures safety during operation. The Patrios LED combines adaptability, dual-mode functionality, customization, safety features, and ease of installation, making it an ideal lighting solution for tactical applications.

Check out all our Frame Parts and the rest of our Patrios Products !

Features:

Customizable Brightness
Versatile Voltage Range
Thermal Protection
Dual Light Modes
Easy Installation

CUSTOMIZABLE BRIGHTNESS

Utilizes PWM control for precise brightness adjustment, allowing tailored lighting for specific scenarios.

VERSATILE VOLTAGE RANGE

Operates seamlessly within a 6-28V range, offering adaptability to various power sources (Recommended: 6V-28V).

THERMAL PROTECTION

Equipped with thermal shutdown safeguards to prevent overheating, ensuring safety during extended use.

DUAL LIGHT MODES

Provides both overt and infrared (IR) illumination with impressive outputs of over 700 lumens for overt light and 760 mW/sr for IR light at 850nm.

EASY INSTALLATION

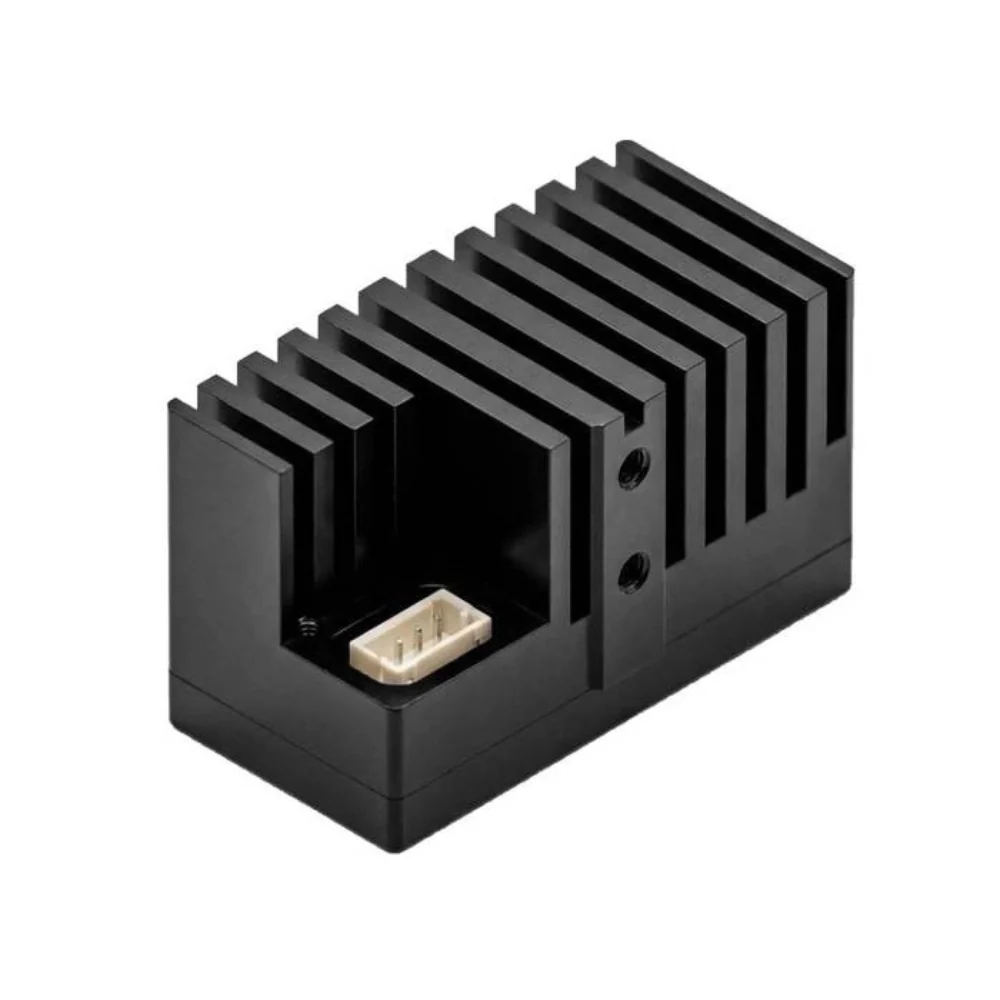

Facilitates hassle-free mounting with two M3 holes and lightweight design, weighing approximately 20 grams (0.7 oz).

Specifications:

Operating Time at Maximum Brightness: At least 30 minutes in a 72°F indoor environment with a 12V power supply (Note: May be reduced in higher ambient temperatures or direct sunlight)
PWM High Pulse Duration Ranges:
- < 1000 us: All LEDs off, standby mode
- 1000 - 1500 us: IR LEDs ON, Overt LEDs OFF (with variable brightness)
- 1600 - 2100 us: Overt LEDs ON, IR LEDs OFF (with variable brightness)
Wiring:
- Red: +6V to +28V, 500mA max (VBAT)
- White: PWM Control Signal (3.3V - 5V, PWM AUX on the radio receiver)
- Black: Ground (VBAT)
Thermal Protection: Yes (Thermal shutdown in case of overheating)
Current:
- OFF: 2mA
- ON: 5mA to 500mA (depending on specified brightness)
Mounting: Two tapped M3 holes for easy installation
Voltage Range: 6-28V (Recommendation: 6V-28V)
Maximum Overt Light Output: 700 lumens
Weight: Approximately 20 grams (0.7 oz)
Maximum IR Light Output: 760 mW/sr
Overt Light Color/Wavelength: 5700K
PWM Control Input: 3.3V - 5V
Maximum Power Output: 6W
IR Light Wavelength: 850nm

IMPORTANT NOTES

LED enclosure gets very hot during use (especially at high brightness levels); ensure adequate airflow and avoid skin contact post-operation.
Reverse Polarity Protection: Not equipped; proper wiring is essential to prevent damage.

Patrios 2-in-1 Tactical LED Instruction Guide

Package Includes:

1 x Patrios 2-in-1 Tactical LED
