Aikon F4 3030 F405 Flight Controller and 60A BLHeli_S 4-in-1 ESC Stack - 30x30mm

The Aikon F4 560A stack consists of an F405 flight controller and a 55A ESC.

This 30x30mm stack supports 3-6S voltage, BLHeli-S firmware and has an OSD and a 16Mb SPI blackbox.

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

Check out all our 30x30mm FC/ESC Stacks and the rest of our Aikon Products!

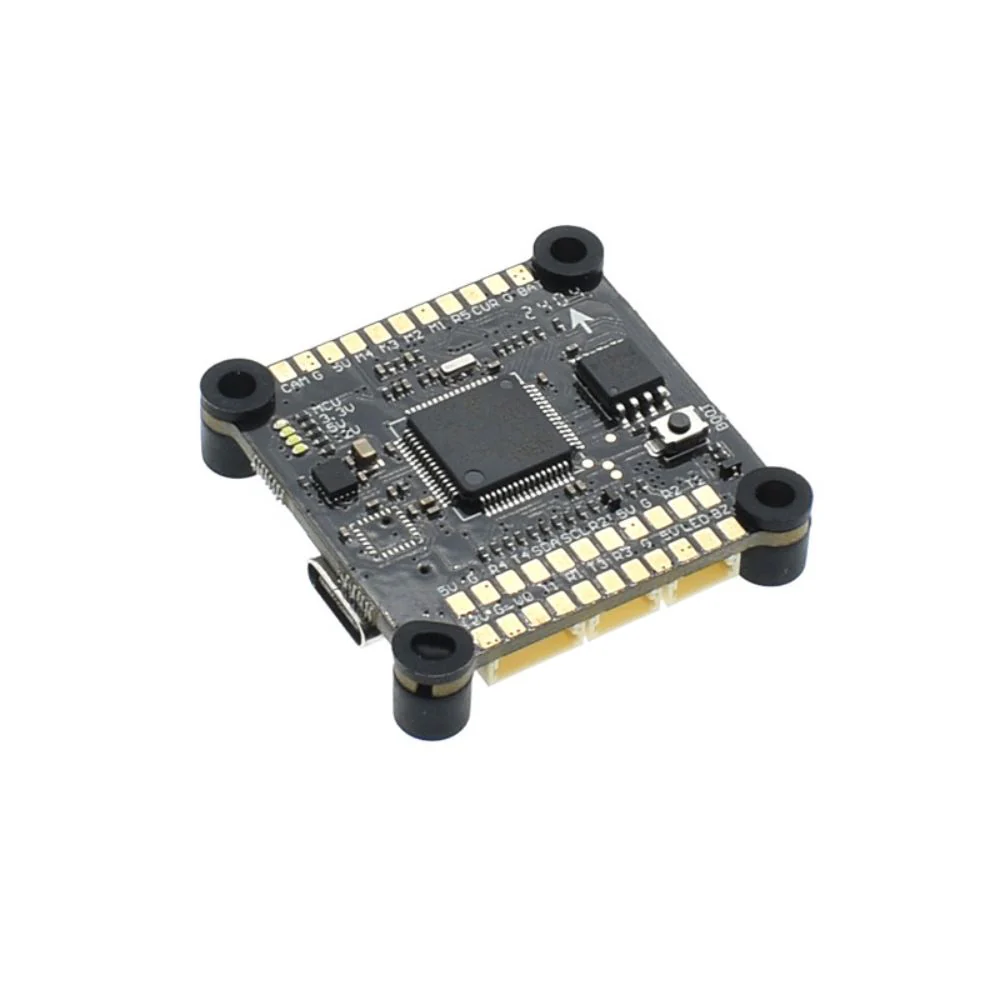

Flight Controller Specifications:

• MCU : STM32F405
• IMU : ICM42688P
• Motor outputs : 4IMU
• Interrupt : Yes
• VCP : Yes
• UARTS : 5
• OSD : Yes
• Blackbox : SPI 16MB
• PPM/LED_ STRIP shared : Yes


ESC Specifications:

• Battery : 3-6S
• Constant current : 60A
• Burst : 70A
• Mount hole : 30x30
• Firmware : BLHeli-S
• MCU : BLHeli-S
• MOSFET size : 5*6
• Bootloader : Yes


Package Includes:

• 1 x F4 55A stack
• 1 x XT60 cable
• 1 x FC/ESC cable
•  1x Capacitor 1000
• 4 x screws M3x30mm
• 8 x dumpers
• 4 x nut M3
