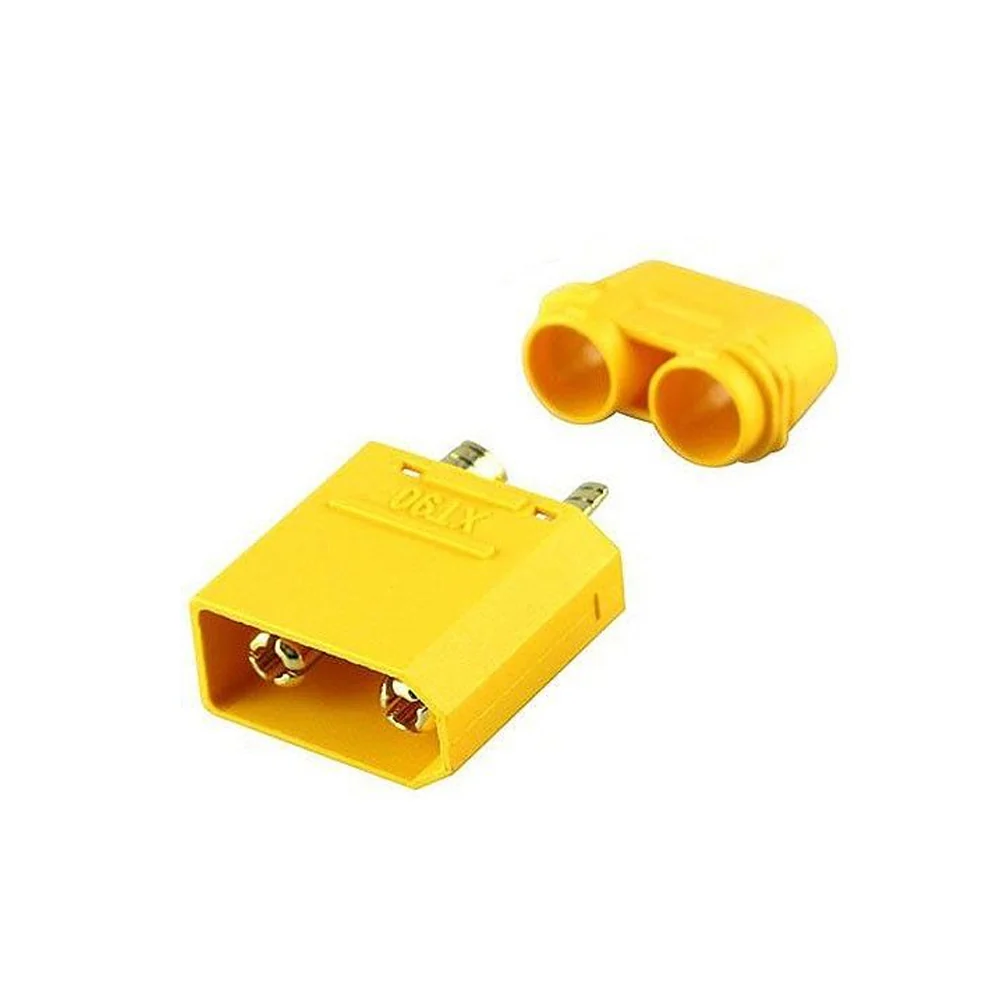

Amass XT90 Connector - Male
Genuine Amass XT90 connector with high temperature resistant material!
Amass XT90 bullet connector provides solid and reliable connection. Reusable connector end design with high current endurance and performance, it can be used up to to 1000 times. Resistance to current 90A (Continuous), 120A (Peak), suitable for 90-120A current applications. For example, perfect for RC lipo batteries, 250 size Helicopters, Electric RC cars, and small RC boats and so on. XT90 adopts the 4.5mm banana plug, upgraded version - Light weight, small size, and high current endurance and performance!
Check out all our Connectors and Charge Leads and the rest of our Battery Accessories!
Features:
- These are original Amass Nylon XT90 plug, not cheap copies. which offer a tight fit, ensuring a solid connection for minimal resistance. it requires a little force to clamp the end cap in place but please note that the end cap is hard to disassemble once it has been installed.
- this plug don't need heat shrink, because the covers could avoid the wire exposing outside.
- can handle over 90A current for extended periods without exceeding 80DegC . The plug is also less likely to deform or melt in comparison to copied non-Nylon XT90 plugs.
Specifications:
- Brand Name: Amass
- Item Name: XT90H connector
- Body Material & Surface Plating: Brass and gold plated
- Insulation Material: Nylon/PA
- Temperature Resistance: -20°C - 120°C
- Pulling Force/500: 60N
- Recommend Cable Spec.: 10AWG
- Soldering Spec.: 480°C/4S
- Weight/Pair: 12.8g
- Recommend Use: 1000 times
Package Includes:
- 1x Amass XT90H Connector Male
Original: $1.99
-70%$1.99
$0.60
Description
Genuine Amass XT90 connector with high temperature resistant material!
Amass XT90 bullet connector provides solid and reliable connection. Reusable connector end design with high current endurance and performance, it can be used up to to 1000 times. Resistance to current 90A (Continuous), 120A (Peak), suitable for 90-120A current applications. For example, perfect for RC lipo batteries, 250 size Helicopters, Electric RC cars, and small RC boats and so on. XT90 adopts the 4.5mm banana plug, upgraded version - Light weight, small size, and high current endurance and performance!
Check out all our Connectors and Charge Leads and the rest of our Battery Accessories!
Features:
- These are original Amass Nylon XT90 plug, not cheap copies. which offer a tight fit, ensuring a solid connection for minimal resistance. it requires a little force to clamp the end cap in place but please note that the end cap is hard to disassemble once it has been installed.
- this plug don't need heat shrink, because the covers could avoid the wire exposing outside.
- can handle over 90A current for extended periods without exceeding 80DegC . The plug is also less likely to deform or melt in comparison to copied non-Nylon XT90 plugs.
Specifications:
- Brand Name: Amass
- Item Name: XT90H connector
- Body Material & Surface Plating: Brass and gold plated
- Insulation Material: Nylon/PA
- Temperature Resistance: -20°C - 120°C
- Pulling Force/500: 60N
- Recommend Cable Spec.: 10AWG
- Soldering Spec.: 480°C/4S
- Weight/Pair: 12.8g
- Recommend Use: 1000 times
Package Includes:
- 1x Amass XT90H Connector Male
