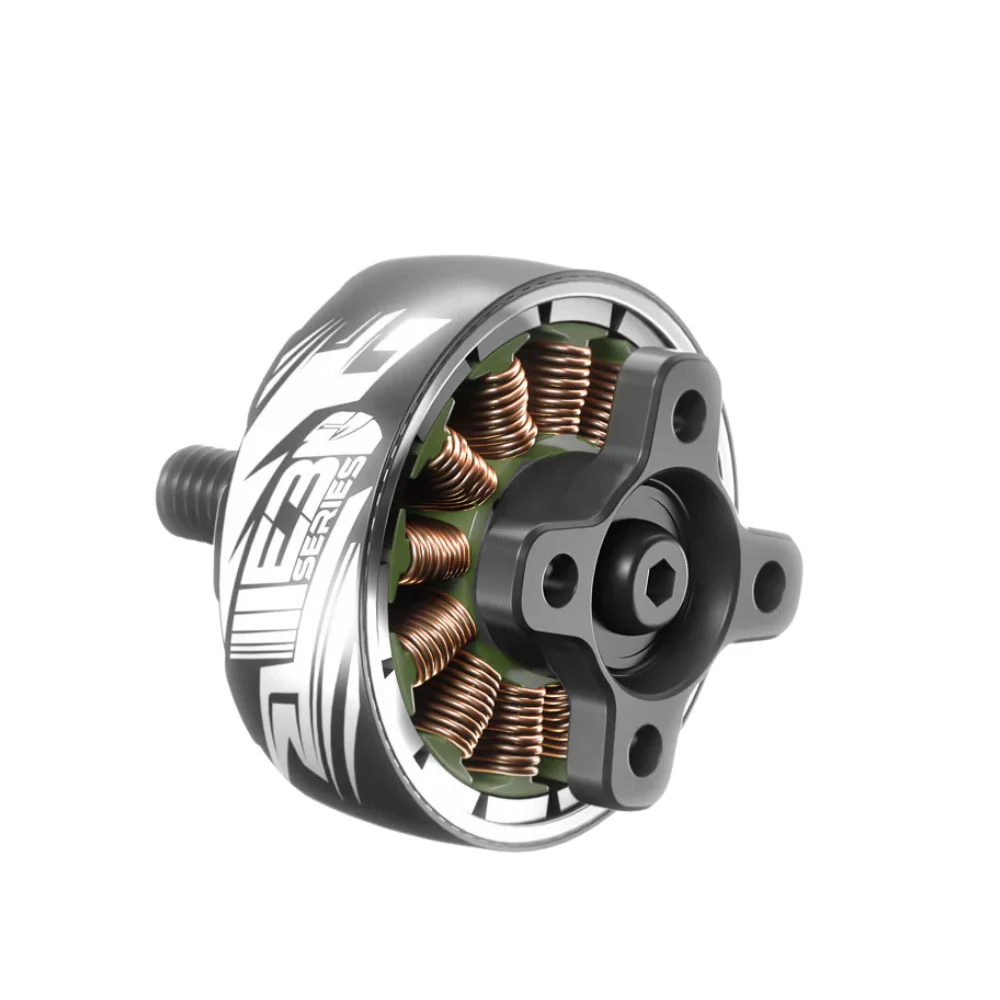

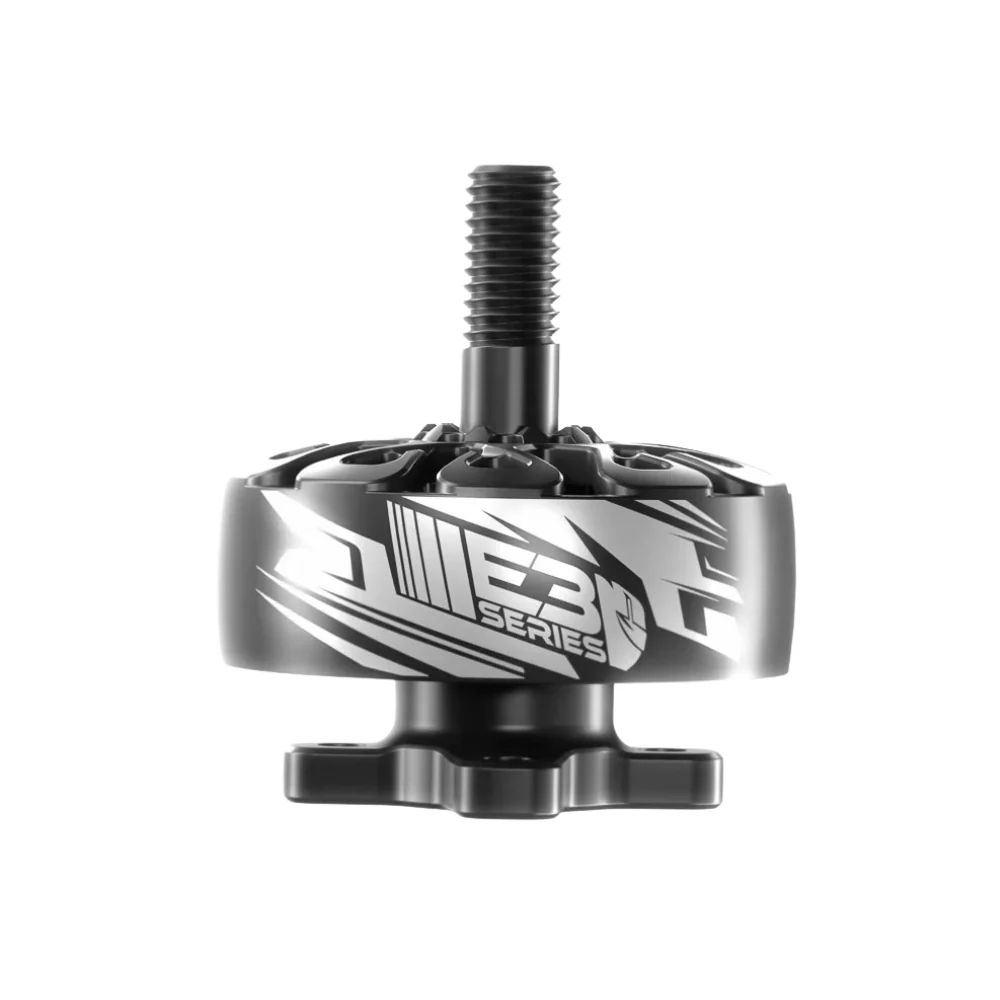

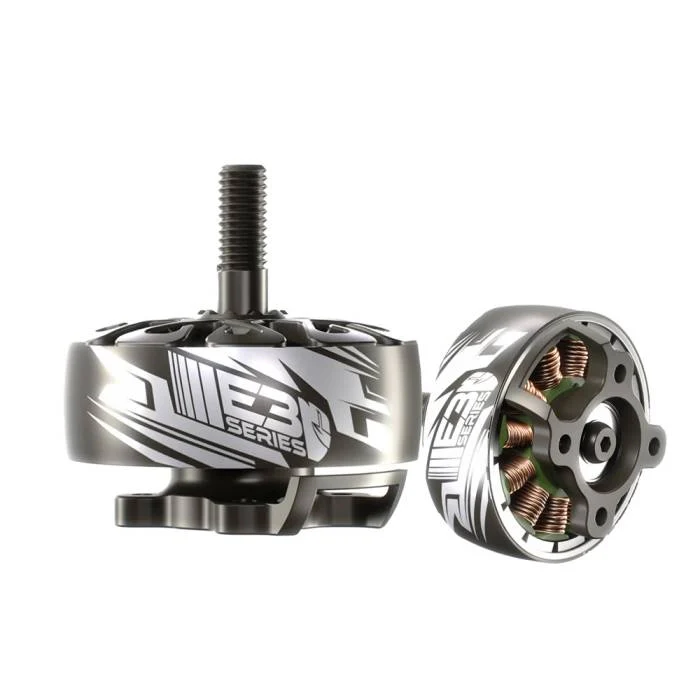

Emax E3 Series 2807 Motor - Choose KV

EMAX E3 Series 2807 Motor is available in 1300KV, 1500KV, and 1700KV options and is built for power-hungry long-range and freestyle drones. With a larger stator size for increased torque, these motors deliver exceptional thrust, smooth performance, and precise control. Perfect for 6"-7" prop setups, the E3 Series ensures maximum efficiency and durability for high-performance FPV flights.

Checkout all our 28xx Motors and the rest of our Emax Products!

Features:

• Smooth and Precise Control
• High-Performance Design
• Durable Construction
• Multiple KV Options
• Prop Compatibility
• Large 2807 Stator


Specifications:

KV1300

• Weight: 49.6g (without silicone wire)
• Motor Dimensions: 34.8*34.9mm
• Propeller Compatibility: 6"-7"
• Internal Resistance: 60mΩ
• Idle Current (10V): 1.4A
• Max Power (65): 1390W
• Lead: 18# AWG 200mm
• Peak Current (65): 55A
• Framework: 12N14P
• Bearing Shaft: 5mm
• No. of Cells: 3-6S

KV1500

• Weight: 49.6g (without silicone wire)
• Motor Dimensions: 34.8*34.9mm
• Propeller Compatibility: 6"-7"
• Internal Resistance: 50mΩ
• Max Power (65): 1590W
• Idle Current (10V): 1.8A
• Lead: 18# AWG 200mm
• Peak Current (65): 63A
• Framework: 12N14P
• Bearing Shaft: 5mm
• No. of Cells: 3-6S

KV1700

• Weight: 49.6g (without silicone wire)
• Motor Dimensions: 34.8*34.9mm
• Propeller Compatibility: 6"-7"
• Internal Resistance: 40mΩ
• Idle Current (10V): 2.1A
• Lead: 18# AWG 200mm
• Peak Current (45): 54A
• Max Power (4S): 907W
• Framework: 12N14P
• Bearing Shaft: 5mm
• No. of Cells: 3-4S

Package Includes:

• 1 x EMAX E3 Series 2807 Motor (Chosen KV)
• 1 x Hardware Kit
