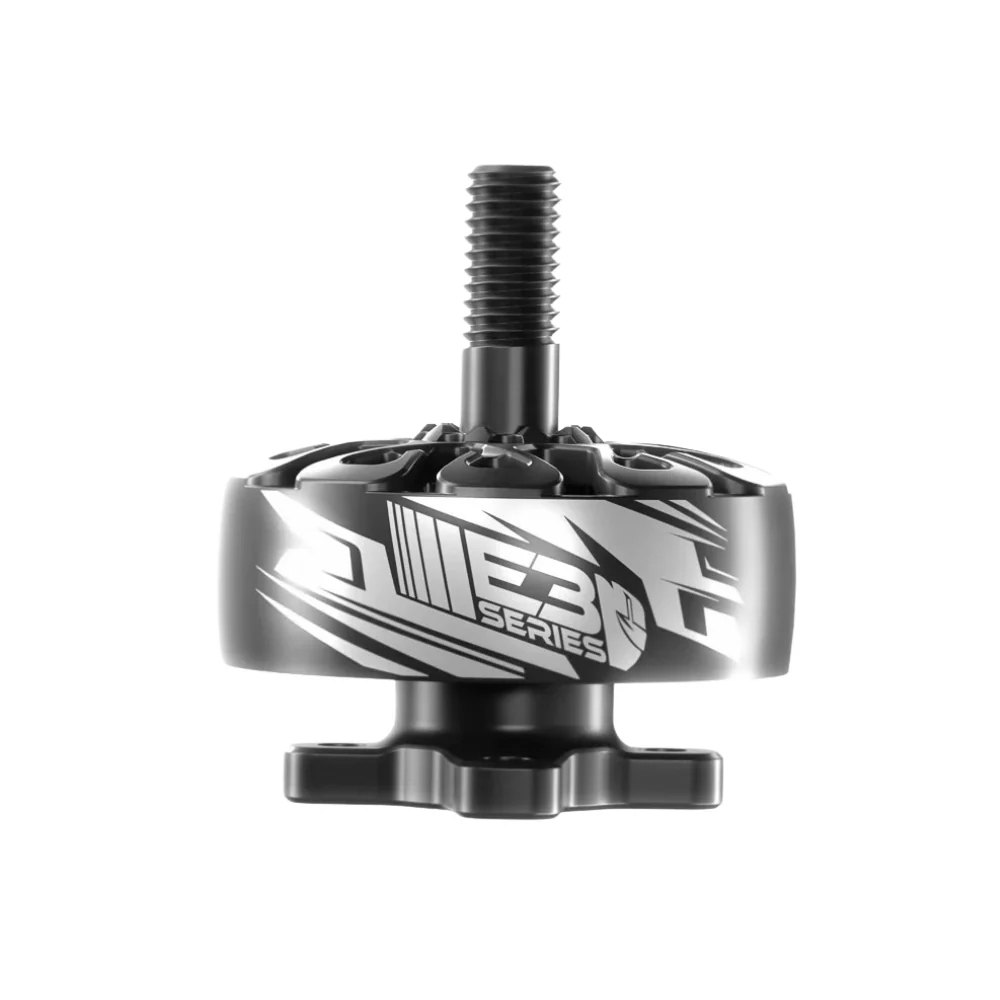

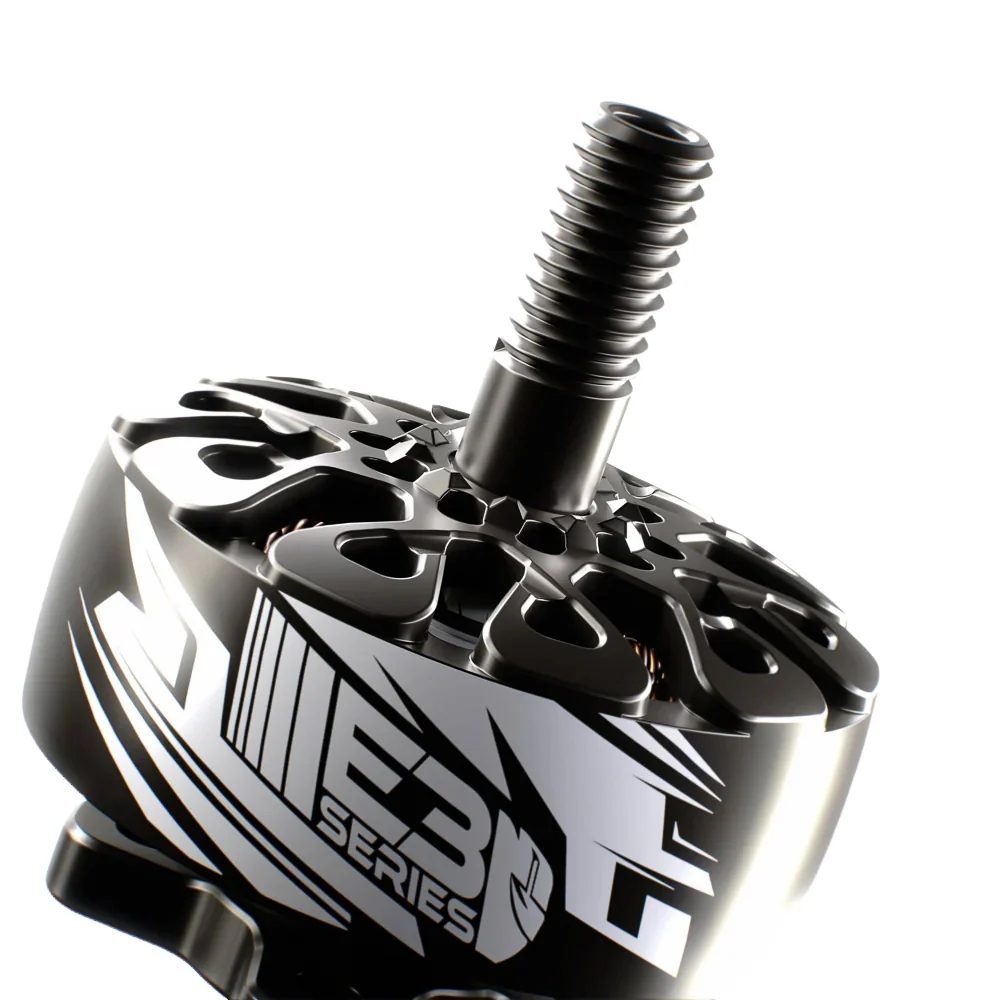

Emax E3 Series 2808 Motor - Choose KV

The EMAX E3 Series 2808 Motor is available in 1300KV and 1500KV and is designed for long-range and cinematic FPV drones. With a larger stator for increased torque and efficiency, these motors provide smooth power delivery, precise control, and reliable performance. Perfect for 7" prop setups, the E3 Series ensures stable, high-performance flights for both freestyle and cruising.

Checkout all our 28xx Motors and the rest of our Emax Products!

Features:

• Optimized for Long-Range and Cinematic Flights
• Smooth Power Delivery
• Durable Construction
• Multiple KV Options
• Prop Compatibility

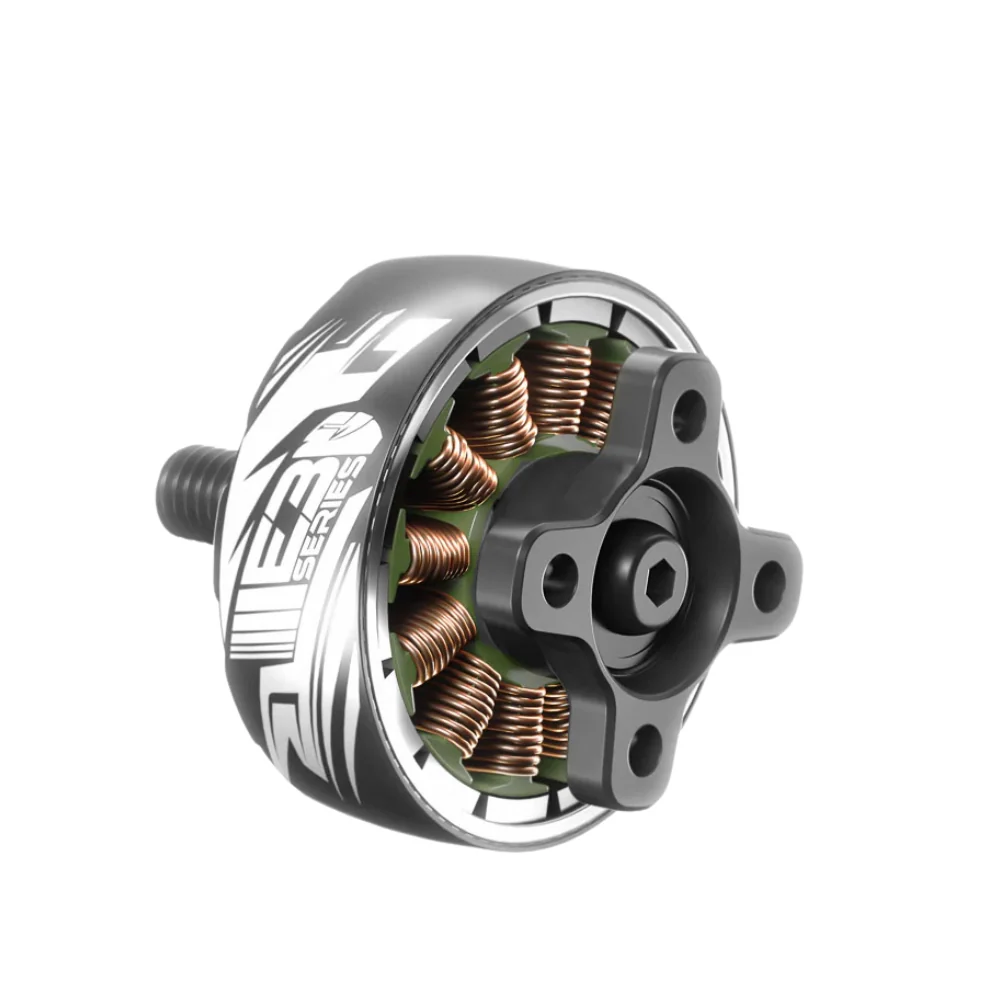

• Large 2808 Stator


Specifications:

KV1300

• Weight: 53.6g (without silicone wire)
• Motor Dimensions: 34.8*37mm
• Propeller Compatibility: 6"-7"
• Internal Resistance: 56mΩ
• Max Power (65): 1410W
• Idle Current (10V): 1.5A
• Lead: 18# AWG 250mm
• Peak Current (65): 56A
• Framework: 12N14P
• Bearing Shaft: 5mm
• No. of Cells: 3-6S

KV1500

• Weight: 53.8g (without silicone wire)
• Motor Dimensions: 34.8*37mm
• Propeller Compatibility: 6"-7"
• Internal Resistance: 47mΩ
• Max Power (65): 1640W
• Idle Current (10V): 1.8A
• Lead: 18# AWG 250mm
• Peak Current (65): 65A
• Framework: 12N14P
• Bearing Shaft: 5mm
• No. of Cells: 3-6S

Package Includes:

• 1 x EMAX E3 Series 2808 Motor (Chosen KV)
• 1 x Hardware Kit
