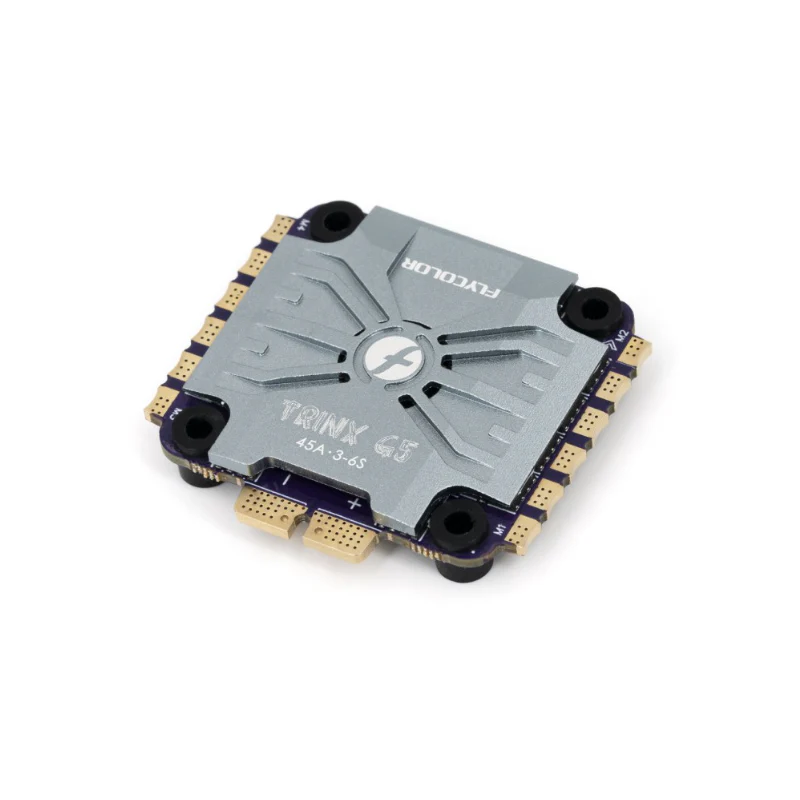

Flycolor Trinx G5 45A 3-6S BLHeli32 4in1 ESC - 30x30mm

Check out the Flycolor Trinx G5 45A 4-in-1 ESC with 45A of continuous current support, you will have plenty of headroom to push your rig to the limit.

 With the high-powered MCU and Raptor 5 firmware, this is a path towards the next level for your builds!

Check out all our 30x30mm Electronic Speed Controllers and the rest of our Flycolor Products!

Features:

• PWM frequency up to 128K, high frequency for higher throttle makes running smoother.
• Multiple Protocols, where all Dshot and Proshot signals are supported
  Supports regular 1-2ms pulse width input, as well as Oneshot125, Oneshot42, and Multshot.
• 4in1 ESC built-in current sensor and VBAT output.
• Aluminum heat sink, with a large surface area of aluminum heat sink can effectively slow down the temperature rise, hence giving longer and better performance when pushing your quad.
• Damping design, hence reducing the effect of vibration on the flight controller.
  Supports higher power load, more suitable for violent flight or racing drone.

Specifications:

• MCU:STM32G071

• LiPo Power input: 3-6S
• Cont.Current: 45A
• Burst Current: 55(10s)
• BEC: No
• Weight: 19.6g (with heat sink)

• Dimensions: 45x41x8.3mm
• Mounting holes: 30.5x30.5mm (M3)
• Throttle Calibration: Supported
• ESC Programming: BLHeliSuite32
• Application: 170-450 Multi
• Firmware: Flycolor_Raptor_5

Package Includes:

• 1 x Flycolor Trinx G5 45A 3-6S BLHeli32 4in1 ESC - 30x30mm
• 4x Silicone Vibration absorber
• 5x O-Ring
• 1x Power Cable with XT60
• 1x FC/ESC connector wire
• 1x Low ESR Capacitor
• 1x Heat sink
• User Manual
