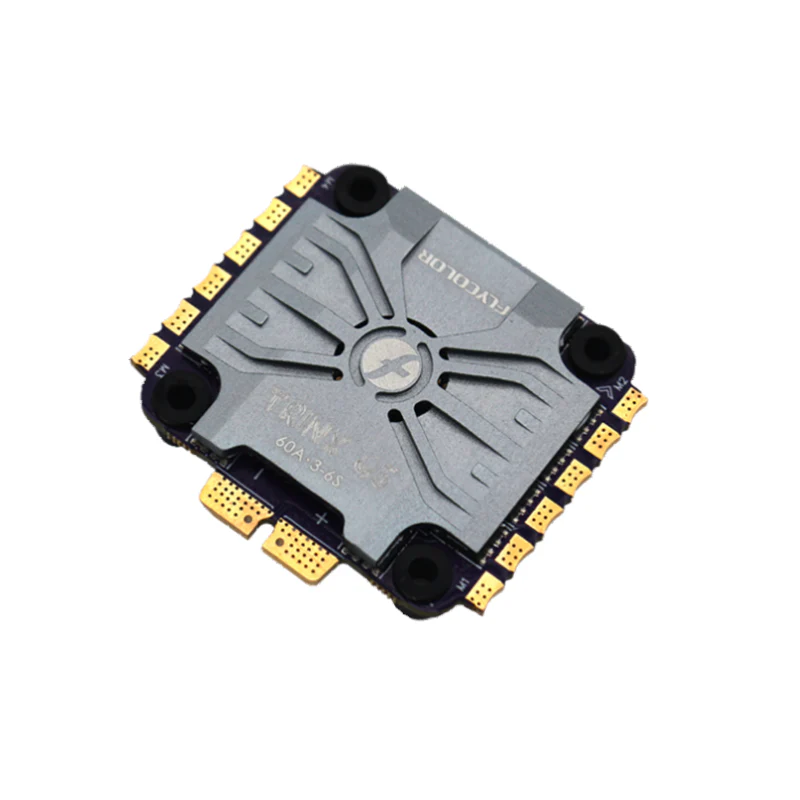

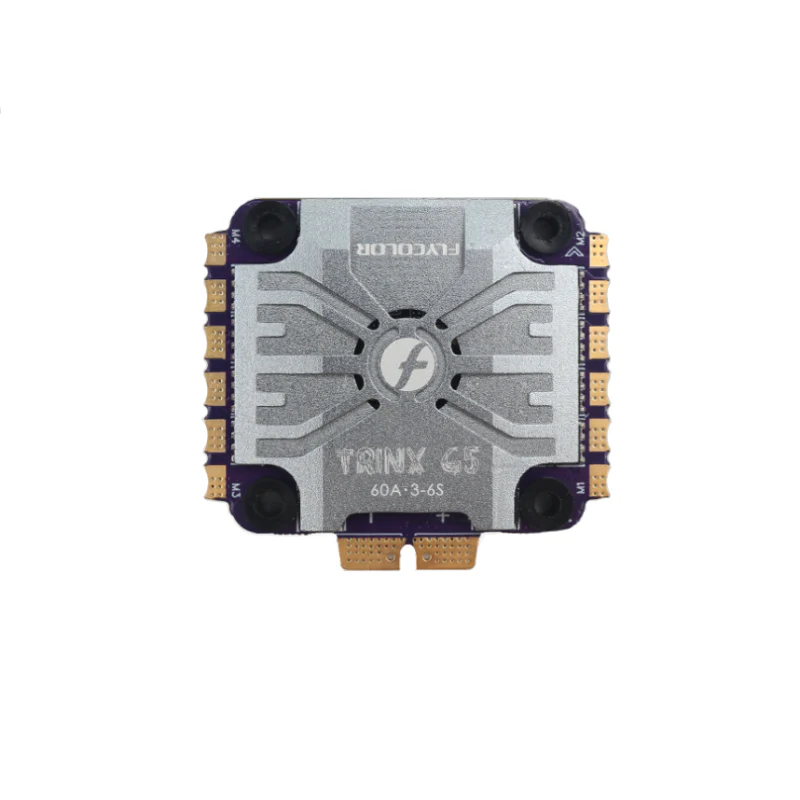

Flycolor Trinx G5 60A 3-6S BLHeli32 4in1 ESC - 30x30mm
Unleash the power of your racing drone with the Flycolor Trinx G5 60A 4-in-1 BLHeli_32 ESC - 30x30. Featuring an aluminum heat sink with a large surface area, this ESC effectively regulates temperature, ensuring prolonged and superior performance during intense flights. The ARM 32-bit Cortex MCU STM32G071, operating at an impressive 64 MHz frequency, delivers a 25% boost compared to its predecessor, enhancing overall responsiveness. With support for various pulse width inputs, high PWM frequency, and a damping design to minimize vibration effects, the Trinx G5 is tailor-made for aggressive flights and racing drones. The 4-in-1 ESC includes a built-in current sensor and VBAT output, providing comprehensive data for optimal control. Weighing only 19.6g with the heat sink, and compact at 45x41x8.3mm, it's an ideal choice for your high-performance FPV drone and cinematography needs.
Check out all our 30x30mm Electronic Speed Controllers and the rest of our Flycolor Products!
Features:
- The aluminum heat sink, with a large surface area of aluminum heat sink, can effectively slow down the temperature rise, hence giving longer and better performance when pushing your quad.
- ARM 32-bit Cortex MCU STM32G071, with a frequency up to 64 MHZ, where that's 25% higher than the previous generation of MCU.
- Supports regular 1-2ms pulse width input, as well as Oneshot125, Oneshot42, and Multshot.
- PWM frequency up to 128K, high frequency for higher throttle makes running smoother.
- Damping design, hence reducing the effect of vibration on the flight controller.
- Supports higher power load, more suitable for violent flight or racing drone.
- Multiple Protocols, where all Dshot and Proshot signals are supported
- 4in1 ESC built-in current sensor and VBAT output.
Specifications:
- Mounting holes: 30.5x30.5mm (M3)
- ESC Programming: BLHeliSuite32
- Throttle Calibration: Supported
- Weight: 19.6g (with heat sink)
- Firmware: Flycolor_Raptor_5
- Dimensions: 45x41x8.3mm
- Application: 170-450 Multi
- LiPo Power input: 3-6S
- Burst Current: 55(10s)
- MCU: STM32G071
- Cont.Current: 45A
- BEC: No

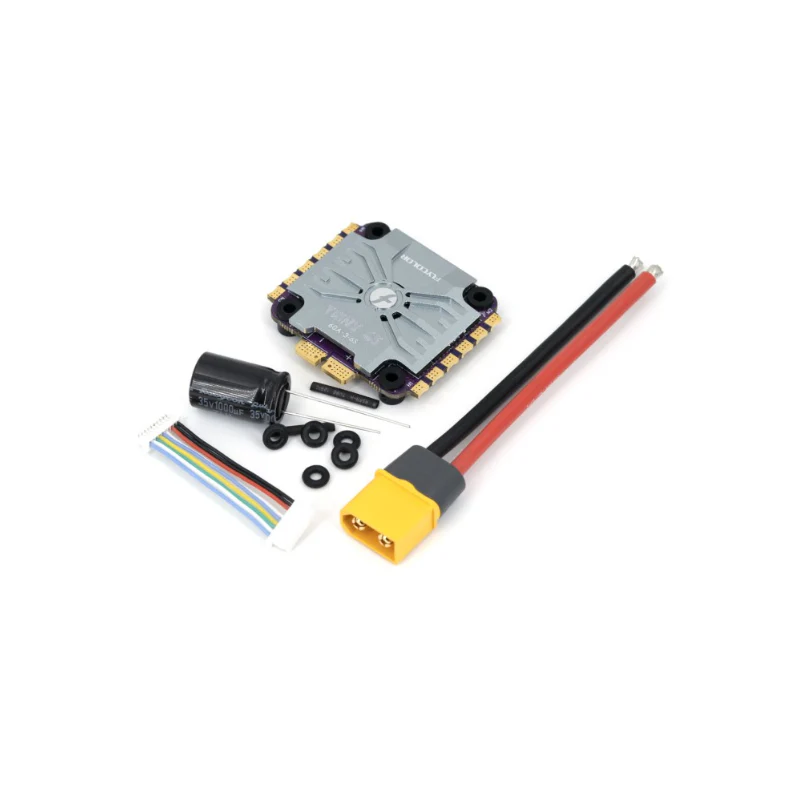

Package Includes:
- 1 x Flycolor Trinx G5 60A BLHeli32 4in1 ESC - 30x30mm
Original: $89.99
-70%$89.99
$27.00
Description
Unleash the power of your racing drone with the Flycolor Trinx G5 60A 4-in-1 BLHeli_32 ESC - 30x30. Featuring an aluminum heat sink with a large surface area, this ESC effectively regulates temperature, ensuring prolonged and superior performance during intense flights. The ARM 32-bit Cortex MCU STM32G071, operating at an impressive 64 MHz frequency, delivers a 25% boost compared to its predecessor, enhancing overall responsiveness. With support for various pulse width inputs, high PWM frequency, and a damping design to minimize vibration effects, the Trinx G5 is tailor-made for aggressive flights and racing drones. The 4-in-1 ESC includes a built-in current sensor and VBAT output, providing comprehensive data for optimal control. Weighing only 19.6g with the heat sink, and compact at 45x41x8.3mm, it's an ideal choice for your high-performance FPV drone and cinematography needs.
Check out all our 30x30mm Electronic Speed Controllers and the rest of our Flycolor Products!
Features:
- The aluminum heat sink, with a large surface area of aluminum heat sink, can effectively slow down the temperature rise, hence giving longer and better performance when pushing your quad.
- ARM 32-bit Cortex MCU STM32G071, with a frequency up to 64 MHZ, where that's 25% higher than the previous generation of MCU.
- Supports regular 1-2ms pulse width input, as well as Oneshot125, Oneshot42, and Multshot.
- PWM frequency up to 128K, high frequency for higher throttle makes running smoother.
- Damping design, hence reducing the effect of vibration on the flight controller.
- Supports higher power load, more suitable for violent flight or racing drone.
- Multiple Protocols, where all Dshot and Proshot signals are supported
- 4in1 ESC built-in current sensor and VBAT output.
Specifications:
- Mounting holes: 30.5x30.5mm (M3)
- ESC Programming: BLHeliSuite32
- Throttle Calibration: Supported
- Weight: 19.6g (with heat sink)
- Firmware: Flycolor_Raptor_5
- Dimensions: 45x41x8.3mm
- Application: 170-450 Multi
- LiPo Power input: 3-6S
- Burst Current: 55(10s)
- MCU: STM32G071
- Cont.Current: 45A
- BEC: No
Package Includes:
- 1 x Flycolor Trinx G5 60A BLHeli32 4in1 ESC - 30x30mm
