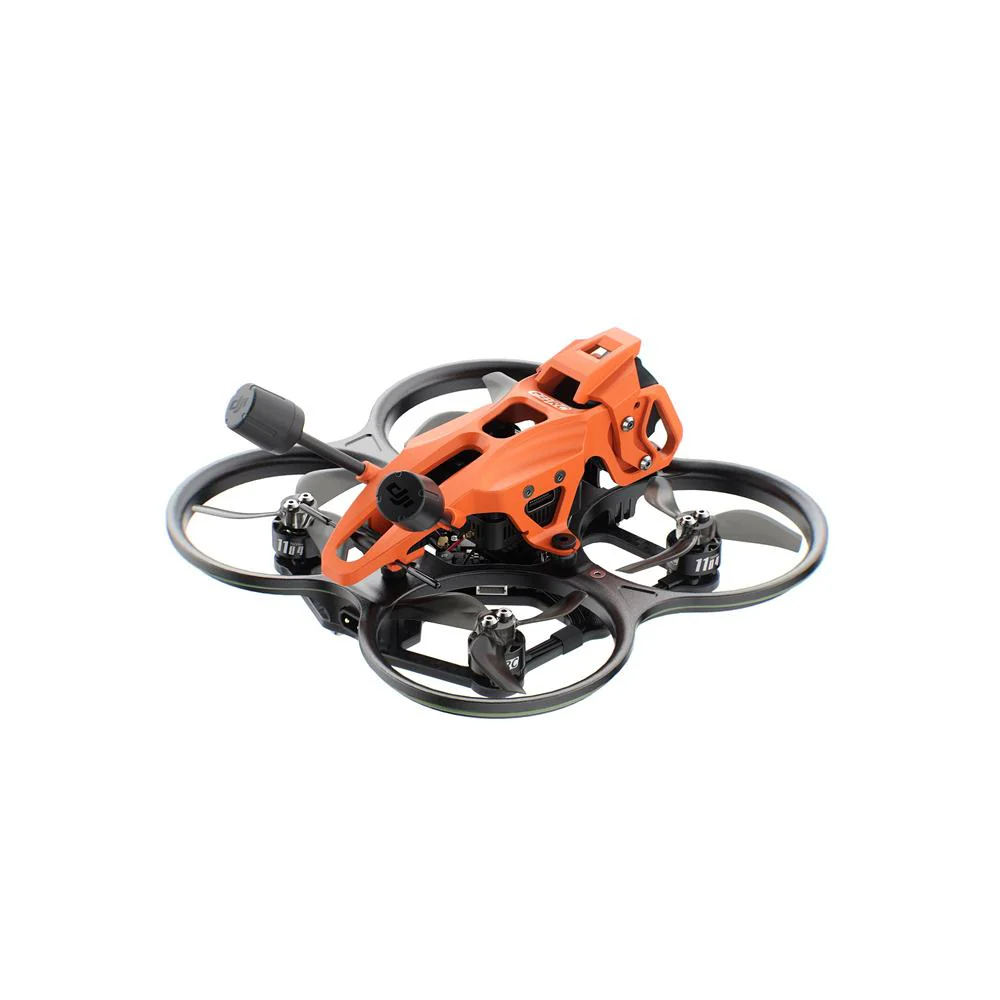

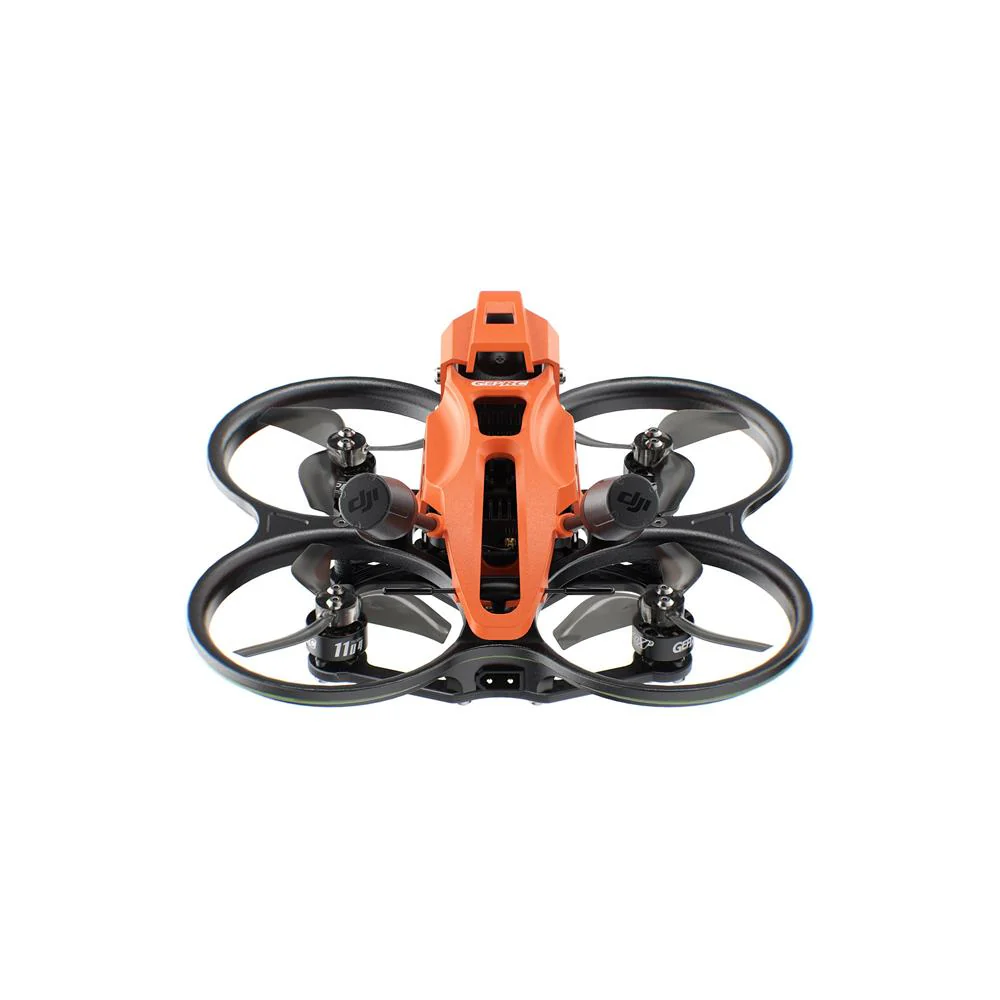

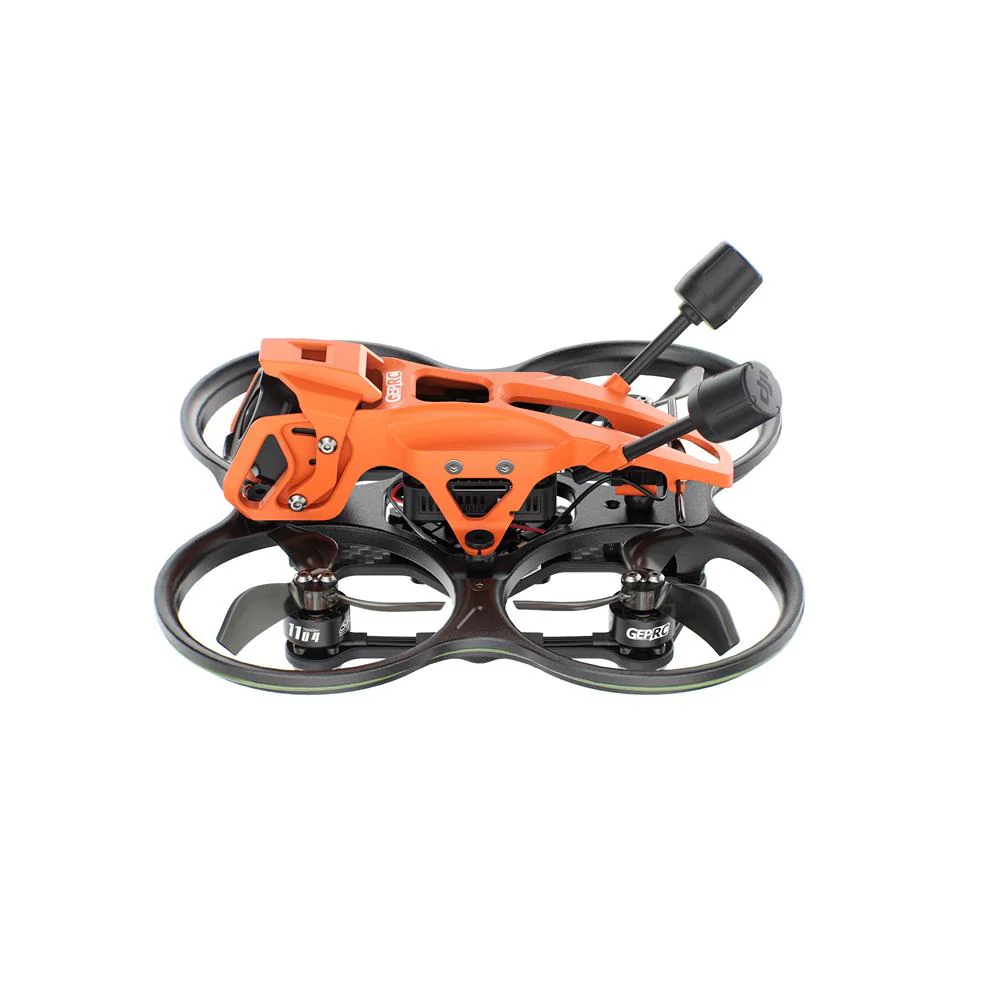

GEPRC DarkStar22 O4 Pro CineWhoop Drone - Choose Receiver

The DarkStar22 combines high performance with portability, equipped with the DJI O4 Pro VTX system, delivering ultra-low latency, HD stable long-range transmission.

It features the latest TAKER F405 20A ELRS2.4 2-4S AIO flight controller with an integrated receiver, eliminating the need for an additional RX and ensuring compatibility with all mainstream ELRS protocol radios. The innovative five-point floating damping system provides a stable working environment for the O4 Pro gyro, enabling smooth and stabilized video output.

With a reserved GPS mount, pilots can enjoy safer flights in complex outdoor environments. The SPEEDX2 1104 7500KV motors, paired with newly designed high-efficiency 2219 props, deliver a strong punch while maintaining an excellent balance of power and endurance.

The entire build is compact, reinforced with a thickened canopy and prop guards for crash resistance, making it beginner-friendly and safe to fly both indoors and outdoors. Truly a performance beast among micro cinewhoops!

You can find here The GEPRC DarkStar22 Frame and Parts Collection.

Check out our BNF Cinewhoop Collection, All our Digital BNF/PNP/RTFs and the rest of our GEPRC Products!

Features:

• Mini-sized drone with DJI O4 Pro HD system, supporting up to 4K 120fps recording.
• Powered by the latest TAKER F405 20A ELRS2.4 2-4S AIO with integrated ELRS 2.4G receiver.
• Camera protection canopy effectively shields the O4 Pro camera module.
• All-new five-point damping design, enhancing stability for the O4 Pro camera module.
• Simple body structure – only 4 screws to disassemble the frame.
• LED strip powered by a mini controllable BEC – small in size, big in function.
• O4 Pro mounting module includes reserved GPS slot, supporting most mainstream Mini GPS modules.


Specifications:

• Model: DarkStar22 O4 Pro
• Frame: GEP-DS22
• Main Carbon Plate Thickness: 2.5mm
• Wheelbase: 100mm
• FC System: TAKER F405 20A ELRS2.4 2-4S AIO
• MCU: STM32F405
• Gyro: ICM42688-P
• FC Firmware: GEPRC_TAKER_F405 AIO
• Flash: 16MB
• ESC: 8Bit 20A
• Motor: SPEEDX2 1104 7500KV
• Propellers: GEPRC x GEMFAN GP2219-3
• Power Connector: XT30U-M
• VTX: DJI O4 Air Unit Pro
• Camera: DJI O4 Air Unit Pro camera module
• Antenna: DJI O4 Air Unit Pro antenna
• Receiver: PNP (O4 Pro built-in RX) / ELRS 2.4G
• Weight (ELRS 2.4G version): 126.8g
• Recommended Battery: GEPRC Storm LiHV 3S 720mAh
• Flight Time: 6min45s (tested under smooth cruising; actual flight time depends on flight style)


Package Includes:

• 1 × DarkStar22 Drone
• 1 × Prop Guard
• 1 × Canopy
• 1 × Camera Cover
• 1 × Battery Pad
• 2 × Propellers (pairs)
• 1 × 10*120mm Battery Strap
• 1 × L-shaped Hex Wrench 1.5mm
• 1 × Battery Anti-slip Pad
• 1 × Damping Ball Punch Tool
• 1 × Binding Pin
• 1 × USB Adapter Board
• 1 × 5P Terminal Cable

Spare Screw Pack Includes:

• 2 × Damping Balls
• 4 × M2*4 Round-head Screws
• 4 × M2*7 Round-head Screws
• 4 × M2*6 Countersunk Screws
• 4 × M2*5 Countersunk Screws
• 4 × M2*6 Round-head Screws
• 4 × M2*7 Countersunk Self-Tapping Screw
