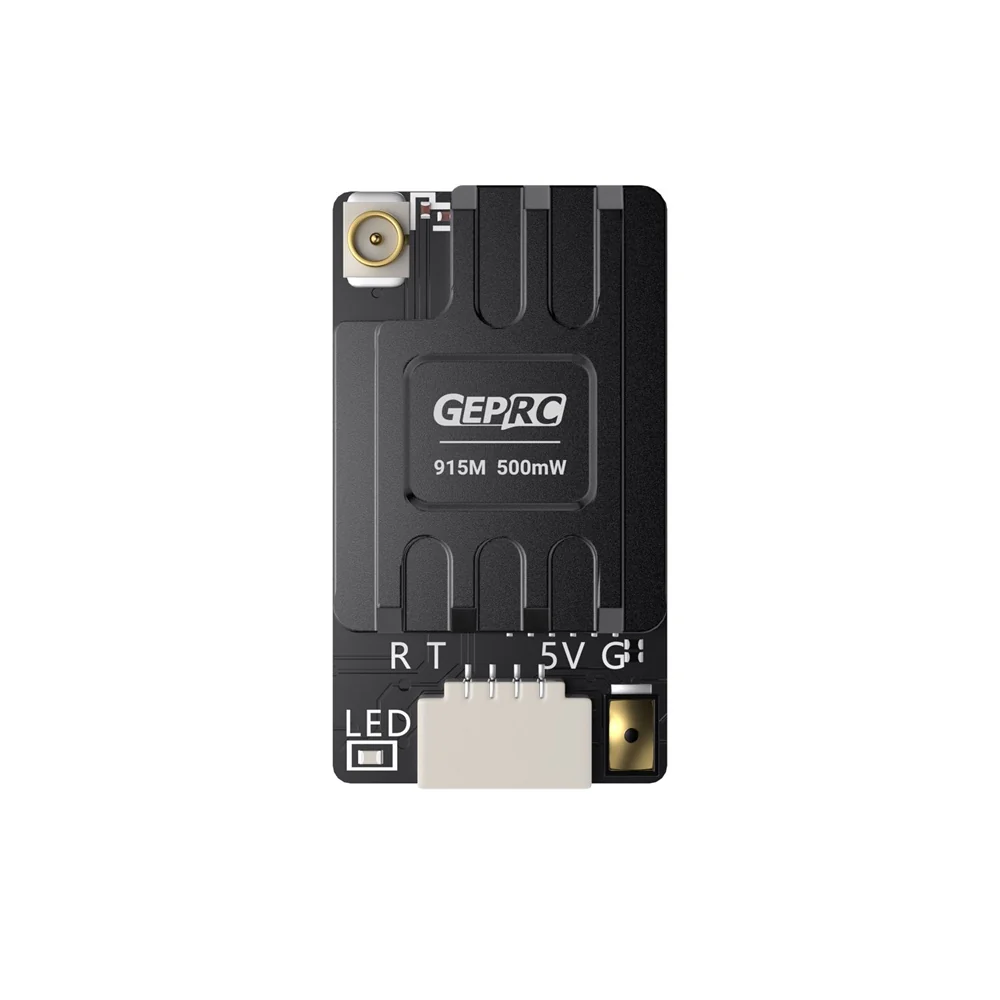

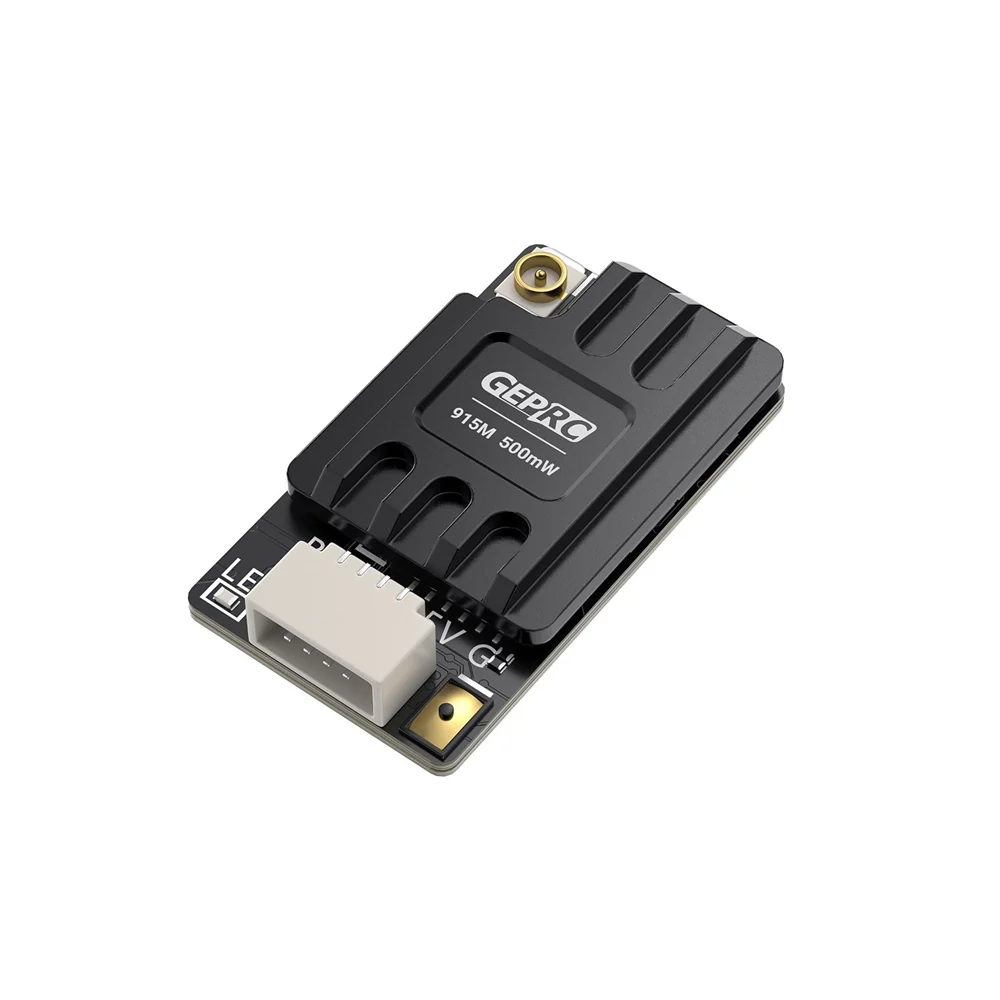

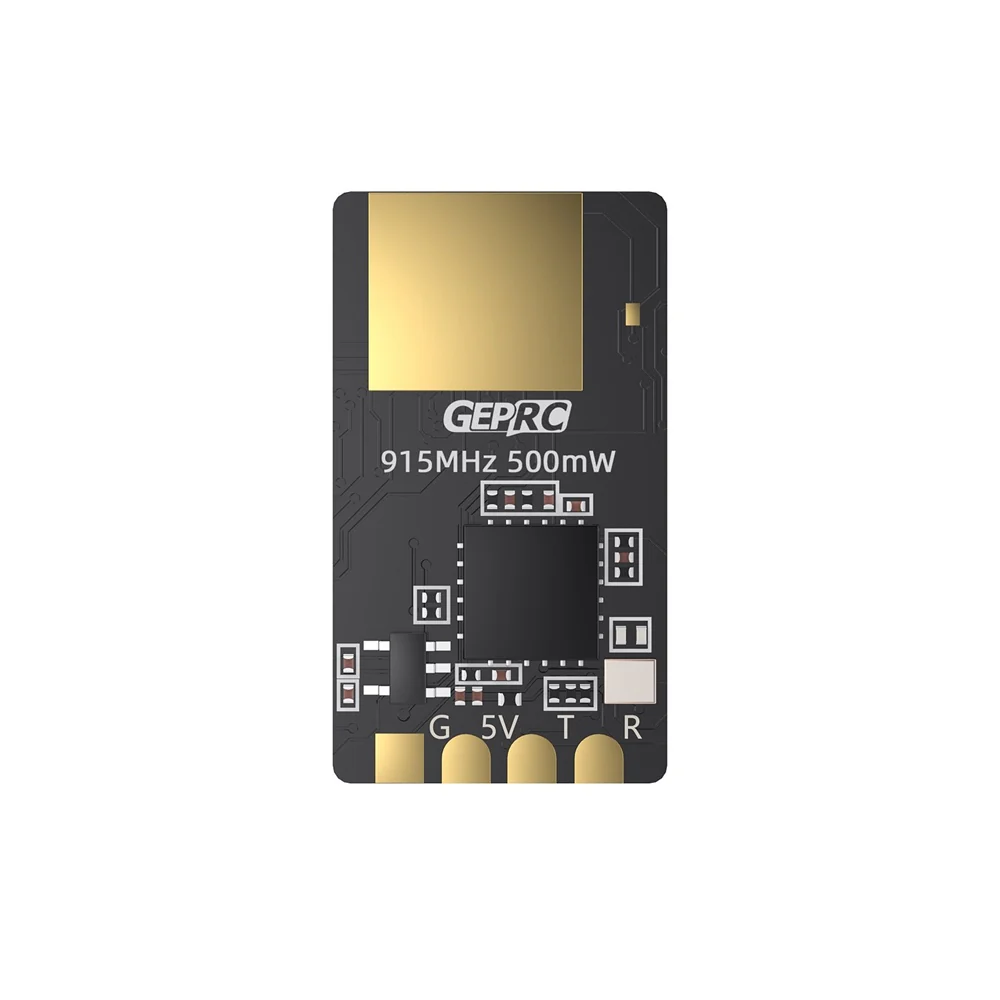

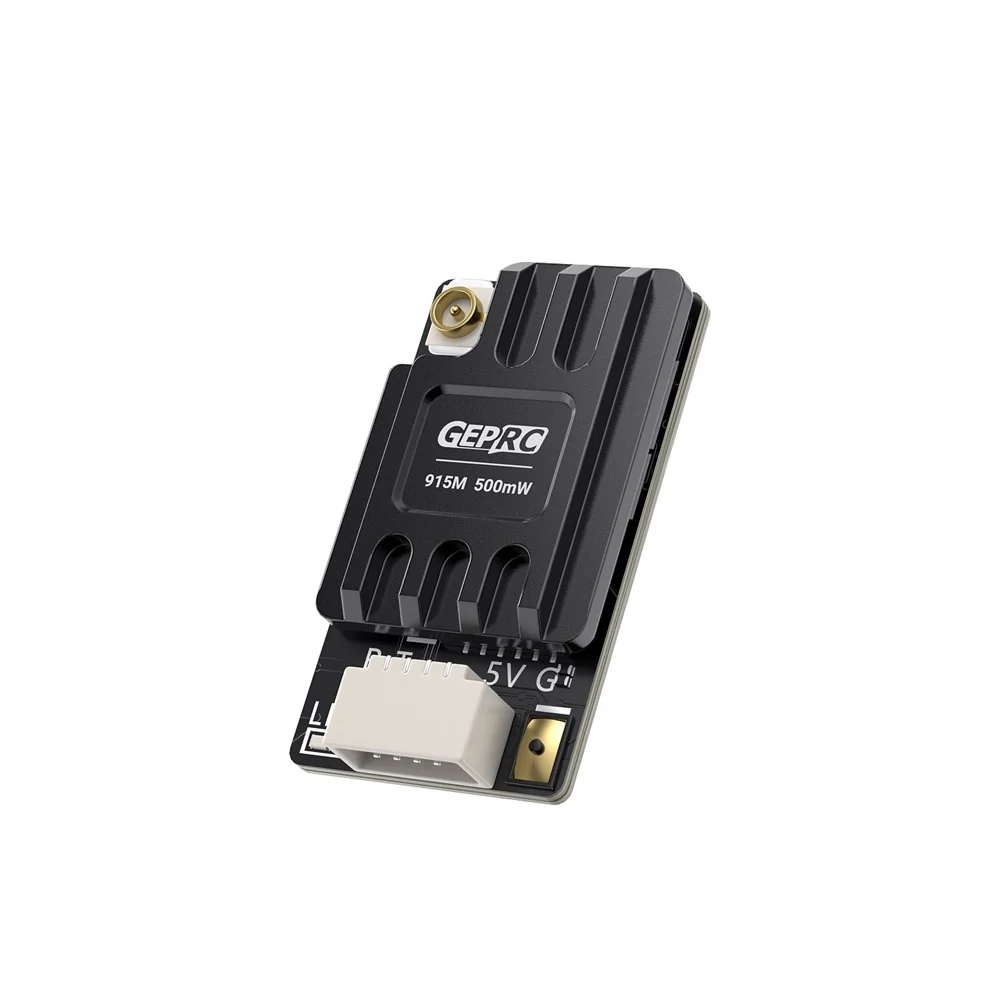

GEPRC ELRS Nano 915M PA500 Receiver (Without Antenna)

The GEPRC ELRS Nano 915M PA500 receiver is an advanced reception system based on the ExpressLRS open-source project. ExpressLRS offers long-range operation, low latency, high refresh rates, and affordability.

The ELRS Nano 915M PA500 receiver features a TCXO (temperature-compensated crystal oscillator) to prevent frequency shifts caused by temperature changes. It adopts an integrated high-power PA chip, boasting a telemetry power of up to 500mW. It features a built-in WIFI antenna, facilitating firmware upgrades effortlessly via WIFI, and offers convenient installation with its sh1.0 connector.

Check out all our Receivers and the rest of our GEPRC Products!

Features:

•  Compact size of 13x23x5.5mm

•  Weighing only 1.9g

•  WIFI firmware upgrade

•  ELRS open-source project, long-range remote control

•  Maximum refresh rate of 200Hz
•  Uses a temperature-compensated crystal oscillator (TCXO) for stable performance in extreme temperatures, ensuring control stability during long operations

•  Features a built-in high-power PA chip, providing a maximum Telemetry power of 500mW

• Equipped with an sh1.0 connector for easy installation

•  Adopts an aluminum alloy CNC shell to optimize heat dissipation

Specifications:

• Model: GEPRC ELRS Nano 915M PA500 receiver

• Dimension: 13x23x5.5mm

• Weight: 1.9g (RX only)

• Chips: ESP8285, SX1276

• Crystal Oscillator: TCXO

• Frequency Band: 915MHz FCC /868MHz EU

• Refresh Rate: 25Hz-200Hz

• Operating Voltage: 5V

• Antenna Connector: ipex1

• Telemetry Power: 500mW

• Firmware: GEPRC Nano 915M PA500 RX

Package Includes:

• 1 x ELRS Nano 915M PA500 receiver
