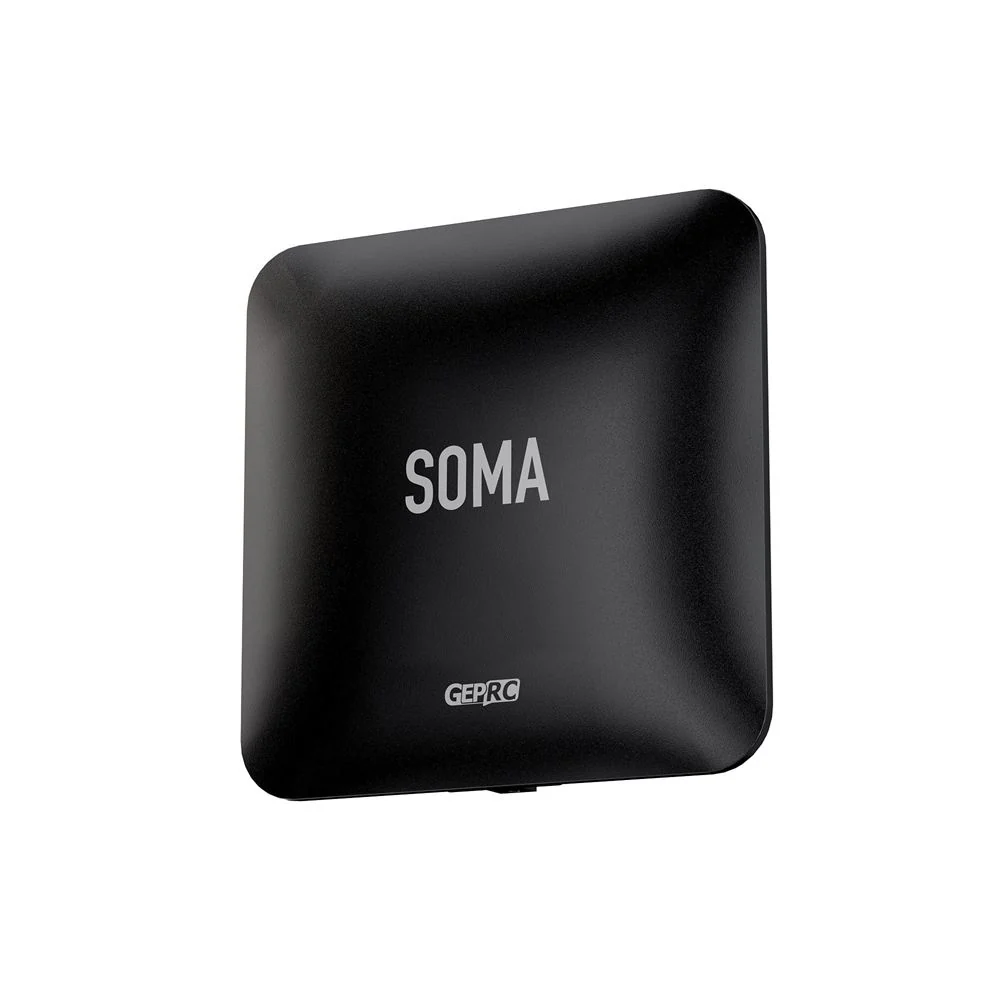

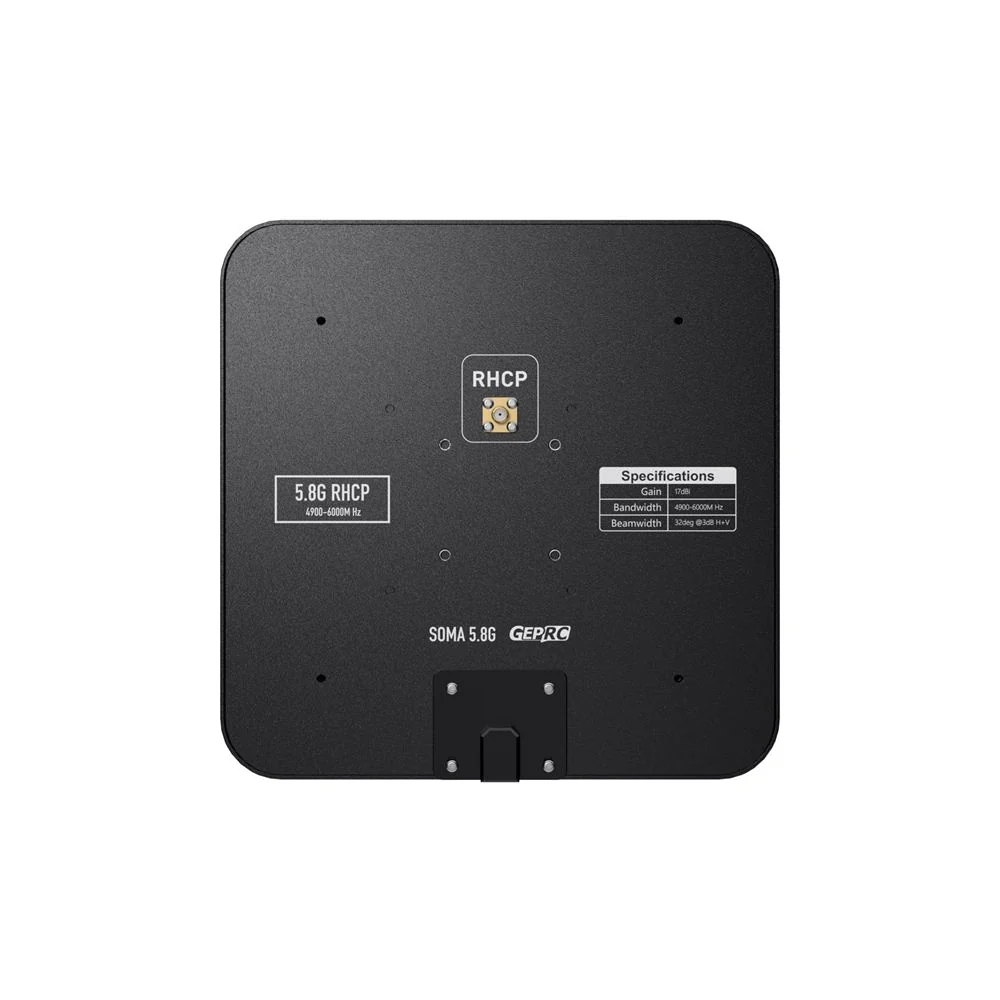

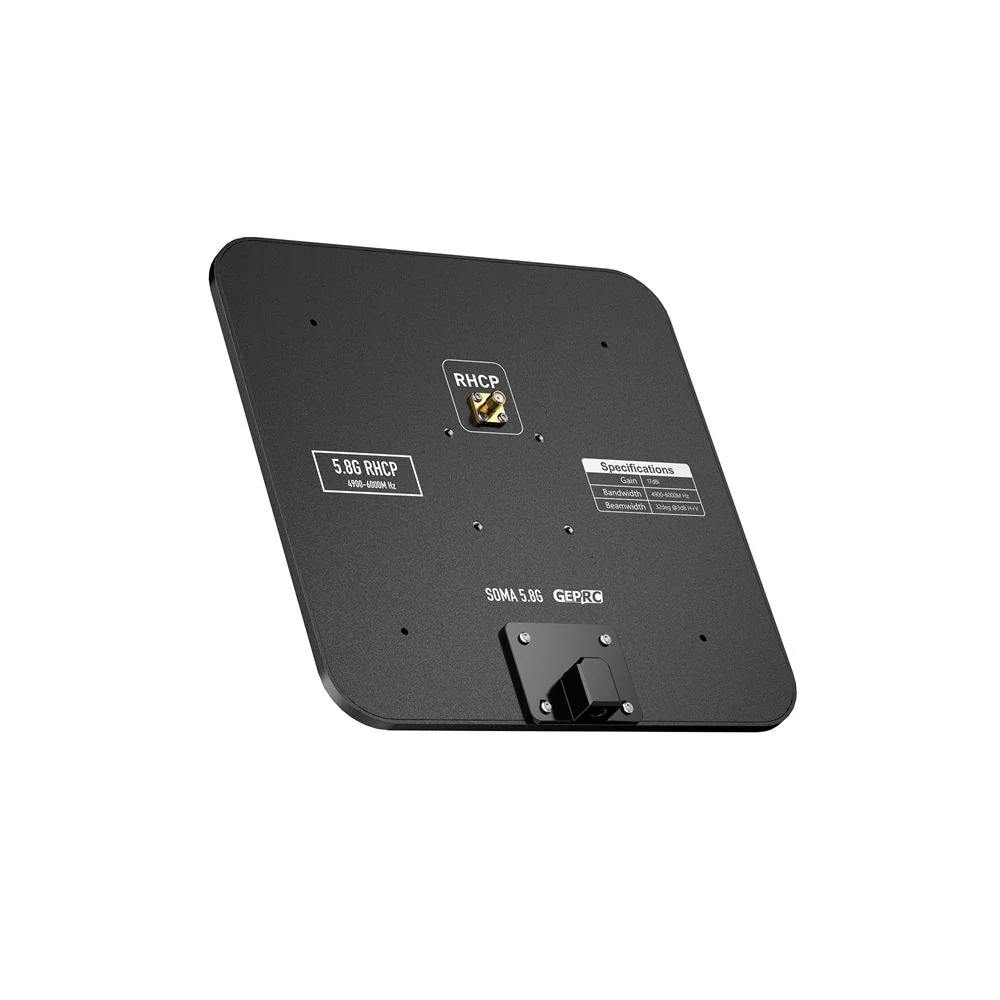

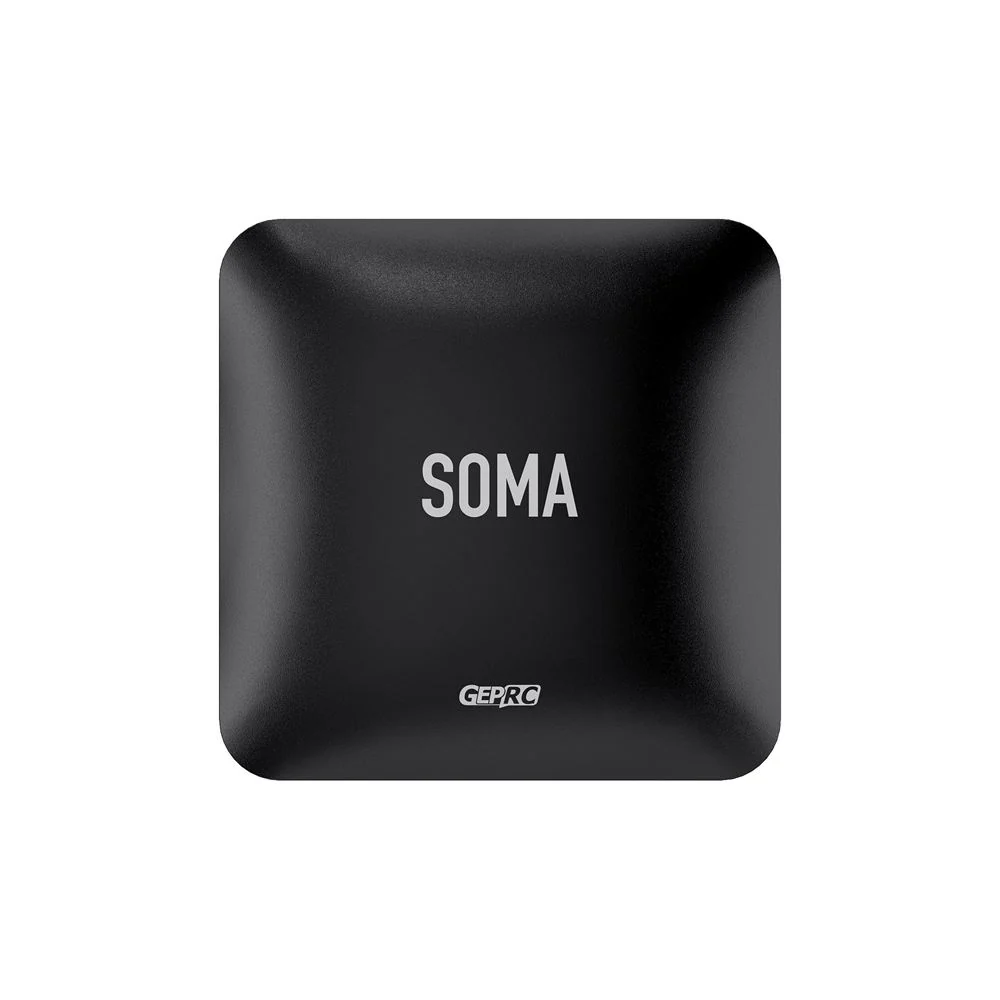

GEPRC SOMA 5.8GHz Directional Patch FPV Antenna (SMA)

The GEPRC SOMA 5.8G Directional Flat-Panel Antenna features a high-frequency PCB RF solution, offering a high gain of up to 17dBi and a low average VSWR of 1.5, ensuring excellent signal reception.

It’s compatible with various brackets and is built with a durable 1/4 aluminum alloy base. The antenna features a sleek, high-tech design, with an integrated injection-molded casing for superior structural integrity

Check out all our FPV Antennas and the rest of our GEPRC Products!

Features:

•  Smooth, ultra-thin design.
• Low VSWR, high gain directional antenna, up to 17dBi.
•  1/4 aluminum alloy base, compatible with various brackets.
•  High-quality SMA connector for lower impedance and better transmission efficiency.
•  Each antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standards

Specifications:

• Model: GEPRC SOMA 5.8G Directional Patch Antenna
• Center Frequency: 5.45GHz
• Bandwidth: 4.9GHz~6GHz
• Polarization: RHCP
• Gain: 17dBi
• Axial Ratio: ≤3
• SWR：≤1.5
• Radiation Efficiency: 88.5%
• Cross polarization suppression: -25dB
• Overall Dimension: 203.5mm x 203.5mm x 20mm
• Antenna Weight: 272g
• Enclosure Material: ABS
• Connector Type: SMA (external thread, internal hole）


Package Includes:

• 1 x GEPRC SOMA 5.8GHz Directional Patch FPV Antenna (SMA)
