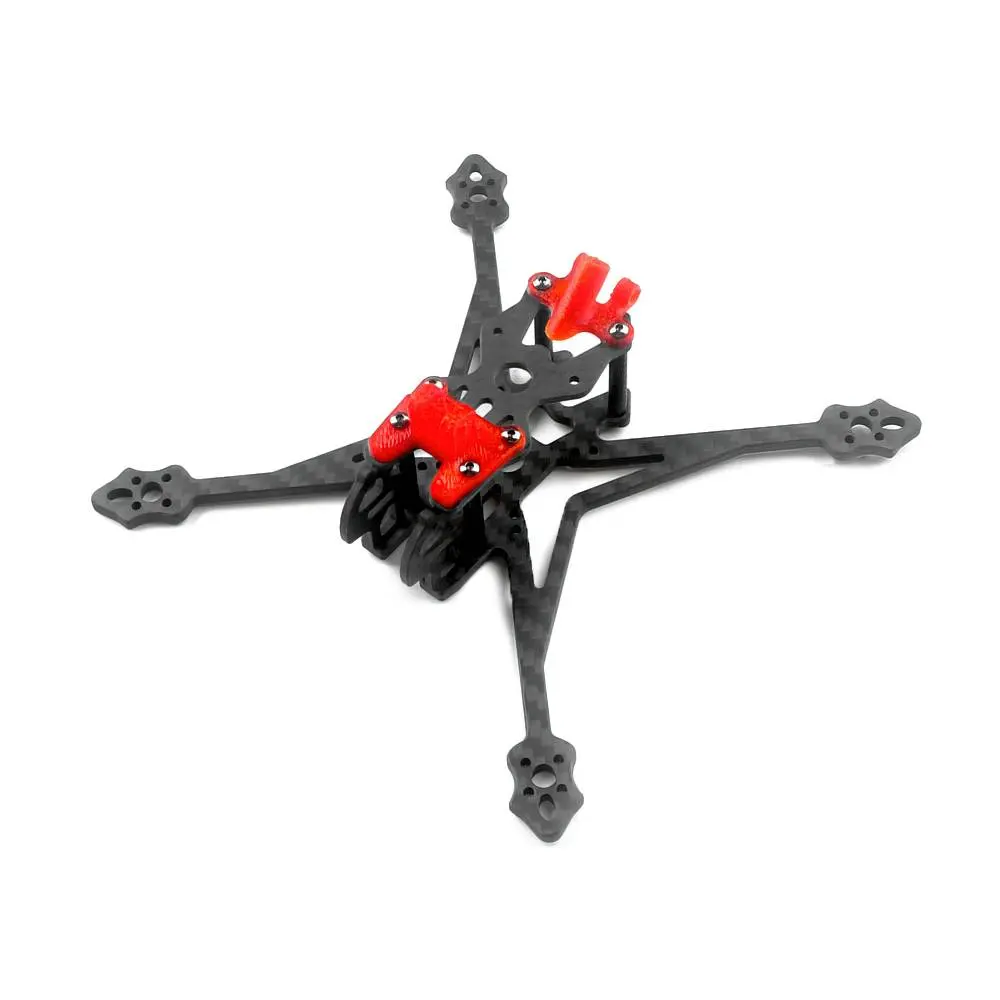

Happymodel Crux35 Micro Freestyle FPV Drone Frame Kit

This Happymodel Crux35 Micro Freestyle FPV Drone Frame Kit is for the Crux35 Analog and the Crux35 HD Micro Drone.

Note: This is a Frame Kit Only, Electronics and Battery are not included.

Recommended (Not Included): Battery 4S 14.8v 750mAh to maximum 1100mAh.

You can choose from our Compatible 4S Lipo Packs here

Check out The HappyModel Crux35 Frame and Parts Collection, all our BNF/RTF Drones and the rest of our Happymodel Products!





 Features

• Ultra-lightweight 3.5-inch BNF FPV Freestyle Drone
• Can be equipped with Naked Gopro or SMO4K

• Support 3-4S battery 4S 750mah battery is recommended, maximum support 4S 1100mah
• Great for Freestyle Racing
• 3mm Carbon Fiber

• 3.5-inch Arms

Specifications

• FC Mounting Pattern: 25.5mmx25.5mm and 20mmx20mm with M2 hole
• Supports camera size: 14x14mm
• Bottom plate thickness: 3mm
• Material: 3K carbon fiber
• Type: 3.5 inch Frame
• Wheelbase: 150mm
• Weight: 26gram

• Size: 130mmx130mmx45mm(without propellers)

• Flying time: 9min~15min 4s 750mah battery

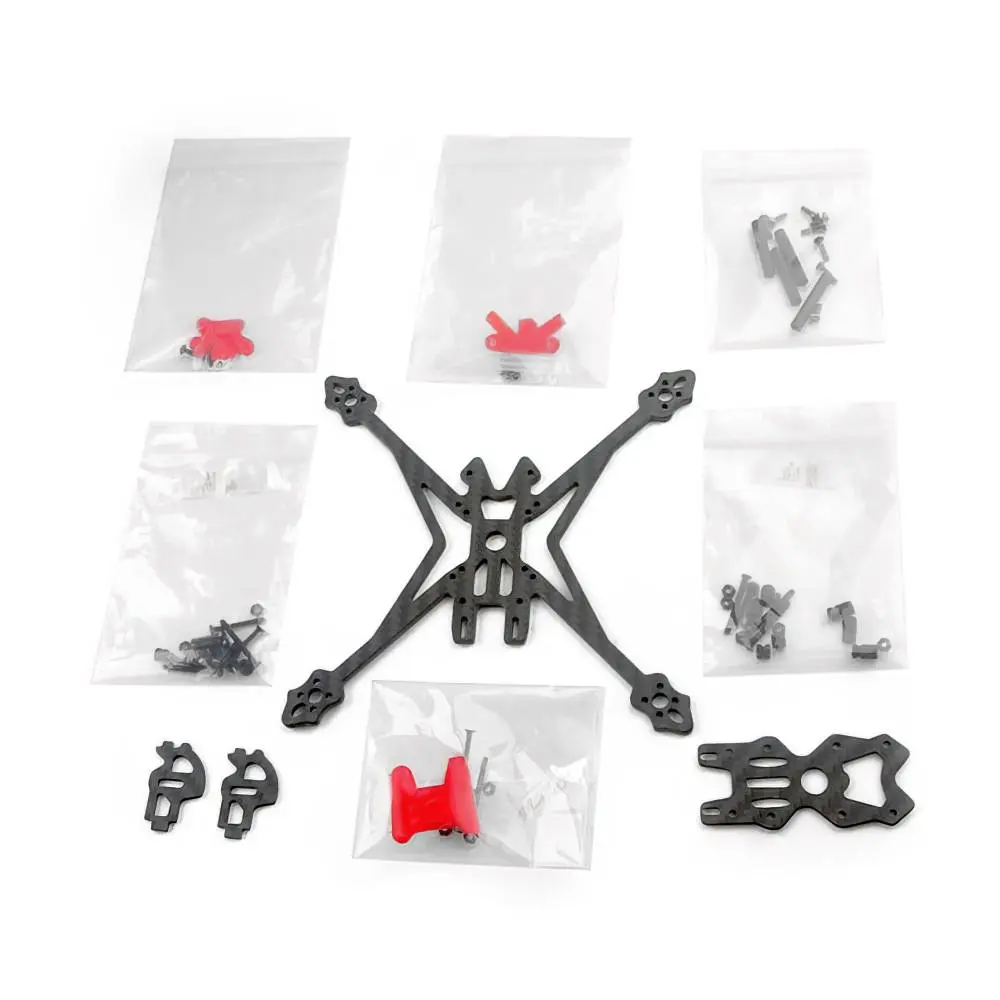

Package Includes:

• 1 x 3D Printed Parts
• 2 x Camera Plates
• 1 x Bottom Plate
• 1 x Hardware Kit
• 1 x LiPo Strap
• 1 x Top Plate
