Happymodel Mobula6 Race HD 1S HDZero AIO5 ELRS 2.4GHz 65mm Ultra Light Micro FPV Whoop - BNF
Happymodel Mobula6 Race HD 1S HDZero AIO5 ELRS 2.4GHz 65mm Ultra Light Micro FPV Whoop - BNF

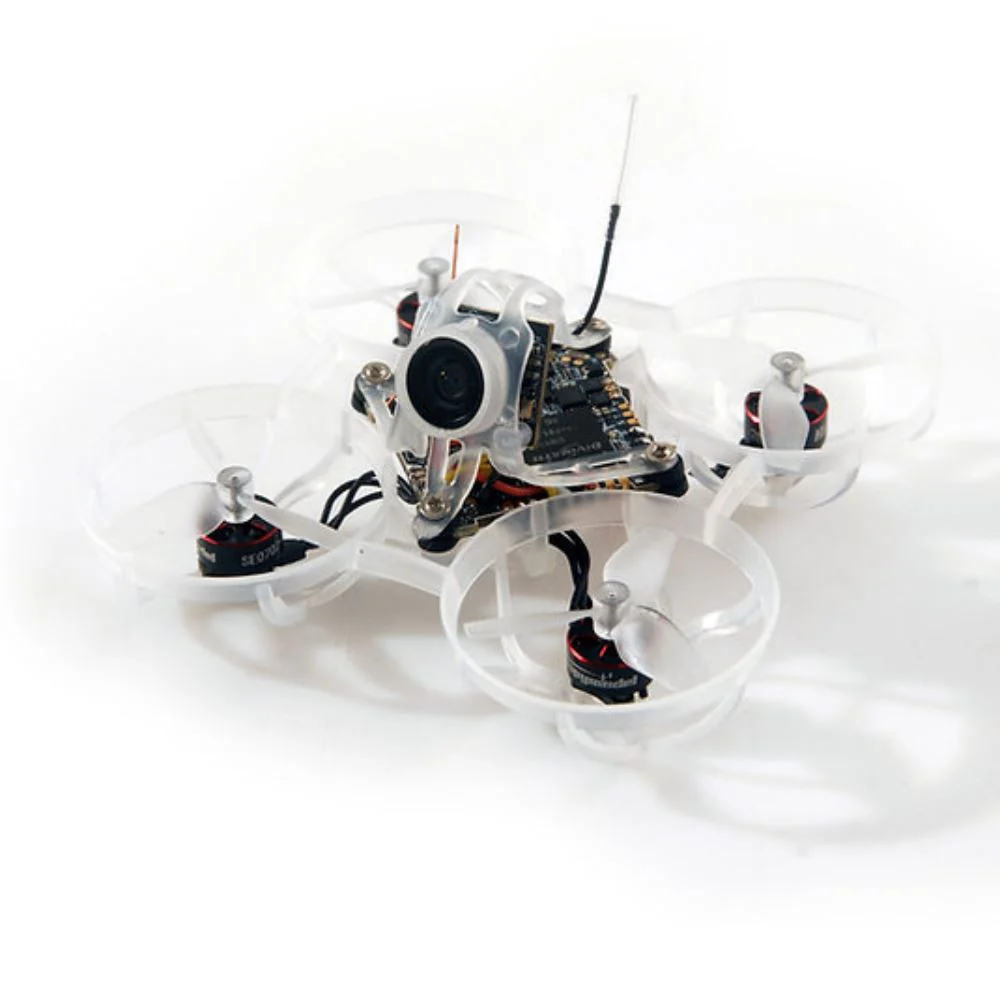

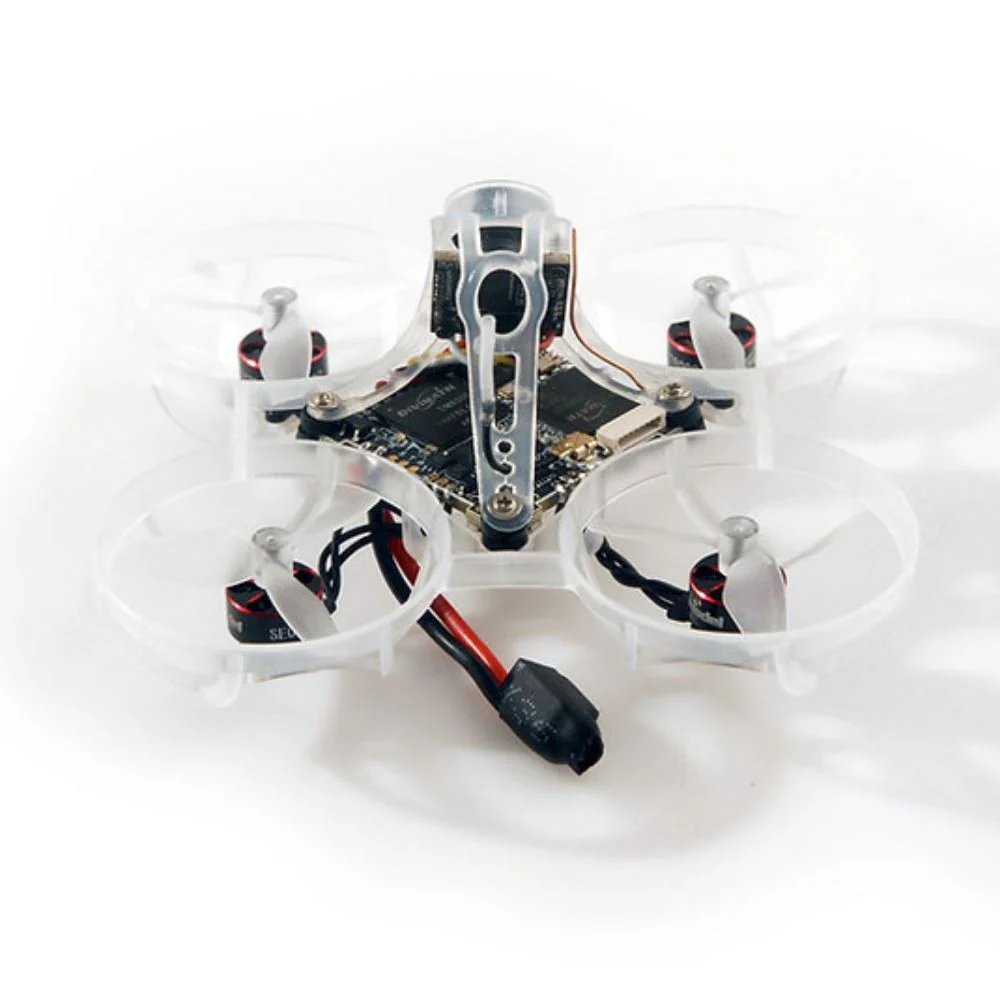

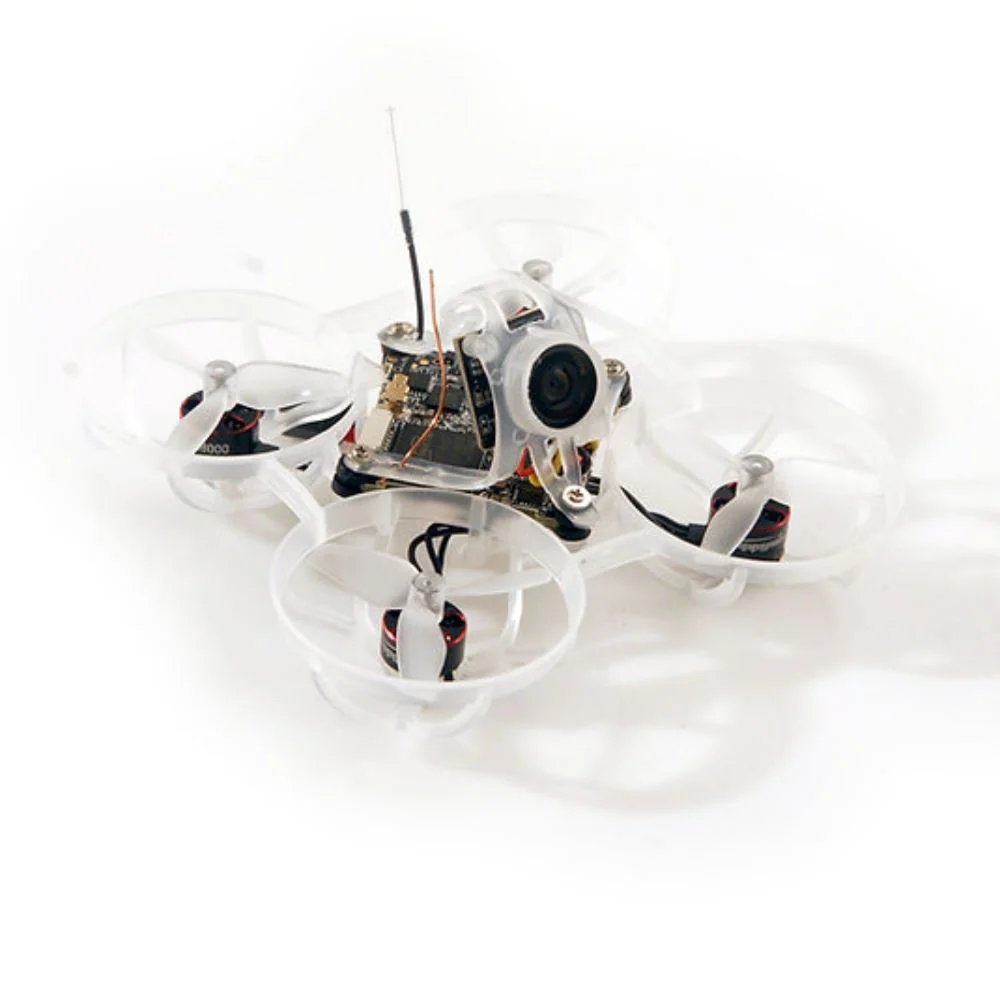

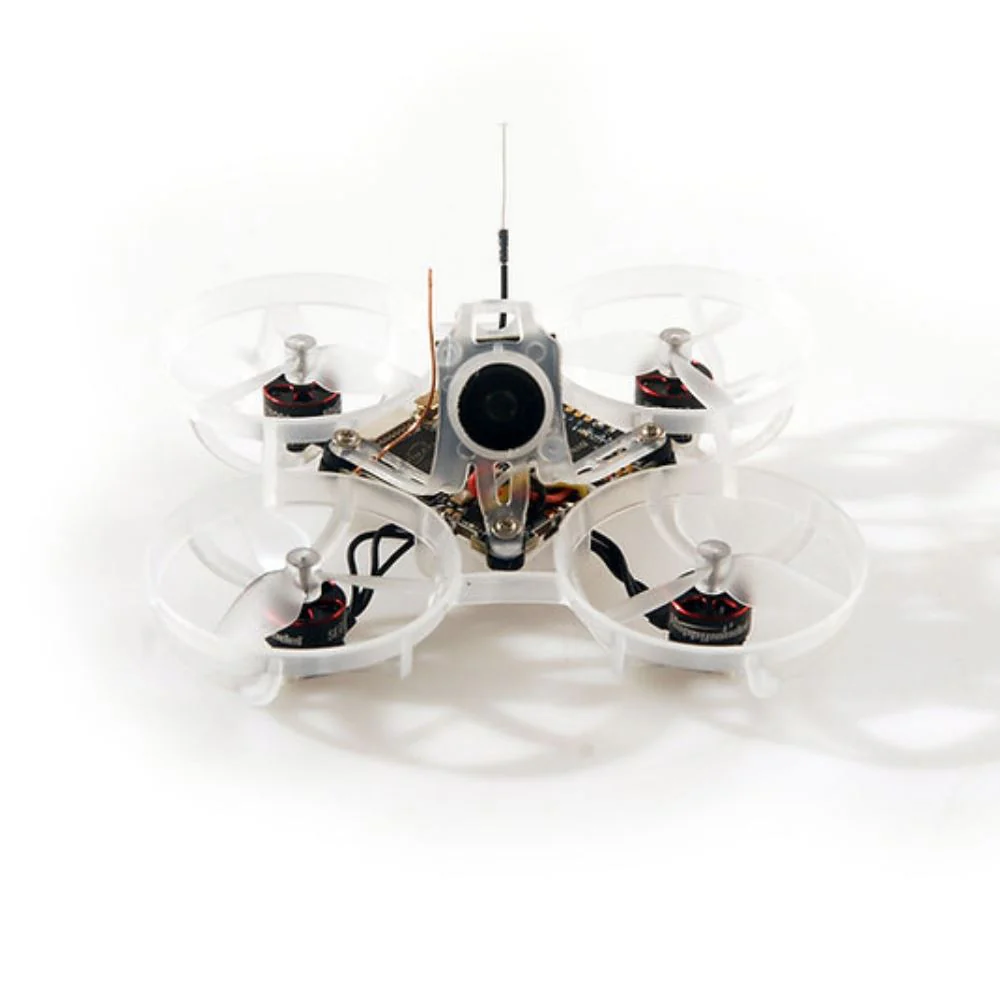

The Happymodel Mobula6 Race HD BNF is the first 65mm HD brushless tiny whoop that weighs less than 19.4g. With tiny whoops, every gram makes a large difference in flight performance. To achieve such a low weight, HDZero has developed the worldās first 5-in-1 AIO that contains a HDZero VTX, FC, ESC, ELRS RX, and 5V1A BEC. Using a single thick PCB rather than a stack of 2 improves durability and simplicity ā get ready for a new era of no-compromise tiny whooping in clear digital video!
To keep weight and cost to a minimum, the Race HD BNF features the light weight HDZero Eco camera. The camera outputs HD composite video (720p) via a single wire instead of a MIPI cable, reducing footprint, cost, and increasing durability. The digital video signal has stable color reproduction and 720p progressive scan video with the stable near-zero latency HDZero is known for.
In order to achieve the goal of extreme weight reduction, HAPPYMODEL used original Japanese RENY screws at all costs, and also designed a lighter 5.8G VTX antenna. All these improvements are to make this HD BNF weigh less than 20 grams. We hope you like it.
Check out our collection of Micro BNF/RTF/PNP Whoops and the rest of ourĀ Happymodel Products!
Default factory dump file for betaflight 4.4.2
Mobula6 RACE HD dump file for BF4.4.2
Ā
Specifications:

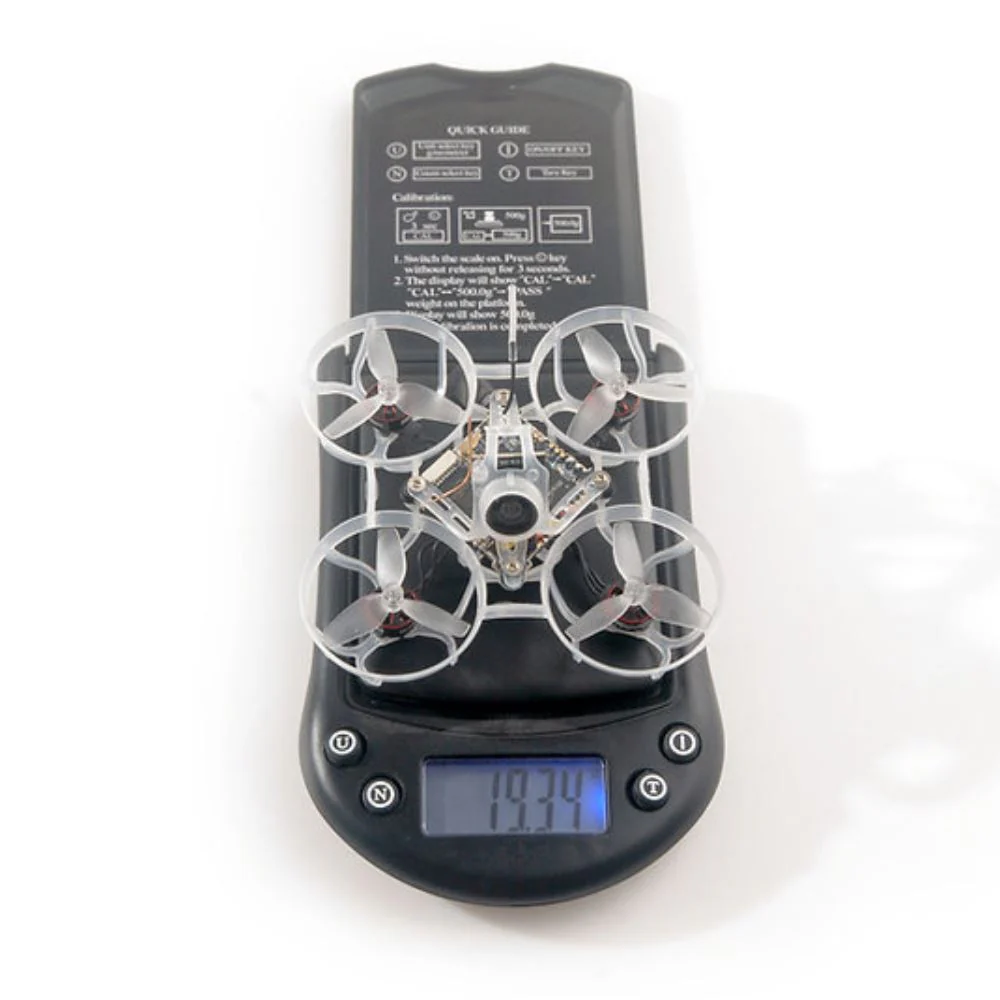

- Weight: 19.3g
- Recommended Battery: 1S 300mAh with A30 or BT2.0 plug
- Propeller Size: 31mm
-

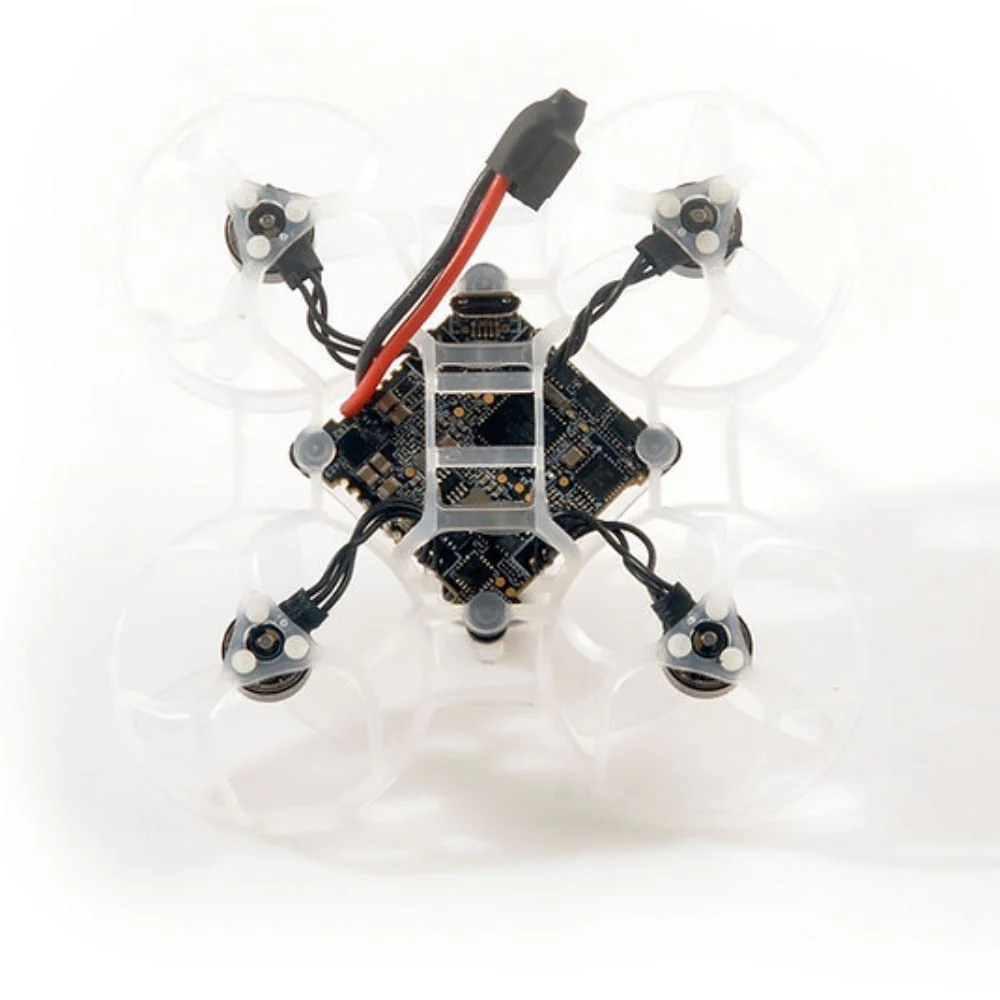

AIO
- MCU: STM32F411 (100MHz, 512K Flash)
- Gyro: BMI270
- On board voltage and amperage meters
- Built-in 5A(each) BLHeli_S 4-in-1 ESC
- Bluejay ESC firmware pre-installed
- Built-in 5.8G HDZero VTX
- Built-in SPI ExpressLRS 2.4GHz receiver compatible with expresslrs v3.0
- Built-in 5V 1A BEC
- Board size:28.5x28.5mm with a 25.5x25.5 mounting hole size
- Betaflight firmware: CRAZYBEEF4SX1280 4.4.2 out of factory
- HDZero Eco Camera
- Sensor size: 1/3 inch
- Resolution: 720p60 4:3
- FOV: D:150Ā° H:120Ā° V:98Ā°
- MotorsĀ Ā Ā Ā Ā
- Kv:28000
- Stator diameter: 7mm
- Stator length:2mm
- Shaft diameter: Ī¦1mm
- Weight:1.5g
Ā

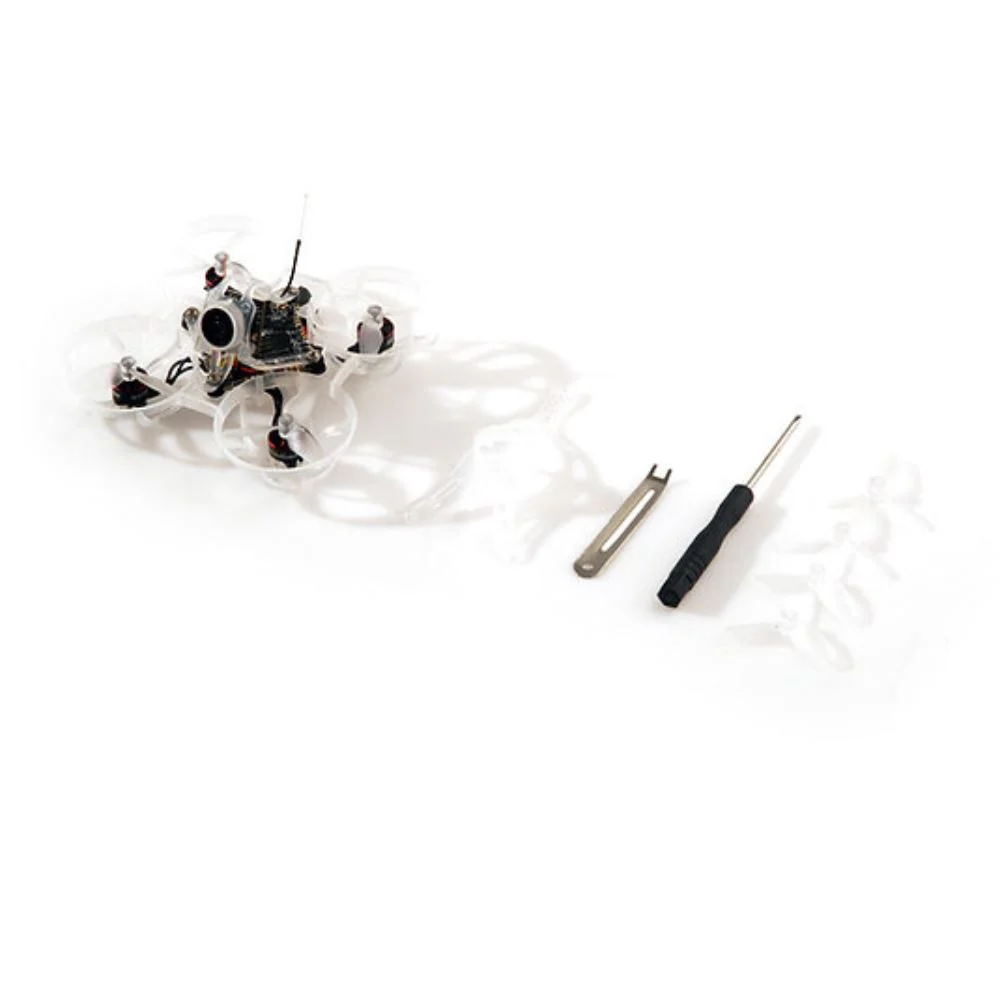

Package Includes:
- 1 x Happymodel Mobula6 Race BNF
- 1 x Spare canopy
- 1 x Spare propeller(set)
- 1 x Screw driver
- 1 x propeller disassemble tool
Original: $235.99
-70%$235.99
$70.80
Description
The Happymodel Mobula6 Race HD BNF is the first 65mm HD brushless tiny whoop that weighs less than 19.4g. With tiny whoops, every gram makes a large difference in flight performance. To achieve such a low weight, HDZero has developed the worldās first 5-in-1 AIO that contains a HDZero VTX, FC, ESC, ELRS RX, and 5V1A BEC. Using a single thick PCB rather than a stack of 2 improves durability and simplicity ā get ready for a new era of no-compromise tiny whooping in clear digital video!
To keep weight and cost to a minimum, the Race HD BNF features the light weight HDZero Eco camera. The camera outputs HD composite video (720p) via a single wire instead of a MIPI cable, reducing footprint, cost, and increasing durability. The digital video signal has stable color reproduction and 720p progressive scan video with the stable near-zero latency HDZero is known for.
In order to achieve the goal of extreme weight reduction, HAPPYMODEL used original Japanese RENY screws at all costs, and also designed a lighter 5.8G VTX antenna. All these improvements are to make this HD BNF weigh less than 20 grams. We hope you like it.
Check out our collection of Micro BNF/RTF/PNP Whoops and the rest of ourĀ Happymodel Products!
Default factory dump file for betaflight 4.4.2
Mobula6 RACE HD dump file for BF4.4.2
Ā
Specifications:
- Weight: 19.3g
- Recommended Battery: 1S 300mAh with A30 or BT2.0 plug
- Propeller Size: 31mm
-
AIO
- MCU: STM32F411 (100MHz, 512K Flash)
- Gyro: BMI270
- On board voltage and amperage meters
- Built-in 5A(each) BLHeli_S 4-in-1 ESC
- Bluejay ESC firmware pre-installed
- Built-in 5.8G HDZero VTX
- Built-in SPI ExpressLRS 2.4GHz receiver compatible with expresslrs v3.0
- Built-in 5V 1A BEC
- Board size:28.5x28.5mm with a 25.5x25.5 mounting hole size
- Betaflight firmware: CRAZYBEEF4SX1280 4.4.2 out of factory
- HDZero Eco Camera
- Sensor size: 1/3 inch
- Resolution: 720p60 4:3
- FOV: D:150Ā° H:120Ā° V:98Ā°
- MotorsĀ Ā Ā Ā Ā
- Kv:28000
- Stator diameter: 7mm
- Stator length:2mm
- Shaft diameter: Ī¦1mm
- Weight:1.5g
Ā
Package Includes:
- 1 x Happymodel Mobula6 Race BNF
- 1 x Spare canopy
- 1 x Spare propeller(set)
- 1 x Screw driver
- 1 x propeller disassemble tool
