HDZero AIO15 – 2S/3S Digital AIO Flight Controller - VTX - 15A ESC - ELRS 2.4GHz RX

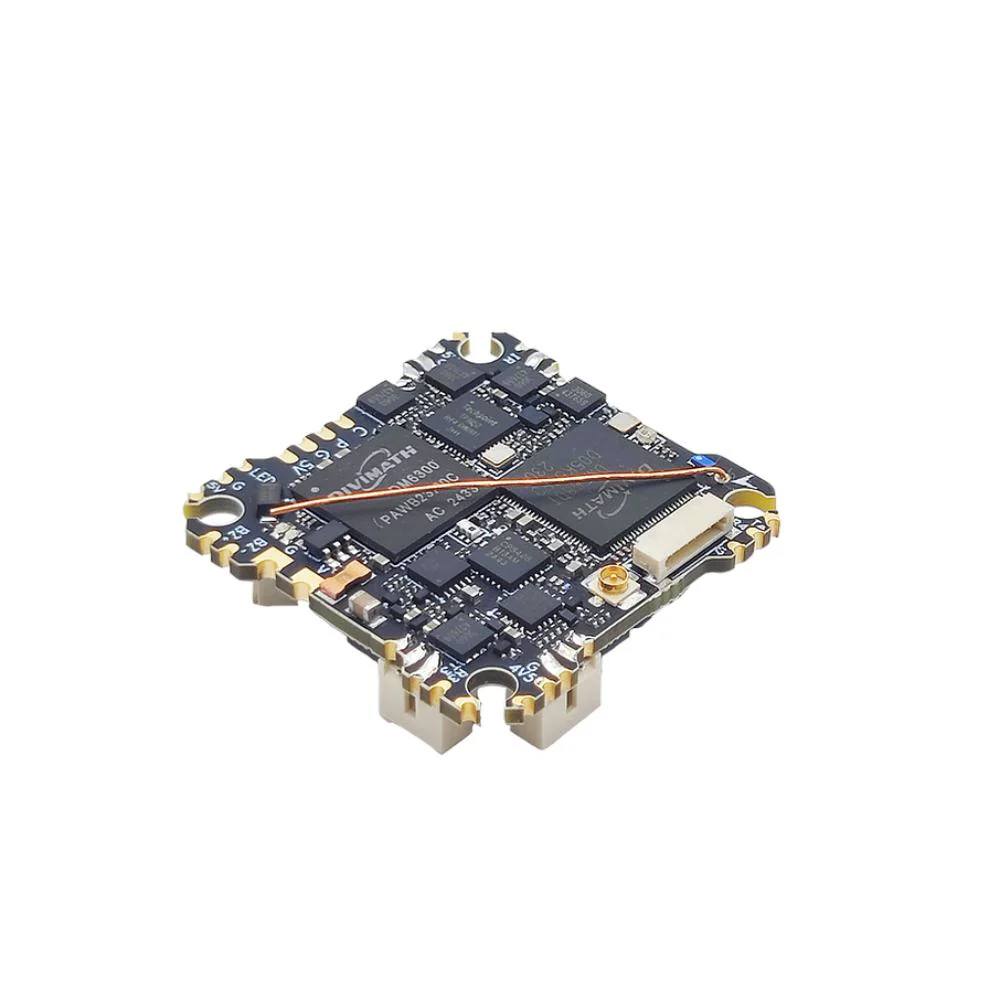

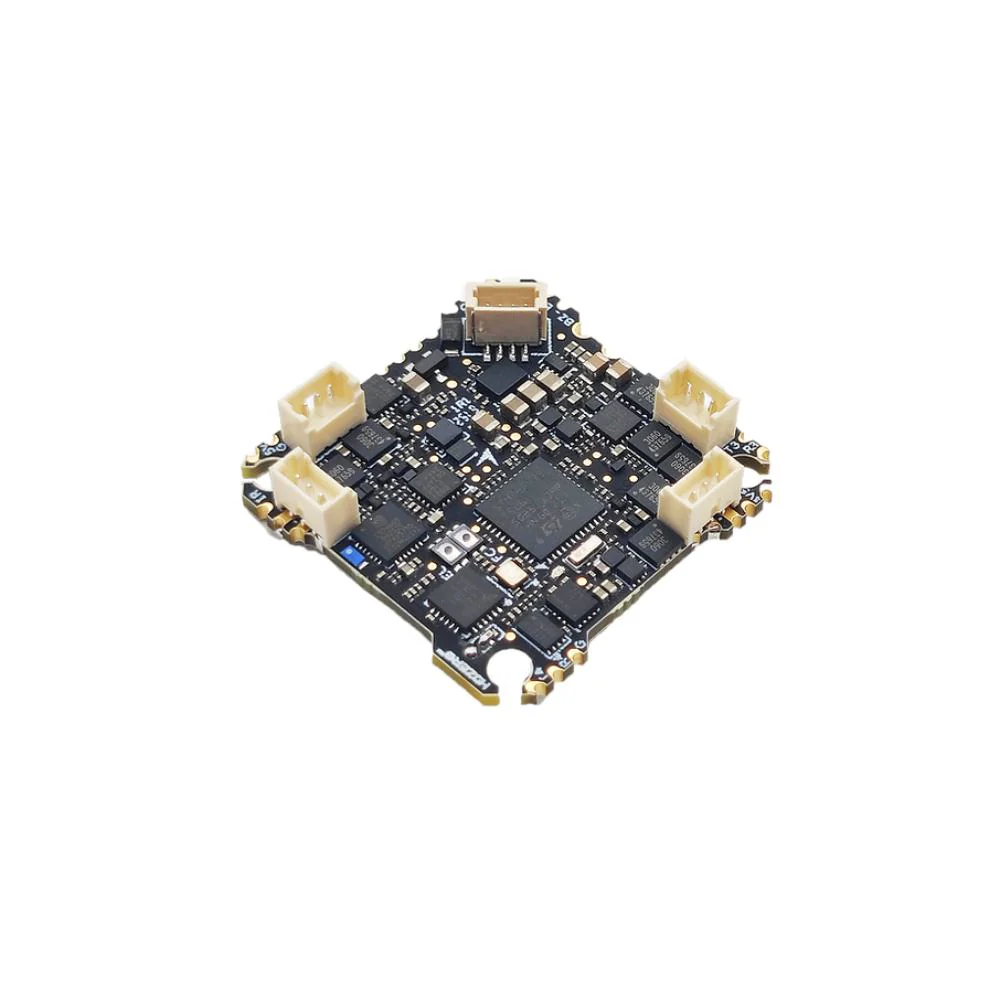

The HDZero AIO15 is the world’s first all-in-one (AIO) digital FPV flight system designed specifically for 2S–3S tiny whoops and micro freestyle builds. It combines everything you need—flight controller, digital video transmitter, ESC, receiver, and BEC - into a compact, ultra-lightweight 31.3x31.3mm board.
With an integrated 15A 4-in-1 ESC, the AIO15 supports higher-current motors and 2 - 3S batteries, enabling powerful sub-33.4g builds without compromising video quality or responsiveness. Whether you're building your own freestyle whoop or flying a ready-to-go platform like the M8 Freestyle HD, AIO15 delivers the performance micro pilots have been waiting for.
Check out all our Whoop Style AIO Flight Controllers and the rest of our HDZero Products!
Features:
-
Integrated HDZero 5.8GHz Digital VTX
- Output Power: 25mW / 200mW
- Channels: R1- R8, F2/F4, L1 - L8
- U.FL connector with included ultra-light linear antenna
-
Built-in Serial ExpressLRS 2.4GHz Receiver
- Packet rates: 50 - 1000Hz (50/100/150/250/333/500/D250/D500/F500/F1000Hz)
- Pre-soldered enamel wire antenna
-
Flight Controller
- MCU: STM32G473 @170MHz, 512K Flash
- Gyro: ICM42688
- Onboard voltage and current sensing
- Firmware target: HDZERO_AIO15
-
4-in-1 15A ESC
- MCU: EFM8BB21
- Current: 15Ax4 continuous, 18Ax4 peak (3s)
- BlueJay firmware (Z_H_30_48_v0.19.2)
- DShot600 ready
-
5V BEC
- 5V @ 1A output for accessories and camera
Specifications
- Battery Input: 2S–3S (3.5V–13V)
- Mounting: 25.5x25.5mm M2
- Board Dimensions: 31.3x31.3mm
- Weight: 7.2g (with motor plugs)
- Compatibility: Fits popular whoop frames
Applications:
Perfect for:
- 80mm freestyle whoops
- Lightweight micro drones
- Pilots seeking minimal weight with maximum performance
- Builders upgrading from the AIO5

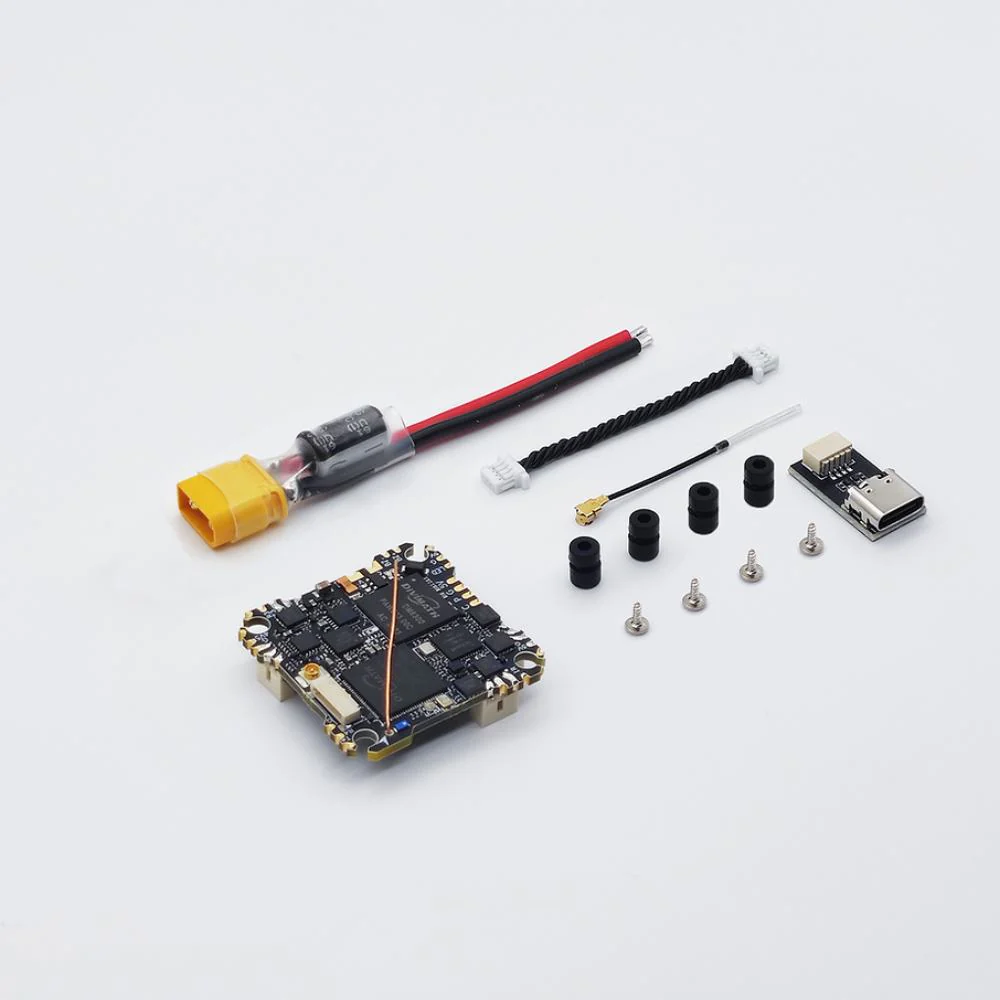

Package Includes:
- 1 x HDZero AIO15 board
- 1 x Power cable with xt30 connector
- 4 x screws
- 4 x rubber grommets
- 1 x ultra-lite linear VTX antenna
- 1 x Adapter board
- 1 x Adapter cable
Original: $126.99
-70%$126.99
$38.10
Description
The HDZero AIO15 is the world’s first all-in-one (AIO) digital FPV flight system designed specifically for 2S–3S tiny whoops and micro freestyle builds. It combines everything you need—flight controller, digital video transmitter, ESC, receiver, and BEC - into a compact, ultra-lightweight 31.3x31.3mm board.
With an integrated 15A 4-in-1 ESC, the AIO15 supports higher-current motors and 2 - 3S batteries, enabling powerful sub-33.4g builds without compromising video quality or responsiveness. Whether you're building your own freestyle whoop or flying a ready-to-go platform like the M8 Freestyle HD, AIO15 delivers the performance micro pilots have been waiting for.
Check out all our Whoop Style AIO Flight Controllers and the rest of our HDZero Products!
Features:
-
Integrated HDZero 5.8GHz Digital VTX
- Output Power: 25mW / 200mW
- Channels: R1- R8, F2/F4, L1 - L8
- U.FL connector with included ultra-light linear antenna
-
Built-in Serial ExpressLRS 2.4GHz Receiver
- Packet rates: 50 - 1000Hz (50/100/150/250/333/500/D250/D500/F500/F1000Hz)
- Pre-soldered enamel wire antenna
-
Flight Controller
- MCU: STM32G473 @170MHz, 512K Flash
- Gyro: ICM42688
- Onboard voltage and current sensing
- Firmware target: HDZERO_AIO15
-
4-in-1 15A ESC
- MCU: EFM8BB21
- Current: 15Ax4 continuous, 18Ax4 peak (3s)
- BlueJay firmware (Z_H_30_48_v0.19.2)
- DShot600 ready
-
5V BEC
- 5V @ 1A output for accessories and camera
Specifications
- Battery Input: 2S–3S (3.5V–13V)
- Mounting: 25.5x25.5mm M2
- Board Dimensions: 31.3x31.3mm
- Weight: 7.2g (with motor plugs)
- Compatibility: Fits popular whoop frames
Applications:
Perfect for:
- 80mm freestyle whoops
- Lightweight micro drones
- Pilots seeking minimal weight with maximum performance
- Builders upgrading from the AIO5
Package Includes:
- 1 x HDZero AIO15 board
- 1 x Power cable with xt30 connector
- 4 x screws
- 4 x rubber grommets
- 1 x ultra-lite linear VTX antenna
- 1 x Adapter board
- 1 x Adapter cable
