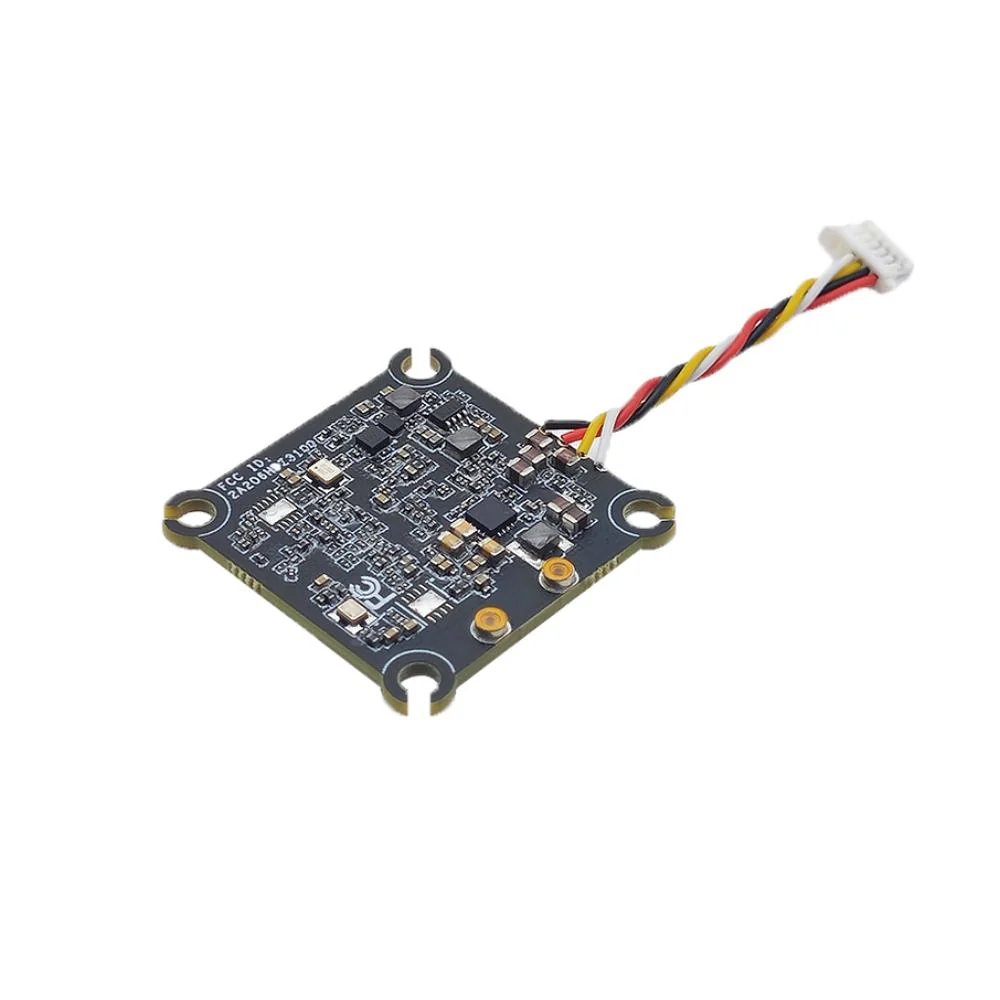

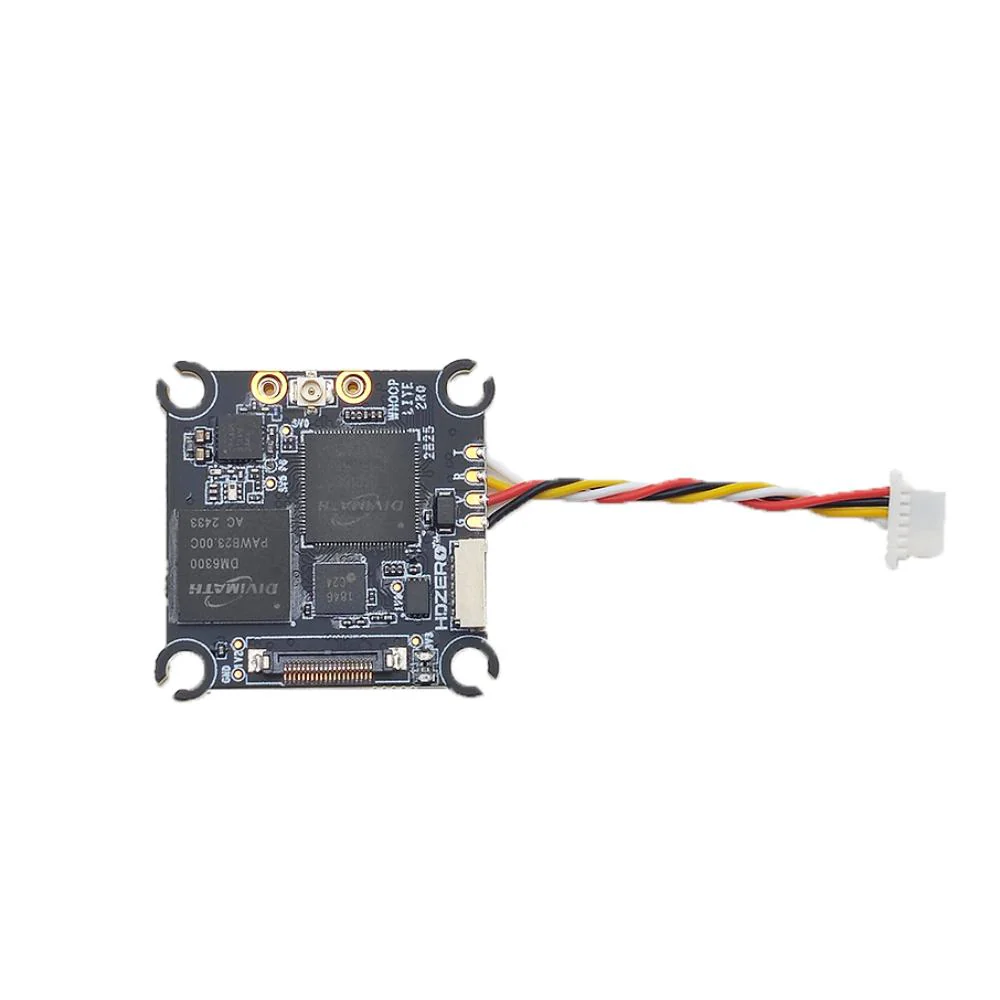

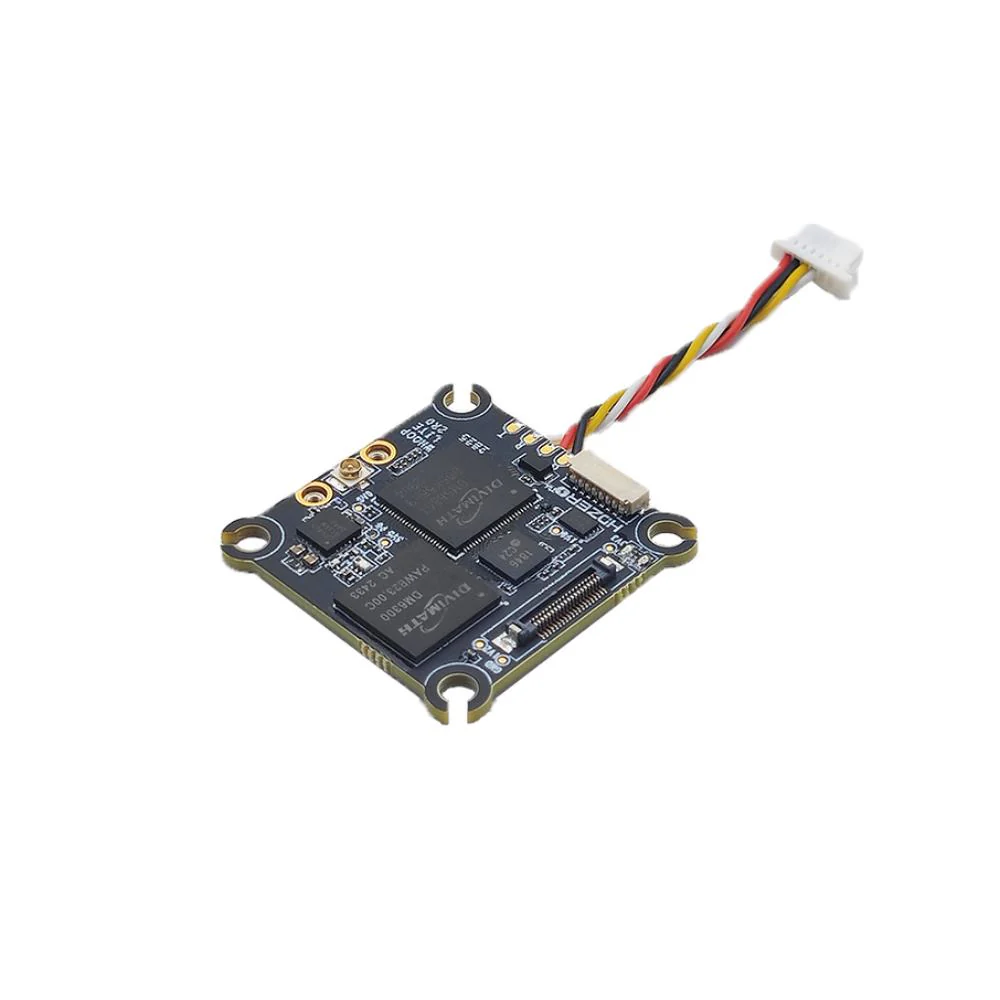

HDZero Whoop Lite V2 VTX
The HDZero Whoop Lite V2 VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw on 5.8GHz. It is designed for racing. It works with the Shark Byte RX5.1 goggle module to receive video.
Check out our HDZero Compatible Gear and the rest of our HDZero Products!
Specifications:
|
Model: |
HDZero Whoop Lite V2 VTX |
|
SKU: |
HDZ3103 |
|
Frequency: |
5.8G |
|
Resolution Default: |
1280*720@60fps |
|
RF power: |
25mw/200mw |
|
RF Connector: |
U.FL |
|
Interface: |
4 lane MIPI CSI YUV422 |
|
Video Connector: |
20 Position 0.30mm Pitch |
|
Size: |
31x31mm (29x29mm inner) |
|
Weight: |
5.4grames/4mm Thickness (w/o shielding) |
|
Power: |
1000mA@5V |
|
power input |
1S-3S |
|
Mounting: |
25.5x25.2 M2 soft mounting |
Package Includes:
- 1 x HDZero Whoop Lite V2 VTX
- 5 x Power/Uart Cable
- 2 x Zip ties
- 4 x Rubber Grommet (M3 to M2)
- 4 x u.FL Antenna Retention Screws
- 1 x Metal bar
Original: $70.99
-70%$70.99
$21.30
Description
The HDZero Whoop Lite V2 VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw on 5.8GHz. It is designed for racing. It works with the Shark Byte RX5.1 goggle module to receive video.
Check out our HDZero Compatible Gear and the rest of our HDZero Products!
Specifications:
|
Model: |
HDZero Whoop Lite V2 VTX |
|
SKU: |
HDZ3103 |
|
Frequency: |
5.8G |
|
Resolution Default: |
1280*720@60fps |
|
RF power: |
25mw/200mw |
|
RF Connector: |
U.FL |
|
Interface: |
4 lane MIPI CSI YUV422 |
|
Video Connector: |
20 Position 0.30mm Pitch |
|
Size: |
31x31mm (29x29mm inner) |
|
Weight: |
5.4grames/4mm Thickness (w/o shielding) |
|
Power: |
1000mA@5V |
|
power input |
1S-3S |
|
Mounting: |
25.5x25.2 M2 soft mounting |
Package Includes:
- 1 x HDZero Whoop Lite V2 VTX
- 5 x Power/Uart Cable
- 2 x Zip ties
- 4 x Rubber Grommet (M3 to M2)
- 4 x u.FL Antenna Retention Screws
- 1 x Metal bar
