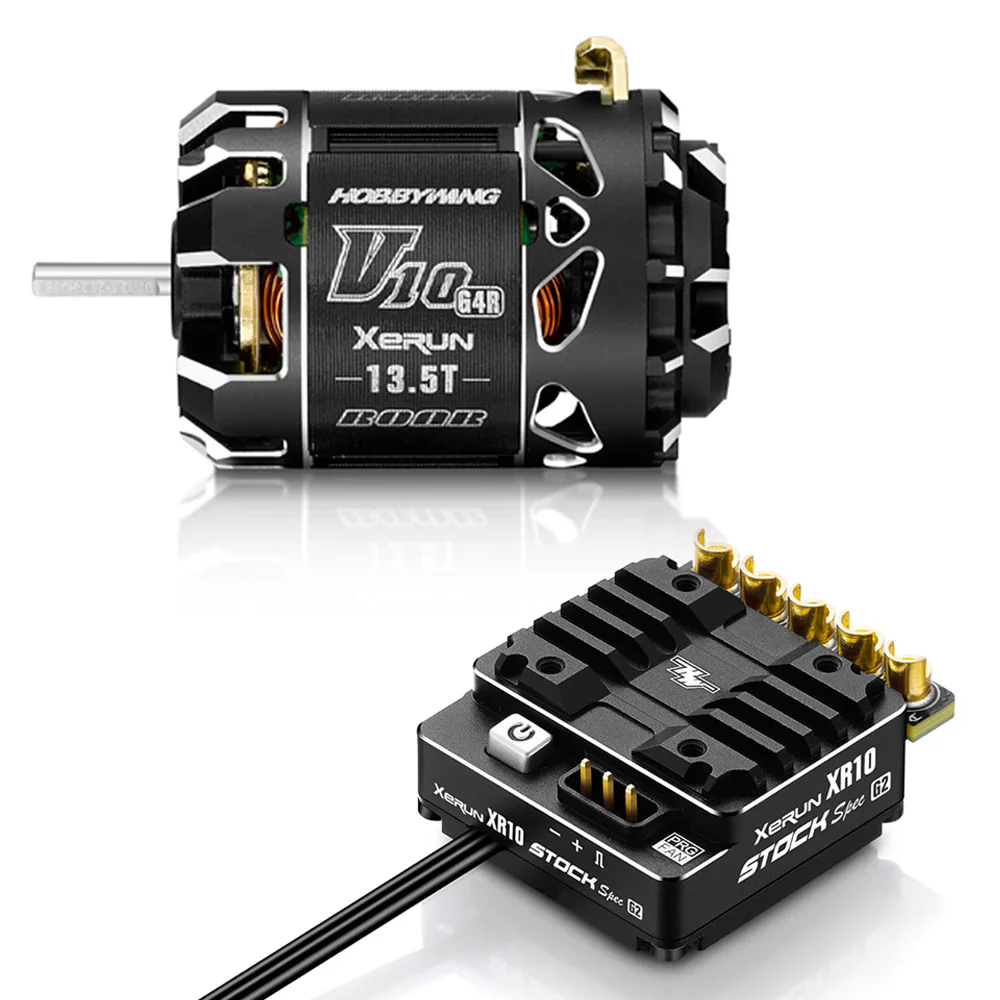

HobbyWing XeRun XR10 STOCK SPEC G2 Combo (2S) Surface ESC + V10 G4R Competition Motor 13.5T
HobbyWing XeRun XR10 STOCK SPEC G2 Combo (2S) Surface ESC + V10 G4R Competition Motor 13.5T
Hobbywing's latest Stock Spec speedo, the XeRun XR10 Stock Spec G2. A sensored and brushless ESC, it is suitable for Stock Class of 1:10 Touring Car and 1:10 Offroad Racing as well as RC Drifting.
This Combo comes with the XERUN V10 G4R motor, Excellent performance, specially designed for 1/10 -1/12 STOCK racing. Designed to pair with HOBBYWING XR10 Stock Spec G2 ESC
Check out all our Surface ESCs and the rest of our HobbyWing Products!
ESC Specifications:
- Scale 1/10th
- Brushless
- Sensored
- Waterproof: No
- Cont./Peak Current 100A/500A
- Input Voltage 2S Lipo
- BEC BEC Output Switch Mode 6V/7.4V @5A
- Input Wires Black-13AWG-200MMmm*2
- Output Wires Black-13AWG-200MMmm*3
- Input Connectors No
- Output Connectors No
- Size 34.8*30*13.8mm
- Weight 63g(w/Wires)
Fan:
- Size 20*20*8mm
- Voltage Range 5-7.4V
- Powered by BEC
ESC Programing via:
- LCD G2 Program Box
- LCD PRO
- OTA Programmer
- Separate Program Port
Data Recording
- Extreme value
- Real-time Data
- Historical data (Graph)
Firmware Upgrade Supported
Applications
- Motors : 3650 size motors
- Vehicles : Stock Class of 1/10th Touring Car and Buggy Racing, 1/10th Drift
- KV Rating/T Count : ≥10.5T
Software Download
USB Link Software (USB Link V5.0.5)
XERUN V10 G4R motor Features:
-
Excellent performance, specially designed for 1/10 -1/12 STOCK racing. Designed to pair with HOBBYWING XR10 Stock Spec G2 ESC
-
The innovative outer diameter structure of fully exposed stator core maximizes the heat dissipation area and the rear end of the motor is a big opening structure to further improve the heat dissipation effect.
-
Dual sensor interface design to meet various wiring/layout requirements.
-
The special copper bar is customized and the spacing of copper bar is widened, which greatly facilitates the operation of soldering wire.
-
The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.
- The use of high-performance stator core, 220°C high-temperature-resistant enameled wire, high precision and high strength bearings, and copper solder tabs with super current endurance guarantees outstanding
Notes: The KV value is determined with no load on the motor, with the motor's timing set to default and the ESC timing set to Zero. To ensure optimal performance, it is important to prevent the motor from overheating. If the motor does become too hot, allow it to cool down before using it again.
- User Manual: Manual_XERUN V10 G4R.pdf >
-
Product brochure:Leaflet_XeRun V10 G4R-web.pdf >
- Comparison chart:Comprision_XeRun V10 G4R and G4.pdf >
Package Includes:
- 1 x XR10 Stock Spec G2 ESC
- 1 x Xerun V10 G4R Competition motor 13.5T
