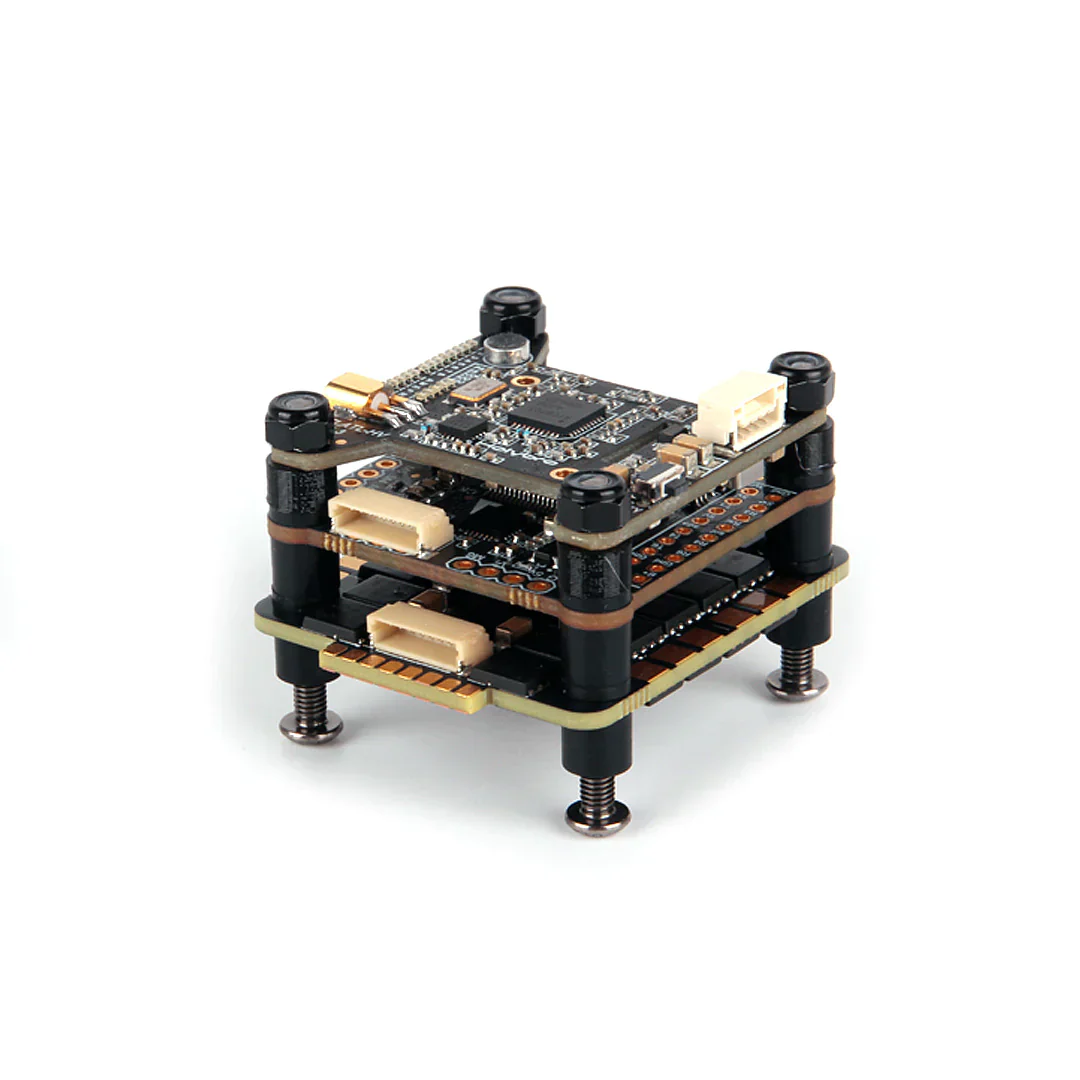

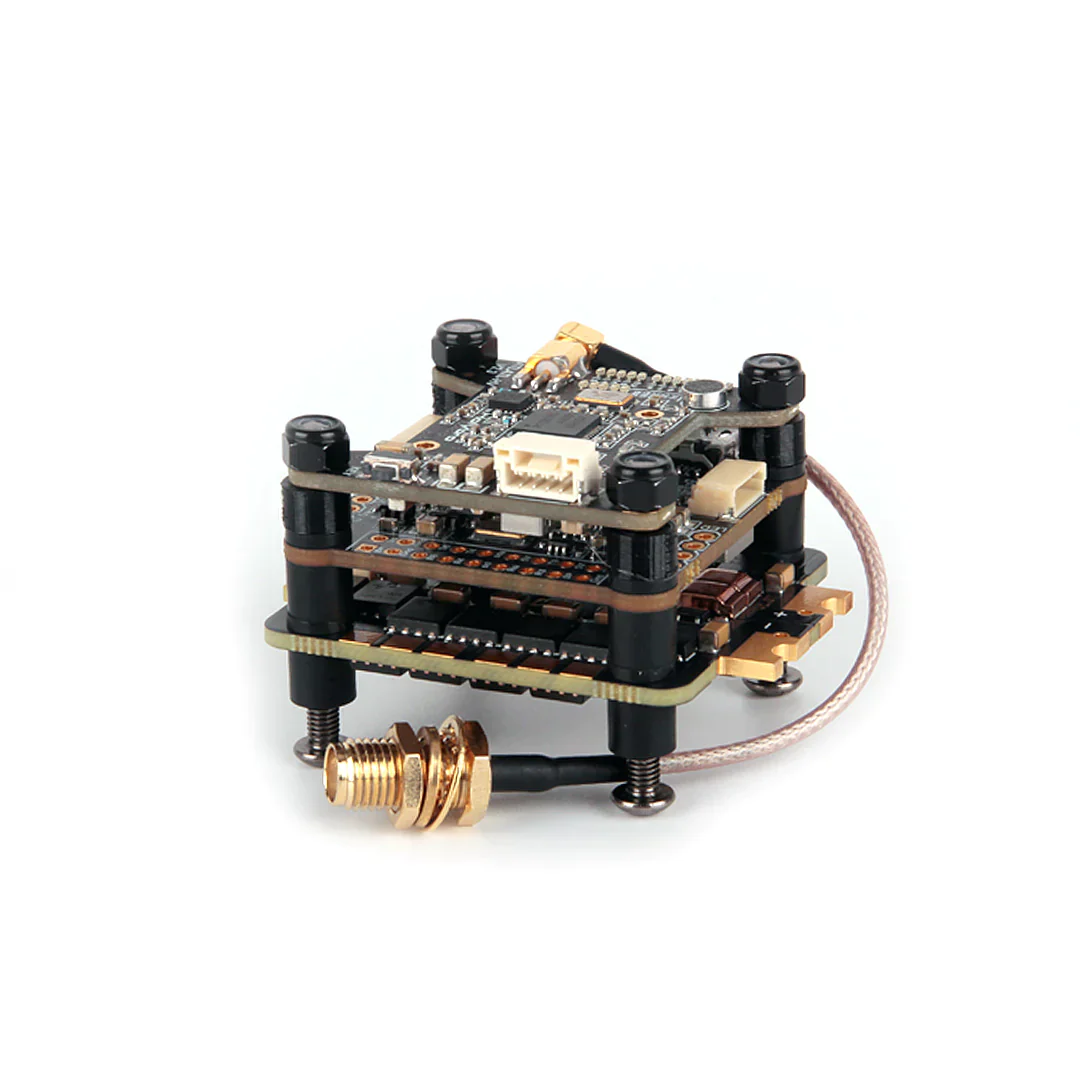

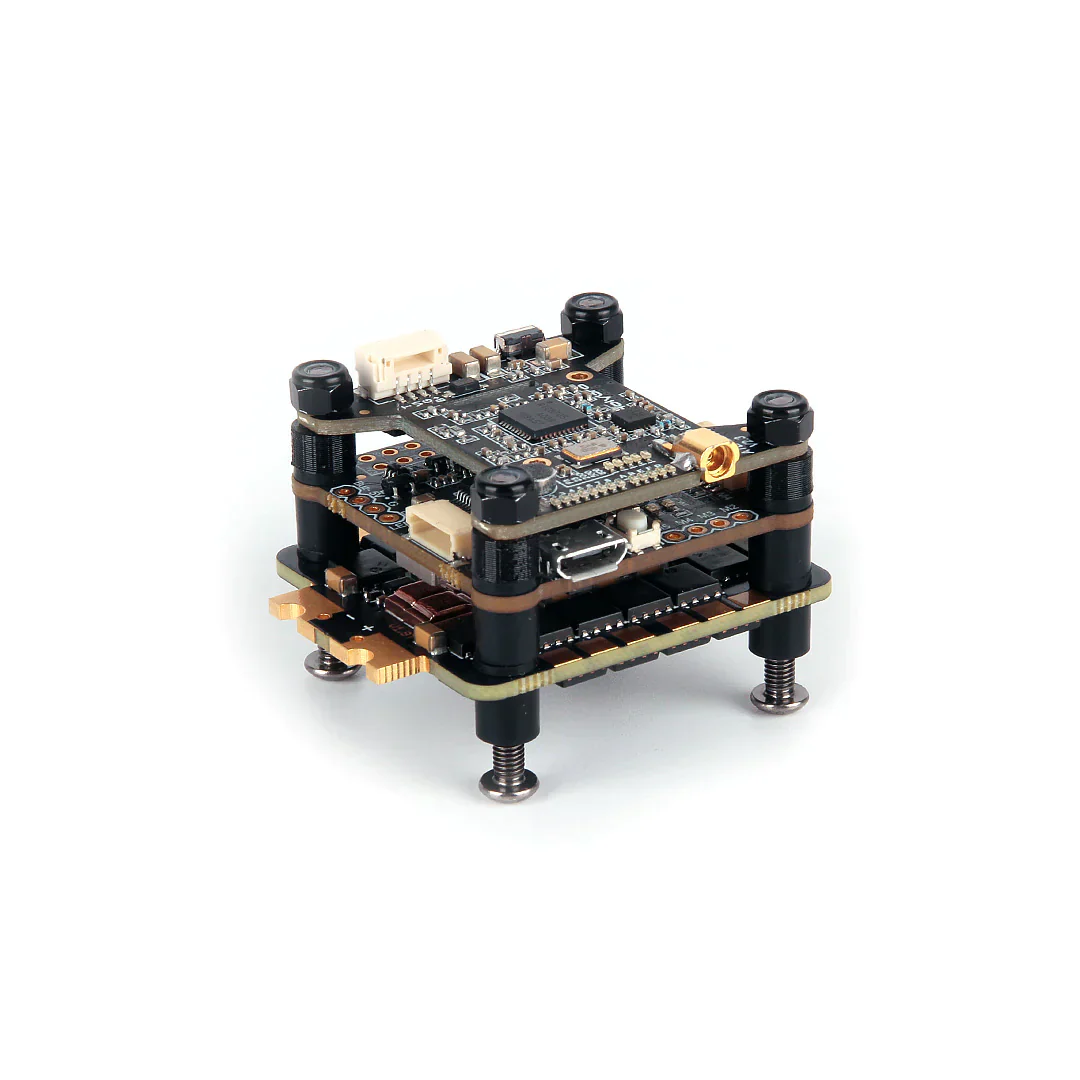

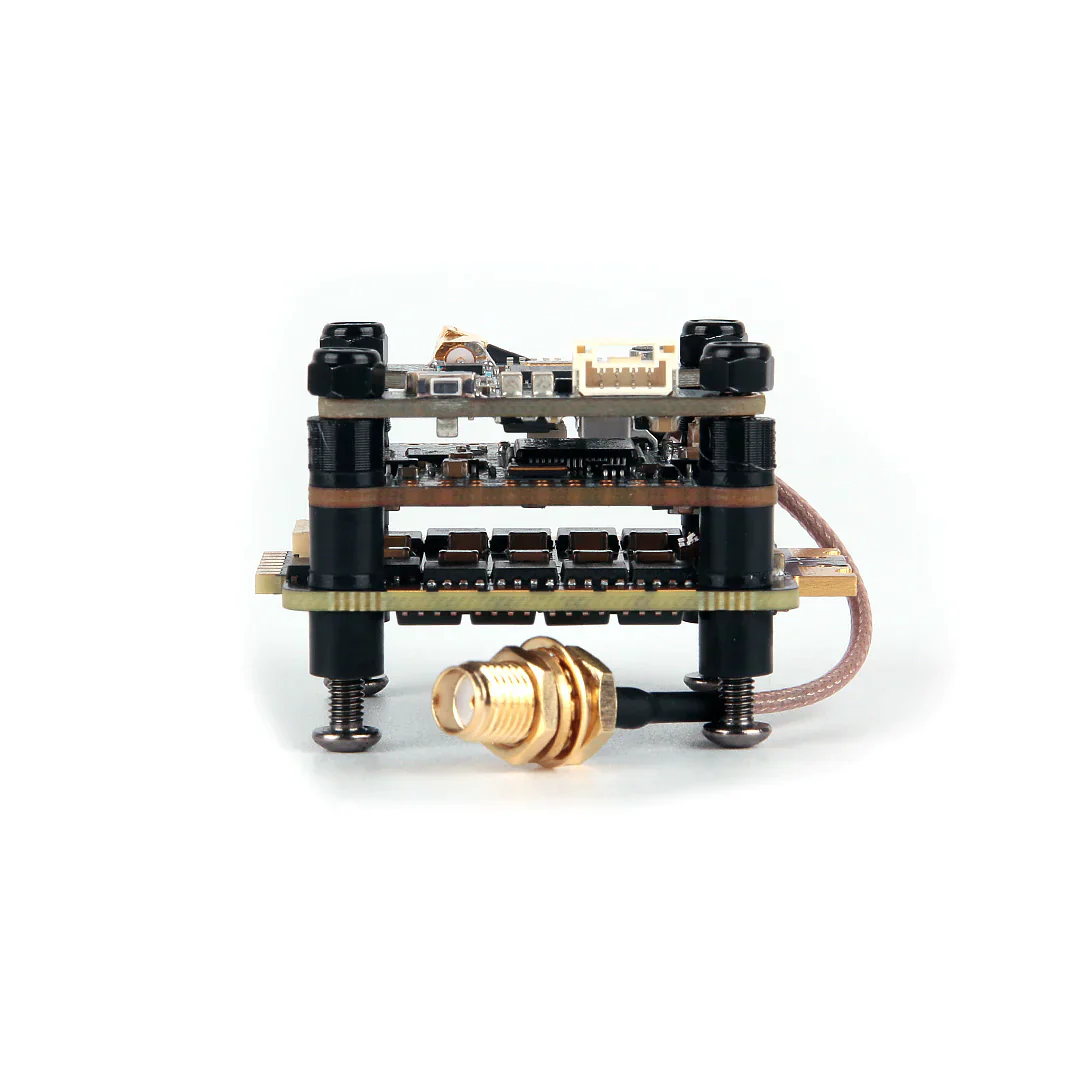

Holybro Kakute F4 V2.4 STACK W/Tekko32 F4 4in1 50A ESC & Atlatl HV V2 VTX - 30x30mm
The Holybro Kakute F4 V2.4 Flight Controller includes plug-and-play DJI O3 HD camera plug, 4in1 ESC ports, barometer, OSD, 5x UARTs, logging capability with built-in flash , 5V and 9V/3A BEC, easy soldering layout and much more.
The Kakute F4 V2.4 is DJI HD ready. It has an easy plug-and-play port with an on-board 9V/A regulator designed to power your HD video transmitter like DJI O3 Air Unit & Caddx Vista while supporting analog system. It has 5x dedicated UART ports with built-in inversion for peripherals. It is also ready for autonomous flight with the on-board barometer. There are LED & buzzer pad, I2C pad (SDA & SCL) for external GPS/Magnetometers
Checkout all our 30*30mm Flight controllers, Stacks and our complete collection of Holybro Products!
Kakute F4 v2.4 Manual & Pin Diagram
Specifications
Kakute F4 V2.4
- MCU - STM32F405
- IMU - MPU6000
- Barometer - BMP280
- OSD - AT7456E
- 5x UARTs (1,3,4,4,6,7)
- 128 Mbit Dataflash chip
- Battery input voltage: 2S-8S
- BEC 9V/3A - Optimized for DJI O3 Air unit
- BEC 5V/2A
- 7x PWM Outputs (6 Motor Output, 1 LED)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire, ESLR).
- Mounting - 30 x 30mm, Φ4mm hole with M3 Grommets
- Dimension - 37x37mm
- Weight – 7g
- JST-SH1.0_8pin port (For 4in1 ESCs)
- JST-SH1.0_6pin port (For DJI/Caddx HD System and other VTX)
Tekko32 F4 50A 4-In-1 ESC
F4 MCU @150Mhz / PWM output up to 96K / 4~6S / BLHeli32 / 30x30
The all new Tekko32 is the first 4in1 ESC in market to adapt the fast F4 MCU @150Mhz, providing a smooth control operation and quick response.
Features:
- New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
- PWM Frequency: 16k to 96k
- Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.
Package Includes:
- 1x Kakute F4 V2 STACK
- 1x Electrolytic capacito: 1000uF 35v
- 1x 8pin to 8pin 1mm pitch 65mm cable
- 1x 8pin to 8pin 1mm pitch 25mm cable
- 1x JST SH 6pin to JST GHR 8pin 80mm &150mm cable (for DJI/Caddx HD System)
- 1x JST SH 6pin 100mm cable(for Caddx HD Systems)
- 1x 80mm SMA–MMCX Cable
- 1x JST GHR 4pin 150mm cable
Original: $165.99
-70%$165.99
$49.80
