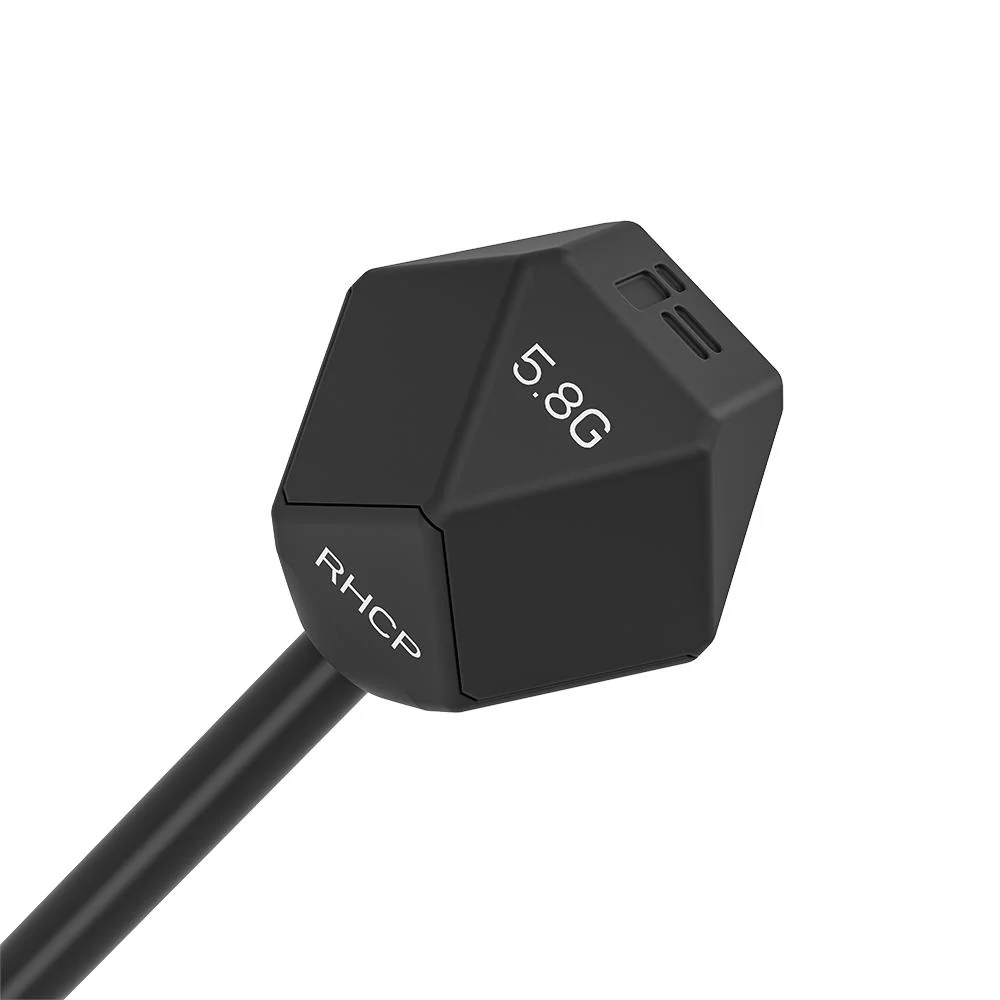

iFlight Albatross V2 5.8GHz 180mm RHCP FPV Antenna - SMA
Introducing the new and improved Albatross V2 antenna! With upgraded welding technology and a unique rugged design, this antenna is now lighter, sturdier, and more reliable than ever. Upgrade your equipment today with the Albatross V2 antenna.
Checkout all our iFlight Antennas and the rest of our iFlight Collection!
Features:
- A hexagonal shape for enhanced durability and a right-angle design for convenient fixation.
- Utilizes ultrasonic welding technology to ensure a lightweight yet secure antenna attachment.
- Achieves higher consistency in antenna gain, thereby improving device performance and stability.
Specifications:
- Model: Albatross 5.8GHz RHCP SMA/RP-SMA FPV Antenna
- Interface: RHCP SMA, RHCP RP-SMA
- Frequency range: 5.3GHz-6GHz
- Max Gain: 2.65dBi (5695MHz)
- MIN Gain: 2.06dBi (5362MHz)
- AVG Gain: 2.4dBi
- MAX VSWR: 1.76（5917MHz）
- MIN VSWR: 1.46（5621MHz）
- AVG VSWR: 1.75
- MAX radiation efficiency: 86%（5436MHz）
- MIN radiation efficiency: 76%（5917MHz）
- AVG radiation efficiency: 83%
- Polarization: RHCP
- Cross polarization suppression: -25dB
- Axial Ratio：≤3
- Cable: RG141
- Weight: 11.5g
- Size: Total length:180mm(±2mm), Cable length:150mm
Package includes:
- 1 x iFlight Albatross V2 5.8GHz 180mm RHCP FPV Antenna - SMA
