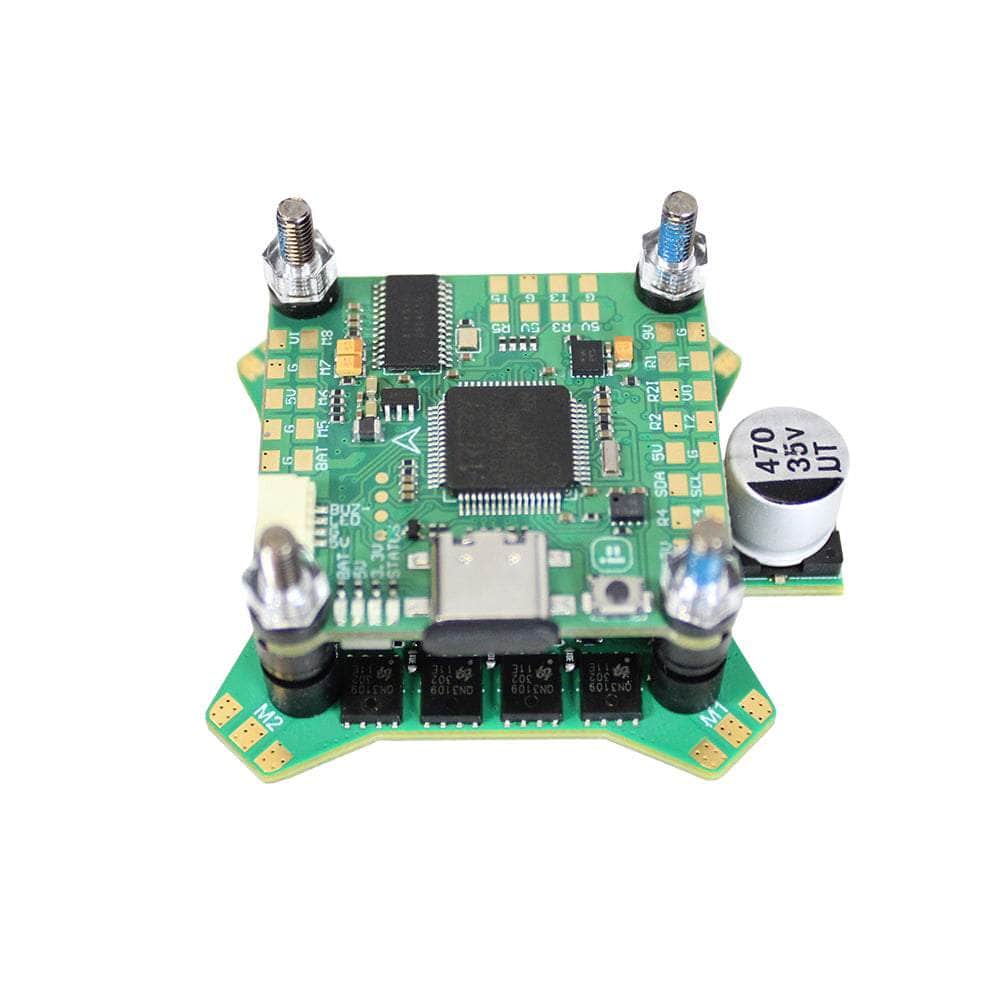

iFlight Blitz ATF435 E55S 2-6S Stack/Combo (ATF435 FC/ 55A 8Bit 4in1 ESC) - 30x30

Please note, this Flight Controller is based on the ATF435 chip opposed the the F4's and F7's most of the community is used to.  Downloading new drivers and using custom targets may be required.

As long as your BetaFlight 10.10 you should be good to go!

The iFlight Blitz ATF435 Stack/Combo provides dependable performance and efficient control of your 2-6S powered quadcopter. This 30x30 stack/combo features an ATF435 FC and 55A 8Bit 4in1 ESC to give you responsive controls and reliable power delivery. Fly worry-free and explore new heights. This flight controller comes with plug-in ports for 9V VTXs, LED/Buzzer, receiver, camera, & the ESC. The NEW ATF processors allow for a product like this, a 60-dollar stack that is feature-rich and comes with a 55Amp ESC, which is perfect for those amp-hungry builds.

Check out all our 30x30mm Flight Controller/Stacks and the rest of our iFlight Products!

To configure download ATBetaflight and if that does not automatically connect, here are virtual com port drivers.  Future versions of Betaflight will fully support these boards.

Specifications

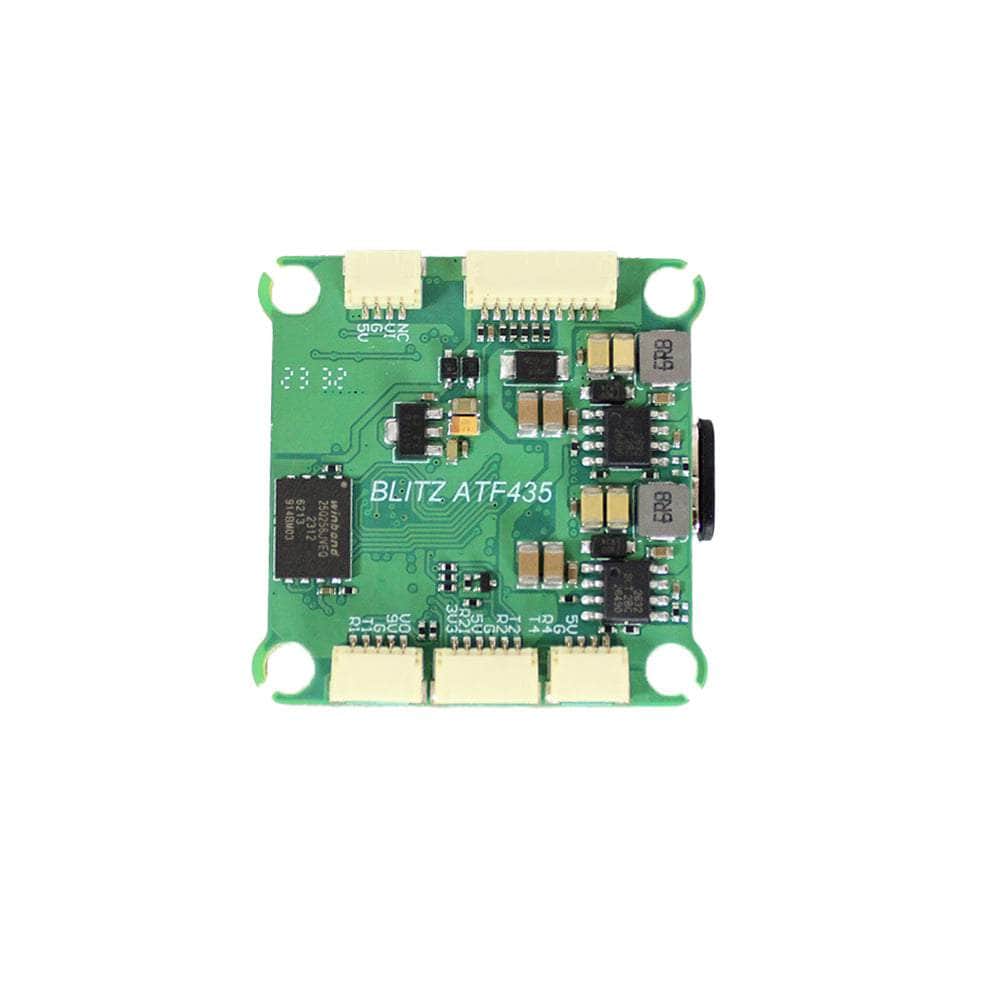

iFlight Blitz ATF435

• MCU: AT32F435CGU7

• Gyro: BMI270

• Barometer: DPS310

• OSD Chip: AT7456E

• Flash: 32MB (Blackbox flash)
• UARTS: 6

• Motor outputs: 4x (SH1.0 connector)

• I2C serial: SDA / SLA pads

• Smartaudio / IRC Tramp VTX protocol supported

• LED controller: Yes

• Beeper pad: Yes

• Firmware target: IFLIGHT_BLITZ_ATF435

• Mount pattern: 30.5x30.5mm / 4mm PCB hole diameter

• Dimensions: 36.5x35 mm

• Weight: 7.8g

• BEC: 5V 2.5A / 9V 2A

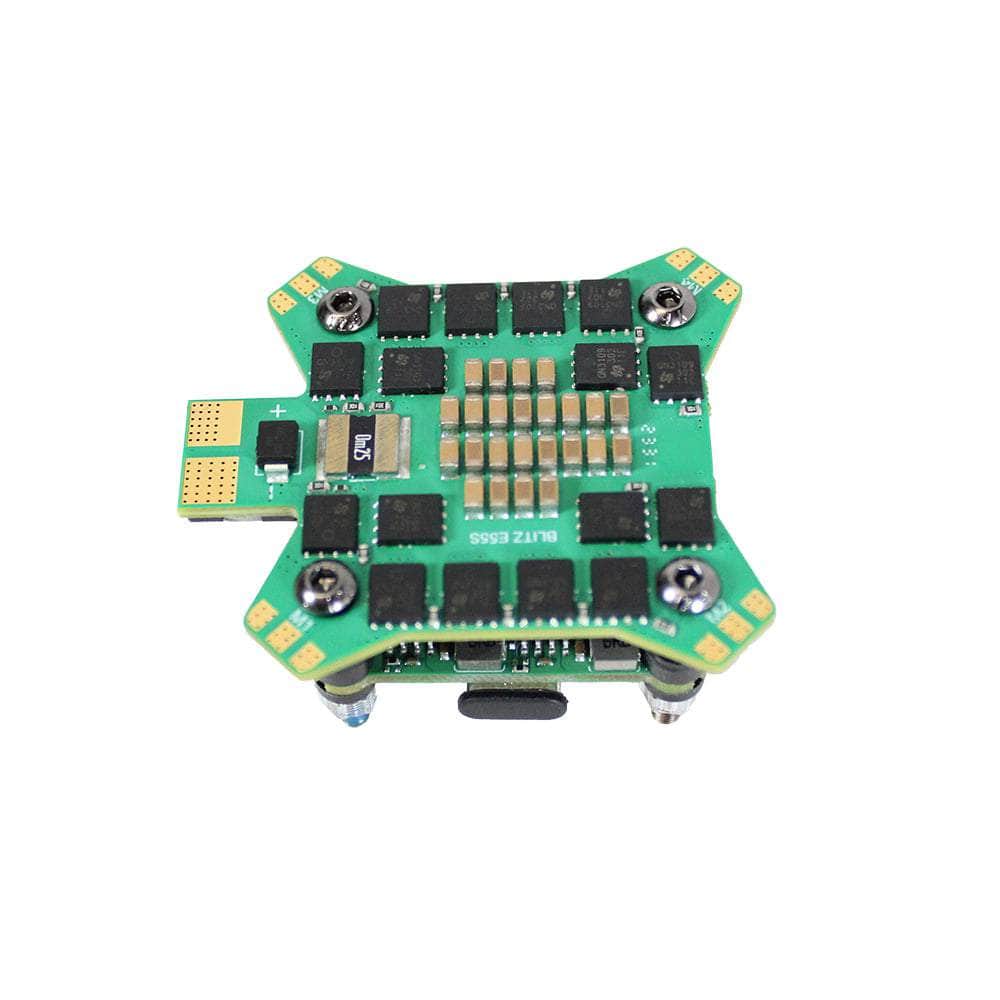

Blitz E55S ESC

• Mounting Holes: 30.5x30.5mm/Φ4mm

• Weight: 14.7g

• Supports 2-6S lipo input

• MCU: G071

• Constant: 55 Amps

• Burst: 65 Amp

• Current sensor: Yes

• BEC: No

• Current rate: 200

• Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

• Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-50 (Bluejay)


Include

• 1x iFlight Blitz ATF435 E55S 2-6S 30x30 Stack/Combo (ATF435 FC/ 55A 8Bit 4in1 ESC)
