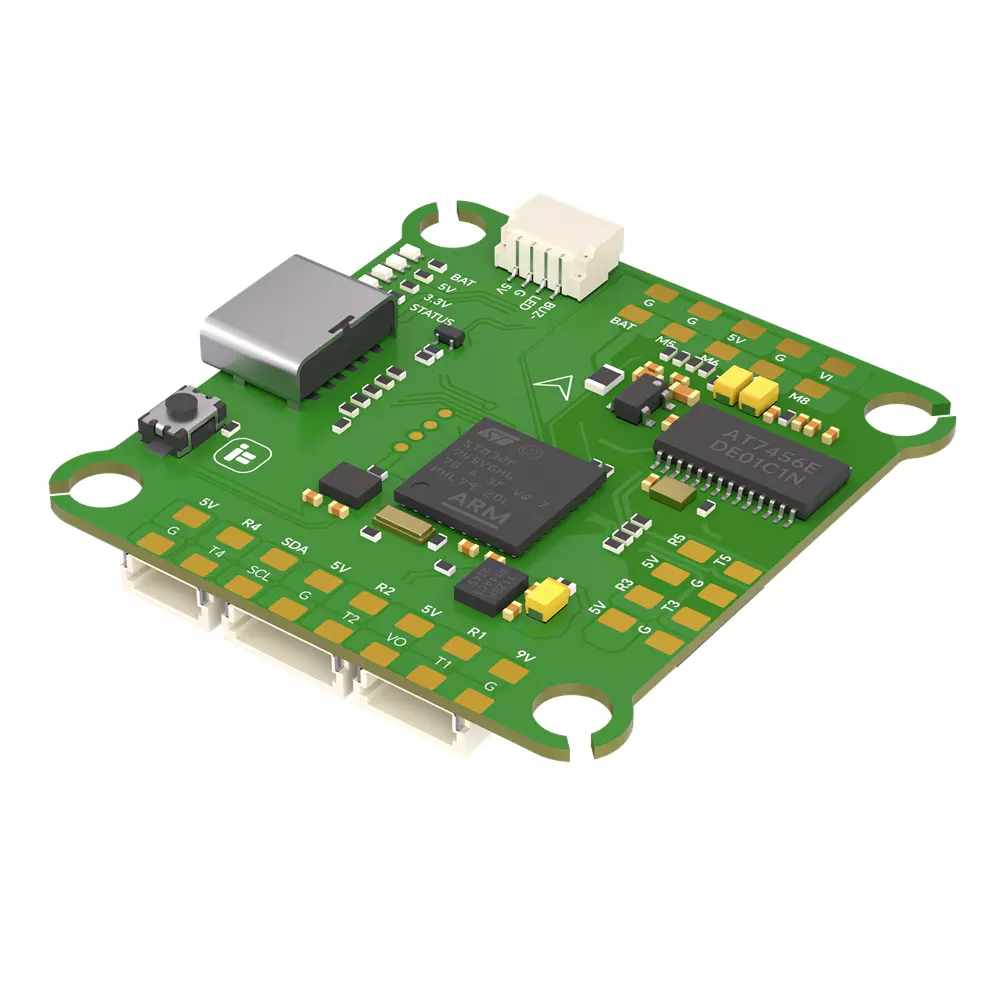

iFlight BLITZ F745 Flight Controller - 30x30mm



Enhanced circuitry, upgraded components, and reduced electrical interference. DJI HD VTX Connector allows for effortless installation without the need for soldering. FC indicator LEDs provide easy diagnostics. Compatible with Betaflight, INAV, and Ardupilot firmware.

Check out all our 30x30mm Flight Controllers and the rest of our iFlight Products!

Specifications:

• MCU: STM32F745
• Gyro: ICM42688
• Barometer: DPS310
• OSD Chip: AT7456E
• Flash: 32MB (Blackbox flash)
• UARTS: 6
• Smartaudio / IRC Tramp VTX protocol supported
• LED controller: Yes
• Beeper pad: Yes
• Mount pattern: 30.5*30.5mm
• Dimensions: 36.5*35 mm
• Weight: 7.8g
• BEC: 5V 2.5A / 9V 2A
• BF Firmware target: IFLIGHT_BLITZ_F7_AIO
• Ardupilot Firmware：arduplane_with_bl

Wiring Suggestion

• UART 1 for VTX HD / Analog
• UART 2 for a Receiver
• UART 3/4/5 for GPS or other sensors that require a serial port
• UART 6 for ESC Telemet
