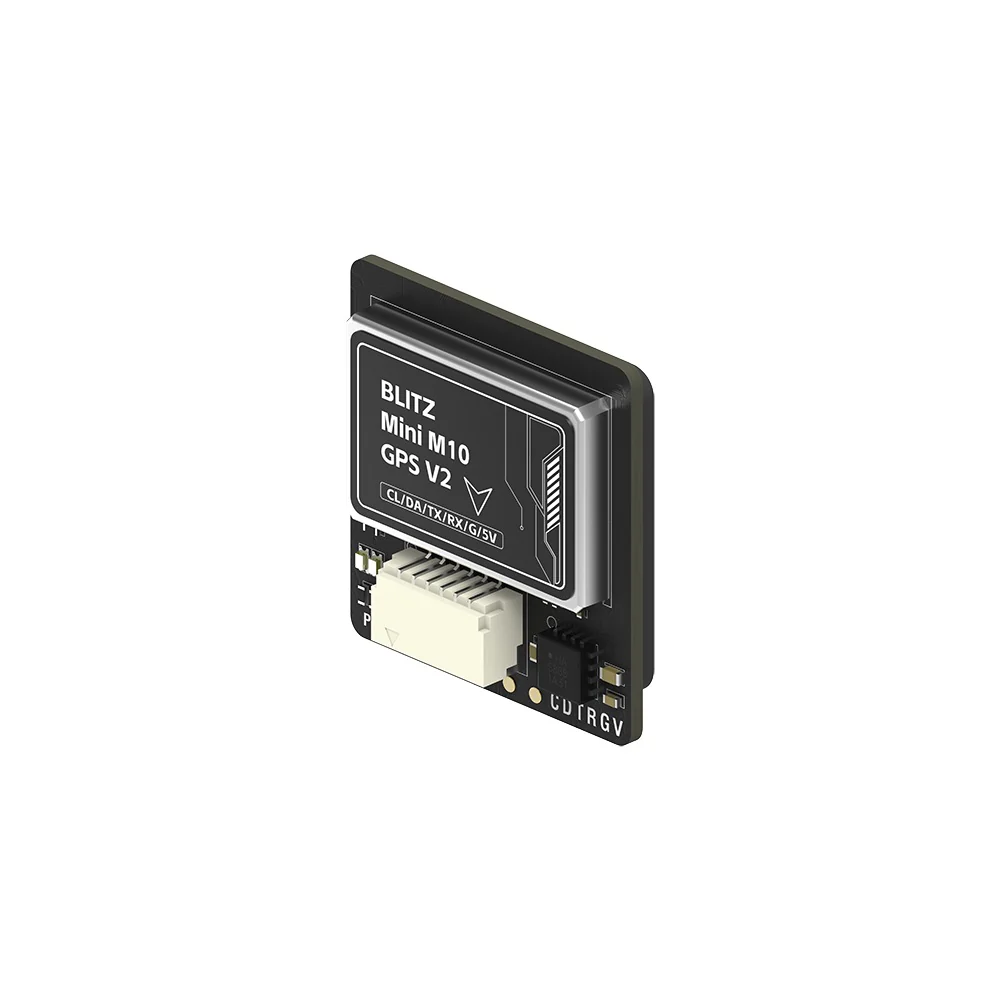

iFlight Blitz Mini M10 V2 GPS Module
The newly upgraded BLITZ Mini M10 GPS V2 has arrived, offering faster and more stable satellite search. This advancement in technology provides users with a more reliable and efficient GPS experience.
Check out our all our Flight Controller Accessories and the rest of our iFlight Products!
Features:
- UBLOX M10 chip, low power consumption, strong signal
- Compass module QMC5883L integrated
- Built-in farad capacitor for faster hot start
- High-precision positioning
- Onboard LNA (Low Noise Amplifier), RF filter, and TCXO (temperature-compensated crystal oscillator)
- 10 Hz Refresh rate
- Built-in Flash
Specifications:
- Compass module: QMC5883L
- Baud Rate: 9600-460800 (Default - 115200bps)
- Sensitivity: Tracking: -167dBm
- Cold start: 27s
- Hot start: 1s
- Maximum height: 80000m
- Maximum speed: 500 m/s
- Speed accuracy: 0.05 m/s
- Maximum acceleration: ≦ 4G
- Refresh Rate: 10 Hz
- GPS patch antenna size: 18.2 x 18.2 x 4 mm
- Total dimensions: 20 x 21 x 8 mm
- Weight: 8g
- Input Voltage: 3.3-5.5 V
- GPS pin definition: RX/TX UART
- Compass pin definition: SDA/SLA
- GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Compatibility:
Mini Version compatibility:
Single-hole TPU mount:
- Chimera7 Pro v2
- iH3 O3
- Nazgul Evoque F4/F5/F6
- XL10 v6
- BOB57 HD
Dual hole TPU mount:
- Nazgul5 V3
- Taurus X8 Pro/V3
- ProTek60 Pro
GPS TPU mount is not required:
- Helion 10
Package Includes:
- 1 x BLITZ M10 V2 GPS
- 1 x Cable set
