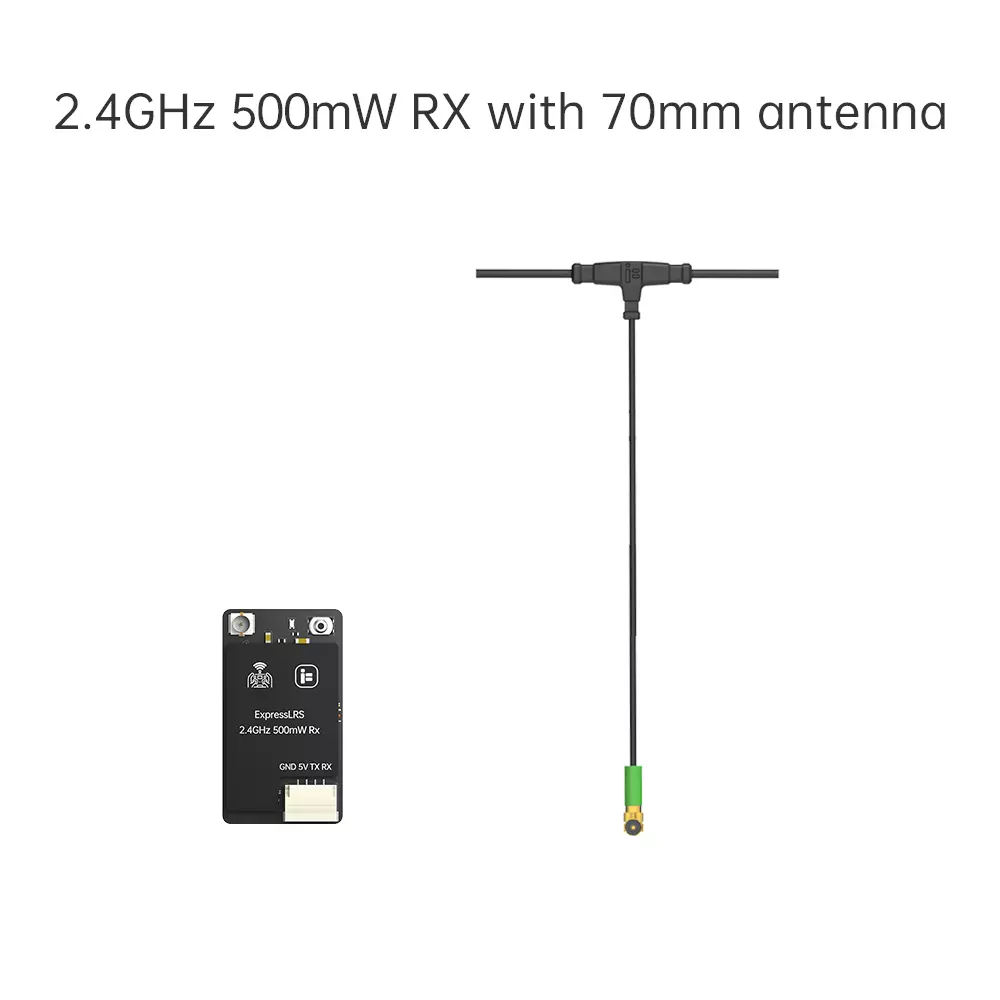

iFlight ExpressLRS ELRS 500mw Receiver 2.4GHz - Choose Antenna
A new version of the iFlight ELRS Receiver is available. It incorporates a temperature-compensated crystal oscillator to prevent frequency shifts caused by temperature variations, with telemetry power reaching up to 500mW. It significantly meets the reliability requirements for long-distance flights, aerial photography, or FPV freestyle maneuvers.
Check out our ExpressLRS Collection, all our Receivers and the rest of our iFlight Products.
Features:
- Single-sided electronic components, saving assembly space
- Aluminum heatsink plate to protect electronic components, and enhance anti-interference capability
- Newly upgraded Temperature Compensated Crystal Oscillator, lower packet loss, high frequency stability
- Pre-soldered SH1.0 connector (Plug&Play for easy installation with iFlight FCs)
- Up to power 500mW telemetry power, resulting in stronger telemetry signals and significantly reducing instances of telemetry loss.
The 2400MHz band works great in any region, has a higher packet rate up to 500hz. This is not a common 2400MHz protocol and cannot be compared to anything prior on the market.
Specifications:
- MCU: ESP 8285
- Receiver Type: Single antenna
- Firmware: iFlight 2.4GHz 500mW RX (2.4G)
- Lua Script: iF 2G4 500mW RX (2.4G)
- Frequency bands: 2.4GHz ISM
- Telemetry Power: 50-500mW (17-27dBm)(2.4G)
- Dimension: 14*25*4.3mm
- Protocol: CRSF
- LNA: YES (2.4G)
- Weight: 1.8g
Package Includes:
- 1 x ExpressLRS 500mw Receiver
- 1 x Antenna
Original: $29.99
-70%$29.99
$9.00
Description
A new version of the iFlight ELRS Receiver is available. It incorporates a temperature-compensated crystal oscillator to prevent frequency shifts caused by temperature variations, with telemetry power reaching up to 500mW. It significantly meets the reliability requirements for long-distance flights, aerial photography, or FPV freestyle maneuvers.
Check out our ExpressLRS Collection, all our Receivers and the rest of our iFlight Products.
Features:
- Single-sided electronic components, saving assembly space
- Aluminum heatsink plate to protect electronic components, and enhance anti-interference capability
- Newly upgraded Temperature Compensated Crystal Oscillator, lower packet loss, high frequency stability
- Pre-soldered SH1.0 connector (Plug&Play for easy installation with iFlight FCs)
- Up to power 500mW telemetry power, resulting in stronger telemetry signals and significantly reducing instances of telemetry loss.
The 2400MHz band works great in any region, has a higher packet rate up to 500hz. This is not a common 2400MHz protocol and cannot be compared to anything prior on the market.
Specifications:
- MCU: ESP 8285
- Receiver Type: Single antenna
- Firmware: iFlight 2.4GHz 500mW RX (2.4G)
- Lua Script: iF 2G4 500mW RX (2.4G)
- Frequency bands: 2.4GHz ISM
- Telemetry Power: 50-500mW (17-27dBm)(2.4G)
- Dimension: 14*25*4.3mm
- Protocol: CRSF
- LNA: YES (2.4G)
- Weight: 1.8g
Package Includes:
- 1 x ExpressLRS 500mw Receiver
- 1 x Antenna
