JHEMCU GHF745 HD AIO F7 OSD Flight Controller and Built-In 50A AM32 3-6S 4IN1 ESC - 25x25mm
JHEMCU GHF745 HD AIO F7 OSD Flight Controller and Built-In 50A AM32 3-6S 4IN1 ESC - 25x25mm

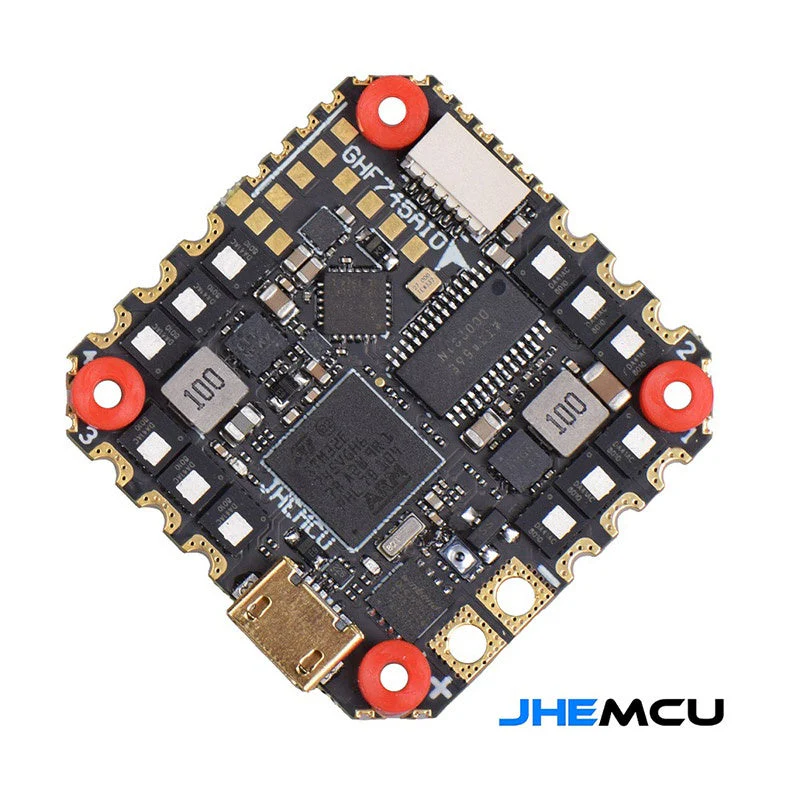

GHF745AIO adopts STM32F745+MPU6000 gyroscope to achieve stable flight performance, with built-in 5V/2.5A, 10V/2A BEC, built-in OSD module, barometer, and black box.

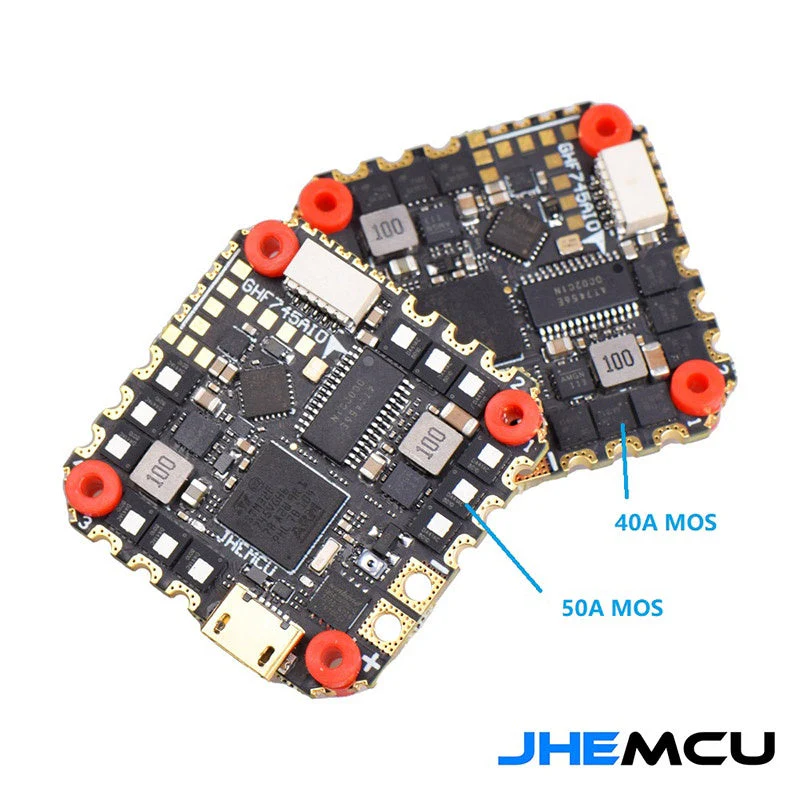

The brushless electrical adjustment part adopts ST G071's 32-bit matched with imported high-power MOS, with a built-in TVS module, eliminating the need to weld TVS modules on the outer part.
Checkout all our Whoop Style AIO Boards and the rest of our JHEMCU Products!

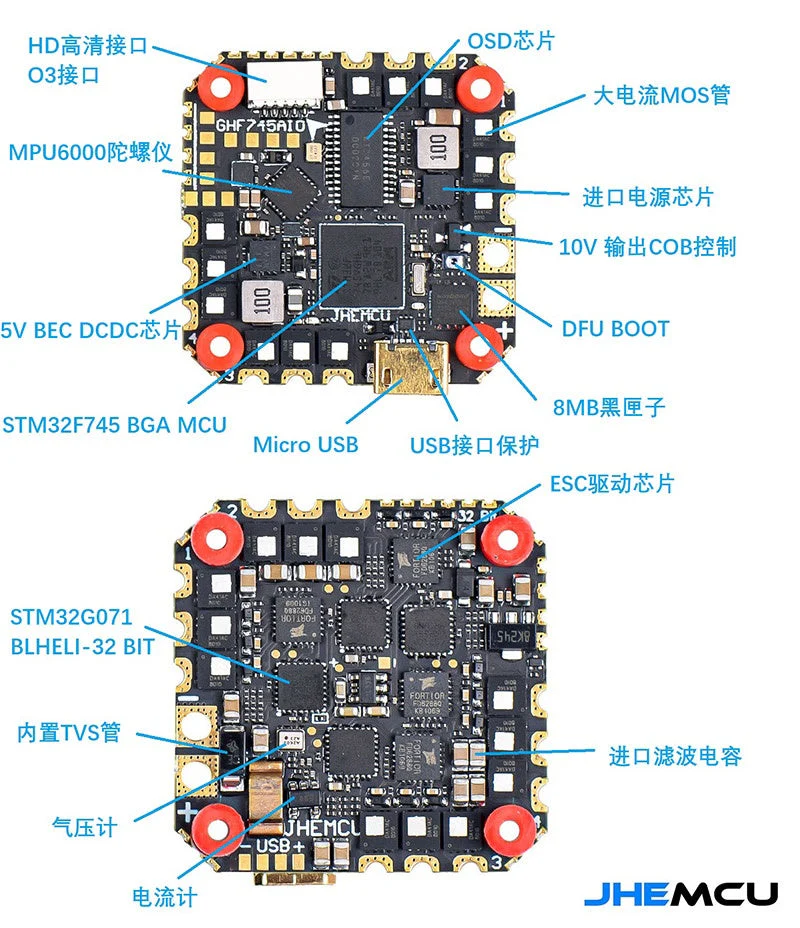

Specifications:
-
Brand name： JHEMCU
- Model: GHF745AIO
- MCU： STM32F745/216MHZ
- IMU: MPU6000/Gyro/Accel
- OSD： AT7456E
- Baro： YES
- Blackbox： 8MB
- Input voltage: 3S-6S（11.5V-26V）
- 5V-BEC： 5V/2.5A ±0.1V
- 10V-BEC: 10V/2A ±0.1V
- Receiver： ELRS(CRSF), TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX
- HD接口： YES
- USART: UART1,UART2,UART3,UART4,UART5,UART6
- IIC： IIC1
- Led_Strip: YES
- Buzzer: 5V
- ESC signal: Dshot150，Dshot300，Dshot600
- USB: Micro USB
- Current port： YES
- Voltage sensor：YES
- DFU button： YES
- FC Firmware: betaflight_4.4.2 JHEF745.HEX
- Size: 33*33MM
- Mounting Hole:25.5*25.5*3MM
- Weight: 7.3g
ESC Specifications:
- ESC Current: 50A
- ESC MCU： STM32G071
- ESC TYPE: AM32
- ESC Firmware: JHEMCU_G071_ESC_Multi_32_9.HEX

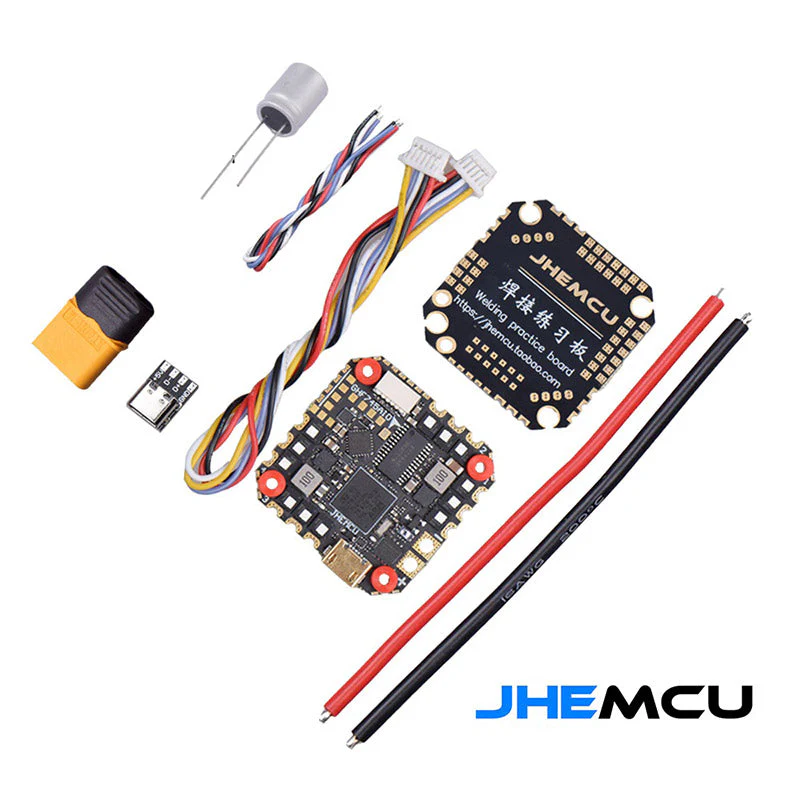

Package Includes:
-
1x GHF745AIO - 50A
- 1x XT60
- 4x M2 * 6.5MM shock absorber
- 2x 50A-14AWG wire
- 1x O3 connecting line 5P to 6P
- 1x 470UF/35V capacitor
- 1x TYPE-C adapter board
- 4x 28AWG Wire
- 1x Welding practice board
