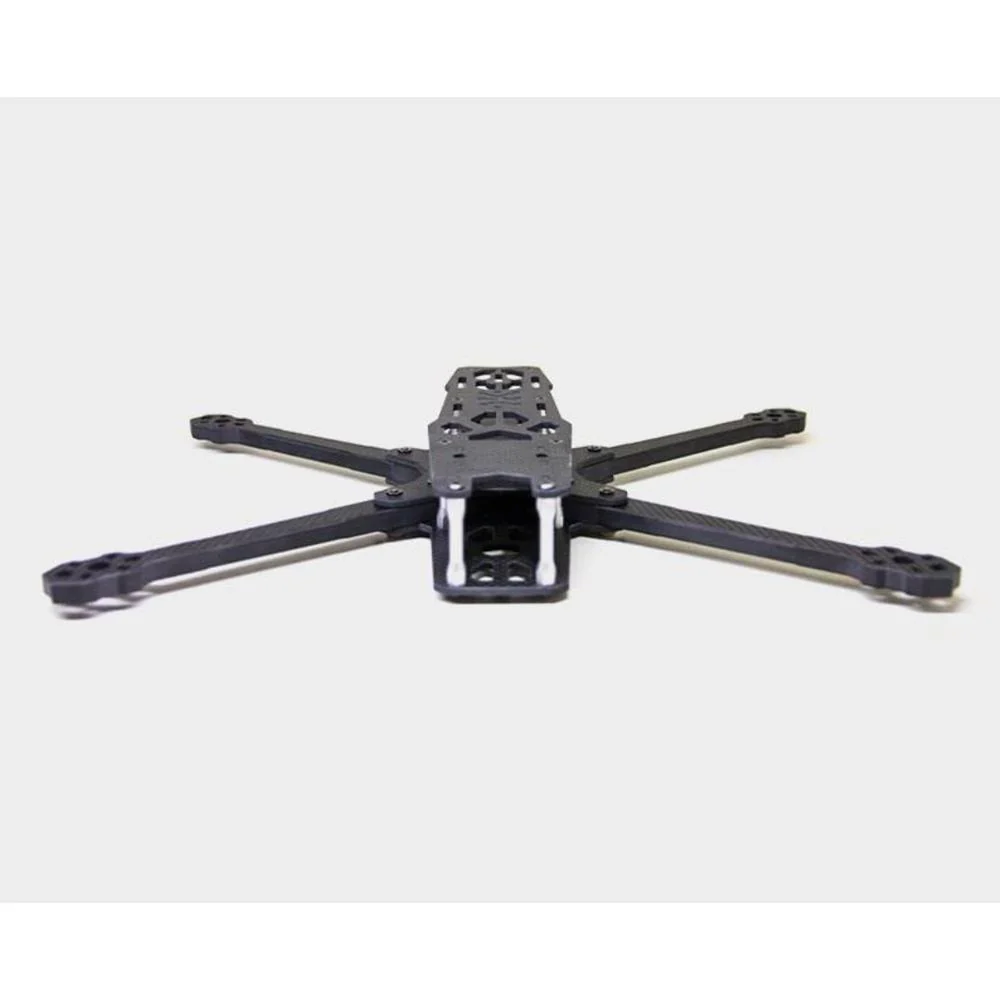

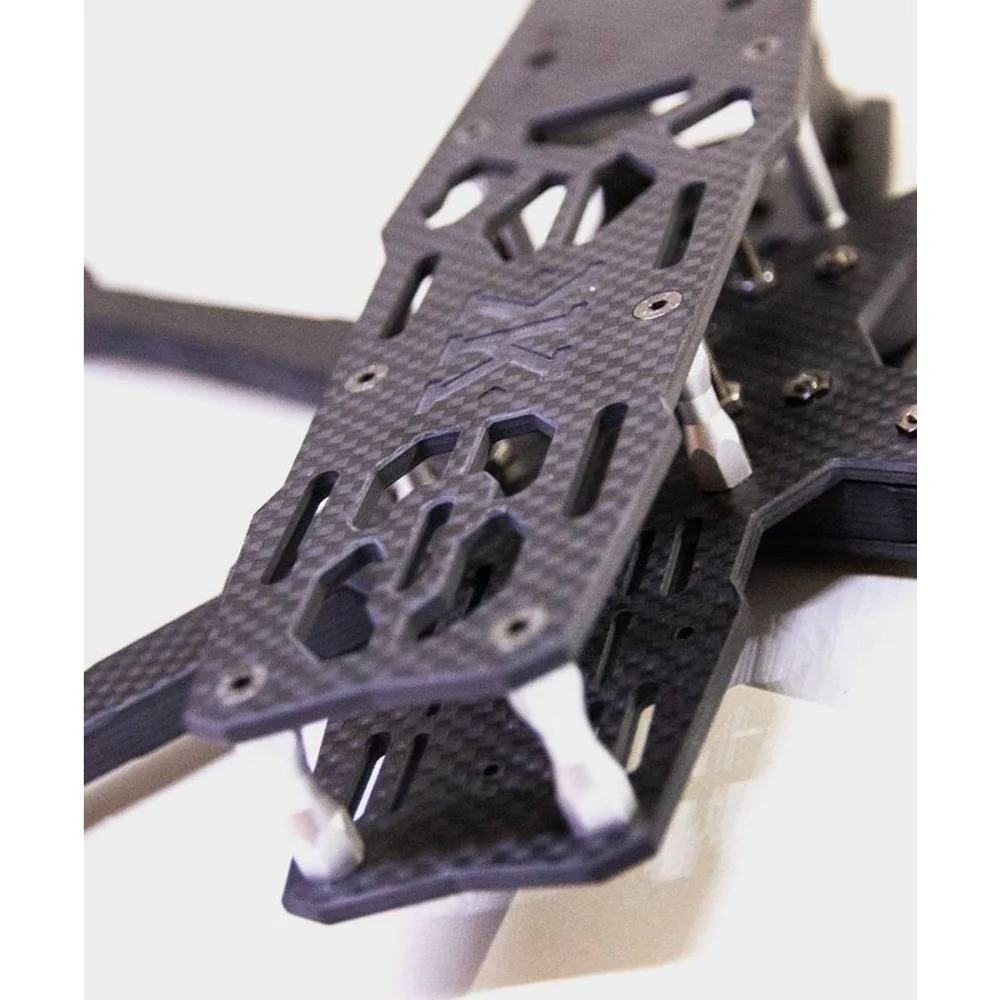

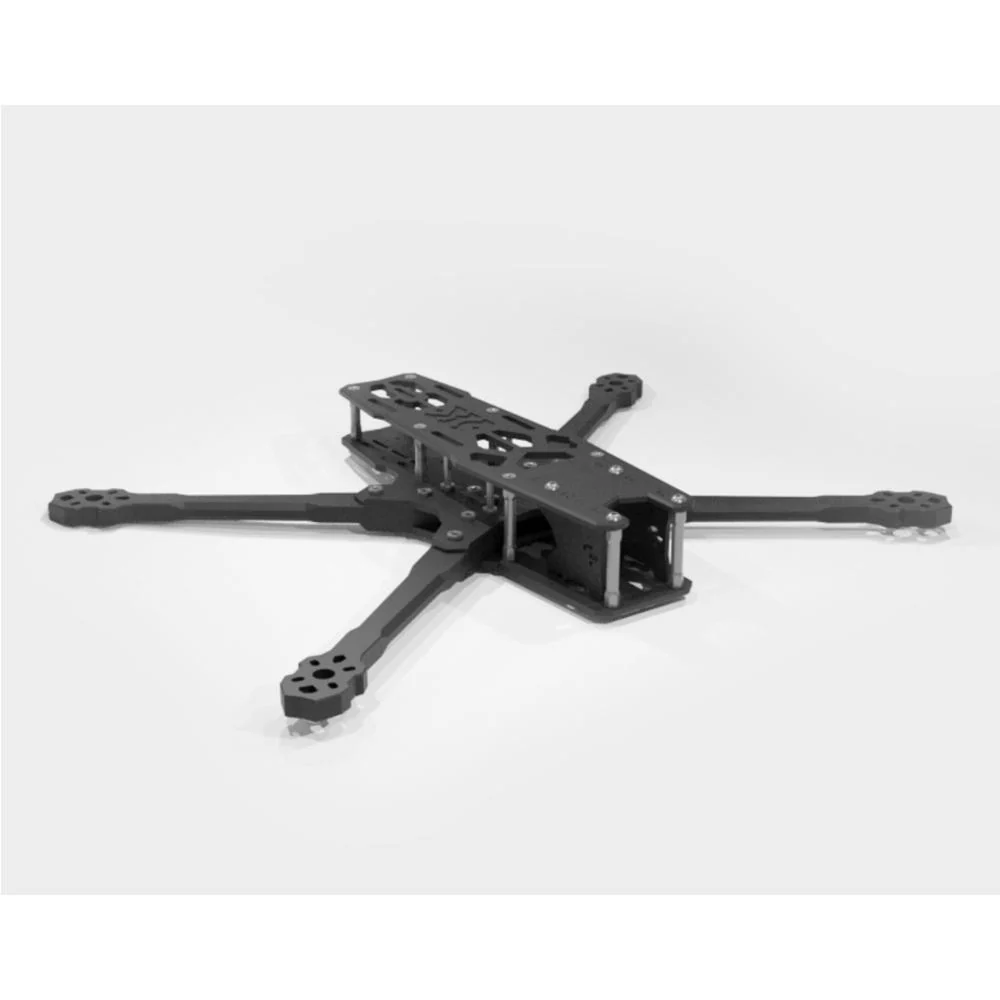

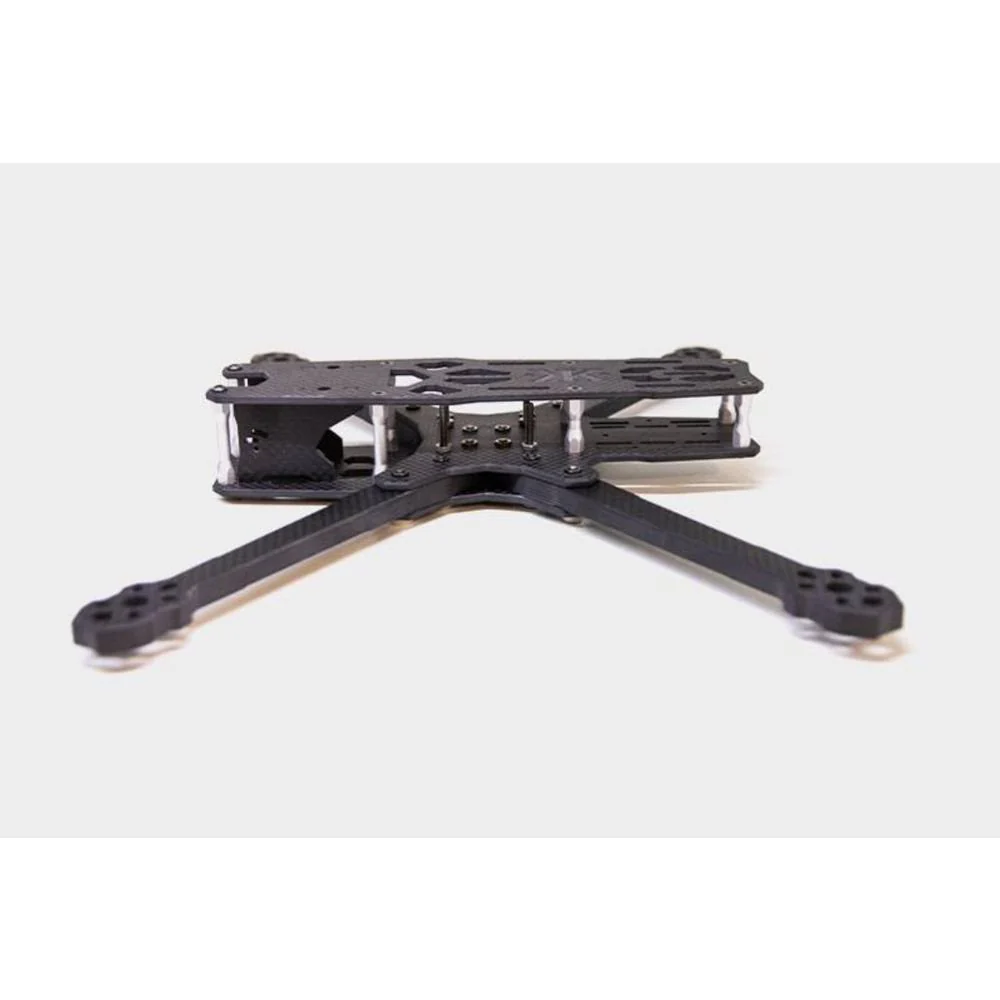

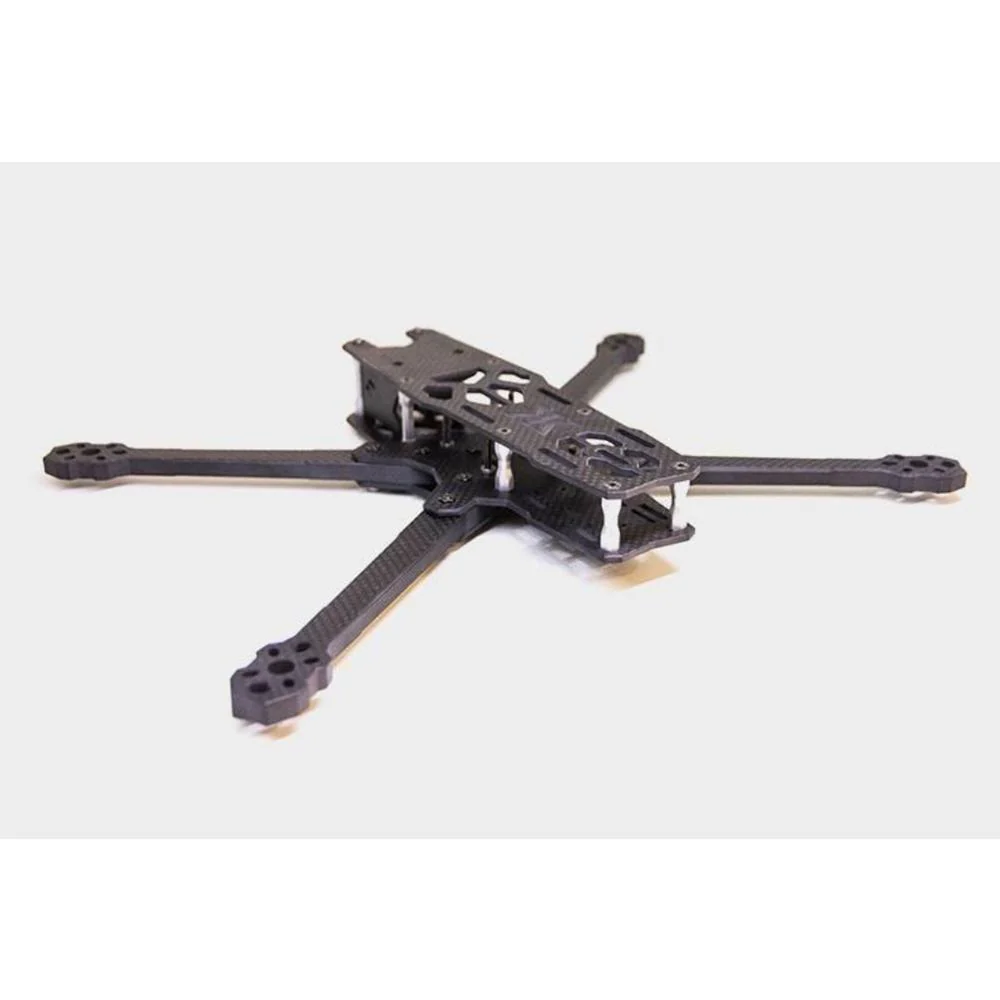

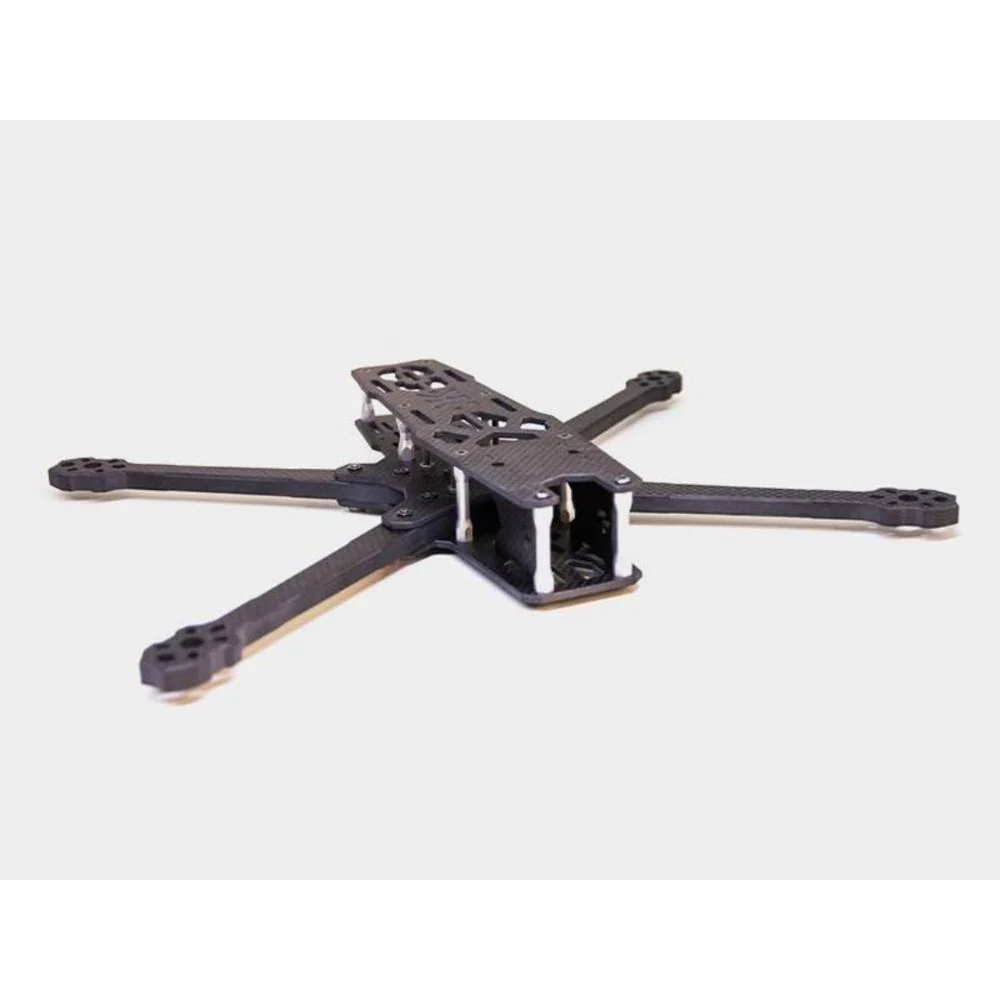

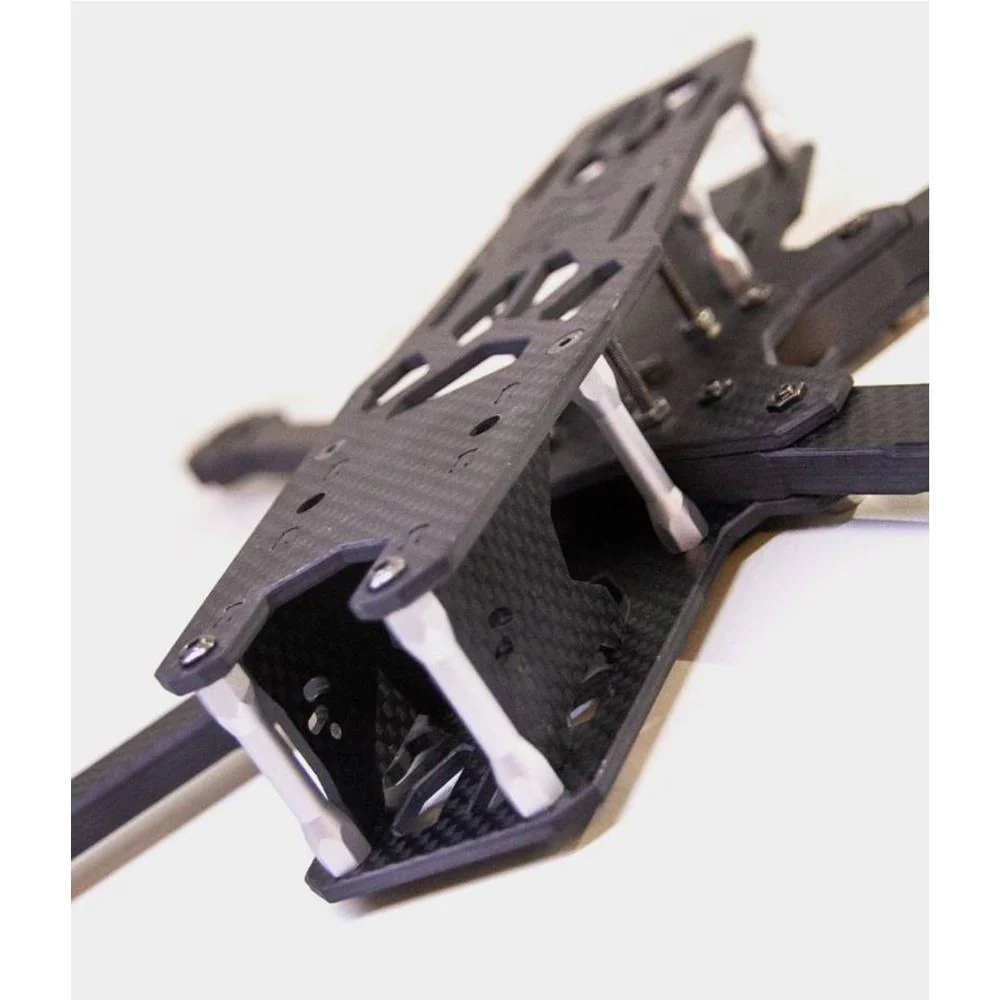

Kayou Frames Kayouloin 7 Inches HD Freestyle Quadcopter Frame Kit (Without TPU)
Long Range, Mountain Surfing, Freeride, the Kayouloin is an ultra-rigid 7" frame with very stable geometry, born to rock mountain passes and peaks.
-
8mm arms
-
Front, Rear and Top plates in 3mm
-
Squished X geometry
The rigidity provided by its 8mm arms and wide plates allows you to largely push the tune , reducing latency to a minimum and increasing responsiveness and agility compared to other 7" frames on the market.
It has been entirely designed around wind resistance, performance and handling to offer an exceptional flying experience for the format.
N.B: Does not include 3D Printed parts, you have to print the needed parts that suits your build.
Check out all our Frames Collection and the rest of our Kayou Frames Collection!
You can download the Build Guide here.
Freeride/Mountain Surfing preset for the Kayouloin 7".
-
Betaflight Version : 4.4.x
-
Motors : 2806 1300-1500kv
Thanks to Bash for his contribution !
Frame Specifications :
-
High Quality T700 3K Toray chamfered Carbon
-
Hex M3 Steel 12.9 graded screws
-
Custom high quality Aluminium standoffs
-
3mm Top Plate
-
3mm Middle Plate
-
3mm Bottom Plate
-
2mm Cam Plates
-
8mm arms
Build Specifications :
-
30x30 Main stack,
-
30*30, 25.5*25.5 and 20*20 Rear Stack, fits a Caddx Vista, Air Unit O3/04, Walksnail, etc,
-
Long Deck to carry large batteries, plenty of room for electronics.
KayouGang recommended setup :
-
Motors: 2806-2807 1300-1500kv
-
Lipo: 6s 1300-4000mAh
-
Liion: 6s1p 21700
-
Stack 30x30 classic, we recommend a 50A minimum rated ESC.
-
VTX: 30*30, 25.5*25.5 and 20*20, we recommend 800mW to have an interesting range.
Package Includes:
-
1 x Kayouloin 7 Inches HD Freestyle Quadcopter Frame Kit (Without TPU)
Original: $154.99
-70%$154.99
$46.50
