Lumenier ELITE PRO 60A 2-6S AM32 4-in-1 ESC - 30x30mm
The Lumenier ELITE PRO 60A 2-6S AM32 4-in-1 ESC delivers maximum power and efficiency for Cinelifters, large drones, and high-speed racing builds, supporting up to 60A per channel on 2-6S LiPo batteries. Featuring the latest AM32 firmware, it offers ultra-fast processing, lower latency, and real-time telemetry for advanced flight control. Its heavy-duty 2mm copper PCB and dual aluminum heatsinks ensure superior heat dissipation, making it the ultimate choice for high-performance drones.
Check out all our 30x30mm Electronic Speed Controllers and the rest of our Lumenier Products!
Features:
- Supports DSHOT 1200/600, Proshot, Oneshot125 (125-250 µs), Oneshot42 (41.7-83.3 µs), and Multishot (5-25 µs) with Auto-Detection
- Synchronous Rectification Technology for Improved Efficiency and Damped Light
- Powerful Regenerative Braking/Active Braking
- Dual heatsinks for Improved Cooling
- Programmable PWM Frequency
- 2-6S LiPo Battery Compatible
- RGB LED Control
- Adaptive Timing
- ESC Telemetry
- Lightweight
- AM32
Specifications:
- Dimensions: 43 x 46 x 9 mm (including heatsink)
- Mounting Holes: 30.5 x 30.5 mm
- Constant Current: 60 Amps
- Burst Current: 100 Amps
- Input: 2-6S LiPo
- Weight: 27 g

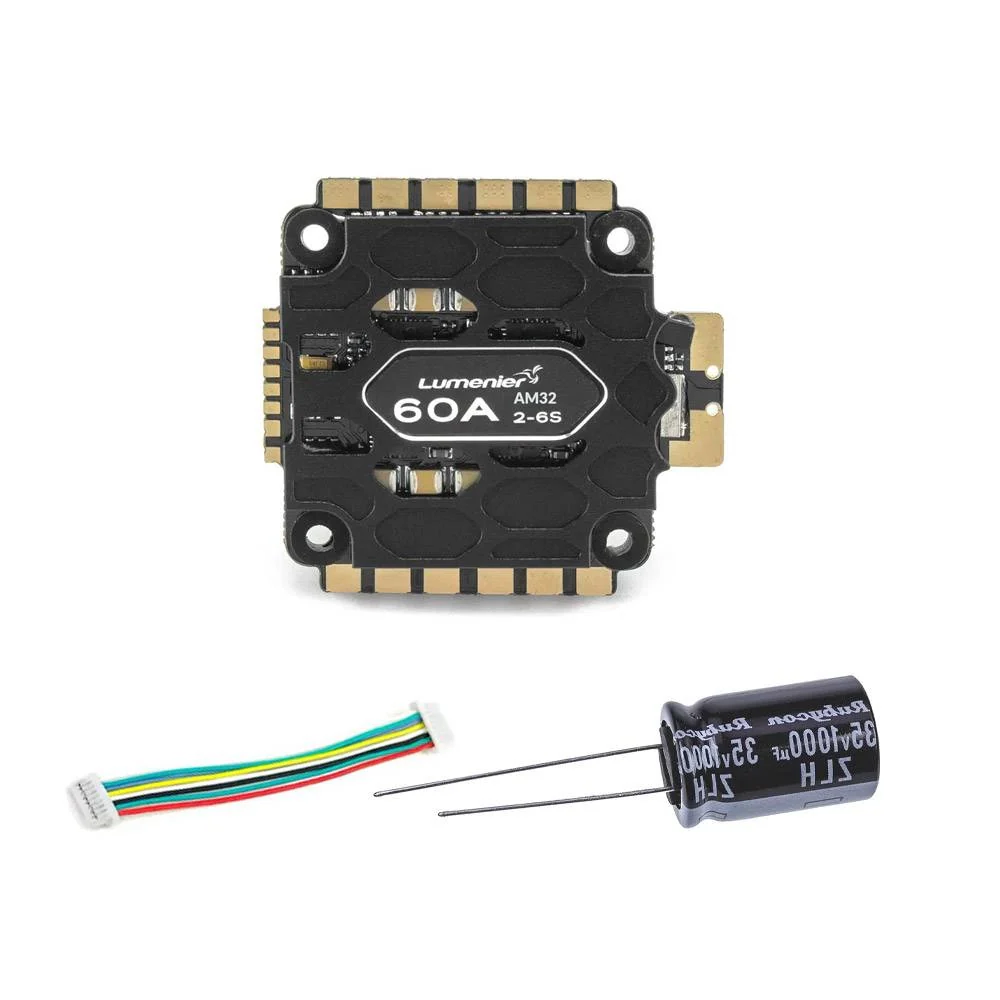

Package Includes
- 1x Lumenier ELITE PRO 60A 2-6S AM32 4-in-1 ESC - 30x30
- 1x 8pin to 8pin JST-SH cable
- 1x 35V 1000uF Capacitor
