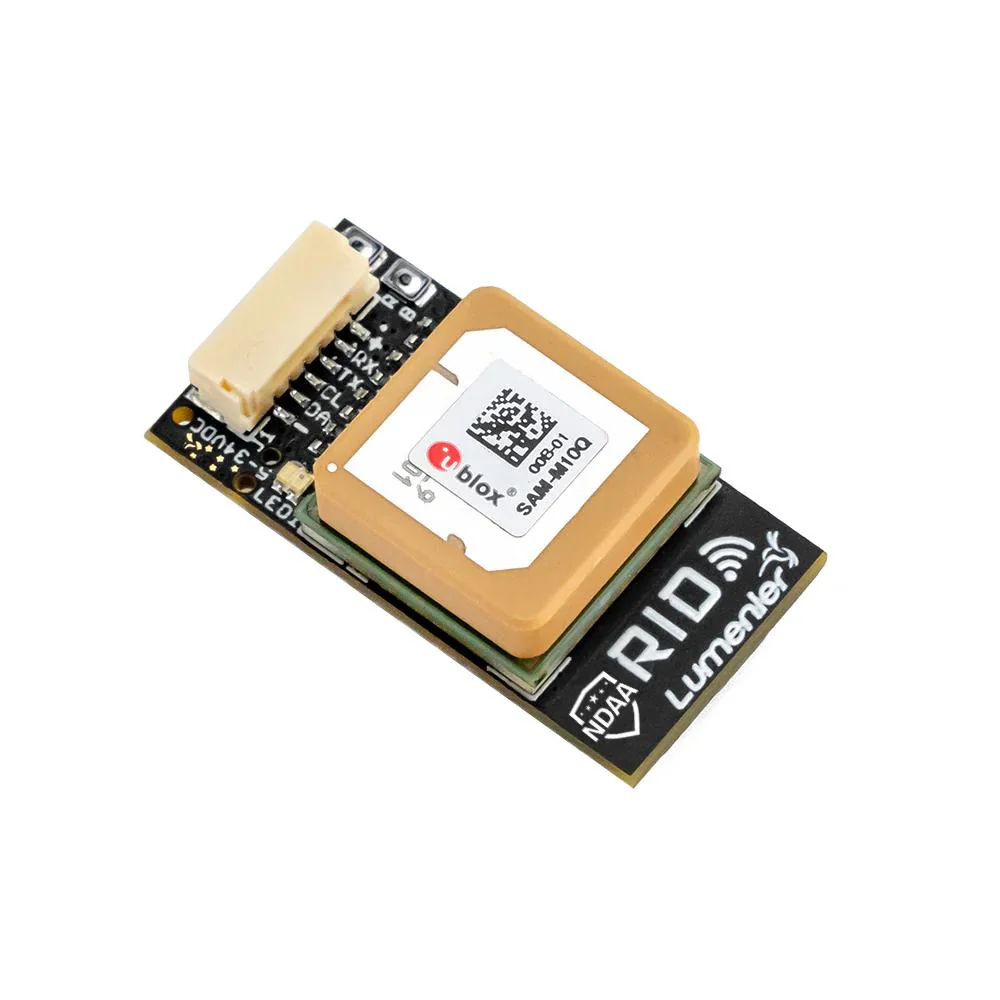

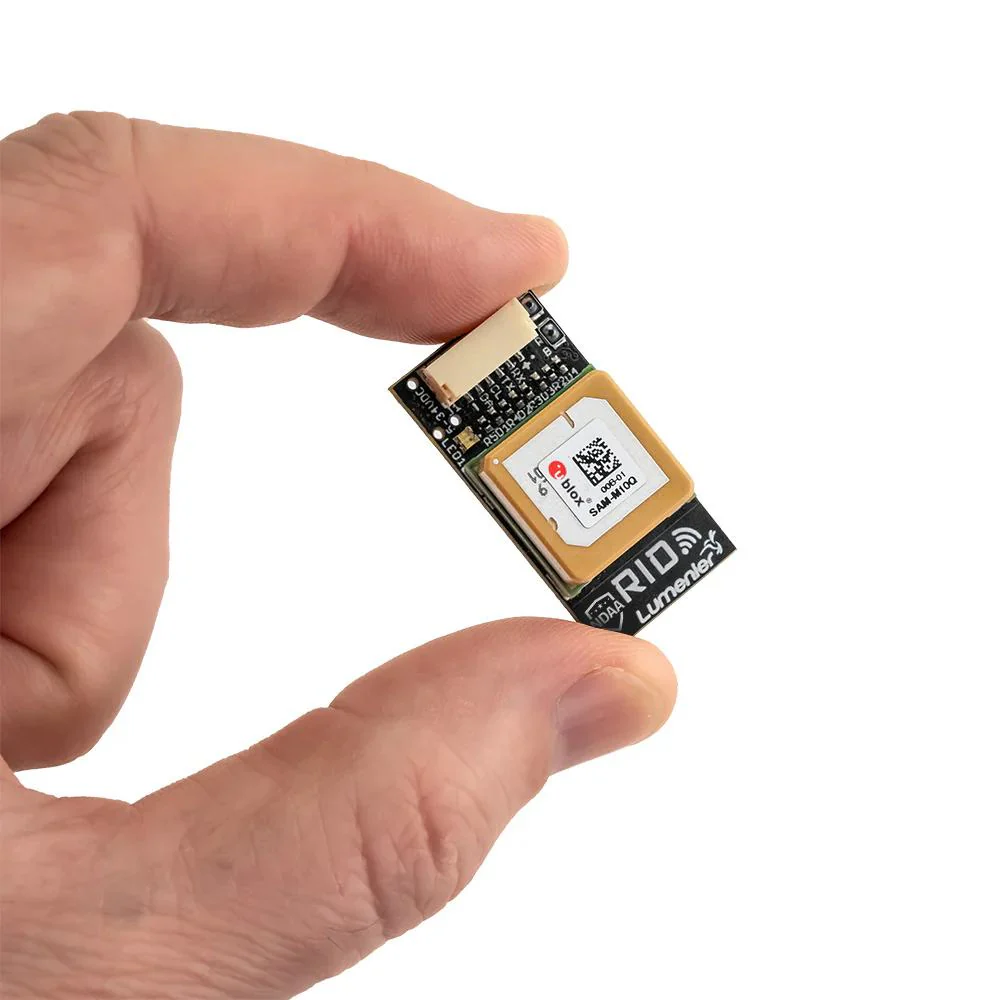

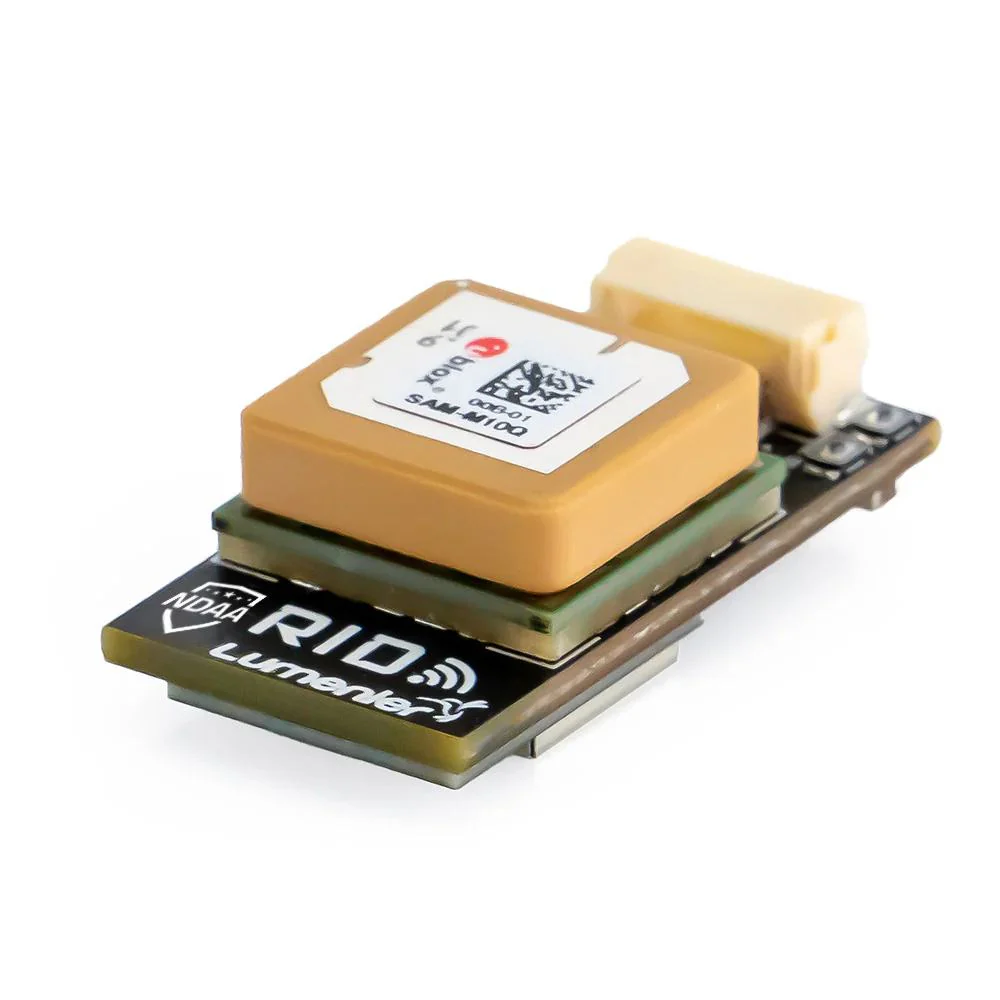

Lumenier Remote ID Module - NDAA
The Lumenier RID complies with FAA regulations and features an integrated UBLOX SAM-M10Q for precise positioning. Its Bluetooth 4 and 5 broadcast transmitter and reverse polarity protection ensure seamless connectivity and safety. Equipped with an onboard magnetometer, efficient power design, and a red/green LED status indicator, it offers reliable performance for drone enthusiasts and professionals alike. The GPS and magnetometer data can be used at the same time by a flight controller for autopilot functionality and OSD information. Each module is individually tested and verified and includes a test report.
Check out other Remote ID ModulesĀ and the rest of ourĀ Lumenier Products!
Features:
- Bluetooth 4 and 5 broadcast transmitter module with integrated antenna
- The onboard connector uses "Basic GPS" pinout from Pixhawk standard
- Functions as a GPS/Mag data source as well for the Flight Controller
- Efficient power design with a wide voltage range of 5-34V (2s-8s)
- Integrated UBLOX SAM-M10Q GPS
- Meets FAA remote ID requirements
- 3.3V Logic levels - ESD-protected
- Onboard LIS3MDL magnetometer
- Red/Green LED status indicator
- Individual test report included
- Reverse Polarity Protection
- NDAA Compliant
Specifications:
- Broadcast Transmitter Module: Bluetooth 4 and 5 (with integrated antenna)
- GPS: Integrated UBLOX SAM-M10Q
- Onboard Magnetometer: LIS3MDL
- Logic Levels: 3.3V (ESD-protected)
- Magnetometer I2C Address: 0x1E
- Reverse Polarity Protection: Yes
- Voltage Range: 5-34V (2-8S)
- Lightweight 9g
- Size: 32.5x16.5x10.5mm
IMPORTANT NOTES
- Onboard connector uses "Basic GPS" pinout from Pixhawk standard
-
Red/Green LED status indicatorĀ
- Flashes RED on boot until a fix is detected, then flashes green.
- The RID Bluetooth functionality is still active without a fix; it just sends "unknown location" data.Ā
- Use Caution. If the board is not in heat shrink and sits on a conductive surface across these two points, it will short out the battery and could cause damage.
Links
- Lumenier NDAA Product Declaration - RID Remote ID Module
- Want to print your own TPU mounts? Download the 3D Mount Files here:
- FAA Regulations -Ā Learn more by clicking here.
- Download the Lumenier RID 3D Model STP File to integrate it into your own designs
- Integration Guides

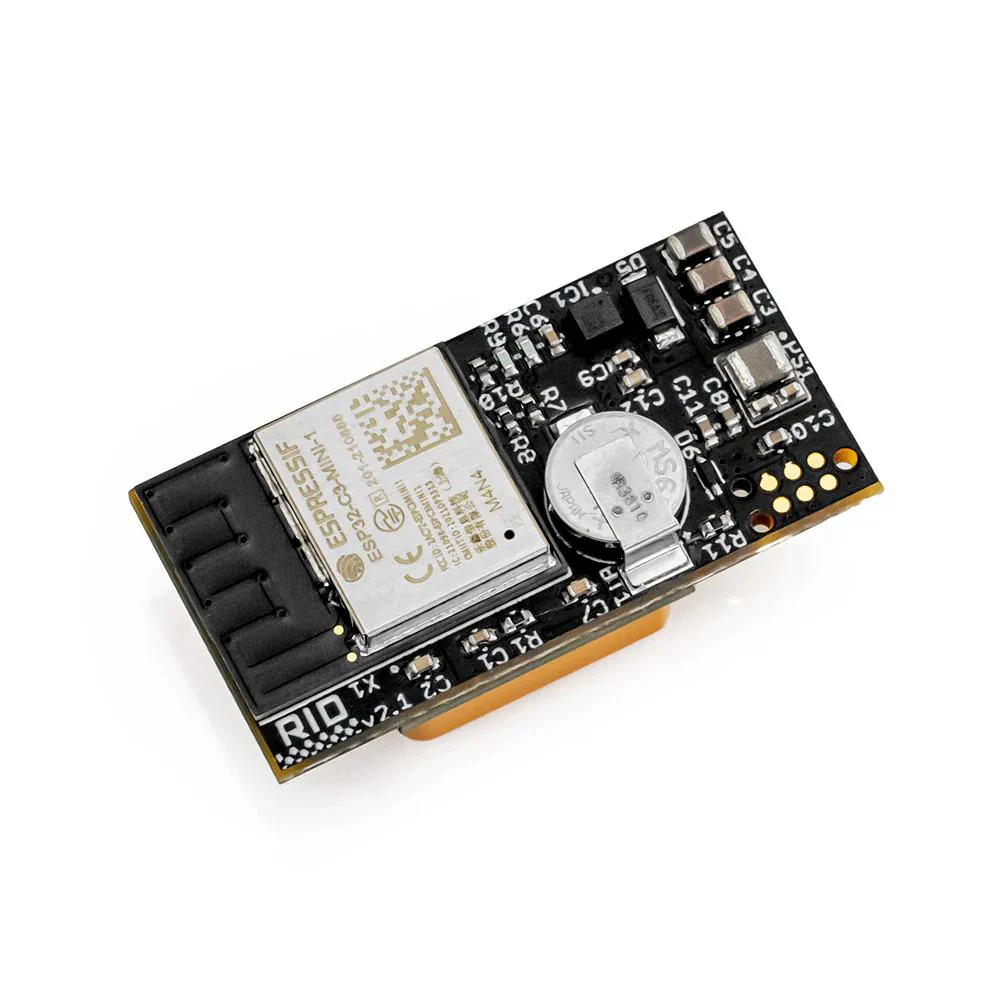

- Lumenier RID 2AC7Z-ESPC3MINI1 - Remote ID Declaration of Compliance
Ā
Package Includes:
- 1 x Lumenier RID Remote ID Module - NDAA
- 1 x FAA UAS ID QR Code StickerĀ Ā
- 1 x Test Report Receipt StickerĀ
- 1 x GH 6-pin to GH 6-pinĀ
- 1 x GH 6-pin to SH 6-pinĀ
- 1 x GH 6-pin to PigtailĀ
- 1 x Heat Shrink
