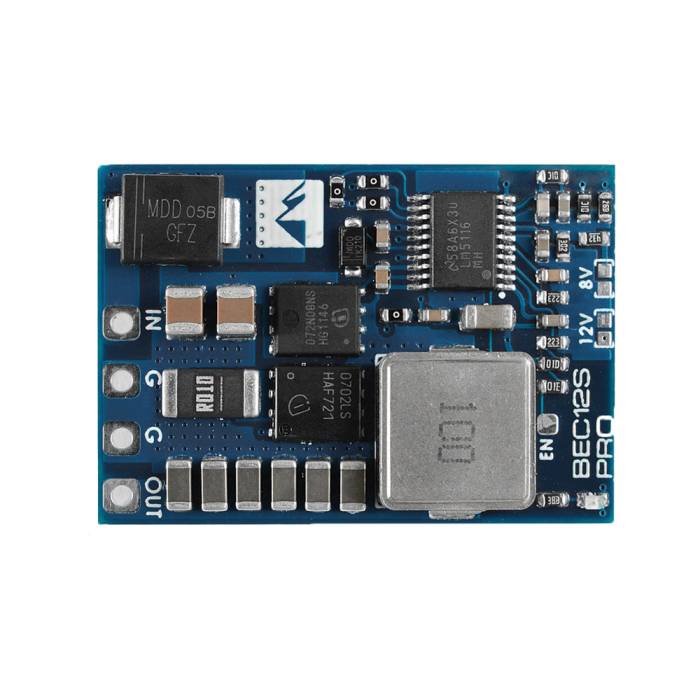

Matek 12S Pro BEC 12S 9-55V Input 5V/8V/12V-5A Output

The MATEKSYS 12S Pro BEC features a wide 9-55V Operating Input Range, 3x Output Voltage Options 5V/8V/12V and Supports continuous output current of up to 5A, peak current of 9A. This voltage regulator also features a synchronous switching step-down (buck) regulator, thermal Shutdown, output Short-circuit tolerance (2 seconds), overcurrent protection & self-recovery and much more!

Checkout our BEC/PDB section and our Matek collection!

Specifications:

• Wide 9V to 55V Operating Input Range with TVS protection
• 3x Output voltage options,  5.2V, 8V or 12V.  Default 5.2V.
• Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%
• Supports continuous output current of up to 5A,  peak current of 9A.
• Output ripple  30mV (VIN=50V,  Output 5.2V @ 5A),  60mV (VIN=50V,  Output 12V @ 5A)
• Standby current: 5~10mA
• No reverse-input voltage protection
• Thermal Shutdown
• Output Short-circuit tolerant (2 seconds)
• Overcurrent protection & self-recovery
• Dropout voltage: 2V  (Input>=14V is required for stable 12V output)
• Pins distance: 3.81mm
• Size & Weight: 35 x 24 x 5.5mm,  5g

Includes

• 1 x Matek 12S Pro BEC 12S 9-55V Input 5V/8V/12V-5A Output
