NAMELESSRC D400 VTX+DVR AIO 25-400MW 720P RECORDING
This is Nameless RC's approach to the VTX/DVR combo for micro builds.
With higher output power up to 400mW, higher quality DVR and the ability to control the DVR Start/Stop function via your radio makes this board stand out compared to other similar options like the Happy model Diamond VTX.
*HAM license is required for operation on HAM channels, and HAM power levels! The VTX ships with only legal channels enabled, please consult the manual on unlocking procedure.
With higher output power up to 400mW, higher quality DVR and the ability to control the DVR Start/Stop function via your radio makes this board stand out compared to other similar options like the Happy model Diamond VTX.
Specifications:
- Input Power: 5V
- Output Power: PIT/25mW/100mW/200mW/400mW Switchable
- Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
- Control Mode: BFOSD Control/ Button, IRC Tramp ready
- Video Output format: NTSC
- Record video size : 1280x720 @30FPS

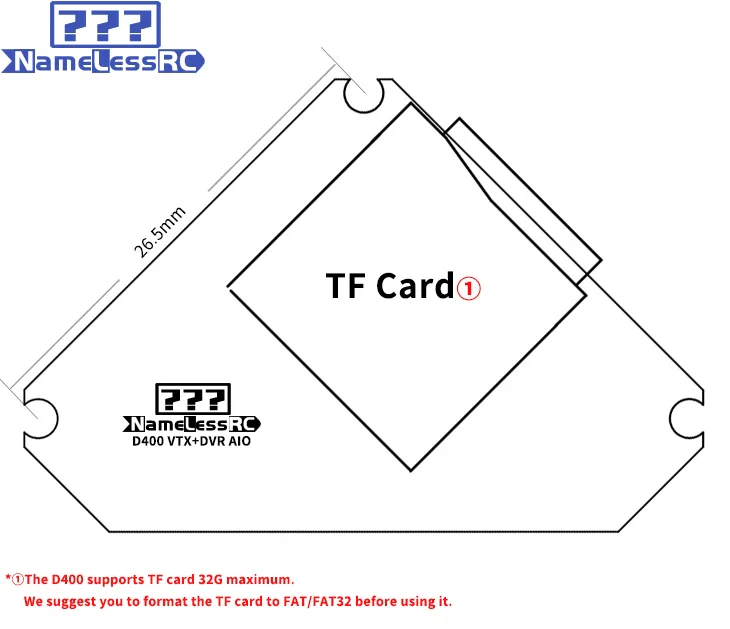

- TF Card support: Max.32G
- Compress Format: AVI
- Microphone: Yes
- Antenna: IPEX
- Mounting hole: 26.5*26.5mm
- Weight: 3.5g without antenna

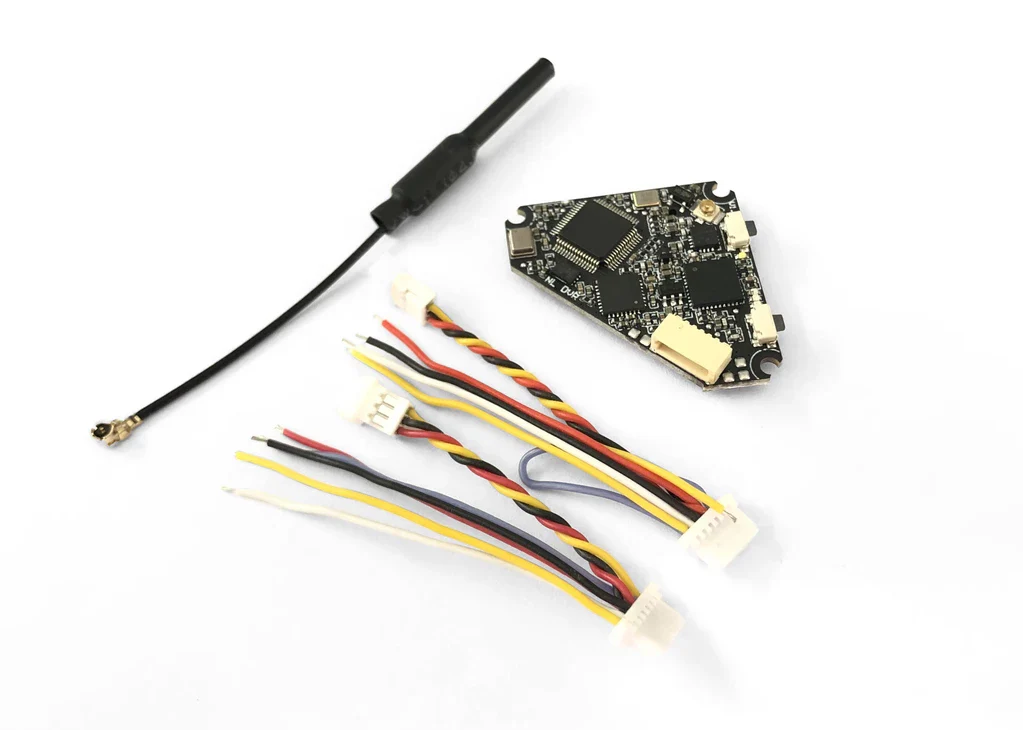

Package Includes:
- 1 x NameLessRC D400
- 1 x 5.8G Linear Antenna
- 4 x M2*3 Nylon Standoff

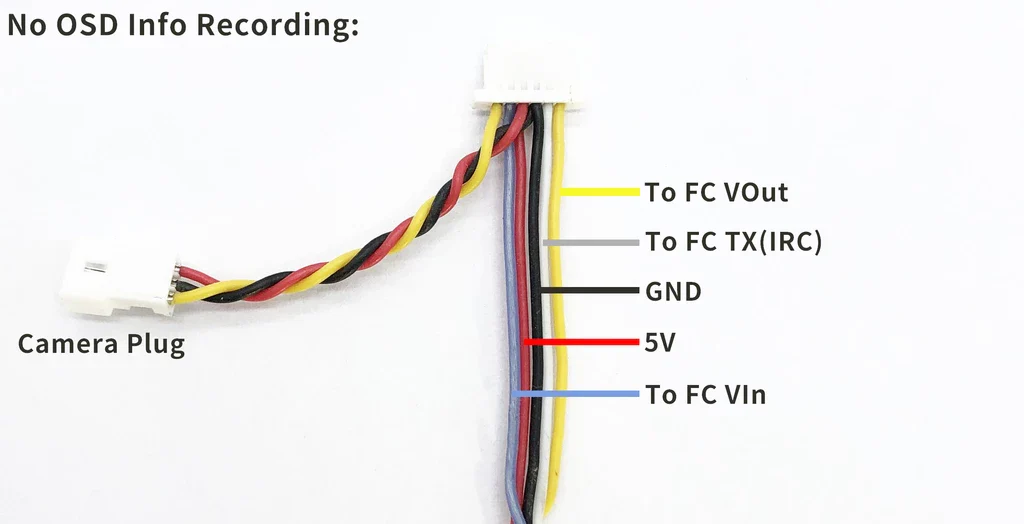

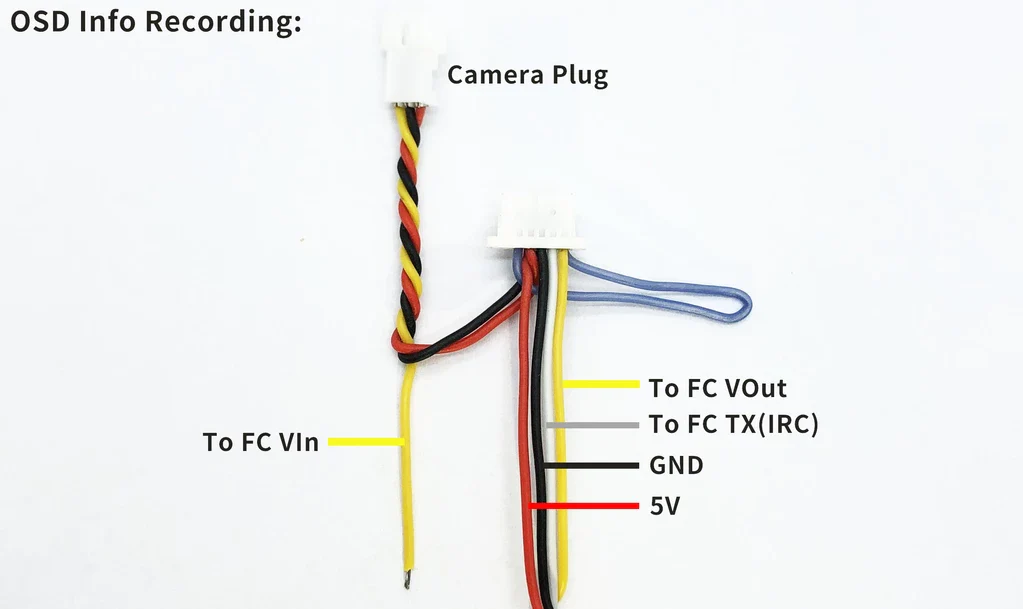

- 2 x 6Pin Cable (one that will record OSD info, one that will not)
Â
Click here to Download Manual
*HAM license is required for operation on HAM channels, and HAM power levels! The VTX ships with only legal channels enabled, please consult the manual on unlocking procedure.
