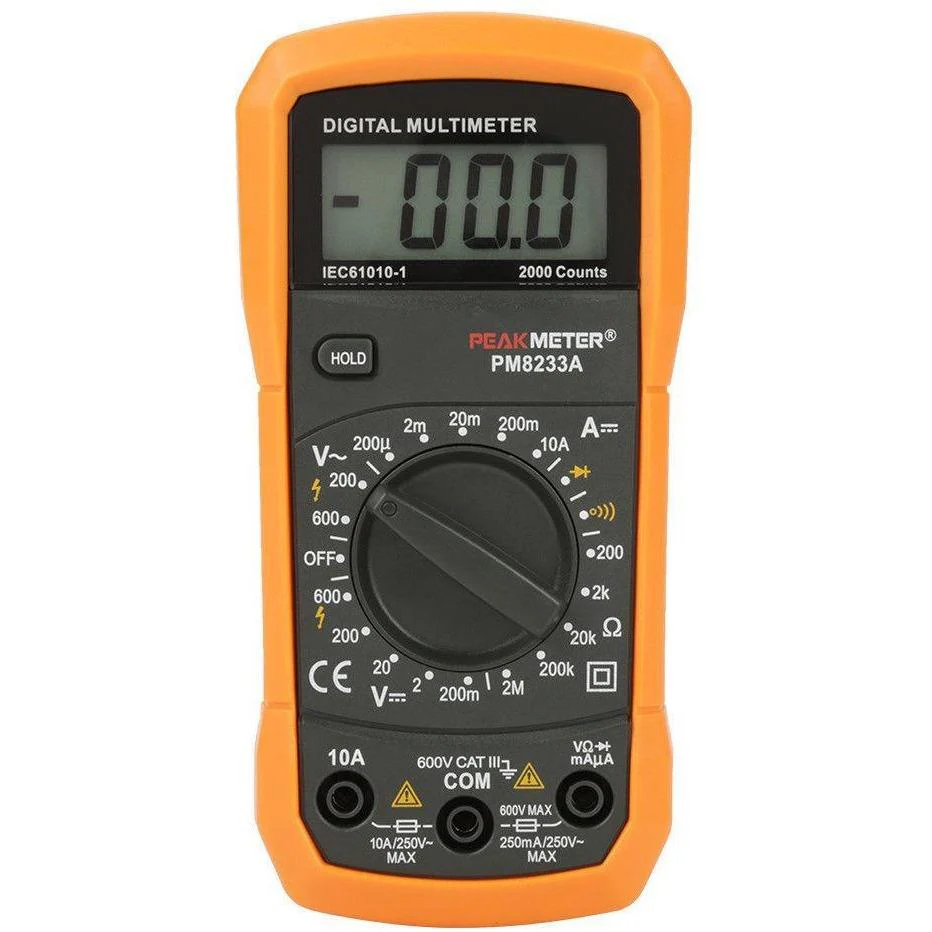

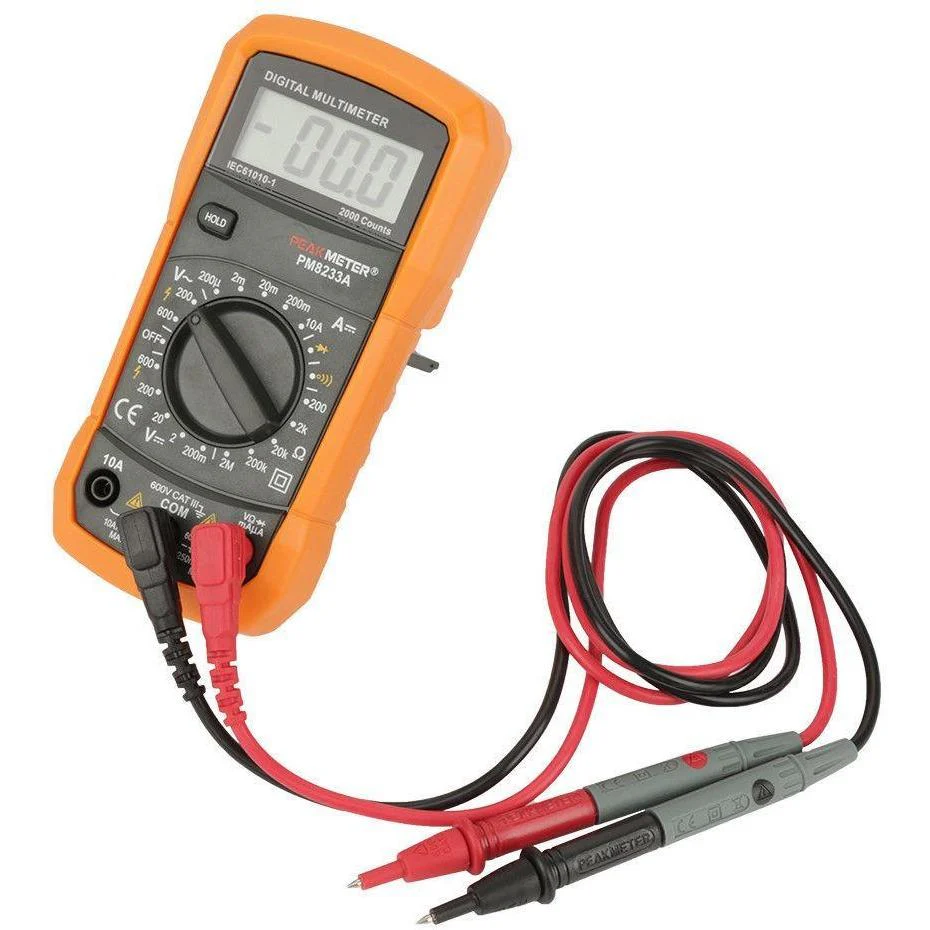

PEAKMETER PM8233A Handheld Digital Multimeter

This is the one tool every hobbyist should have on the bench before starting a build!

Checkout our huge selection of Tools and Building supplies.

Features:

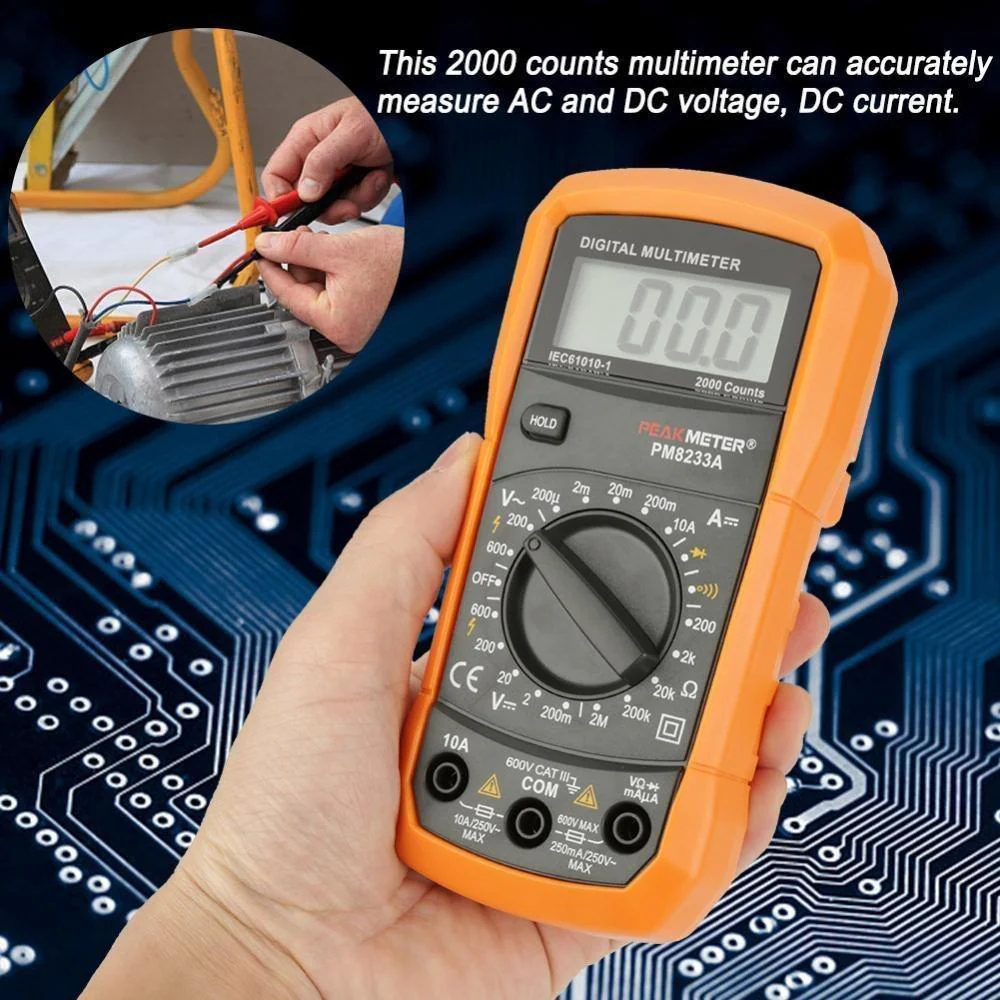

1. This 2000 counts multimeter can accurately measure AC and DC voltage, DC current.
2. Displays values on a digital screen to help you control real-time condition of testing object.

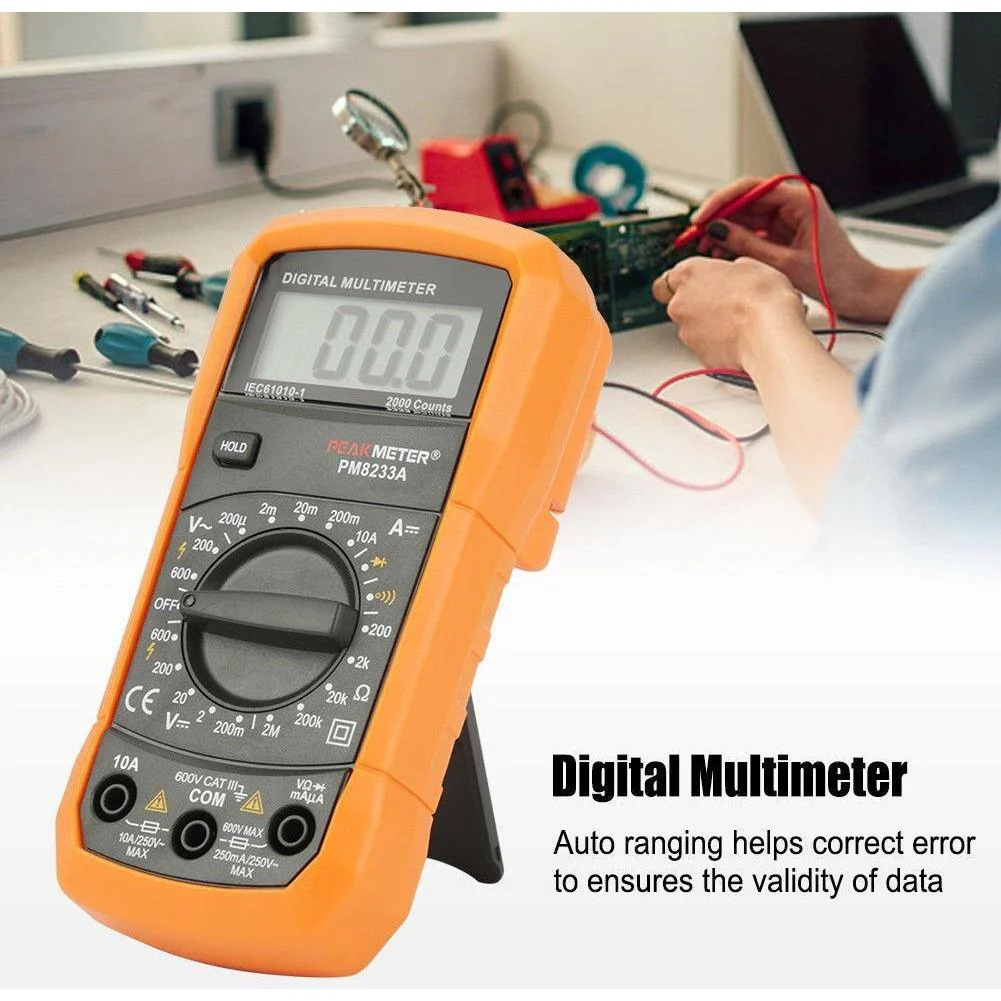

3. Auto ranging helps correct error to ensures the validity of data.
4. It can also be used for resistance measurement, continuity test and diode test.
5. Indispensible tool meter for electrician measurement.



Specification:

Brand: PEAKMETER

Model: PM8233A

Techinical Parameter	Range	Accuracy
DC Voltage	200mV/2V/20V/200V	±(0.5%+2)
	600V	±(0.8%+2)
AC Voltage	200V/600V	±(1.2%+10)
DC Current	200μA/2mA/20mA	±(1.0%+2)
	200mA	±(1.5%+2)
	10A	±(3.0%+2)
Resistance	200Ω/2kΩ/20kΩ/200kΩ/2MΩ	±(0.8%+2)
Function
Display	2000 Counts
Auto Ranging	Yes
Data Hold	Yes
Diode Test	Yes
Continuity Test	Yes
General Parameter
Power Supply	9V 6F22  Battery (NOT included)
Weight	Approx. 314g

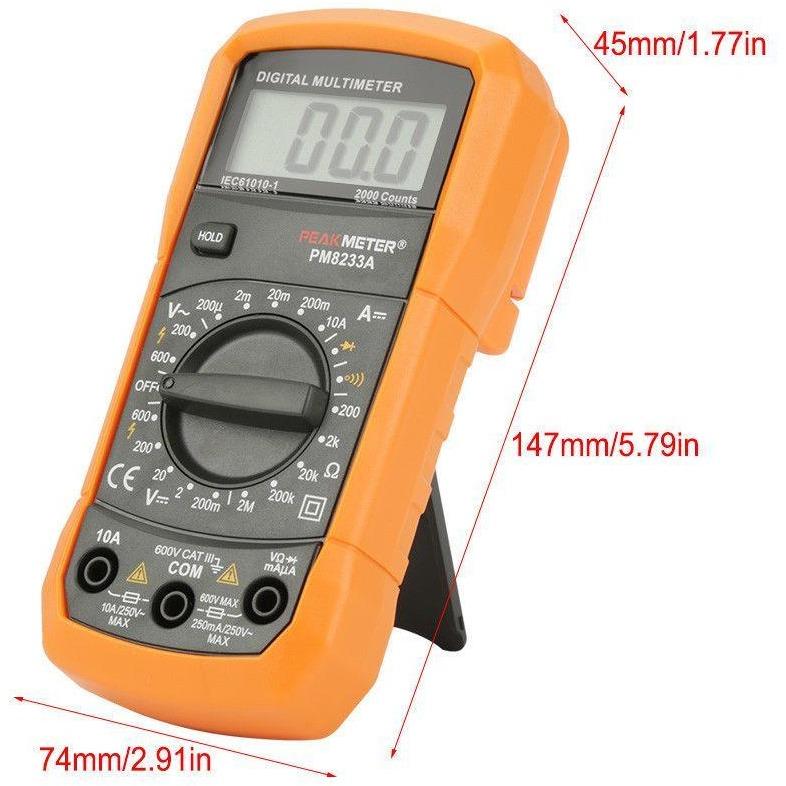

Size	Approx. 147x74x45mm / 5.79x2.91x1.77in
Safety Rating	CE CAT.II600V RoHS

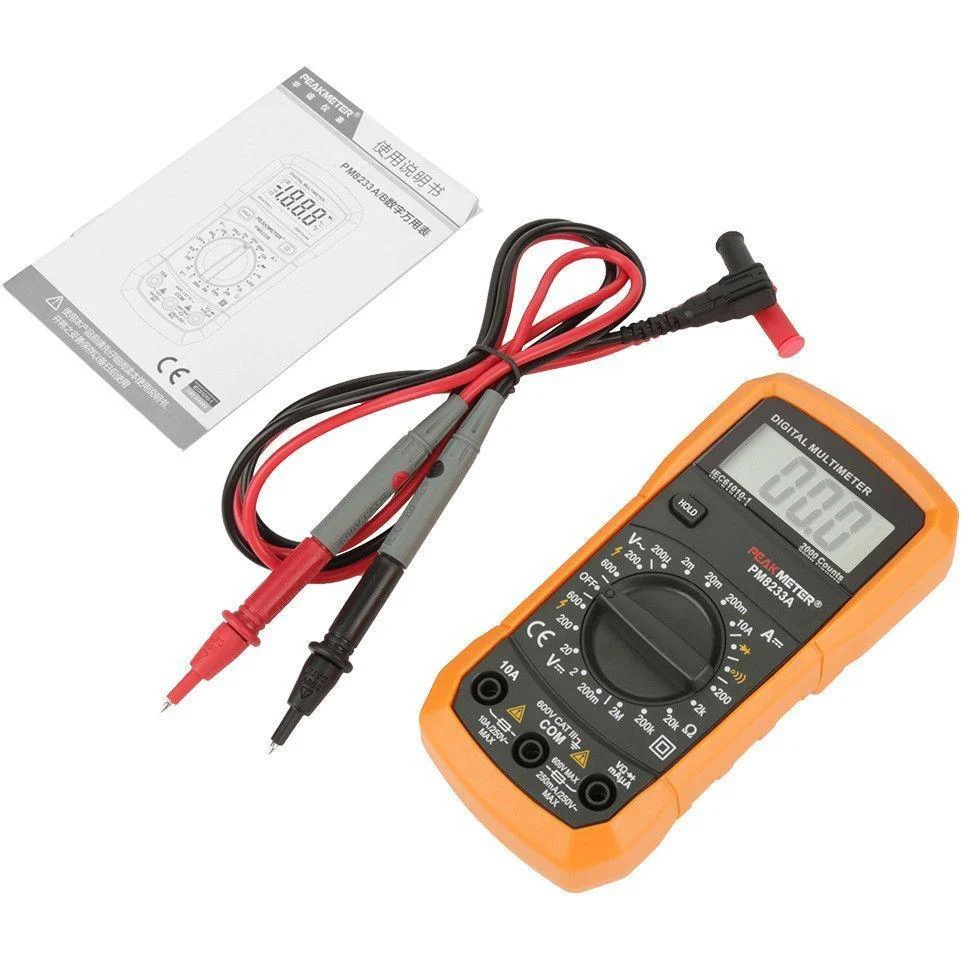

Package Includes:

1 x Digital Multimeter (Battery is NOT included)

2 x Test Probe

1 x User Manual
