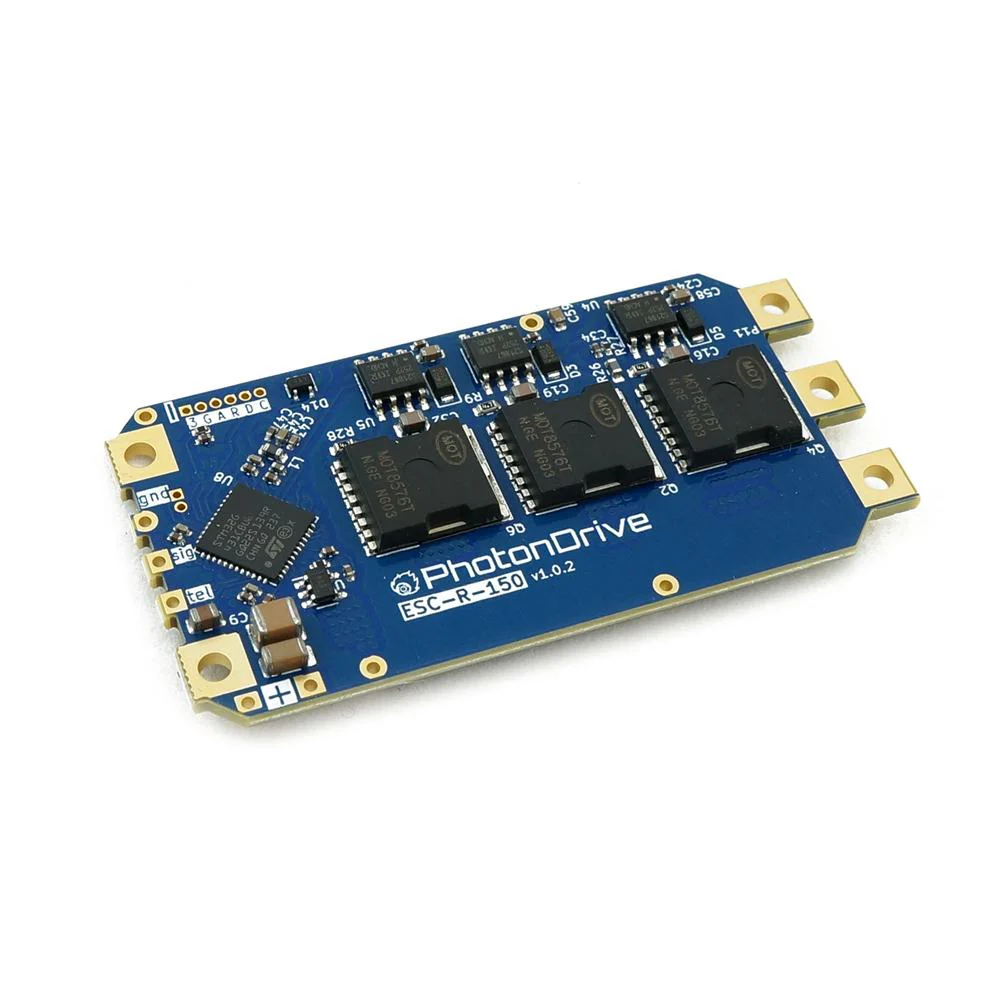

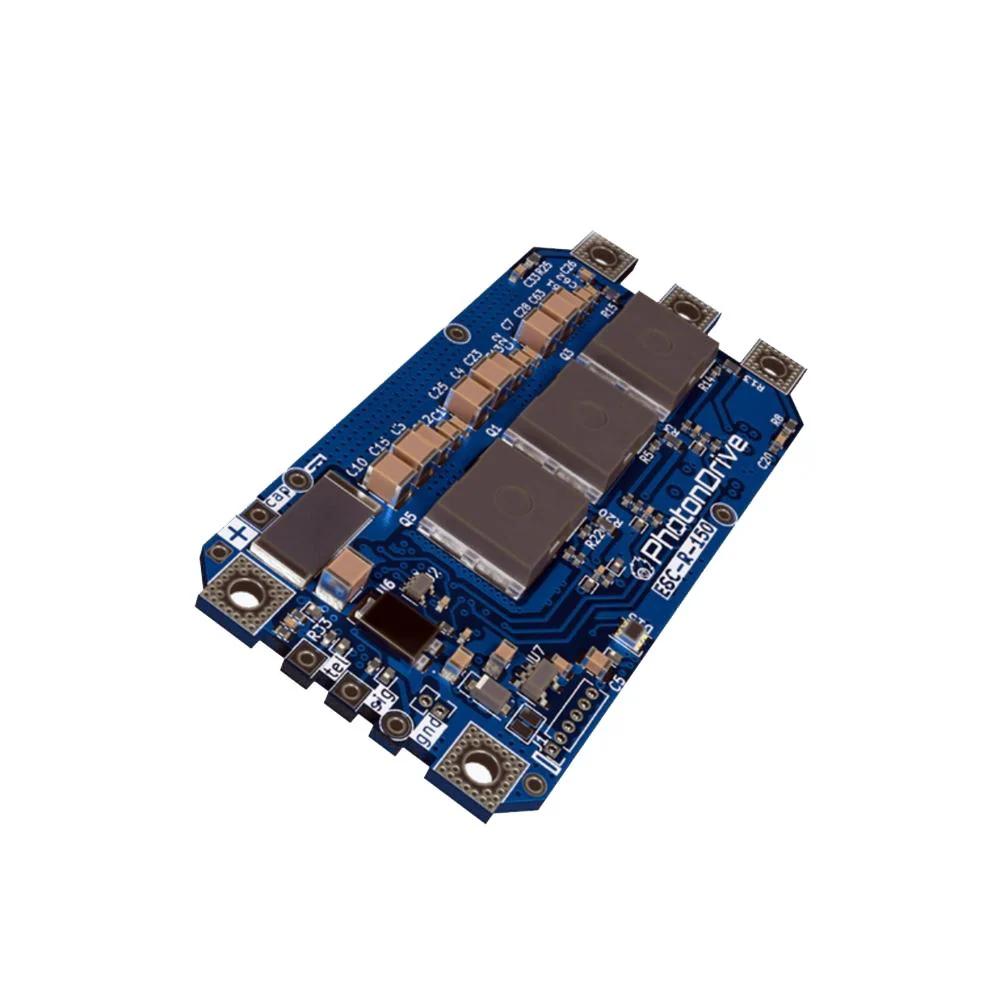

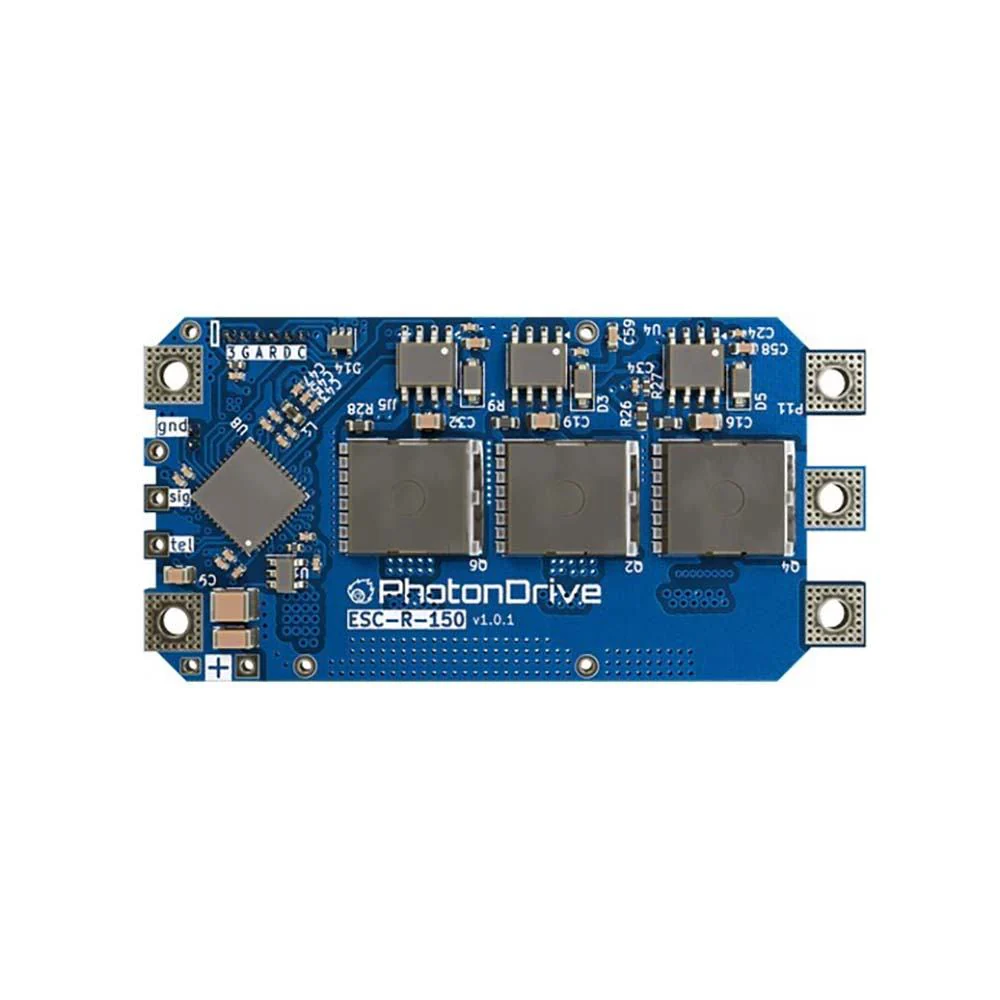

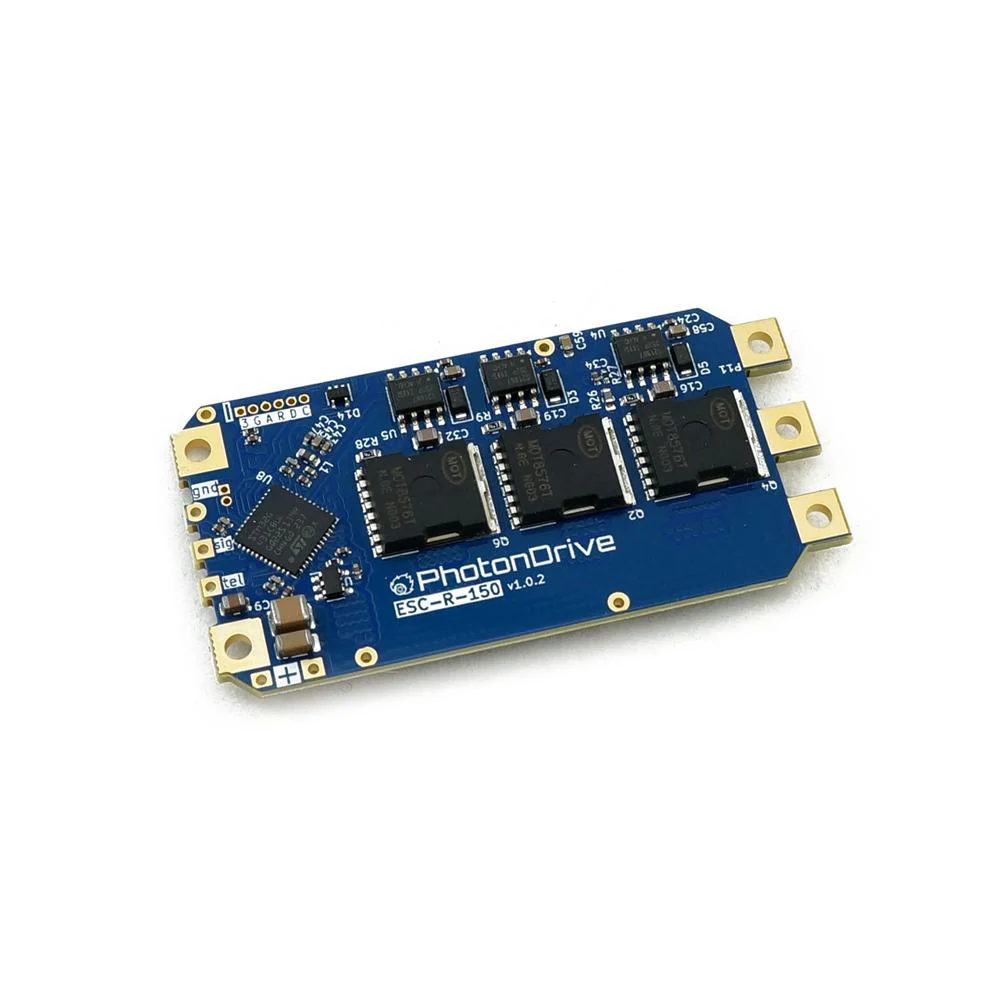

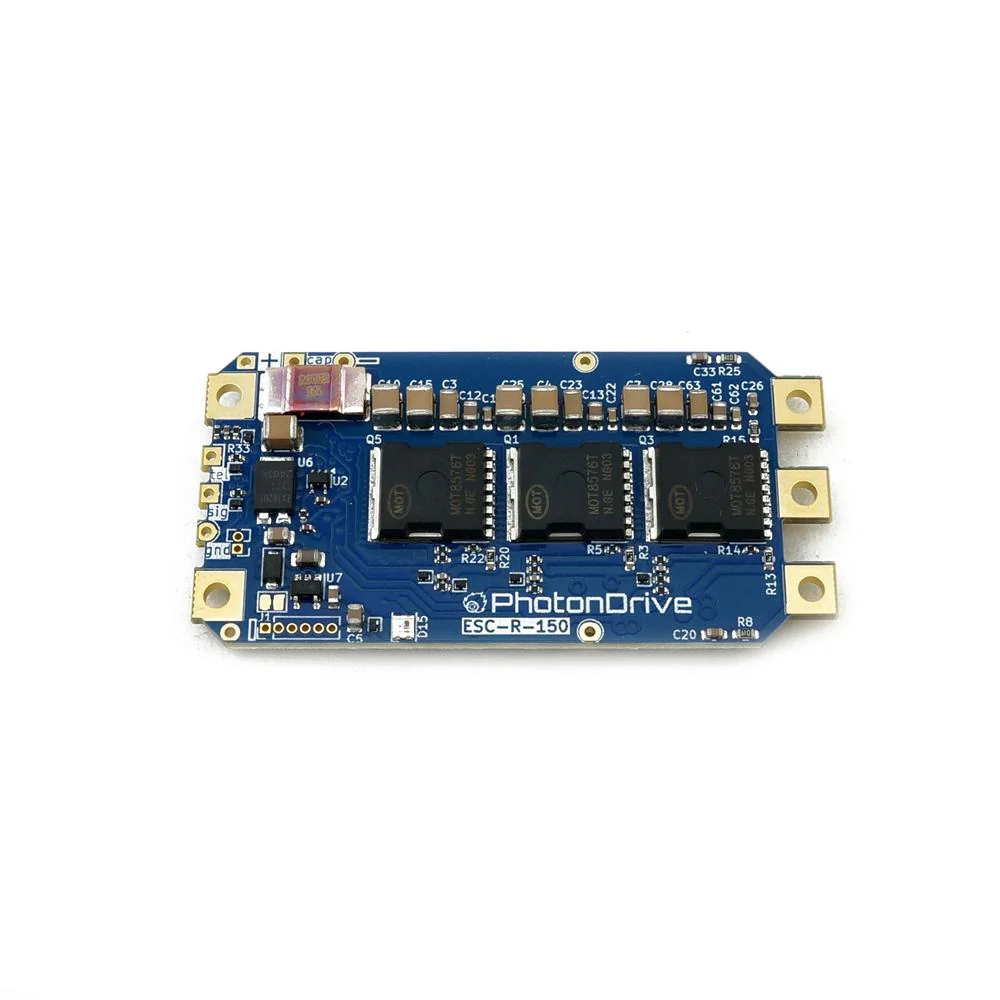

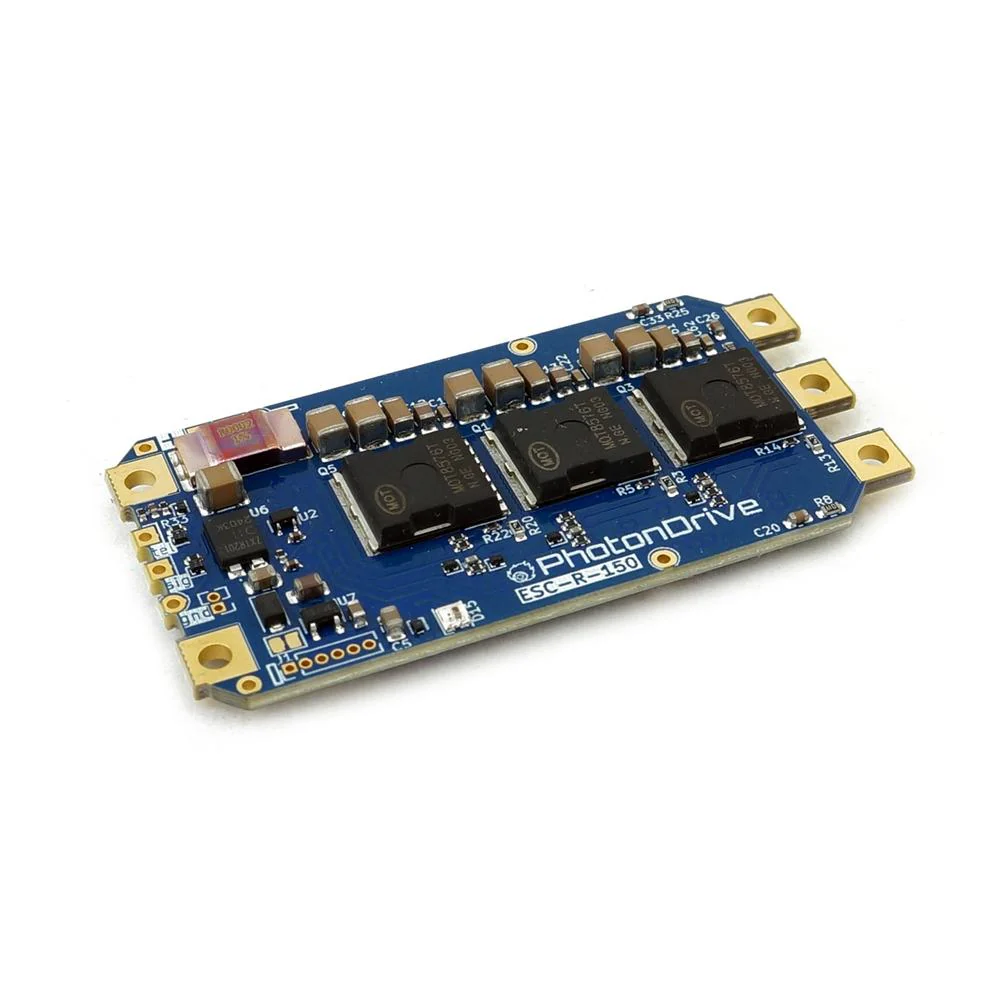

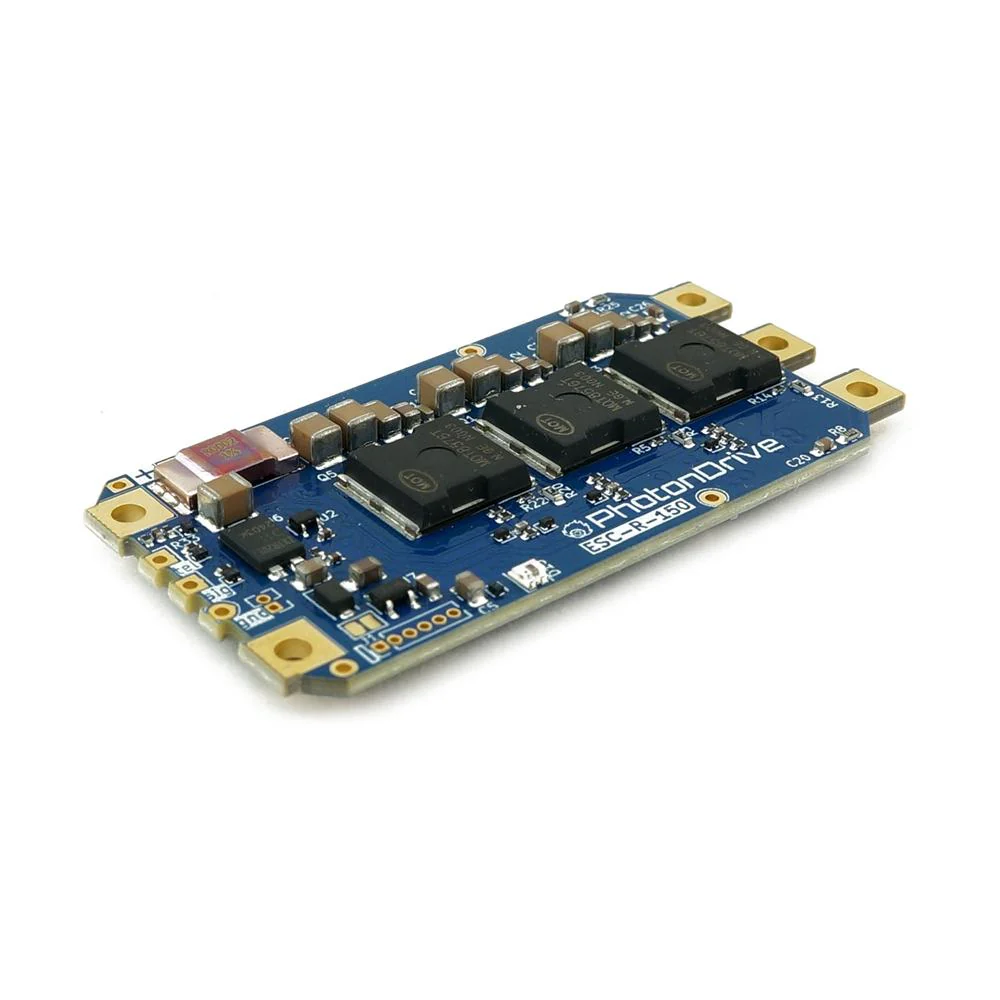

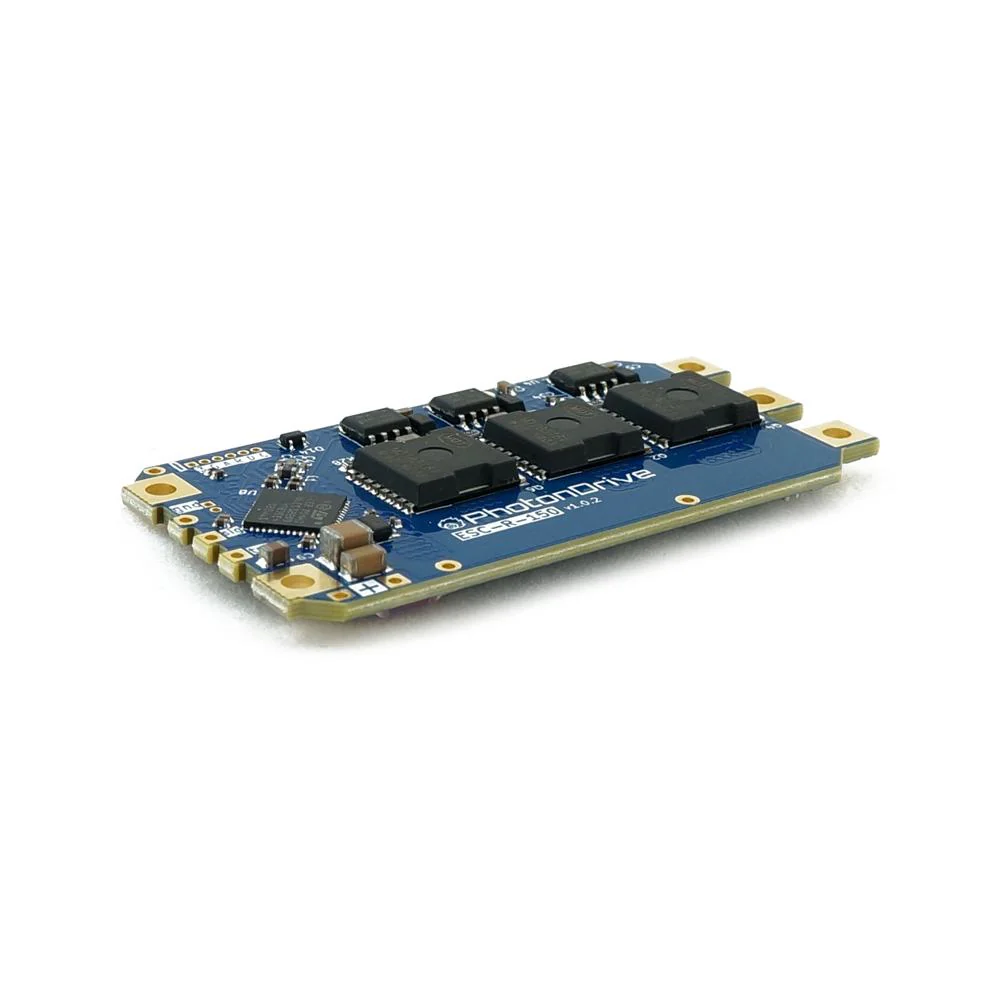

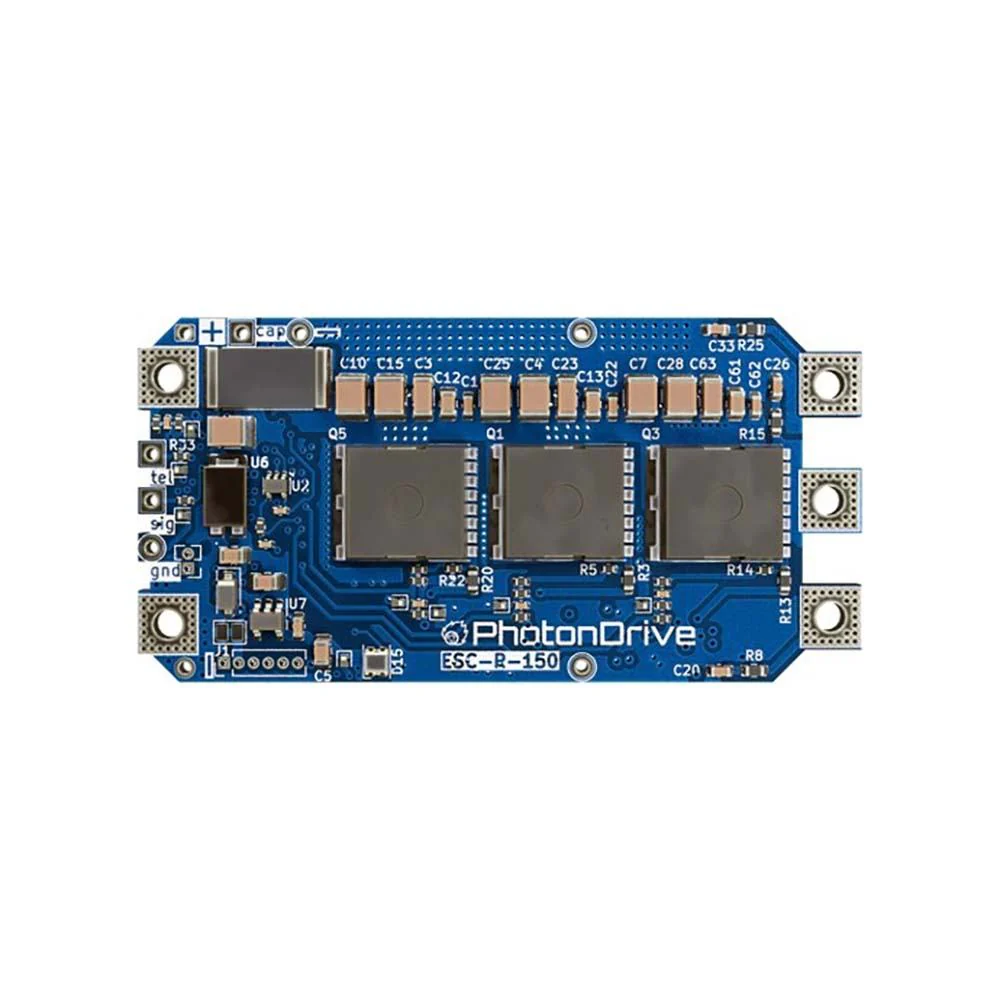

PhotonDrive ESC-R-150 up to 15S 60V 150A ESCape32 Firmware ESC for X-Class/Cinelifter Drone Airplane RC Car - NDAA
PhotonDrive ESC-R-150 up to 15S 60V 150A ESCape32 Firmware ESC for X-Class/Cinelifter Drone Airplane RC Car - NDAA
Based on the STM32G4 microcontroller, the ESC-R-150 is a high-performance electronic speed controller for brushless motors. It is designed to be used in a variety of applications, including drones, electric vehicles, and robotics.
It's a great choice for the heavy lifter drones like the X-Class and Cinelifters.
Check out all our X-Class Electronic Speed Controllers and the rest of our PhotonDrive Products!
Features:
- 8-layer high-temperature PCB
- STM32G431 170MHz 32-bit ARM Cortex-M4 microcontroller
- ESD/TVS protection on power inputs
- ESD protection on signal and flashing pins
- On-board current monitoring and temperature sensing
- WS2812 signaling RGB LED
- Analog and digital signal filtering
- CAN bus ready
Specifications:
- Max current 150A
- Input voltage up to 15S (60V)
- Peak Power 7500W
- 8 Layer High Temperature PCB
- Voltage spike, overcurrent and overheating protection
- Supports PWM and DShot
- Signaling LED
- Board dimensions: 62.26mm × 31.37mm x 14.1mm
- Board weight: 25g
Typical use cases
| Without Heatsink | |
|---|---|
| Voltage | 50V (12S) |
| Current | 60A |
| Continuous Power | 3000W |
| Peak Power | 6000W |
| Tested Peak Power | 3 sec |
| Tested Continues Power | Minutes |
| With Heatsink | |
|---|---|
| Voltage | 50V (12S) |
| Current | 120A |
| Continuous Power | 6000W |
| Peak Power | 7500W (150A) |
| Tested Peak Power | 3 sec |
| Tested Continuous Power | Minutes |
Firmware
Based on the ESCape32 wiki:
- Servo PWM, OneShot125 - automatic throttle calibration
- Bidirectional DShot300/600/1200 - extended telemetry
- DShot modes: 3D, turtle, beacon, LED, programming
- Analog, Serial, IBus, SBus, CRSF
- KISS telemetry
- Pass-through DShot programming
- Reversible operation (full forward and reverse)
- Sinusoidal startup (crawler mode), brushed mode
- Proportional brake, drag brake
- Temperature/current/voltage protection
- Variable PWM frequency, active freewheeling
- Customizable startup tune
Package Includes:
- 1 x PhotonDrive ESC-R-150
Original: $179.99
-70%$179.99
$54.00
