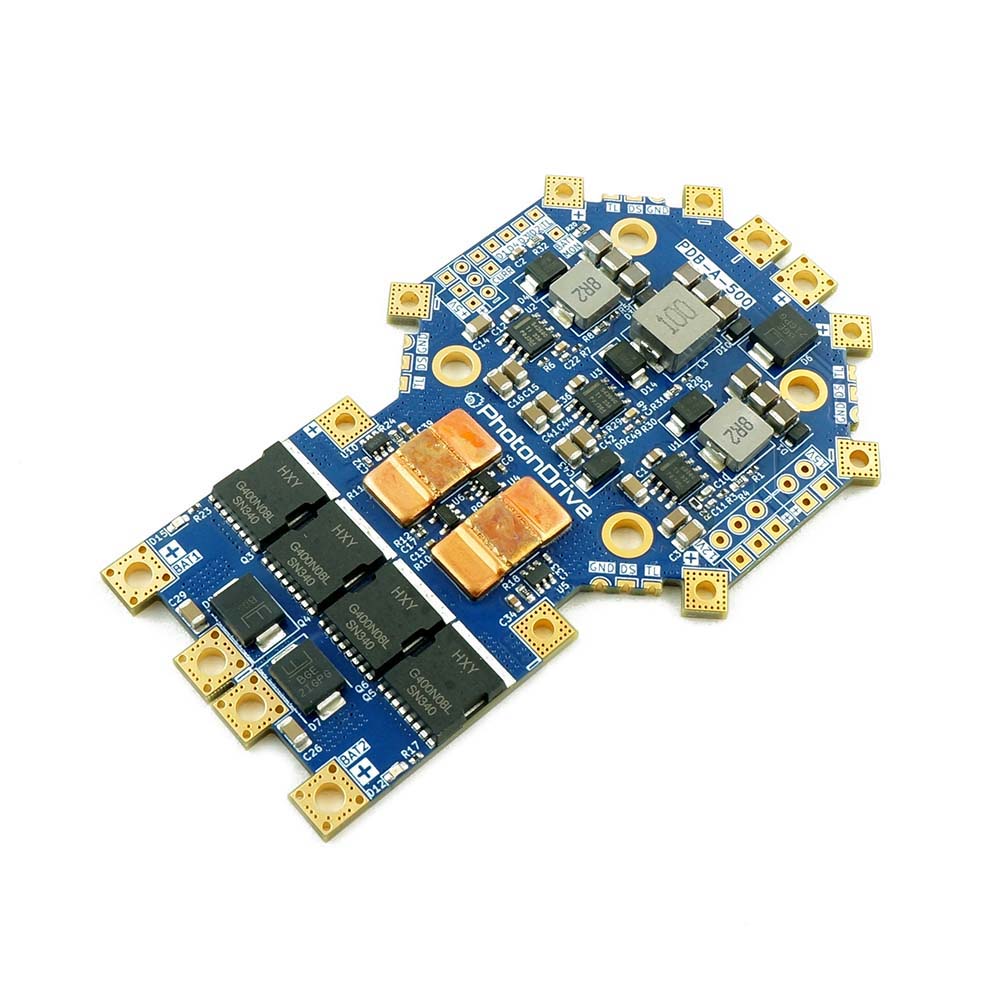

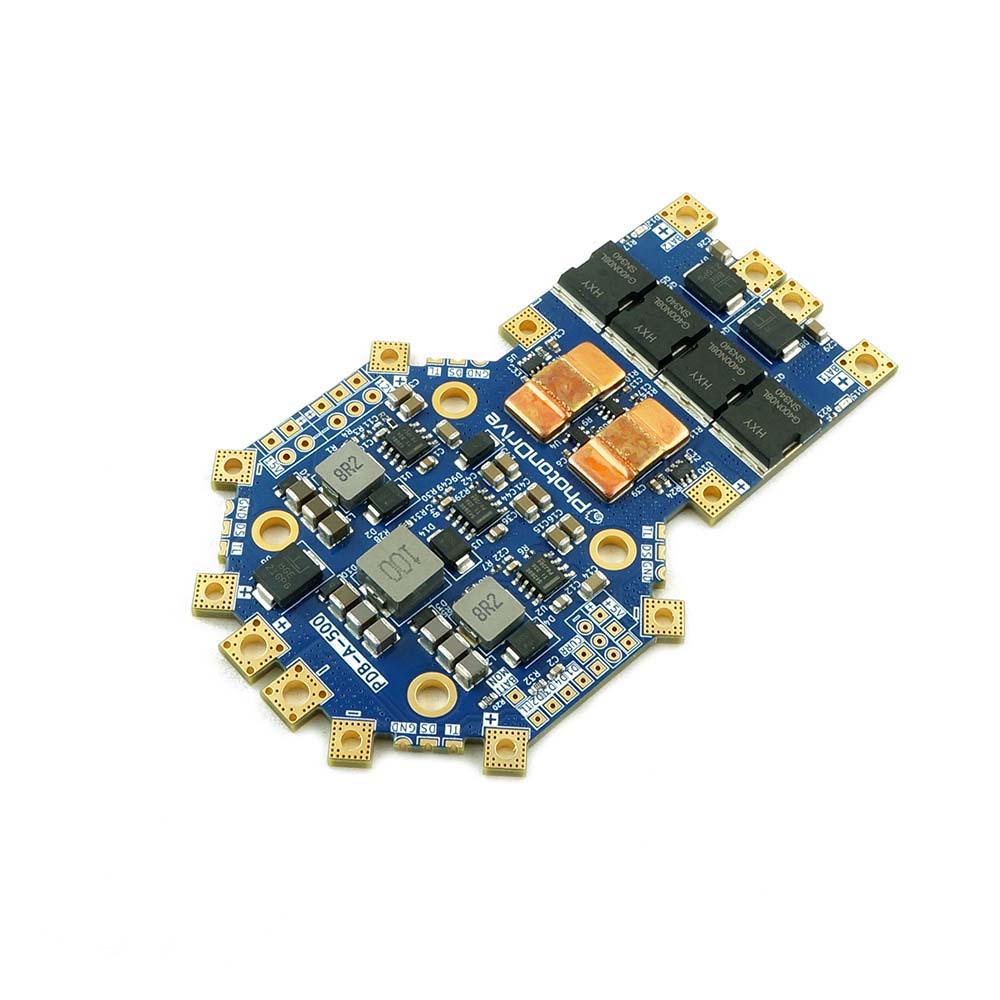

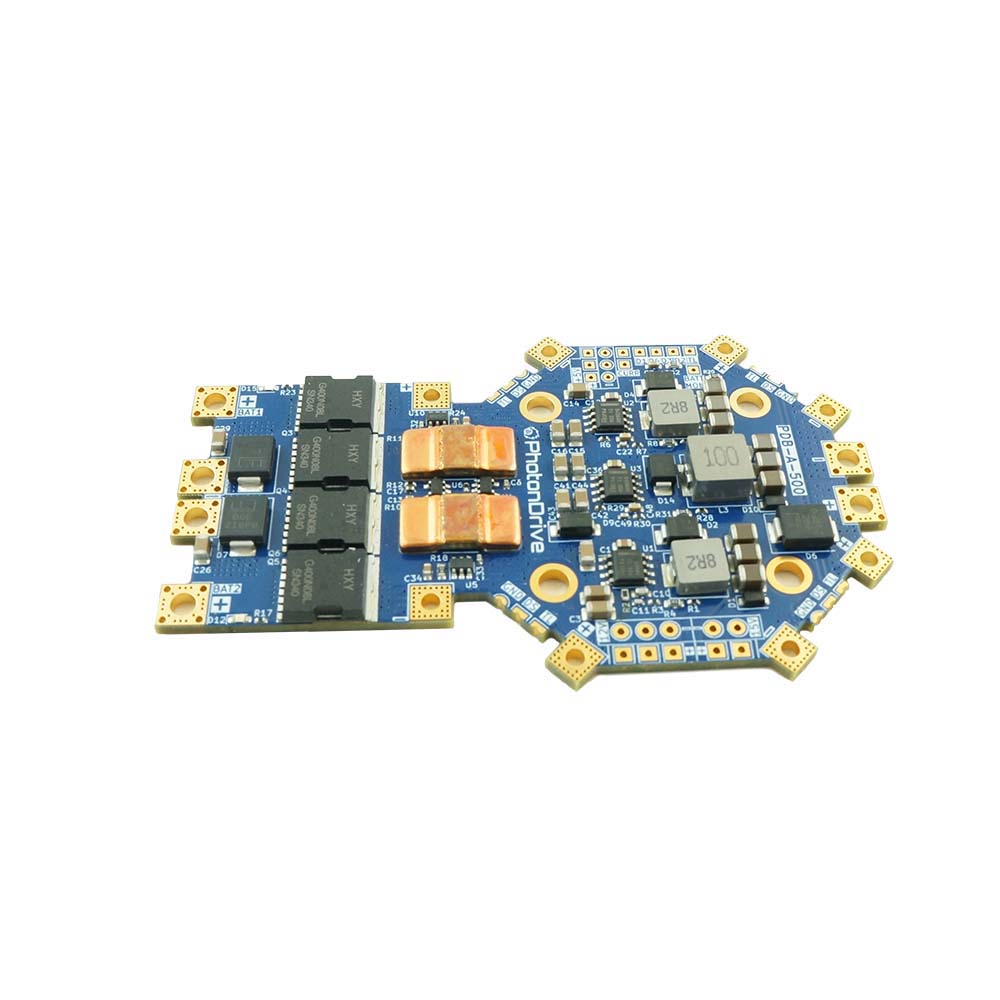

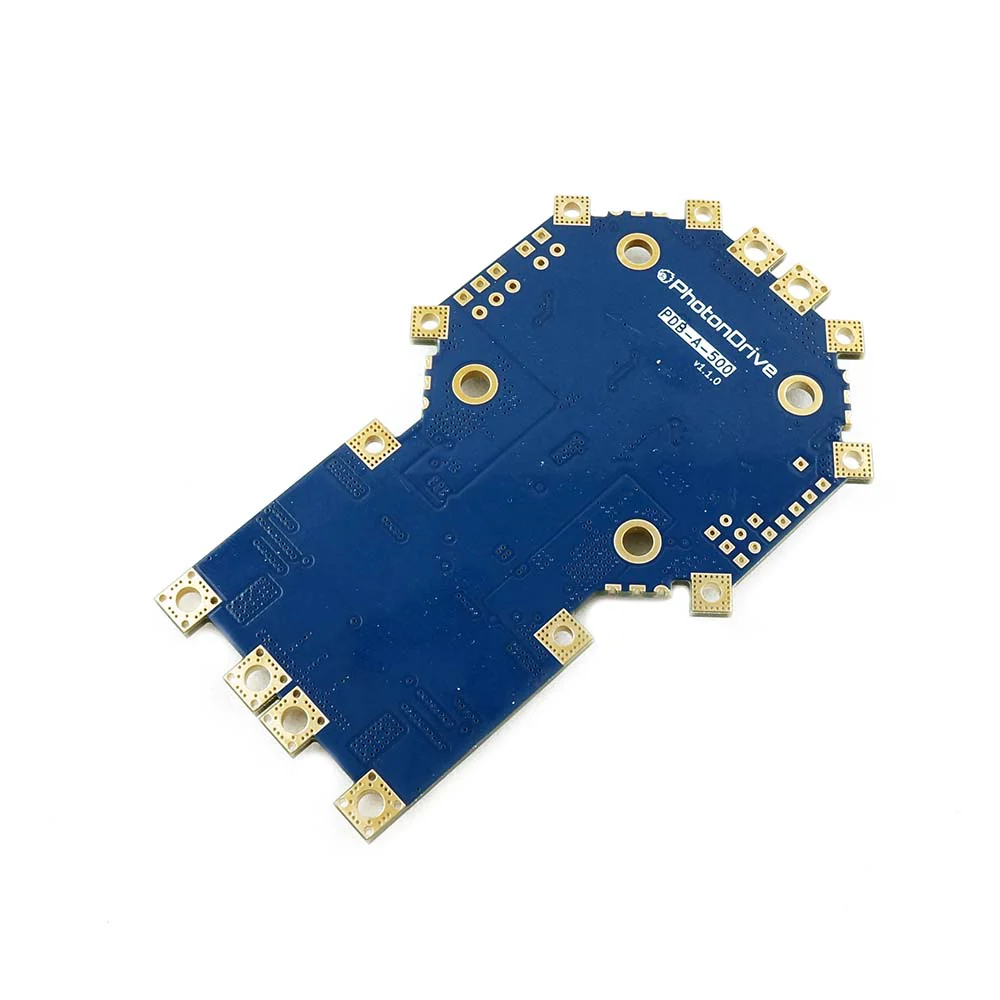

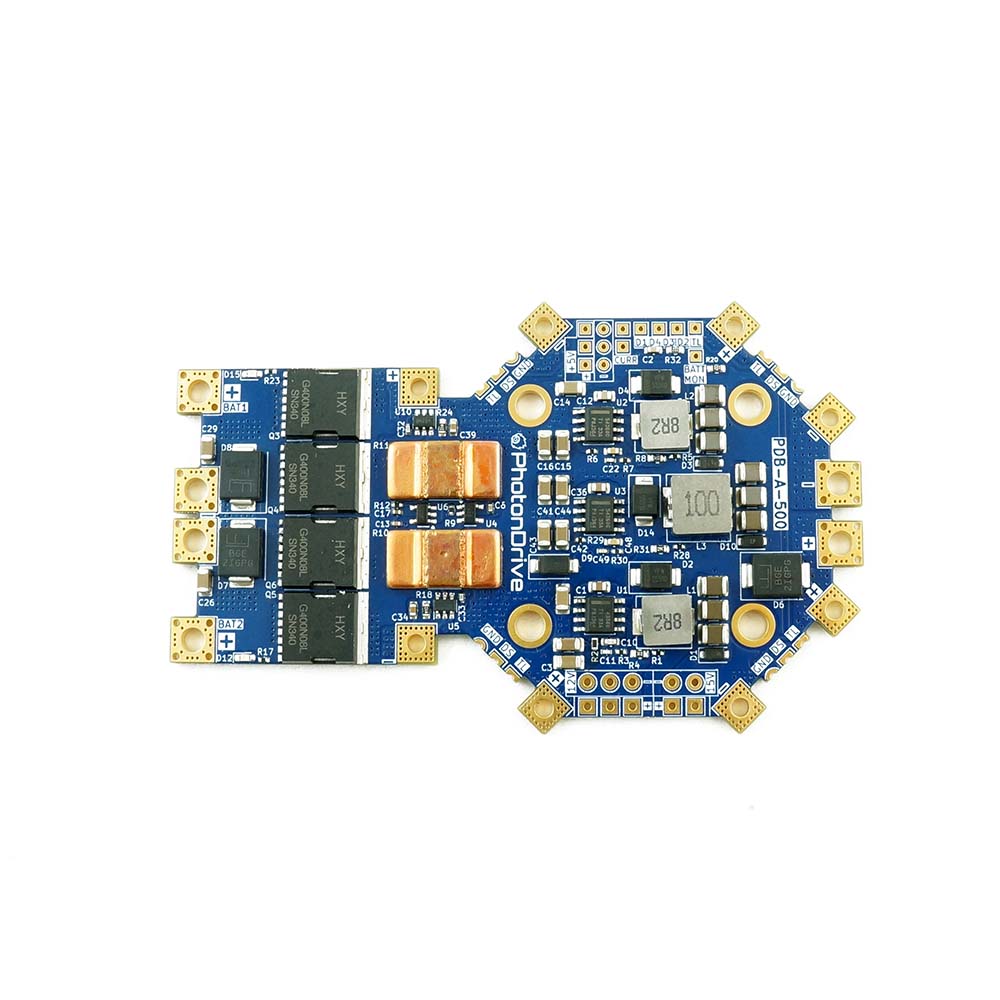

PhotonDrive PDB 500 HotSwap 500A Power Distribution Board - NDAA

Offering over 500A of continuous current, the PDB 500 HotSwap is a high-performance power distribution board designed for larger cinelifter FPV drones and other high-power applications. The unique hot-swap feature allows to change battery packs without cutting off power to the drone. Moreover, three independent BECs are incorporated into the design – standard 12V, 5V, and 15V intended to deliver power to a gimbal, camera or an image transmission circuit. a wide input voltage range of 25V-60V (6S-15S) and is equipped with a variety of features to ensure safe and reliable operation.

Check out all our PDB and Voltage Regulators and the rest of our PhotonDrive Products!

Features:

• Voltage spike absorption using TVS diodes on both inputs and outputs
• Heavy-duty 8-layer PCB with 4oz copper traces
• Input current sensing
• Reverse polarity protection
• Shielded data lines isolated by ground planes
• Battery hot-swap

Regulated power outputs

1x	2V 3.5A
1x	5V 3.5A
3x	15V 3.5A

Specifications:

Continuous current	500A
Continuous current (per channel)	125A
Input voltage range	25V-60V (6S-15S)

Package Includes:

• 1 x PhotonDrive PDB 500 HotSwap 500A Power Distribution Board
