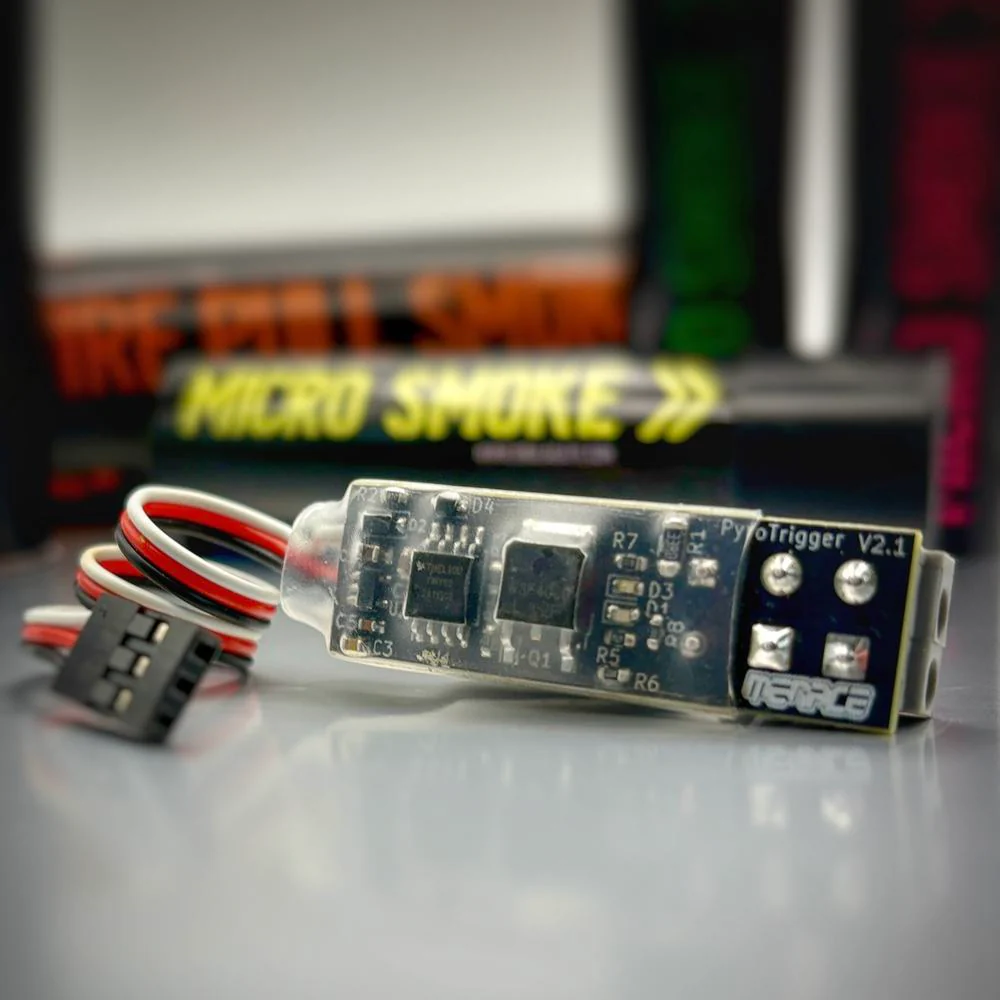

Menace PyroTRIGGER – Add instant smoke to your electric models
The Menace RC PyroTrigger is plug and play allowing you to activate smoke canisters on your RC model from a spare channel on your RC receiver.
Controlled via an aux channel on your RC transmitter, it needs no extra power source.
Thanks to its smart reservoir capacitor, it charges off your receiver’s 5V supply.
When you hit the switch, the capacitor unleashes the current needed to ignite smoke — giving your model that epic, realistic effect.
Simple. Lightweight. Powerful.
Check out all our FC Accessories and the rest of our MenaceRC Products!
3D Printed Smoke Holder
Instructions to set up a smoke grenade
Specifications:
-
Input voltage range 4.75V to 9.0V
-
Max current loading 152mA pk with 5V supply.
-
Start up delay time 6.5 seconds
-
Signal PWM arm: <1250uS more than 1000mS
-
Signal PWM fire: >1750uS more than 250mS
-
Charge time. 6.5 seconds
-
Weight: 10.5g including cable.
-
Dimensions: L43.0 x W13.5 x H16.0 mm
-
Input connection: Type JR universal servo
- Output connection: Spring terminals
Package Includes:
- 1 x Menace PyroTrigger
