RadioMaster Pocket Crush M2 RC Transmitter ELRS (FCC) - Choose Color
Radiomaster is excited to introduce the new Pocket Crush! Compact, affordable, and available in seven stunning colorsā'Slate Grey,' 'Frost White,' 'Mint Mist,' 'Hot Pink,' 'Cherry Red,' 'Iceberg Blue,' and 'Lemon Twist Yellow'āeach designed to inspire and excite. āThe Pocket Crush has a big impact in a small package!
It is perfect for those who want to add a splash of color and personality to their RC adventures without breaking the bank, or those looking for a compact backpack solution. Whether you are a beginner or a seasoned pilot, the Pocket Crush is your ideal companion for colorful and exciting flights.
The two 18650 batteries required to power the radio are sold separately HERE
Check out all ourĀ ExpressLRS Products,Ā Radios and the rest of our RadioMaster Collection!
Gimbal Adjustment
A L-R
To switch M1/M2. Turn clockwise to disable self-centering (Throttle). Turn counterclockwise to enable self-centering (Elevator).Ā
B T
To adjust the throttle stick tension. Turn clockwise to increase stick tension. Turn counterclockwise to decrease stick tension.
CĀ UP-DOWN
Turn clockwise to increase vertical stick tension.
Turn counterclockwise to decrease stick tension.
D LEFT-RIGHT
Turn clockwise to increase horizontal stick tension.
Turn counterclockwise to decrease stick tension.
Dimensions
Radio Overview
Features:
- Optional colors - Slate Grey / Frost White / Mint Mist / Hot Pink / Cherry Red / Iceberg Blue / Lemon Twist Yellow
- Available with built-in ExpressLRS Backpack
- Preinstalled with EdgeTX firmware
- 18650 Batteries, all the power you need for hours of fun
- Portable and lightweight design with removable stick ends and foldable antenna
- Features X5 hall effect gimbals as standard for smooth cantering & precise response, upgradable toĀ AG01 NANOĀ CNC Hall effect gimbals
- Built-in LED lights help visualize your switch inputs
- Backlit LCD Screen offering a perfect balance of size and functionality
- Trim buttons for easy channel trimming
- External Module Bay compatible with RadioMaster Nano-size modules and TBS Nano Crossfire / Nano Tracer
Specifications:
- Item: Pocket Crush Radio Controller
- Physical dimensions: 156.6*65.1*125.3mm (Folded size) /156.6*73.1*154.8mm (Unfold sizeļ¼
- Weight: 288 grams
- Operating frequency: 2.400GHz-2.480GHz
- Internal RF Options: ELRS 2.4GHz
- Supported protocols: Module dependent
- RF power: ELRS: 250mW Max (24dBm)
- Operational voltage: 6.6 - 8.4v DC
- Control distance: > 2km @ 20dBm
- Operating system: EdgeTX
- Control channels: Maximum 16 (Receiver dependent)
- Display: 128*64 Monochrome LCD
- Battery: 2pcs 18650 batteries (Not included)
- Charging: Built in USB-C QC3 Charging
- Upgradable Firmware: Via USB or the included SD card
- Gimbal: Hall-effect
- Module bay: Nano size (Compatible with RadioMaster Nano-size modules, TBS Nano Crossfire / Nano Tracer )

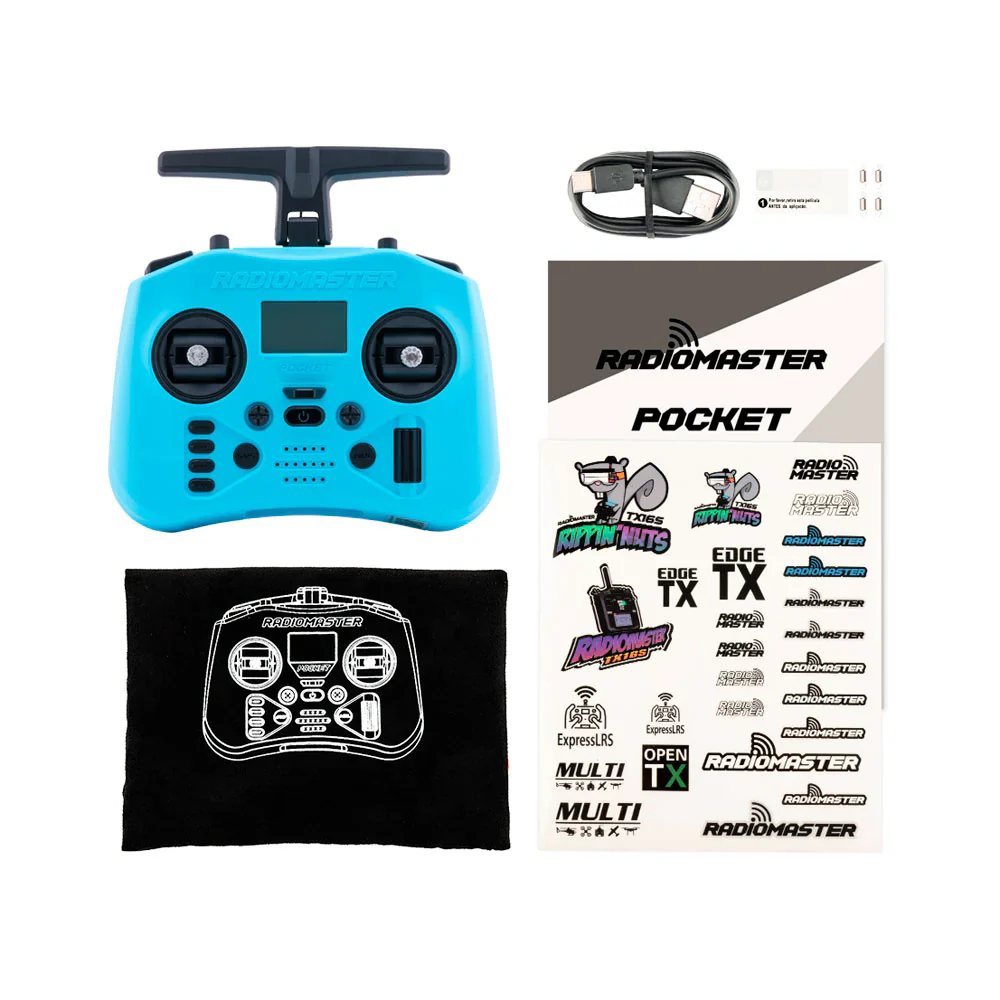

Package Includes:
- 1 * Pocket Crush Radio
- 1 * Custom Carry Pouch
- 1 * USB-C Cable
- 1 * Screen Protector
- 1 * Sticker
- 4 * Low Tension Springs
- 1 * Manual
