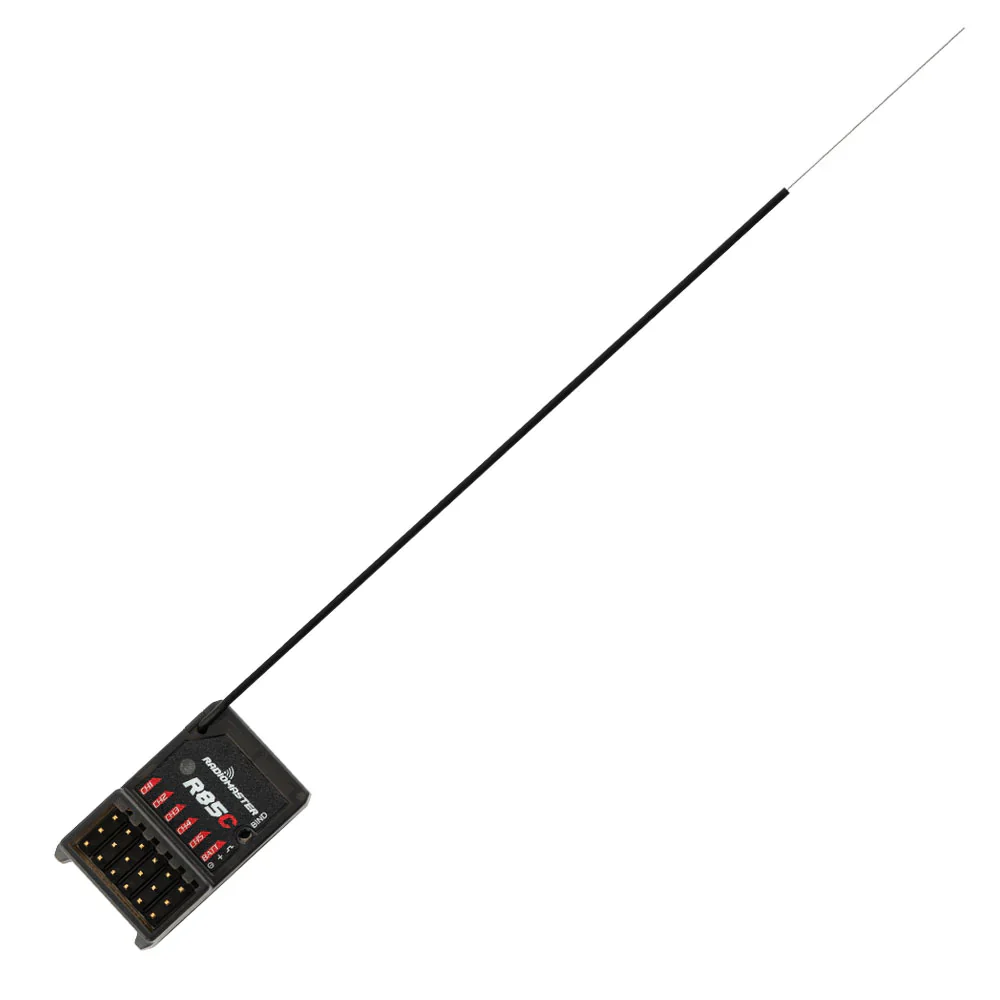

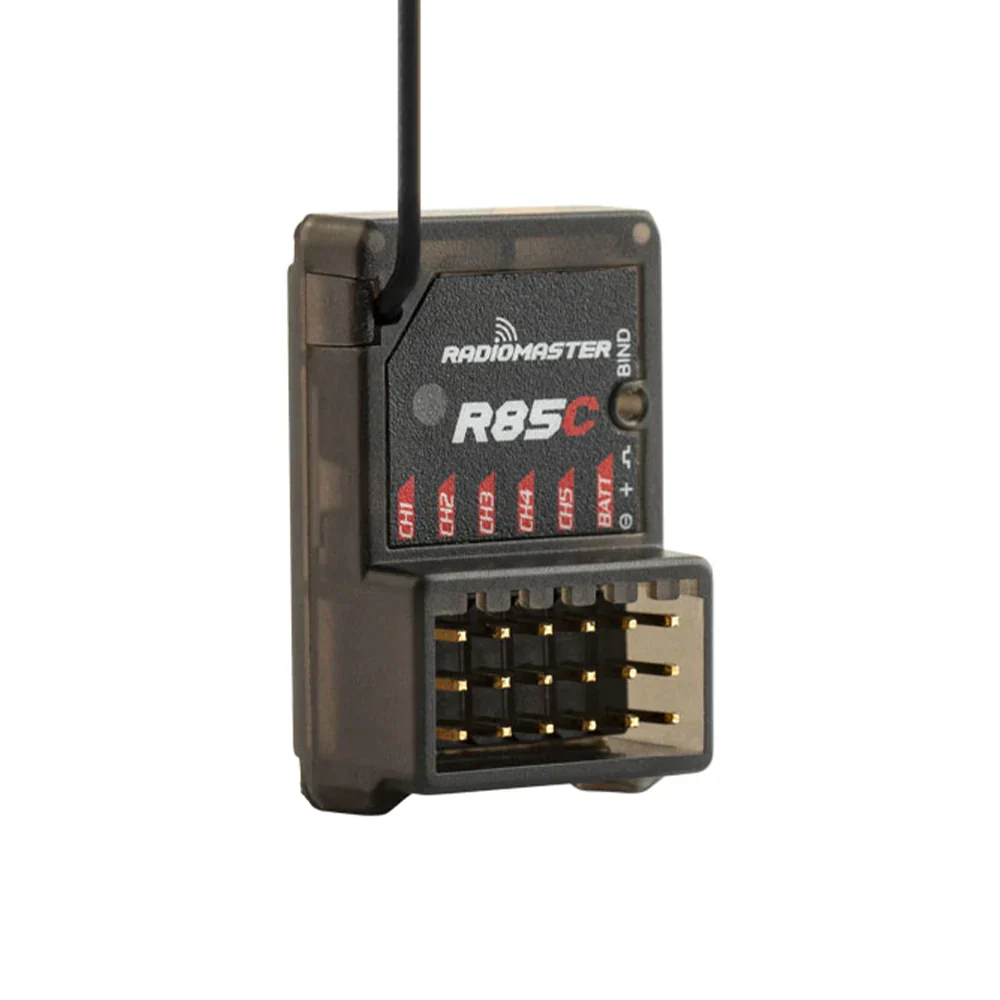

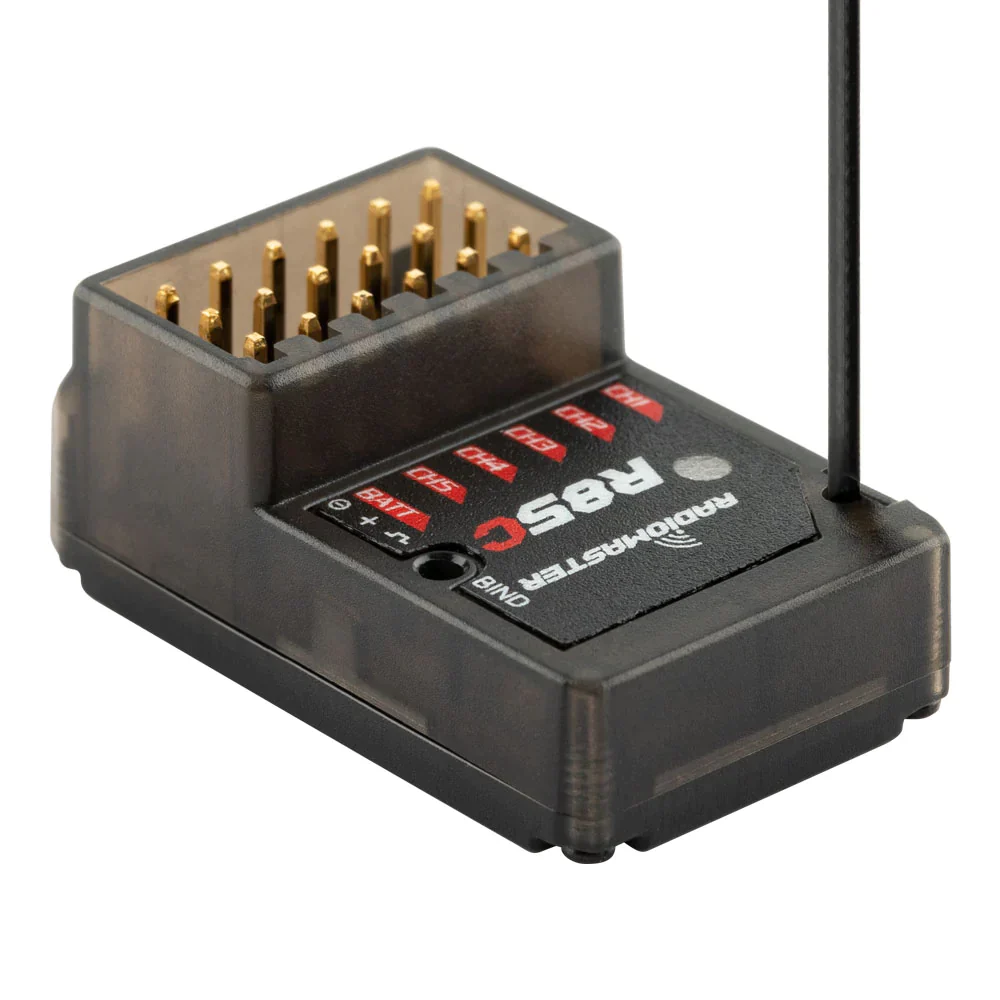

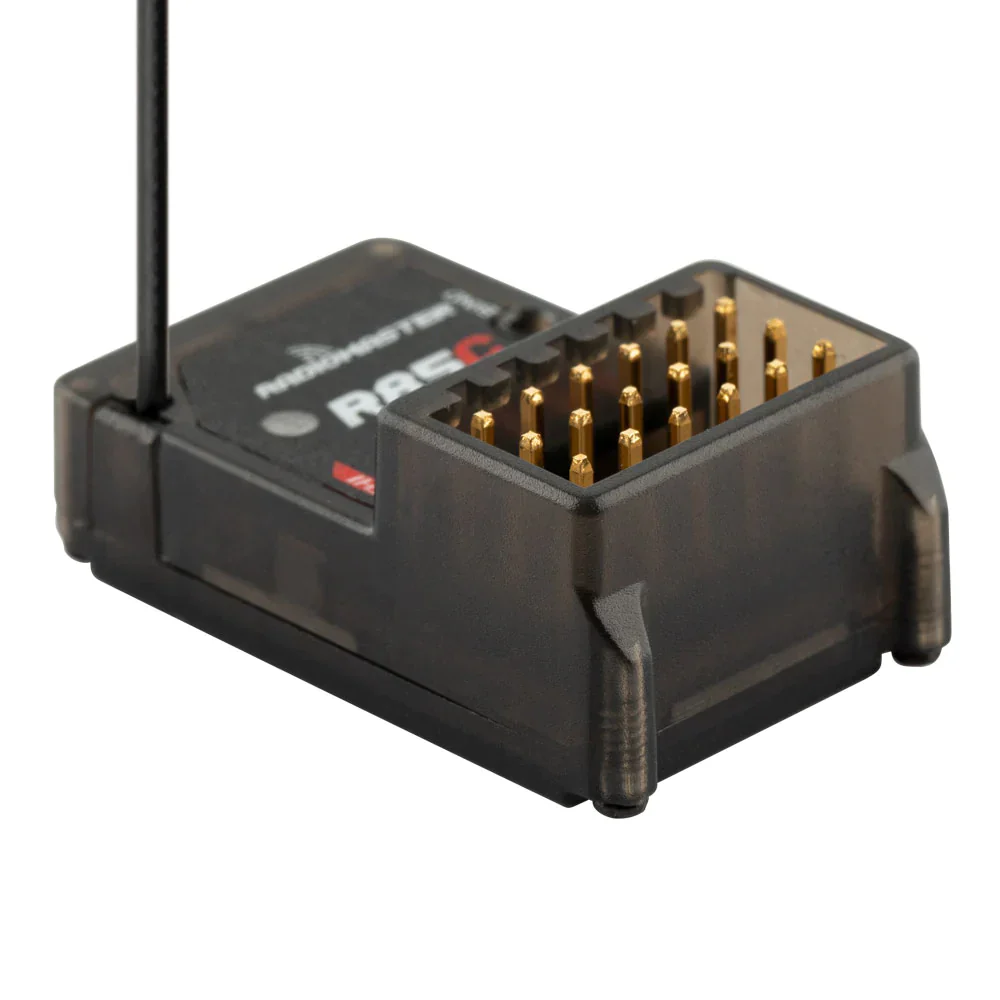

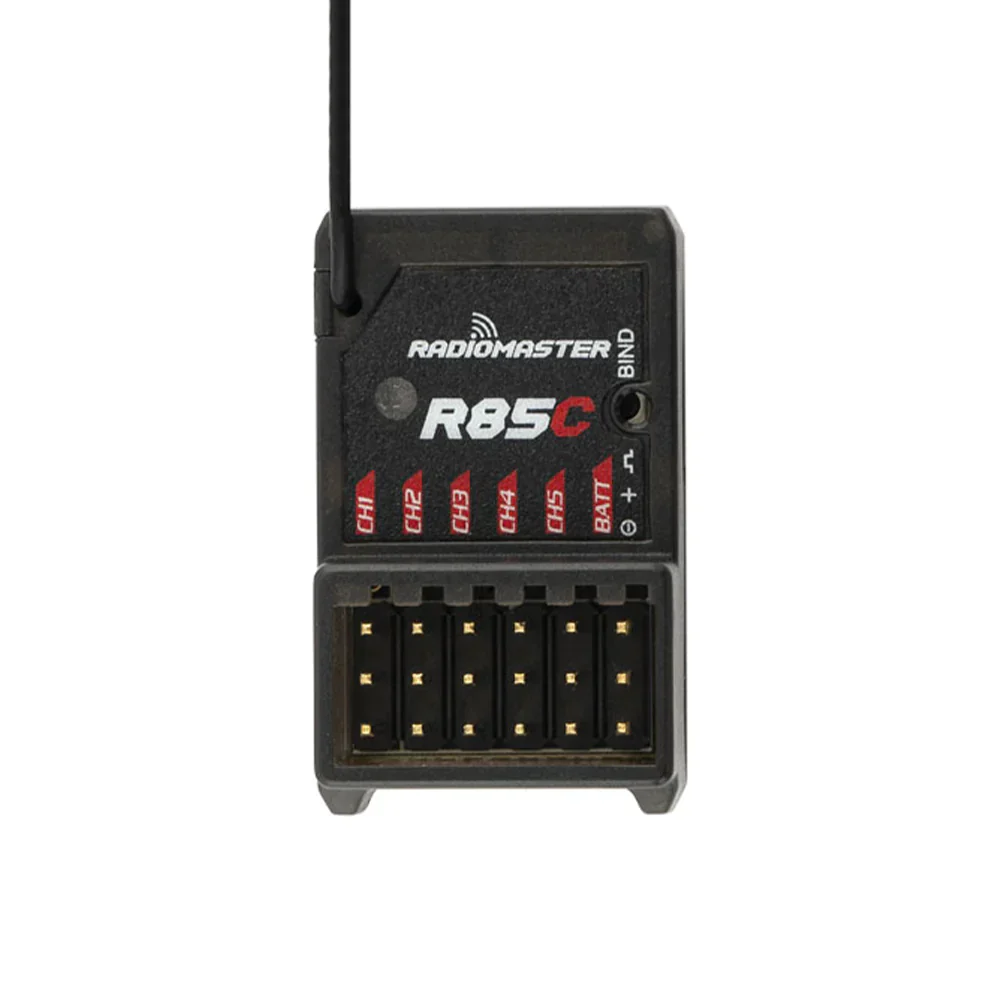

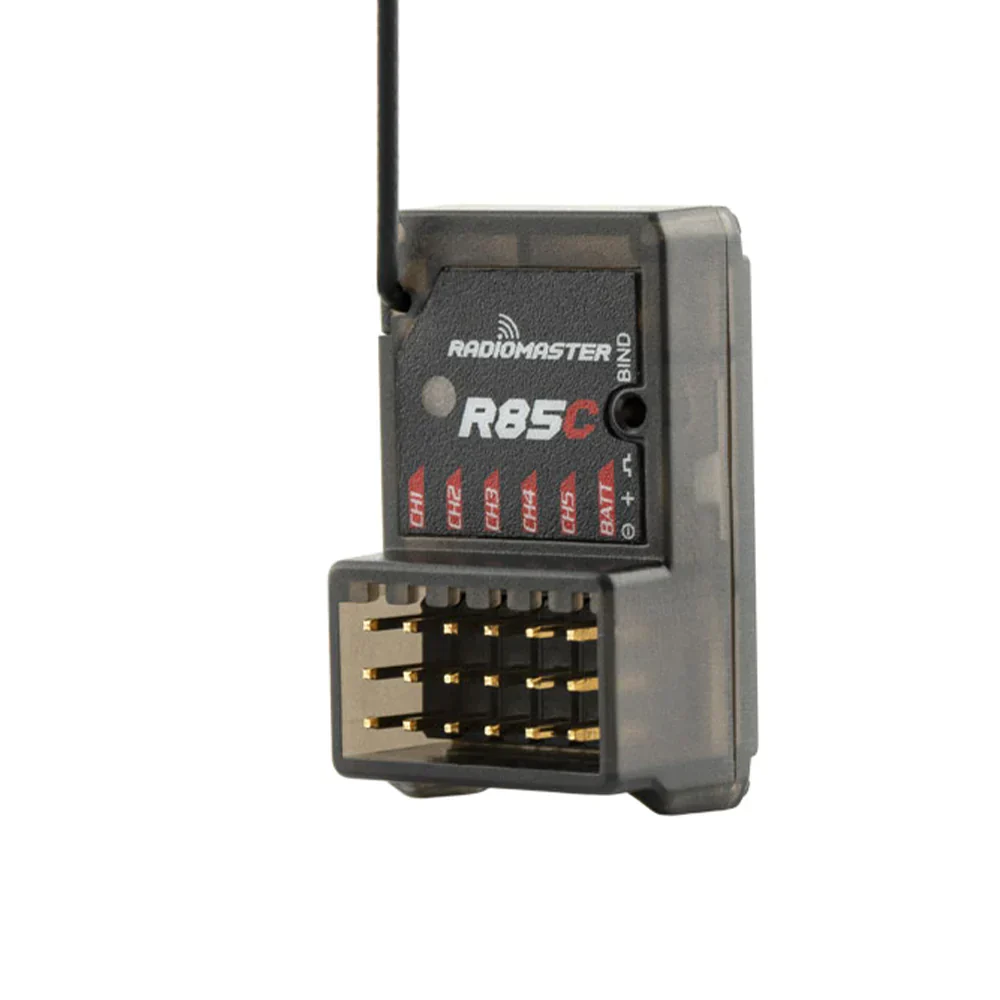

RadioMaster R85C 2.4GHz Frsky D8/D16 Futaba SFHSS PWM Receiver with External Antenna

The R85C receiver is Frsky D8 / D16 and Futaba SFHSS compatible and offers a range suitable to many RC modelers. Built-in a TCXO (temperature compensated crystal oscillator), ensures high stability and accuracy in frequency control, compensating for temperature variations.

* Suitable only for Radiommaster Multi-Protocal radios with ability to fine tune protocols. Not compatible with FrSky radios.

You can also find all the PWM Receivers in the RadioMaster MT12 Surface Radio Controller Collection.

Check out all our Receivers, and the rest of our RadioMaster Products!



TCXO

The TCXO (temperature compensated crystal oscillator) ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation. Click to learn more about the TCXO.

Size

Features:

• Compatible with Frsky D8 / D16 and Futaba SFHSS
• High-sensitivity 2.4G Antenna
• Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment

Specifications:

• Item: R85C Receiver
• Power supply: DC 4.5 - 8.4V
• Frequency range: 2400-2483.5Mhz
• Support protocol: D8/D16/SFHSS
• Output channel: 5CH PWM
• Antenna type: high-sensitivity 2.4G antenna
• Telemetry power: 100mW / 20dBm
• Weight: 5.55 grams
• Dimensions: 31.0*18.5*13.0 mm

Package Includes:

• 1 * R85C Receiver
• 1 * User Card
