RadioMaster Ranger Nano 2.4Ghz ELRS Module

The RadioMaster Ranger Nano 2.4GHz ELRS Module features a nano module bay adapter, packet rates up to F-1000Hz, up to 1 Watt Power output, and a high-efficiency cooling system.

VIDEO: Ranger 2.4GHz ELRS Module | The pinnacle of ExpressLRS module design

Check out all our ExpressLRS Products, Receivers, and the rest of our RadioMaster Products!

• Nano ExpresssLRS 2.4GHz Module
• Nano Adapter for Zorro and More
• High-Efficiency Cooling System
• WiFi and Bluetooth Support
• Max F-1000Hz Packet Rate
• 1W Power Output

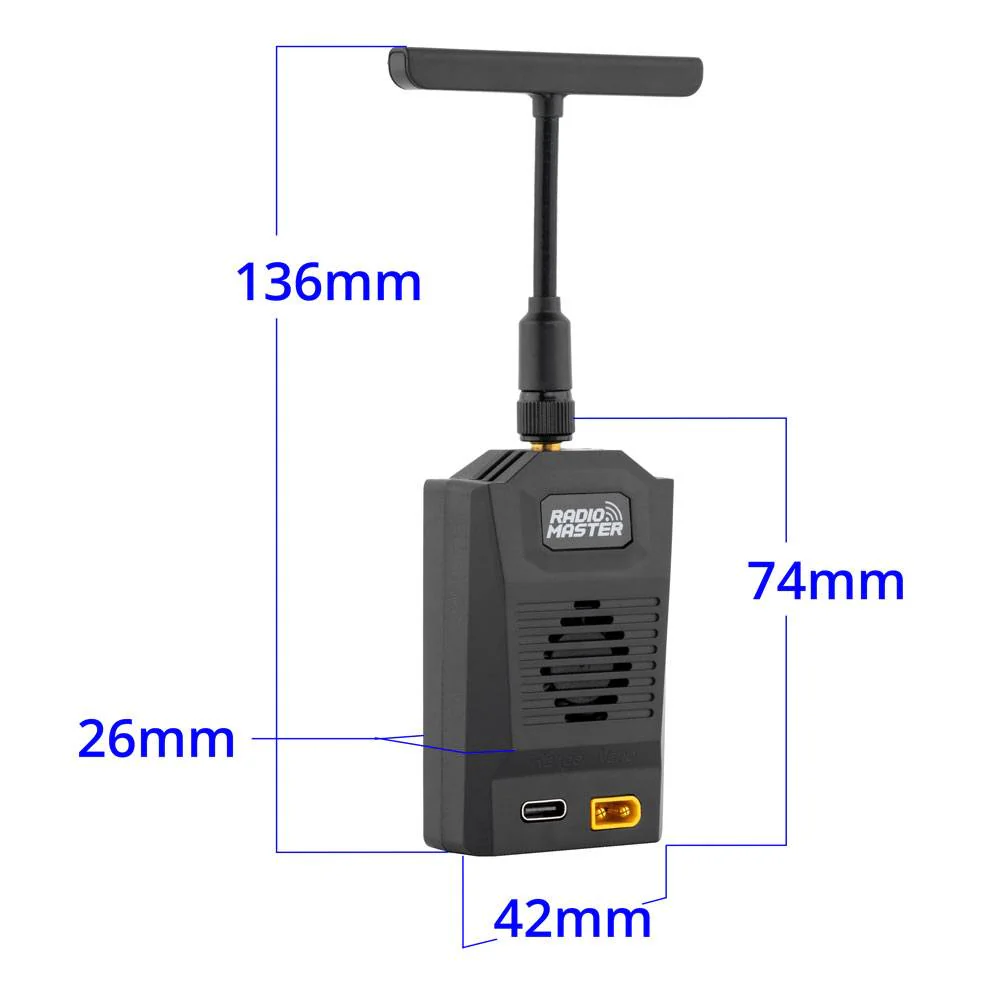

• Dimension: 136*42*26mm, 48g (with antenna) / 74*42*26mm, 39g (without antenna)
• RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
• MCU: ESP32(main), ESP8285(aux,as esp backpack)
• Frequency Range: 2400 MHz to 2480 MHz

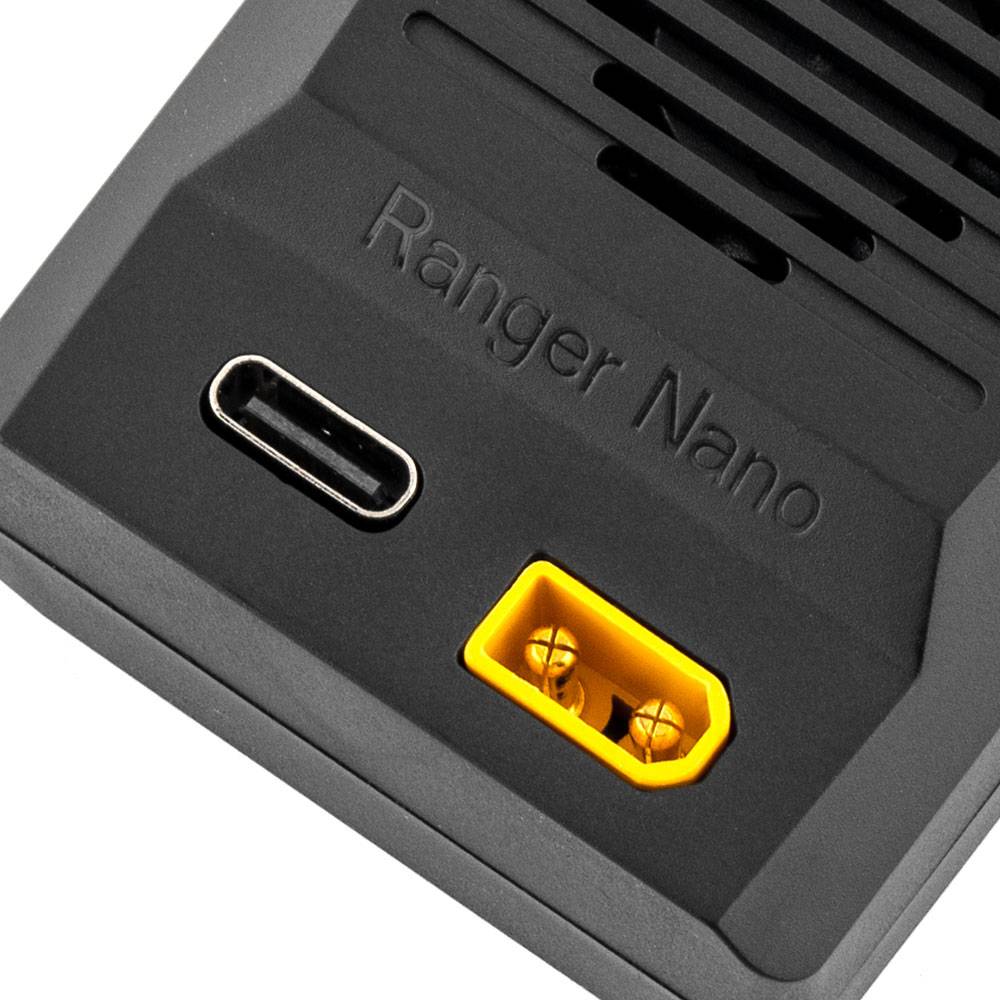

• XT30 Power supply voltage: DC 6V - 16V
• Maximum packet rate: 500Hz/F1000Hz
• Minimum receiver refresh rate: 25Hz
• Regulatory Domain: ISM2400
• Item: Ranger Nano Module
• Weight: 48g (with antenna）
• RF chip: SX1281IMLTRT
• Bluetooth support: Yes
• Wifi Support: Yes

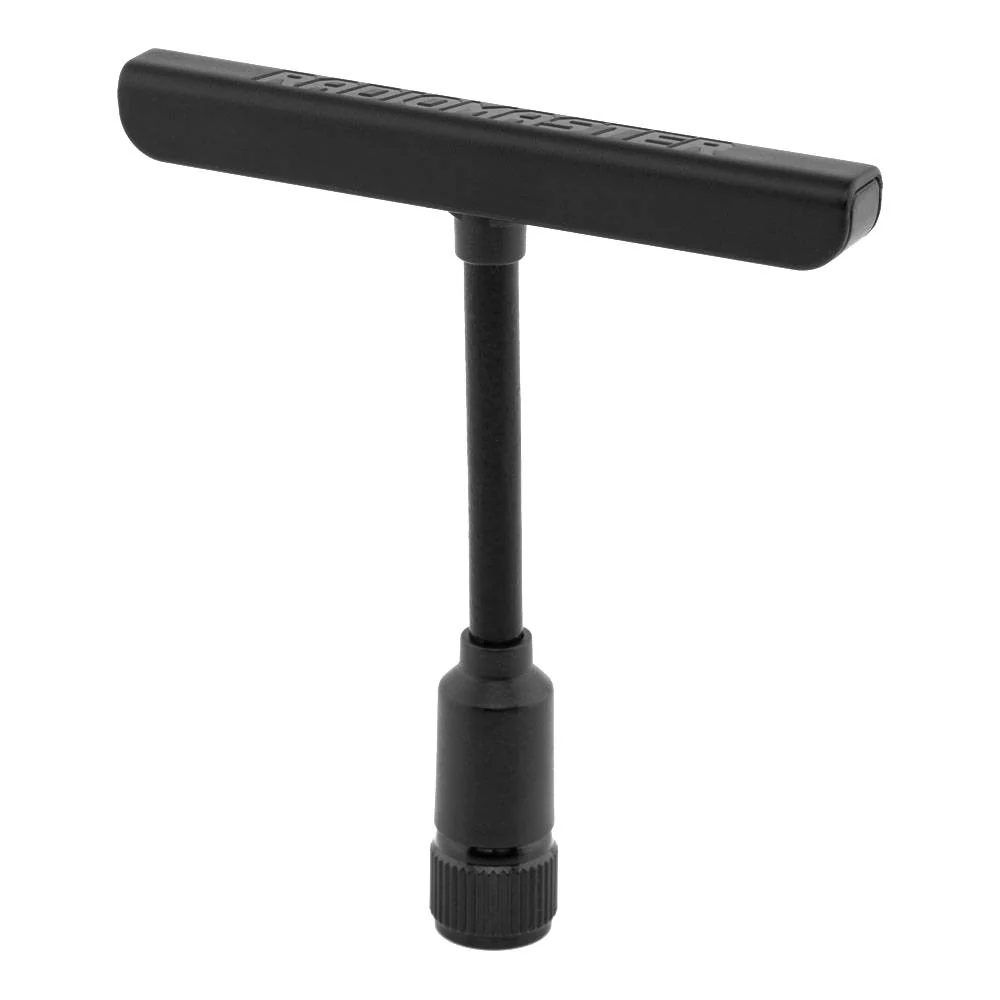

T-ANTENNA

• Antenna polarization: vertical/horizontal polarization 
• Type: T-type Omnidirectional Antenna 
• Connector: RP-SMA Male
• Frequency: 2.4GHz
• Weight: 9.5g

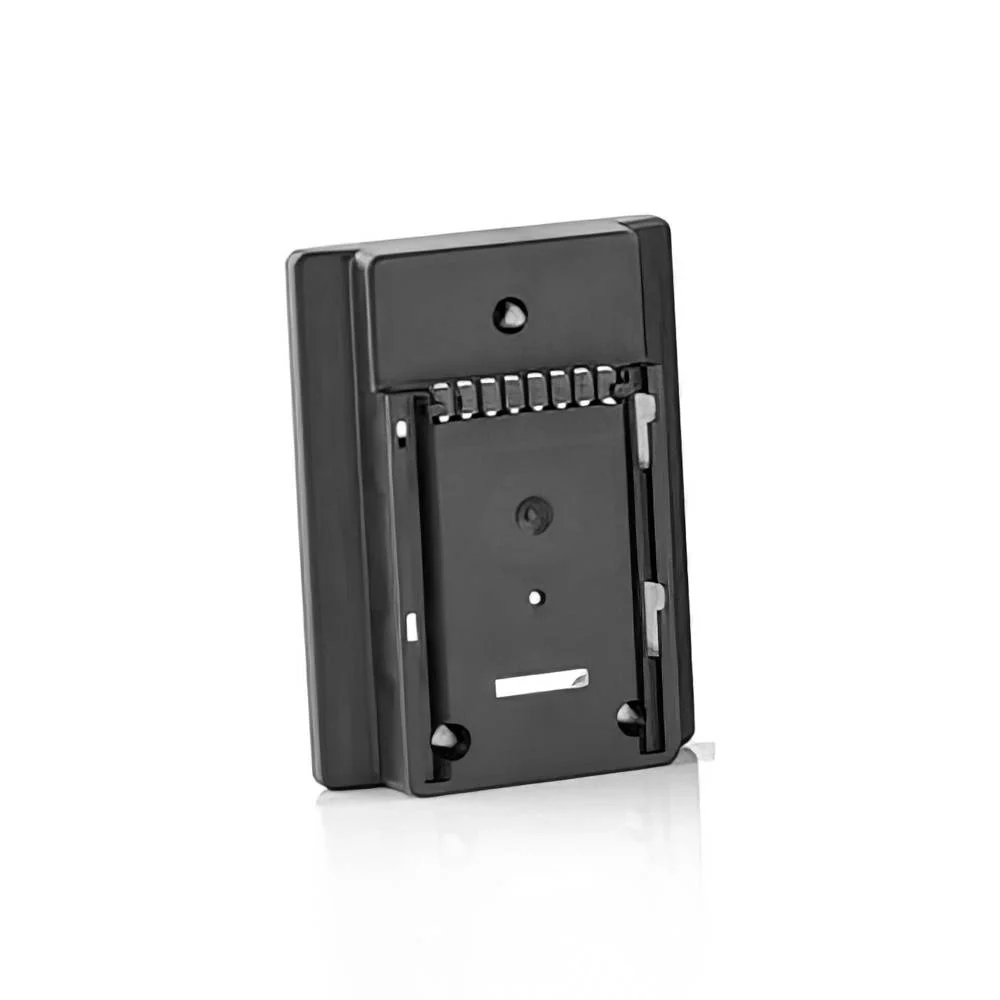

• 1 x Nano Standard 8pin Socket Module Bay Adapter

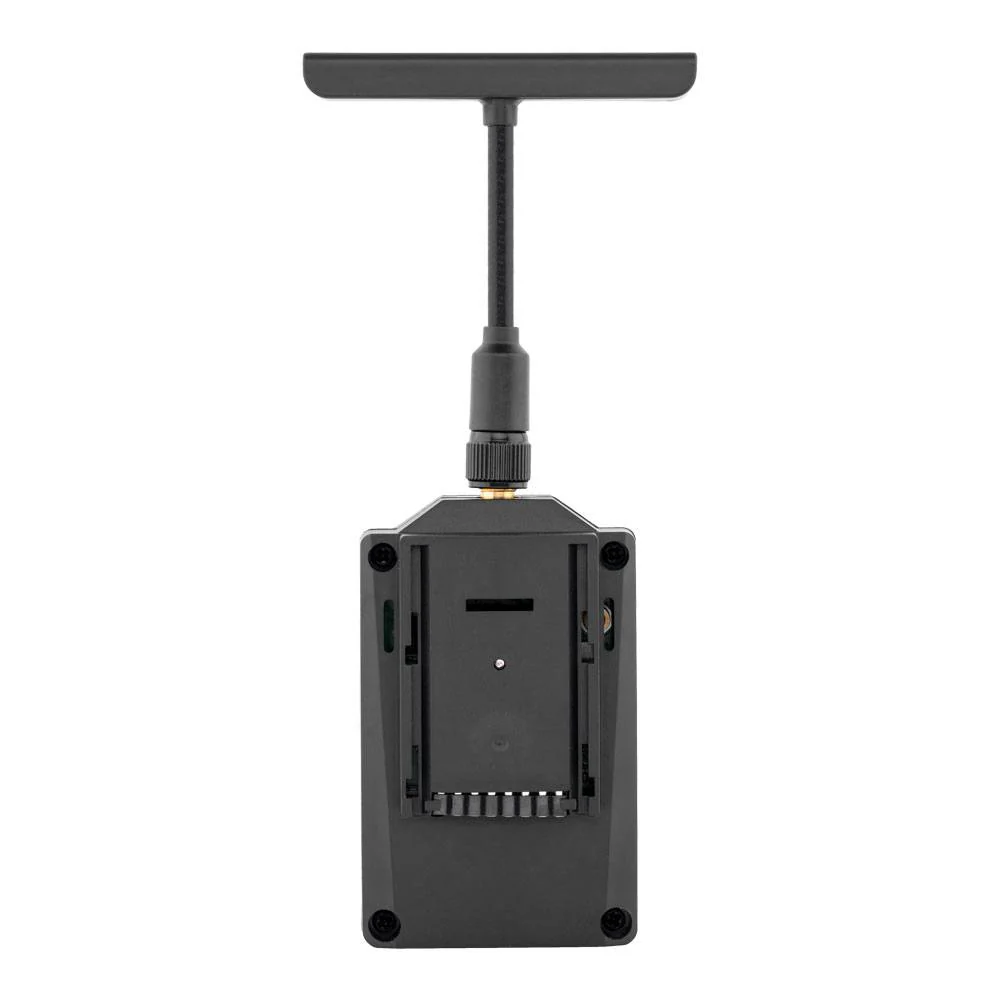

• 1 x Radiomaster Ranger Nano 2.4Ghz ELRS Module
• 1 x Hexagon Socket Screwdriver
• 1 x 2.4GHz T Antenna - RP-SMA
• 1 x Futaba CRSF socket cable
• 3 x M2*5 Screws
