RADIX LI Wing Power Board

RADIX LI Wing Power Board

The RADIX LI Wing Power Board is a companion to the 20Ɨ20 RADIX LI Flight Controller. Together they form the worlds smallest flight control system for RC airplanes and wings, with an integrated GRAPHICAL OSD (on-screen display)!

Check out all ourĀ Fixed Wing Flight Controllers and the rest of ourĀ BrainFPV Products!

Specifications:

    • Battery Voltage:Ā 3S to 5S (8V to 22V)
    • Maximum Current:Ā 40A constant, 60A burst
    • Voltage Regulator:Ā Integrated 5V, 3A regultator. By default, servos are powered by the ESC. The wPB has a jumper to enable powering small servos
    • Noise Filter:Ā 5V, 1AĀ  filtered output for clean video (1A is shared with 5V / 3A regulator)
    • Current Measurement:Ā Up to 65A (50 mV/A, current scale: 500)
    • ESC Output:Ā Output for 1 x ESC on servo headers
    • Servo Outputs: Outputs for up to 5 servos on headers
    • LEDs: Output for programmable RGB LEDs
    • Stacking height: 5.5mm (space between RADIX LI FC and RADIX LI wPB)
    • PCB:Ā 4 layer, 3oz (105um) copper per layer. HASL plating (lead-free)
    • Dimensions:Ā 26.5 mm x 34 mm
    • Weight:Ā 5g

    Ā

    Package Includes:

    • RADIX LI Wing Power Board
    • 10-pin cable for connection to RADIX LI Flight Controller

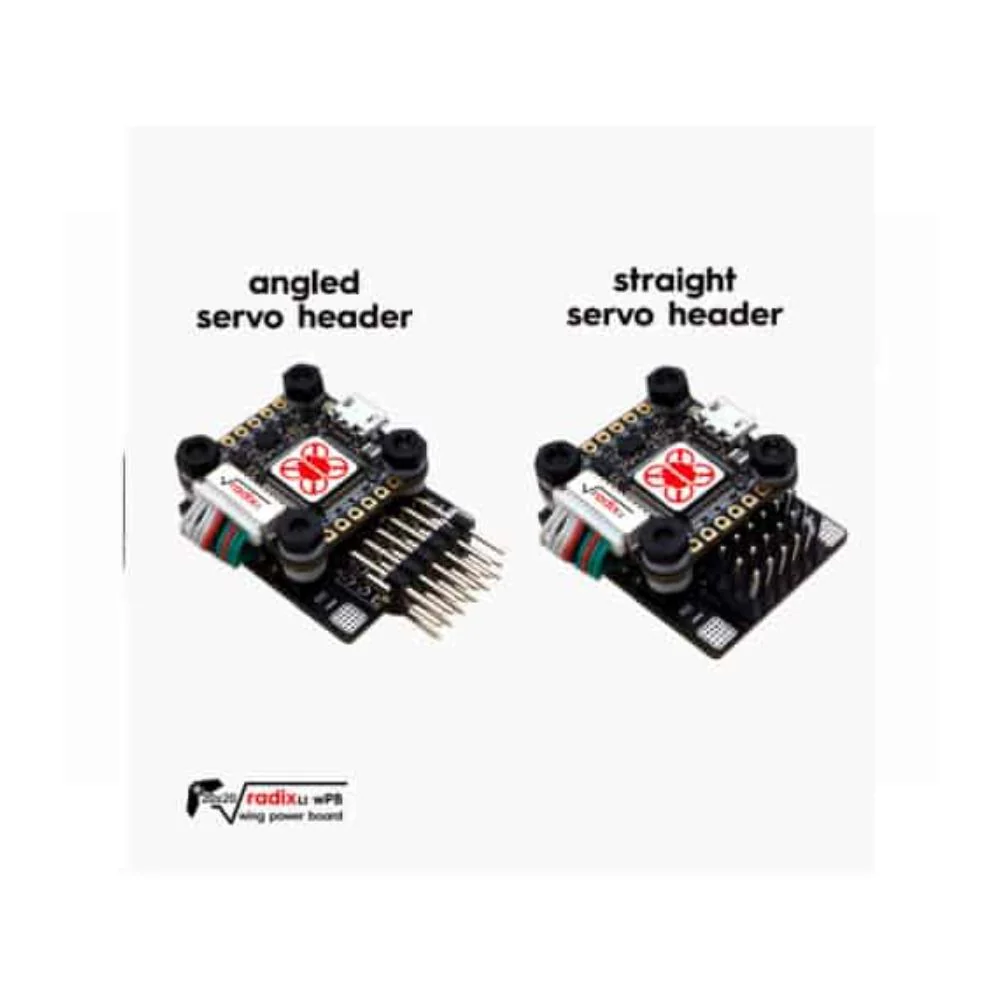

    • Servo headers: straight and angled
    • 25V / 470uF capacitor
    • Wire for connecting outputs 5 and 6
    $6.00

    Original: $19.99

    -70%
    RADIX LI Wing Power Boardā€”

    $19.99

    $6.00
    Product image 1
    Product image 2
    Product image 3

    Description

    The RADIX LI Wing Power Board is a companion to the 20Ɨ20 RADIX LI Flight Controller. Together they form the worlds smallest flight control system for RC airplanes and wings, with an integrated GRAPHICAL OSD (on-screen display)!

    Check out all ourĀ Fixed Wing Flight Controllers and the rest of ourĀ BrainFPV Products!

    Specifications:

      • Battery Voltage:Ā 3S to 5S (8V to 22V)
      • Maximum Current:Ā 40A constant, 60A burst
      • Voltage Regulator:Ā Integrated 5V, 3A regultator. By default, servos are powered by the ESC. The wPB has a jumper to enable powering small servos
      • Noise Filter:Ā 5V, 1AĀ  filtered output for clean video (1A is shared with 5V / 3A regulator)
      • Current Measurement:Ā Up to 65A (50 mV/A, current scale: 500)
      • ESC Output:Ā Output for 1 x ESC on servo headers
      • Servo Outputs: Outputs for up to 5 servos on headers
      • LEDs: Output for programmable RGB LEDs
      • Stacking height: 5.5mm (space between RADIX LI FC and RADIX LI wPB)
      • PCB:Ā 4 layer, 3oz (105um) copper per layer. HASL plating (lead-free)
      • Dimensions:Ā 26.5 mm x 34 mm
      • Weight:Ā 5g

      Ā

      Package Includes:

      • RADIX LI Wing Power Board
      • 10-pin cable for connection to RADIX LI Flight Controller
      • Servo headers: straight and angled
      • 25V / 470uF capacitor
      • Wire for connecting outputs 5 and 6
