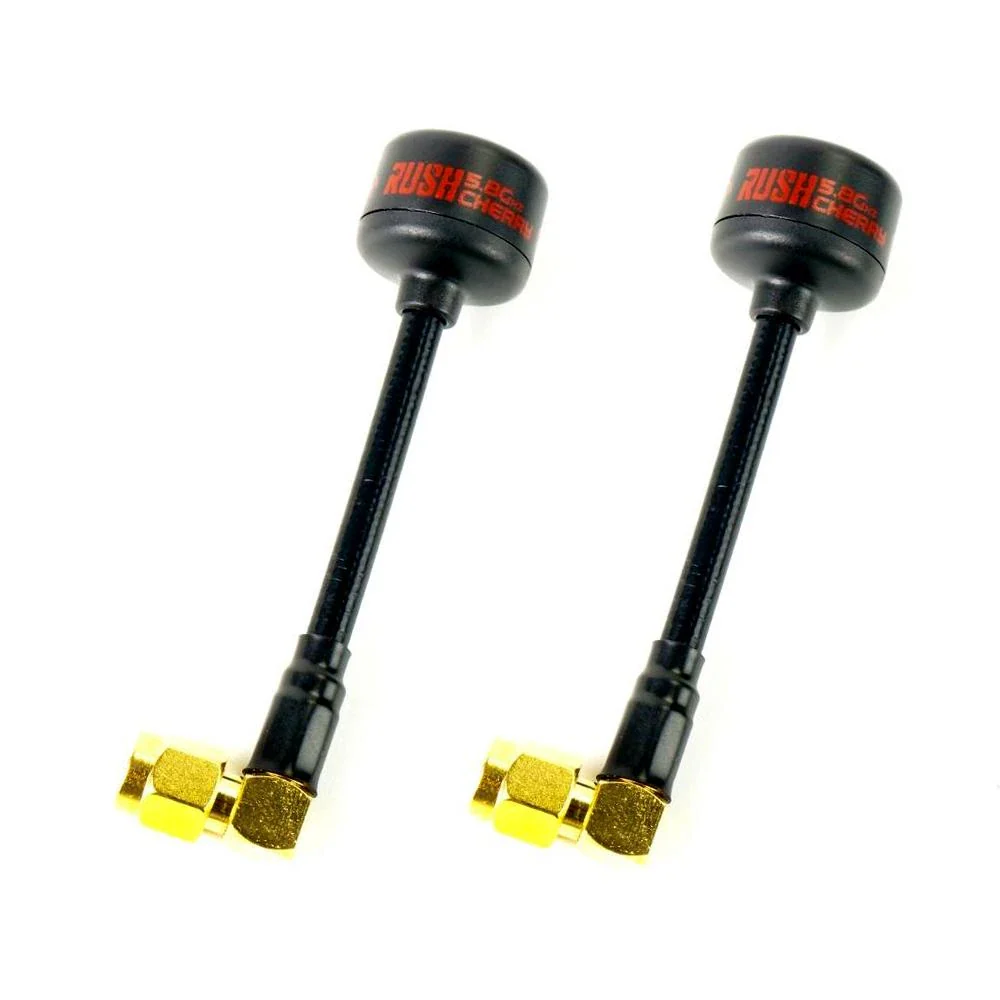

RUSHFPV Cherry 5.8GHz 90° SMA Antenna 2 Pack - Black (RHCP or LHCP)

Features

• Optimized for FPV racing drones
• Maximum signal coverage. 5.6-6GHz bandwidth covers all of raceband and all channels have nearly uniform transmission strength.
• Perfect circular polarization axis ratio. Effectively suppress screen flicker caused by multi-path interference.
• Small and sturdy. Optimized design obtained through massive impact tests. Flexible tube can withstand angle bends and crash impacts to avoid cable damage.

• Between 5650 and 5950MHz, VSWR is below 1.2 meaning trasmission efficiency is up to 98% This can also help reduce VTX heat.

• Quick installation. Antenna clips are designed to the same size as standard flange SMA sockets. The length of the antenna tube can be cut to meet your needs.
• Quality Assurance. Cherry antennas are tuned for performance by the Rush FPV Professional Microwave Laboratory, and each antenna is qualified by a network analyzer before leaving the factory.

Specifications

• Gain: 1.2dBi
• S11 SWR: 1.4 max - 1.1 min
• Band Width: 5600-6000-MHz
• Axial Ratio: Around 1.0
• Polarization: LHCP or RHCP
• Connector: 90° SMA

Includes

• 2x Rush FPV Cherry 5.8GHz 90° SMA Antenna
