RUSHFPV Rush Blade F722 Digital Stack + 60A Extreme 3-6S BLHeli_32 128kHz 4-in-1 ESC For DJI Digital FPV System - 30x30mm

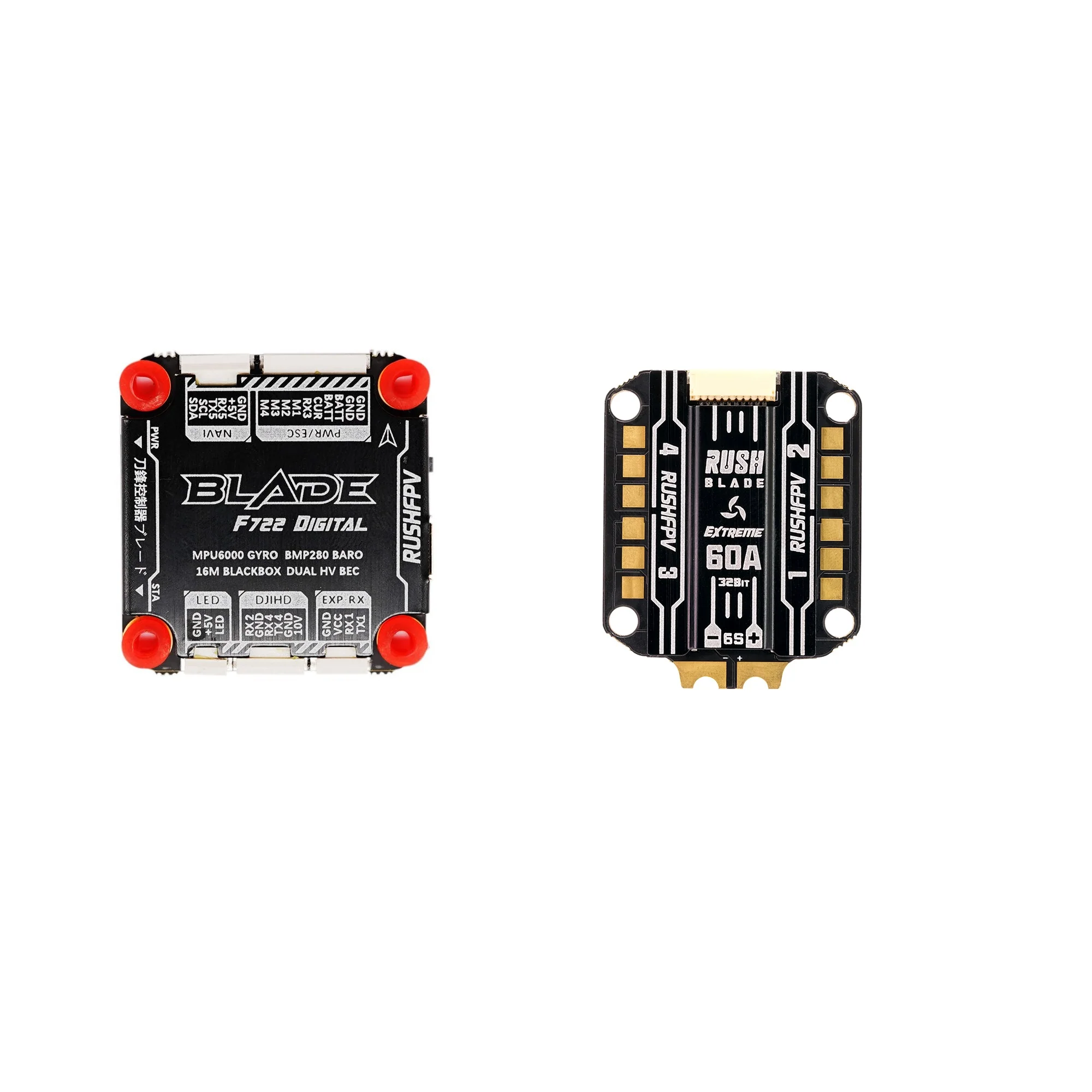

The RUSH BLADE F722 Stack for the DJI Digital FPV System by RUSHFPV features the RUSH BLADE F722 Digital Flight Controller and RUSH BLADE 60A 3-6S BLHeli_32 4-in-1 ESC (Extreme Edition), which can handle up to 6S input voltage and push your FPV racer to the max.

We also carry the Flight Controller, ESC and Power Filter Board!

Check out all our Stacks and the rest of our RushFPV Products!

See all our DJI Plug and Play Flight Controllers and Stacks!

Specifications:

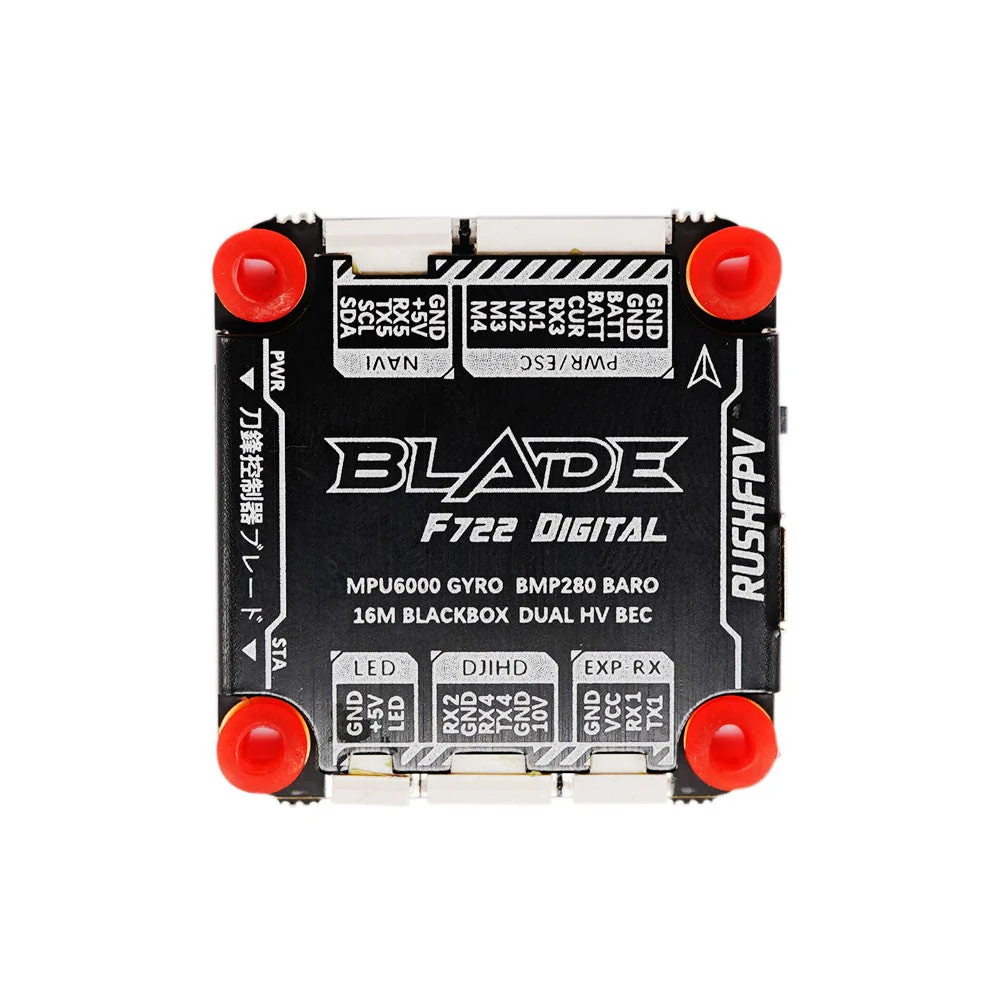

RUSHFPV RUSH BLADE F722 Digital Flight Controller For DJI Digital FPV System

• MCU: STM32 F722 RET6 216MHz
• GYRO: MPU6000 or ICM42688P
• Blackbox: 16Mb SPI Flash
• Input Voltage: 7-40V 3-8S LiPo
• BEC Output: 5V/5A 10V/3A
• Ports: 6 x PWM, 5 x UART, 1 x I2C
• LED: Supports WS2812 LED Strip
• Mounting Holes: 30.5mm x 30.5mm
• Dimensions: 36.5mm x 38mm x 5.2mm
• Weight: 9.5g (Without Cables)
• Firmware Target: Rush_Blade_F7_HD

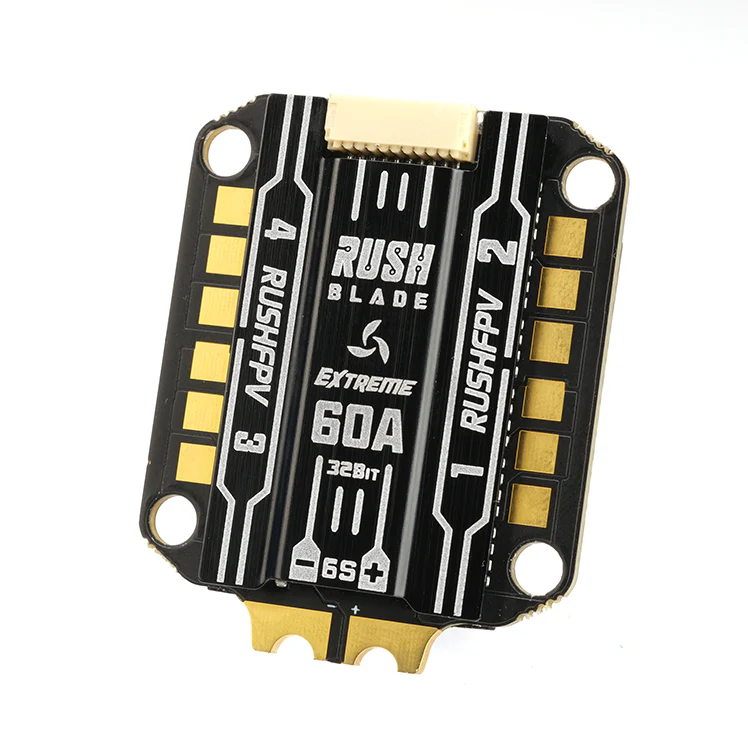

RUSHFPV RUSH BLADE 60A 128kHz 3-6S BLHeli_32 4-in-1 ESC - Extreme Edition

• Rated Current: 60A
• Peak Current: 80A
• Input Voltage: 3-6S Lipo
• MCU: F4 @ 200MHz
• PWM FREQ: 24-128KHz
• LED Color: Orange
• Weight：16.5g
• Dimension: 45*36.5*7.5mm
• BL32 FW: RUSH_BLADE_EXTREME



Package Includes:

• 1 x RUSHFPV RUSH BLADE F722 Digital Flight Controller For DJI Digital FPV System
• 1 x RUSHFPV RUSH BLADE 60A 3-6S BLHeli_32 4-in-1 ESC - Extreme Edition
