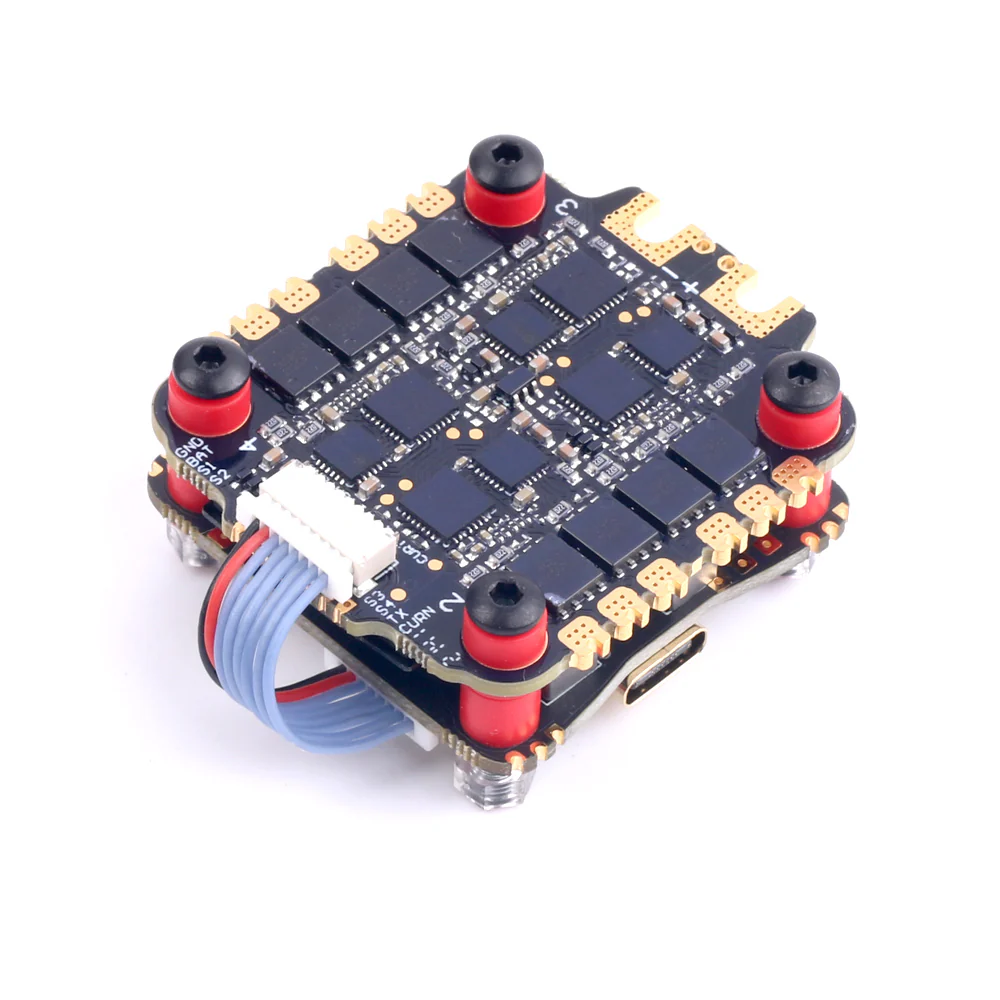

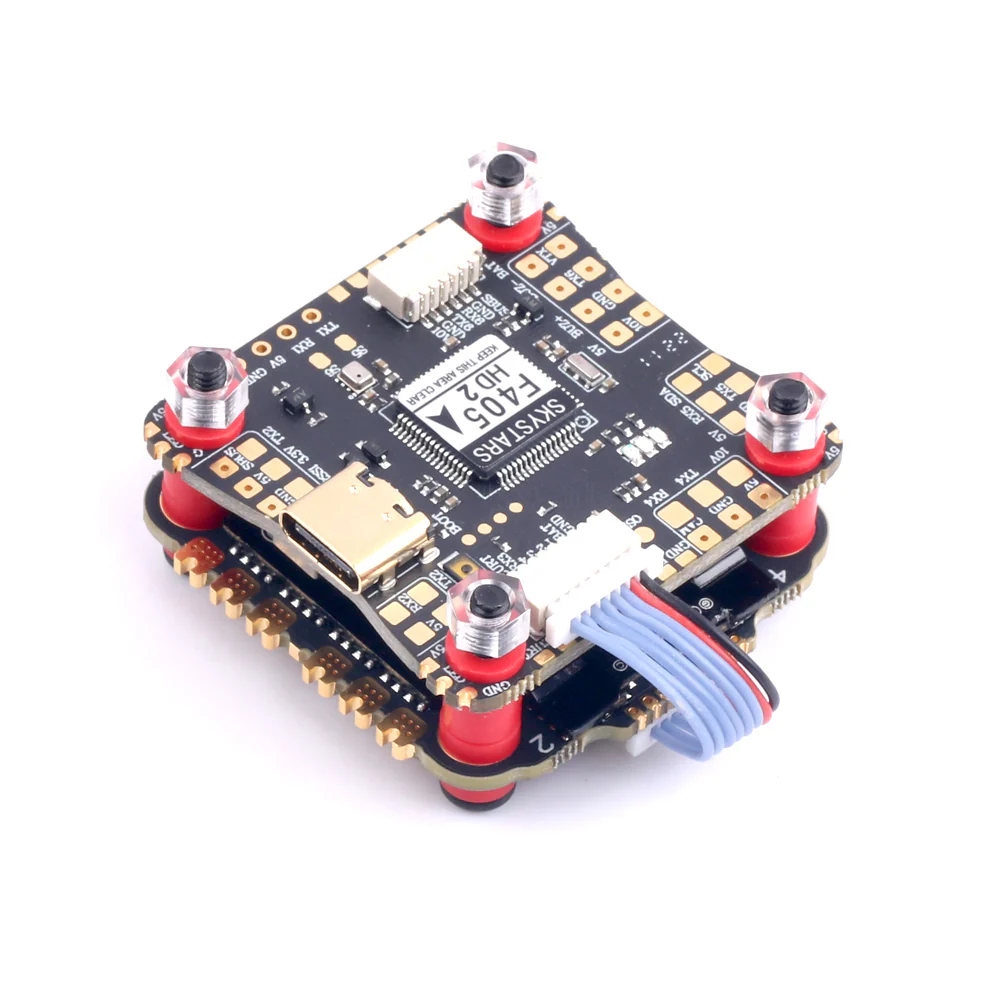

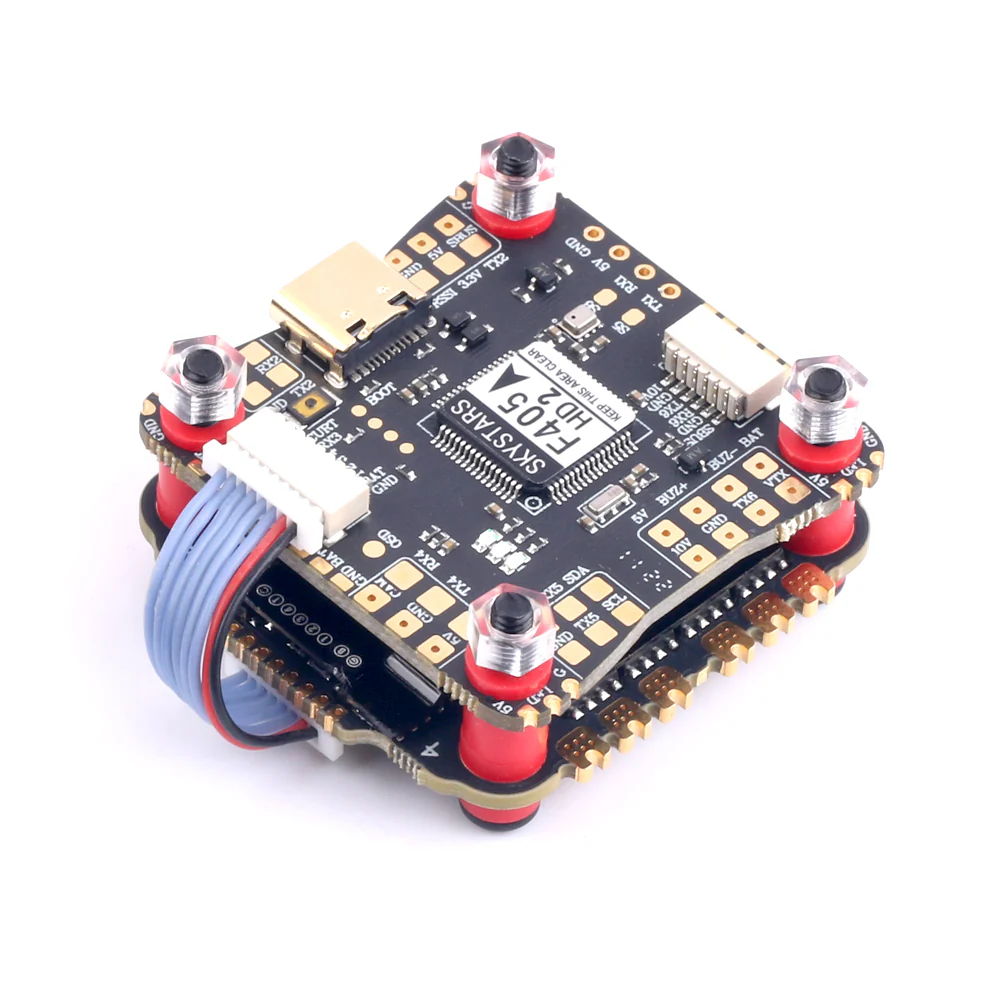

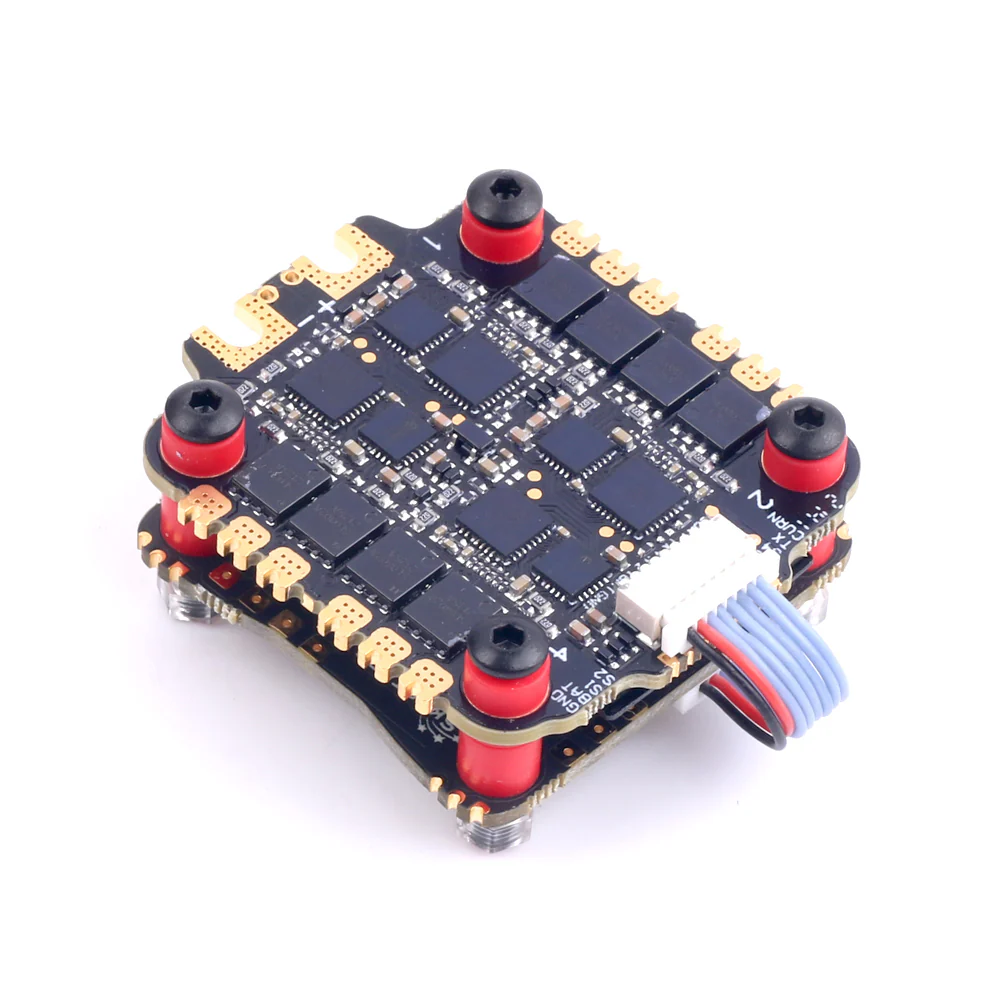

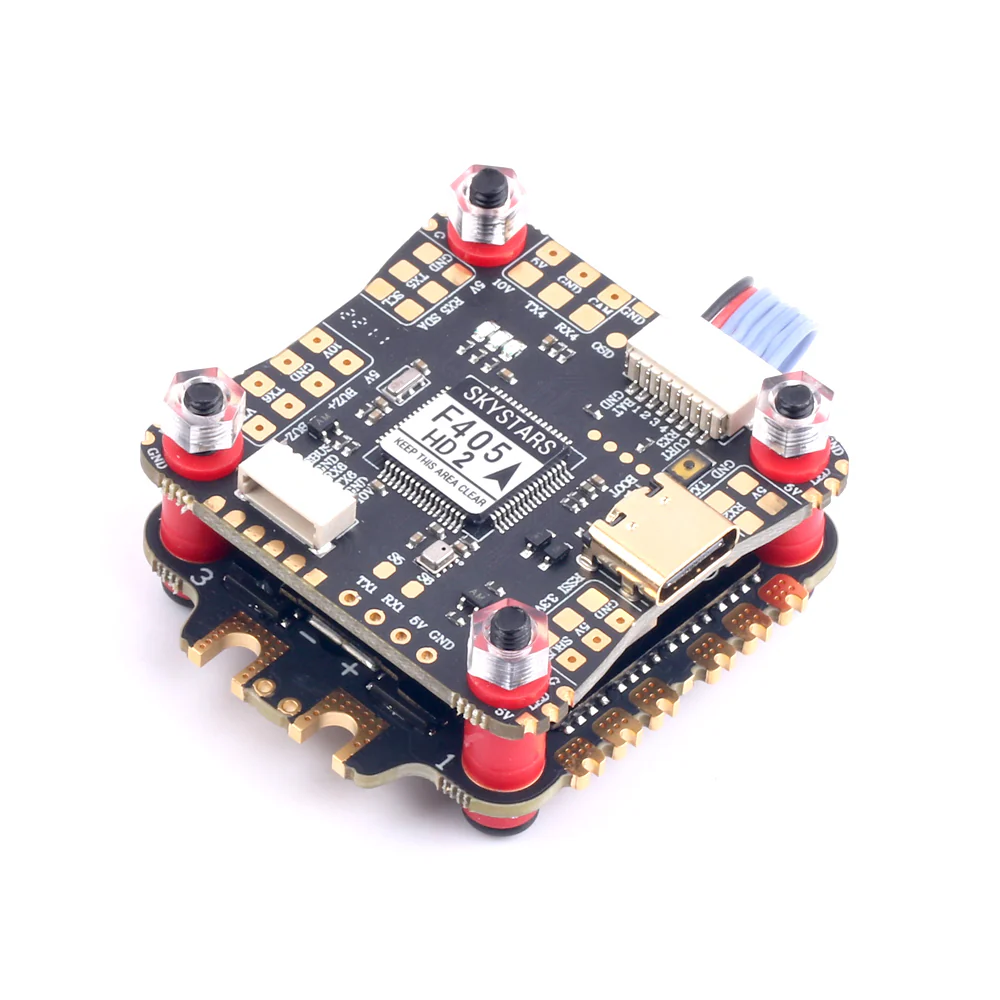

Skystars F405 HD2 Flight Controller and 45A Blheli-S 3-6S ESC FlyStack - 30x30mm

Skystars F4 F405 Flight controller and 45A Blheli-S ESC fly tower stack

Check out all our Stacks and the rest of our Skystars Products!

Specifications:

• MCU: STM32F405

• IMU: BMI270

• OSD: AT7456E

• Blackbox: 16MB

• 6X Uarts(1 2 3 4 5 6)

• WS2812 led Strip: YES

• Baro: YES

• Beeper: YES

• BEC: 5V/3A cont
• FC Firmware Betaflight FC Target: SKYSTARSF405 / INAV FC Target:SKYSTARSF405HD
• Mounting: 30.5*30.5mm, 4mm with Grommets 3mm

• Dimensions: 36*36mm

• Weight: 6g

45A Blheli-S ESC:

• Dimension: 41*46mm

• Mounting Holes: 30.5*30.5mm/¦µ3mm

• Weight:13.3g

• Supports 3-6S Lipo input

• BB21 MCU, 48Mhz Runs BLHELI 16.X Firmware

• Current sensor: YES

• BEC: NO

• Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

• Target: Q-H-30 BLS 16.7


Package Includes:

• 1 x Skystars F405 HD2 Flight Controller and 45A Blheli-S 3-6S ESC FlyStack - 30x30mm
