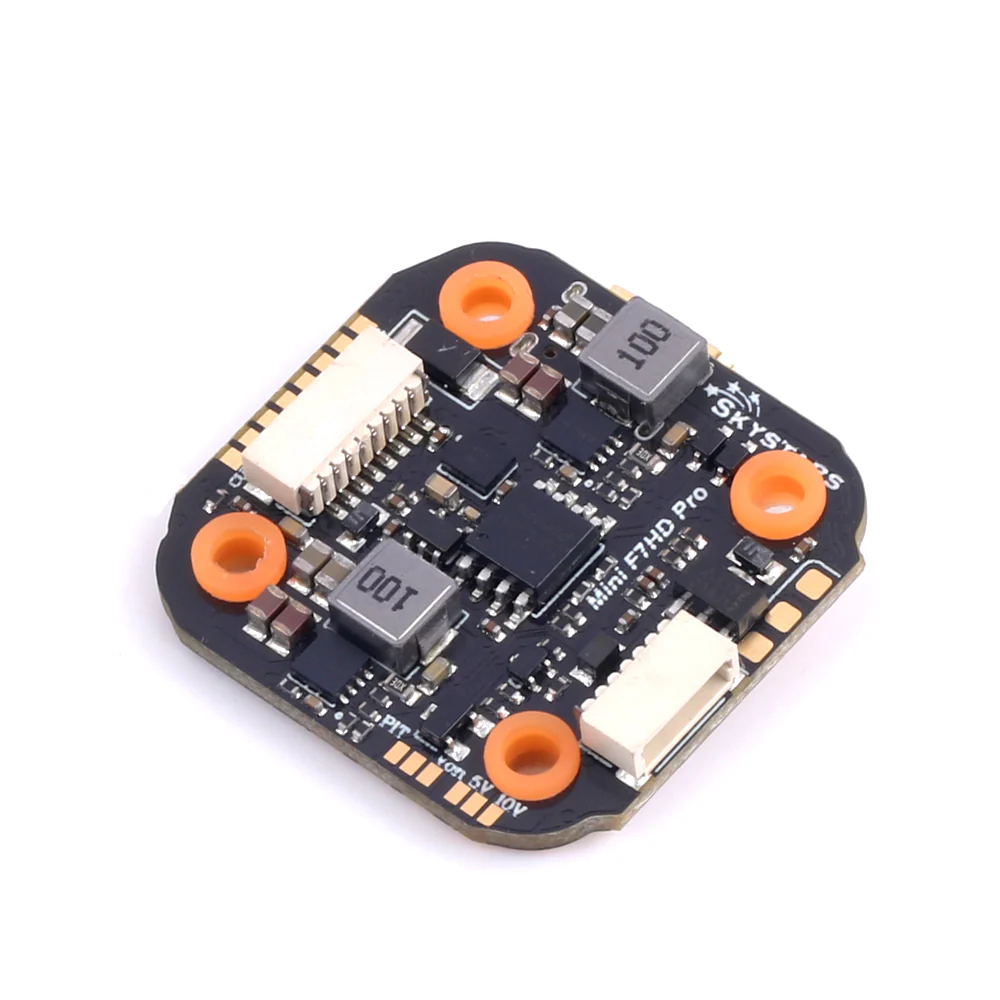

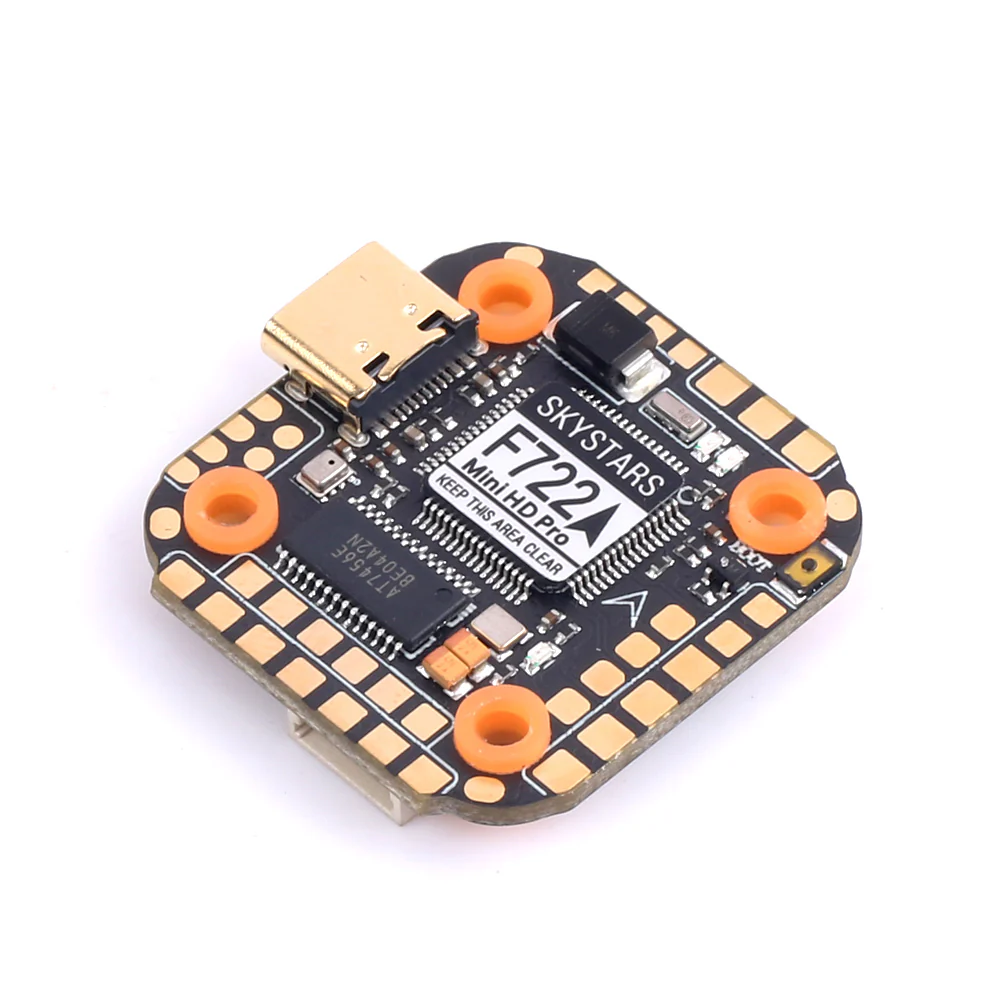

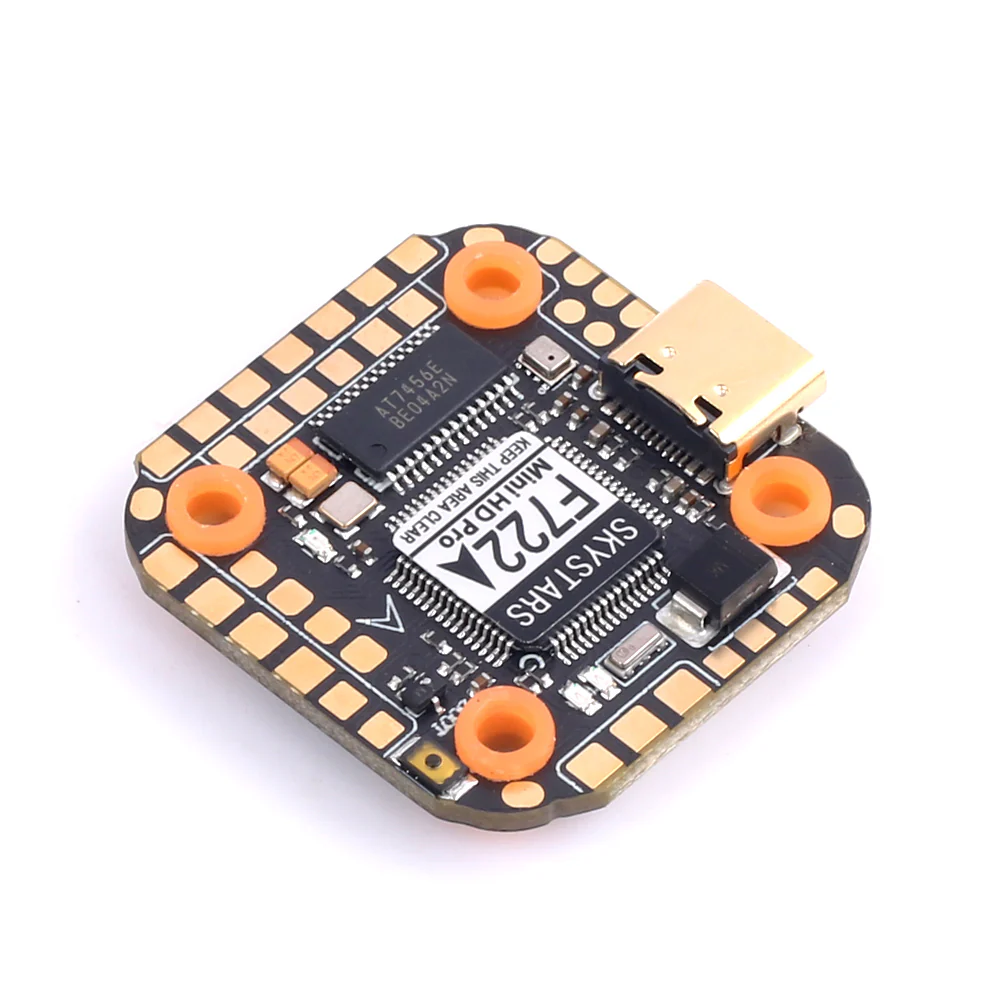

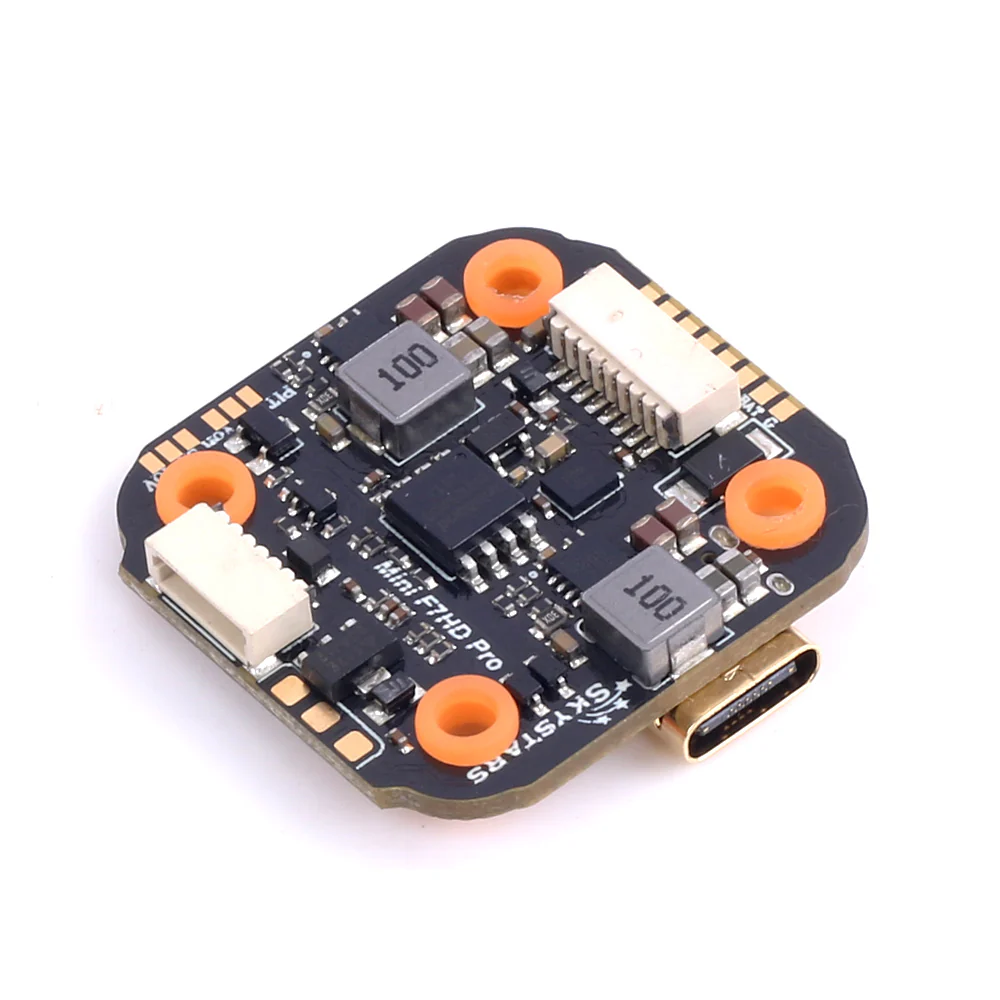

Skystars F7 Mini HDPro F722 FPV Drone Flight Controller - 20x20mm
Skystars F722 Mini HD Pro 20X20 Flight Controller, with F7 processor, 6 UARTS, and a 10V 2A Regulator for Caddx Vista or DJI Air Unit! Plus includes Barometer and Blackbox!
Check out all our 20x20 Flight Controllers and the rest of our Skystars Products!
Features:
- Designed the LED installation position in the four corners,support WS2812 Programable LED.
- Supports serial receivers (CRSF,SBUS, iBus, Spektrum) . Support 3.3V Satellite Receiver.
- High-performance / low-noise / high sensitivity IMU. BMI270 with 6-axis gyro and
accelerometer.
- Support connect DJI HD air module.
- Input voltage10V-26V (3-6S)
- Automatic voltage monitoring.
Specifications:
-
MCU: STM32F722RGT6 216MHz
-
IMU: BMI270 (SPI)
-
OSD: Betaflight OSD & DJI HD OSD (UART6)
-
6 hardware UARTS (UART1,2,3,4,5,6)
-
5V 2A & 10V 2A
-
Input Voltage: 3-6S Lipo
-
Blackbox: 16MB
-
Barometer: YES
-
Firmware: SKYSTARS F7HD
-
Dimensions: 35x28x7mm
-
Mounting Holes: Standard 20mm/M3 square to center of holes
- Weight: 4.2g
Package Includes:
- 1 x Skystars F7 Mini HDPro F722 FPV Drone Flight Controller - 20x20mm
$16.20
Original: $53.99
-70%Skystars F7 Mini HDPro F722 FPV Drone Flight Controller - 20x20mm—
$53.99
$16.20
Description
Skystars F722 Mini HD Pro 20X20 Flight Controller, with F7 processor, 6 UARTS, and a 10V 2A Regulator for Caddx Vista or DJI Air Unit! Plus includes Barometer and Blackbox!
Check out all our 20x20 Flight Controllers and the rest of our Skystars Products!
Features:
- Designed the LED installation position in the four corners,support WS2812 Programable LED.
- Supports serial receivers (CRSF,SBUS, iBus, Spektrum) . Support 3.3V Satellite Receiver.
- High-performance / low-noise / high sensitivity IMU. BMI270 with 6-axis gyro and
accelerometer.
- Support connect DJI HD air module.
- Input voltage10V-26V (3-6S)
- Automatic voltage monitoring.
Specifications:
-
MCU: STM32F722RGT6 216MHz
-
IMU: BMI270 (SPI)
-
OSD: Betaflight OSD & DJI HD OSD (UART6)
-
6 hardware UARTS (UART1,2,3,4,5,6)
-
5V 2A & 10V 2A
-
Input Voltage: 3-6S Lipo
-
Blackbox: 16MB
-
Barometer: YES
-
Firmware: SKYSTARS F7HD
-
Dimensions: 35x28x7mm
-
Mounting Holes: Standard 20mm/M3 square to center of holes
- Weight: 4.2g
Package Includes:
- 1 x Skystars F7 Mini HDPro F722 FPV Drone Flight Controller - 20x20mm
