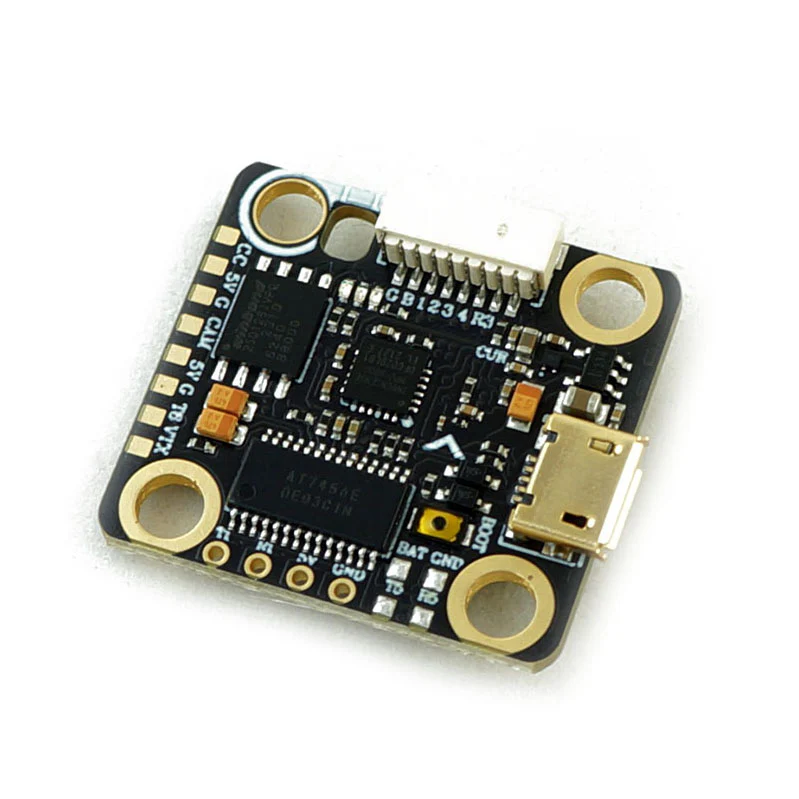

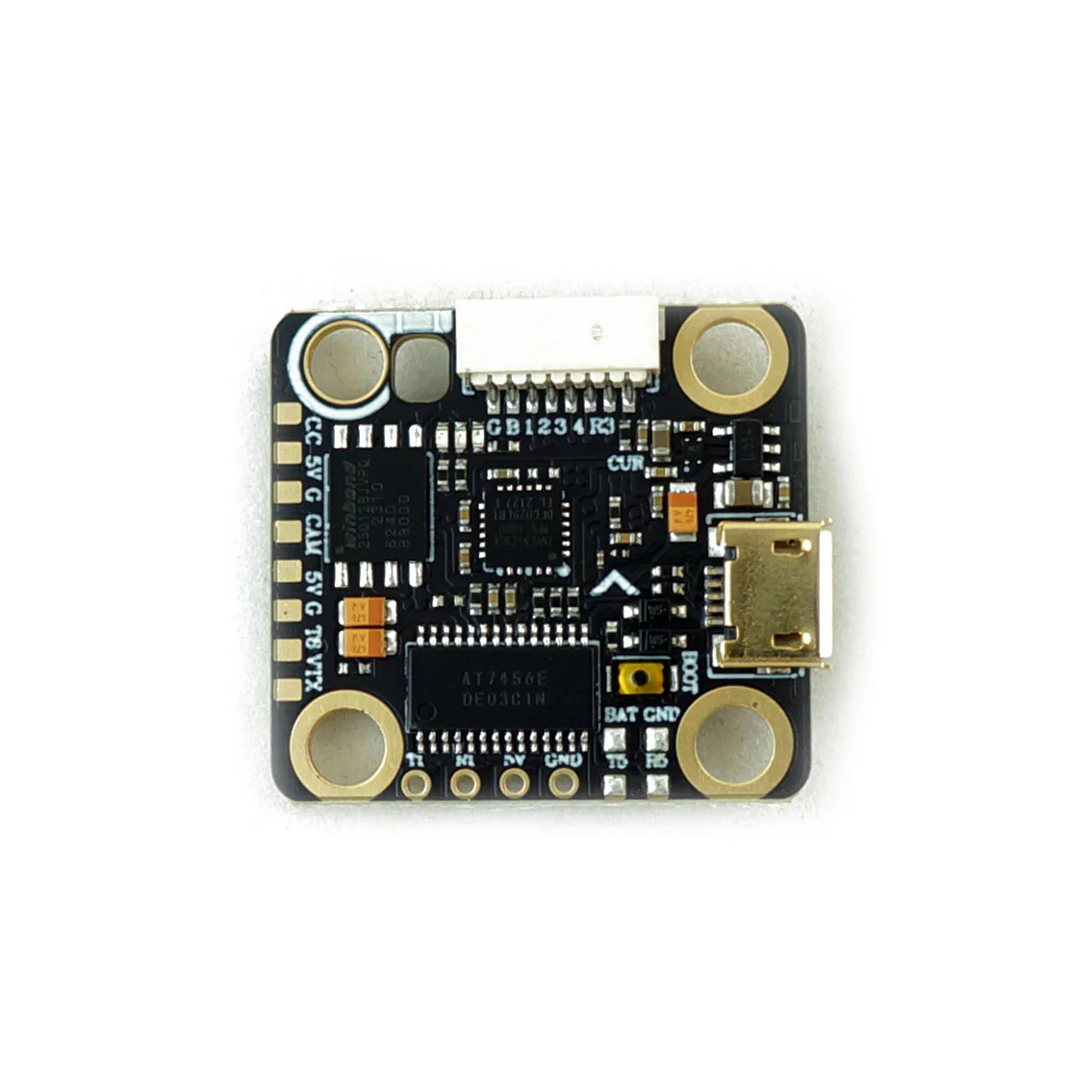

Skystars F7RS F722 FPV Drone Flight Controller - 20x20mm
Skystars F7RS is a flight controller designed for racing and freestyle 5" drones. The flight controller is based on the F722 processor with a MPU6000 gyro. The FC also includes a 5V 3A BEC, OSD and 16MB of blackbox memory. The flight controller is protected against voltage spikes by a TVS diode. The main advantage of the flight controller is its small size and light weight, which is especially appreciated by racing drone pilots.
Check out all our 20x20 Flight Controllers and the rest of our Skystars Products!
Specifications:
- MCU: STM32F722RGT6 216MHz
- IMU: MPU6000 (SPI)
- OSD: Betaflight OSD & DJI HD OSD (UART6)
- 6 hardware UARTS (UART1,2,3,4,5,6)
- Barometer: NO
- Buzzer Pad: YES
- 5V 3A
- Input Voltage: 3-6S Lipo
- Blackbox: 16MB
- Firmware: SKYSTARS F7RS
- Dimensions: 26x28x7mm
- Mounting Holes: Standard 20mm/M3 square to center of holes
- Weight: 4.9g
Package Includes:
- 1 x Skystars F7RS F722 FPV Drone Flight Controller - 20x20mm
