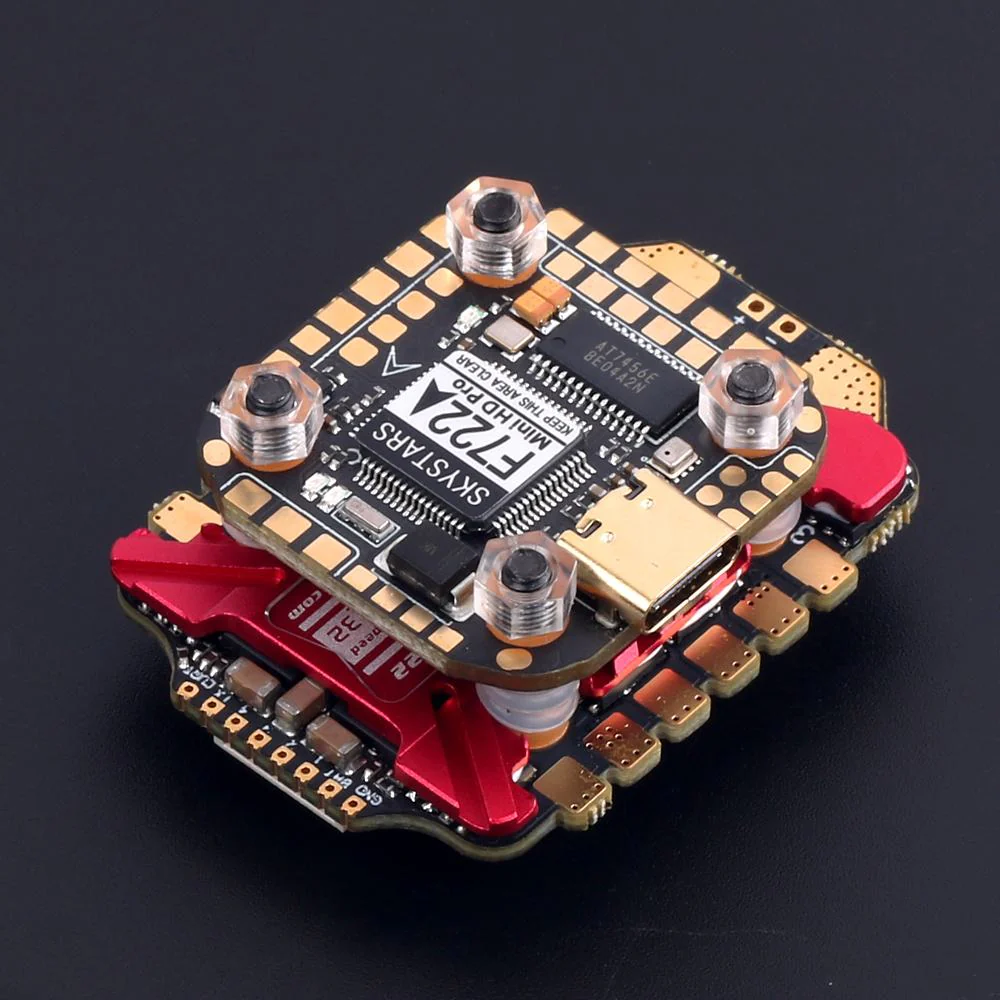

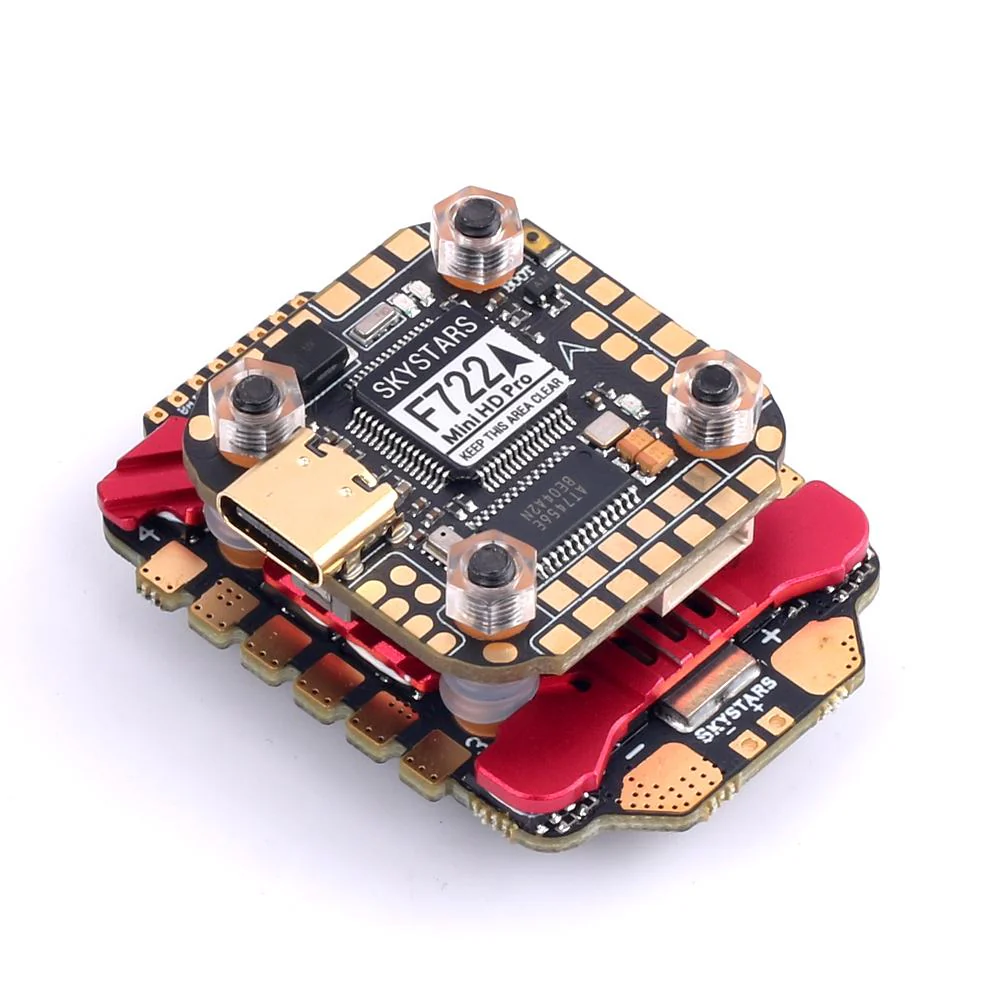

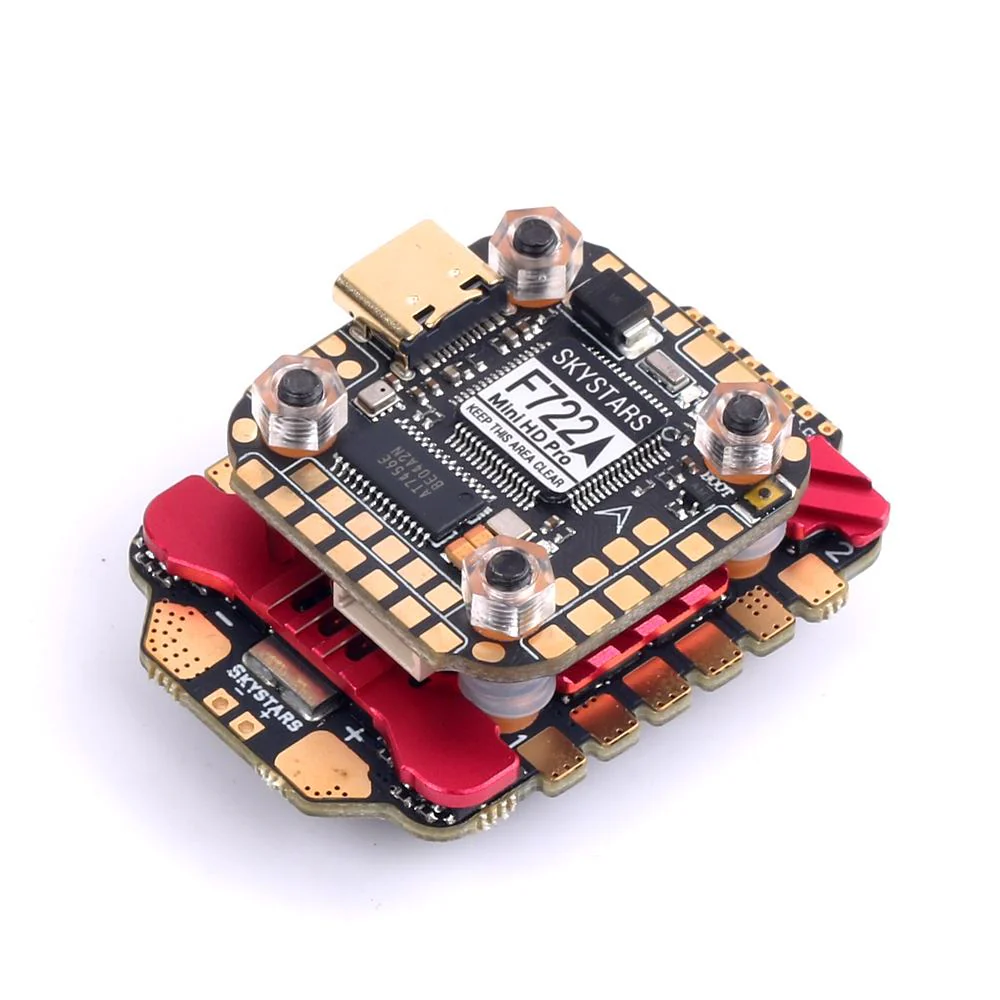

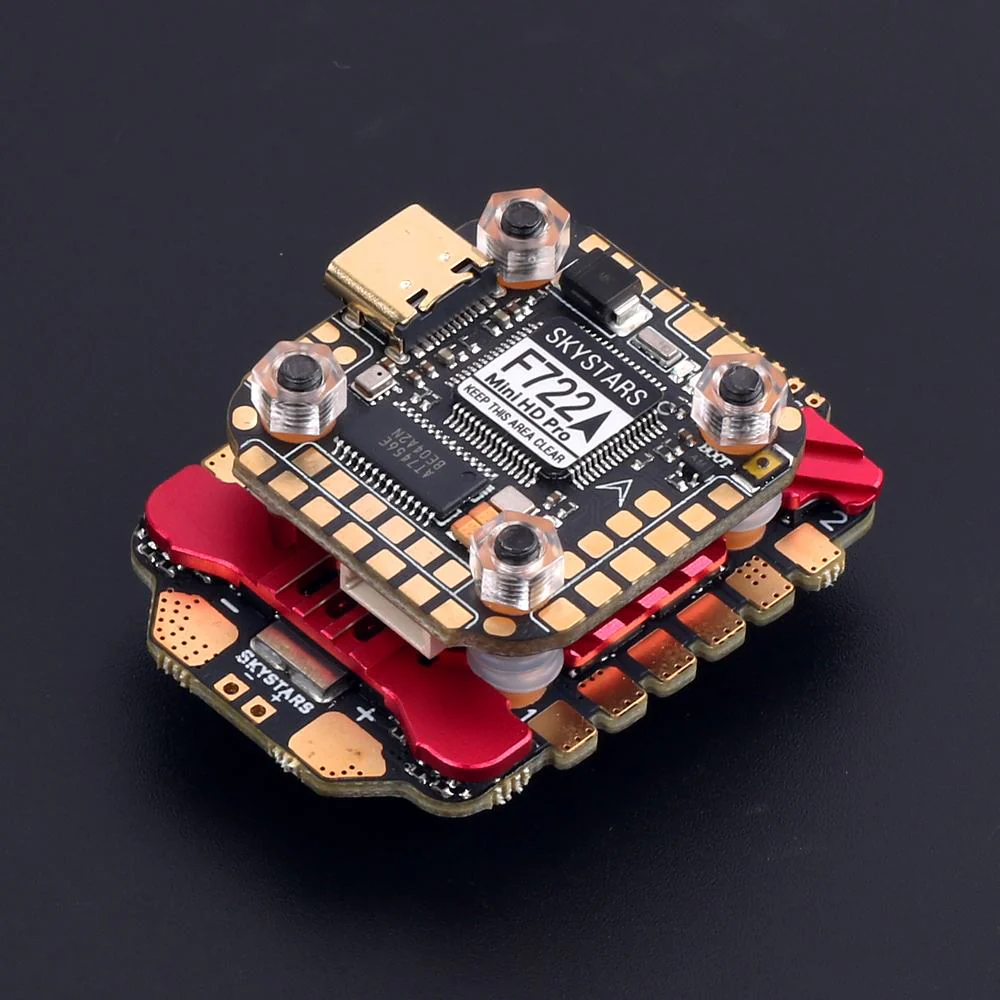

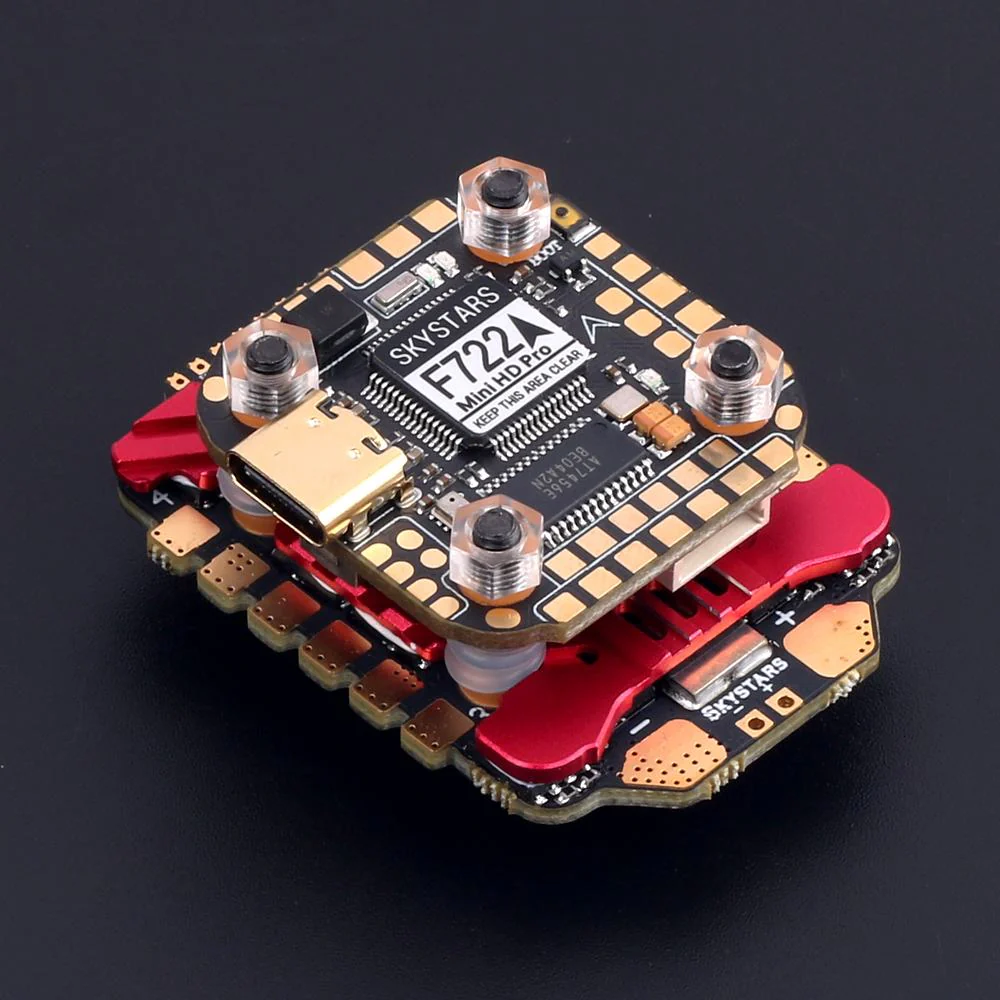

Skystars FlyStack F7 Mini HDPro Flight Controller + KM55 55A AM32 32Bit 3-6S 4-in-1 ESC - 20x20mm
Skystars FlyStack F7 Mini HDPro Flight Controller + KM55 55A AM32 32Bit 3-6S 4-in-1 ESC - 20x20mm
The SkyStars Fly Stack features an F722 Mini HD Pro Flight Controller and a Kramam 55A AM32 4-i-n1 ESC with a 20x20mm mounting pattern!
Check out all our Stacks and the rest of our Skystars Products!
Features:
-
Designed the LED installation position in the four corners,support WS2812 Programable LED.
-
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire,) . Support 3.3V Satellite Receiver.
-
High-performance / low-noise / high sensitivity IMU. BMI with 6-axis gyro and accelerometer.
-
Support connect DJI HD air module.
-
Input voltage 12V-26V (3-6S)
-
TVS protect.
- Automatic voltage monitoring.
Specifications:
F722 Mini HD Pro FC
-
F722FC
-
MCU: STM32F722RGT6 216MHz
-
IMU: BMI270 (SPI)
-
OSD: Betaflight OSD & DJI HD OSD (UART6)
-
6 hardware UARTS (UART1,2,3,4,5,6)
-
5V 2A & 10V 2A
-
Input Voltage: 3-6S Lipo
-
Blackbox: 16MB
-
Barometer: YES
-
Firmware: SKYSTARS F7HD
-
Dimensions: 35x28x7mm
-
Mounting Holes: Standard 20mm/M3 square to center of holes
- Weight: 4.2g
KM55 55A AM32 4-in-1 ESC
-
voltage: 3-6S LiPo
-
Con.Current: 55A Peak
-
Current: 70A≥ 10S
-
Firmware: AM_32
-
Support : Dshot 600
-
Mounting hole : 20X20 mm/M3
-
BEC: No
-
Product size: 35*47*6.5mm
- Weight: 16.5g

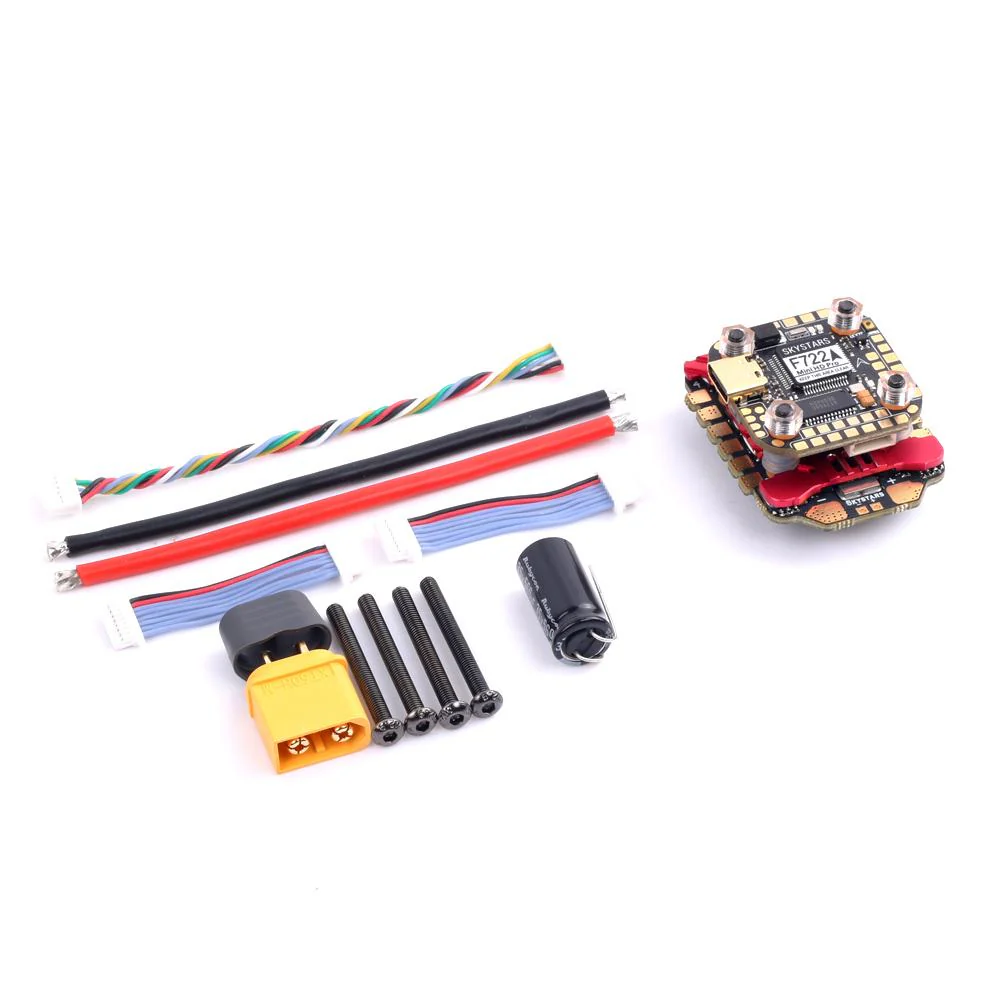

Package Includes:
-
1x Skystars Kramam 55A AM32 32Bit 3-6S 20×20 4in1 ESC
- 1x Skystars F722 Mini HD Pro Flight Controller 20×20mm
