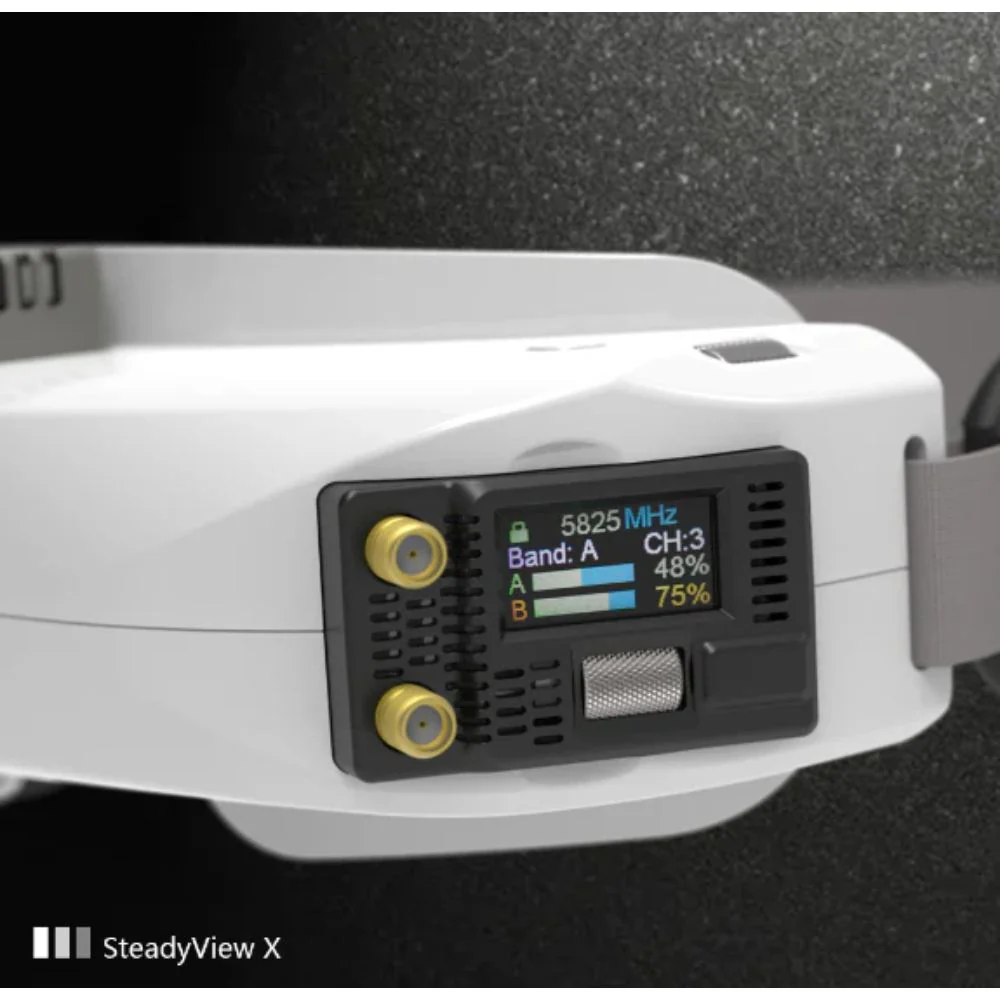

Skyzone SteadyView X 5.8Ghz IPS Screen Receiver Module

Steadyview X Screen receiver is the upgrade V3.3 version of steadyview receiver, the receiver merges two signals into one, avoid image tearing and rolling in the multi-path environment, and make the image more stable and clear in challenging condition. The RX has an IPS screen and shuttle wheel, use can the shuttle wheel to set the RX. The SteadyView X stvx5g receiver has ground station KIT, user can use it on any monitor or goggles which have an AV IN port. Also, the steadyview X have an ELRS backpack build in, user can use the ELRS TX backpack and Lua script to synchronize the VTX and VRX. It supports diversity.

Check out our Goggles Collection and all our VRX and Goggle Modules.

Also check out the rest of our Skyzone Products!

Features:

• IPS Screen

• Shuttle Wheel control

• Ground Station Kit

• 3 MIX Mode one DIV mode

• ELRS VRX backpack intergrated



Specifications:

• High sensitivity receiver: -98dBm±1dBm

• Wild range voltage input: 2~6S lipo

• USB C: support firmware update or power on the RX

• 3.5mm: Video and Audio output

• weight: 250g

• package size: 15*15*8cm

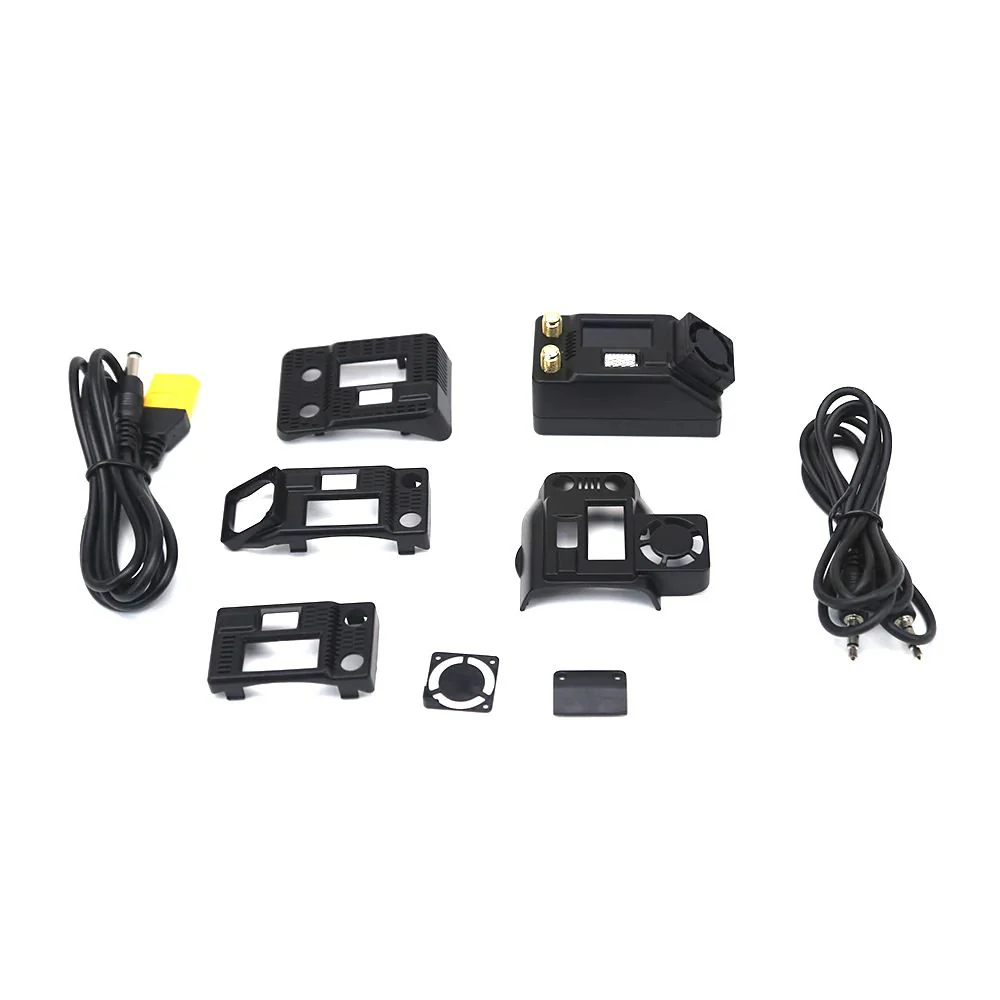

Package Includes:

• Steadyview X receiver module

• SKY04/EV300O/COBRA/Fatshark module bay cover

• Ground station KIT

• XT60-Barrel connector power cable

• 3.5mm Video out cable

• 1 patch RHCP and 1 omi antenna
