SpeedyBee BT Nano 3 Wireless Flight Controller Configuration
Add bluetooth functionality to any quad with the SpeedyBee BT Nano 3. This adapter lets you change ESC and Flight Controller settings wirelessly with the SpeedyBee app!
Check out all our FC Adapters and Accessories and the rest of our SpeedyBee Products!
Specifications
| Operating Voltage | 5V |
| Working Current | ~10mA |
| Bluetooth Low Energy | Supports |
| WiFi | Supports. It will be turned on automatically only when upgrading the firmware of the module itself. |
| Communication Port | UART |
| Baudrate | 115200 |
| Bluetooth Automatically Turns Off | Enabled by default, the module will automatically detect the armed/ disarmed status of the FC. During the flight of the drone, the Bluetooth function will be disabled to prevent other wireless devices from being interfered by the Bluetooth signal. |
| BT Switch Pad | The Bluetooth function will be disabled when it receives a Low signal.In the BT Switch section of the manual, you can learn about the detailed instructions |
| Power Indicator | Solid Red: Indicates that the module is powered. |
| Working Status Indicator |
Flashing white: Indicates that the UART communication with FC is abnormal, please check whether the wiring and settings are correct. Solid White: Indicates that the communication with FC is normal, you can use the App for wireless parameter adjustment Flashing green: Indicates that the wireless signal is being connected Solid Green: Indicates that the connection with the App has been successful |
| Size | 14*11*0.8mm |
| Weight | 5g |

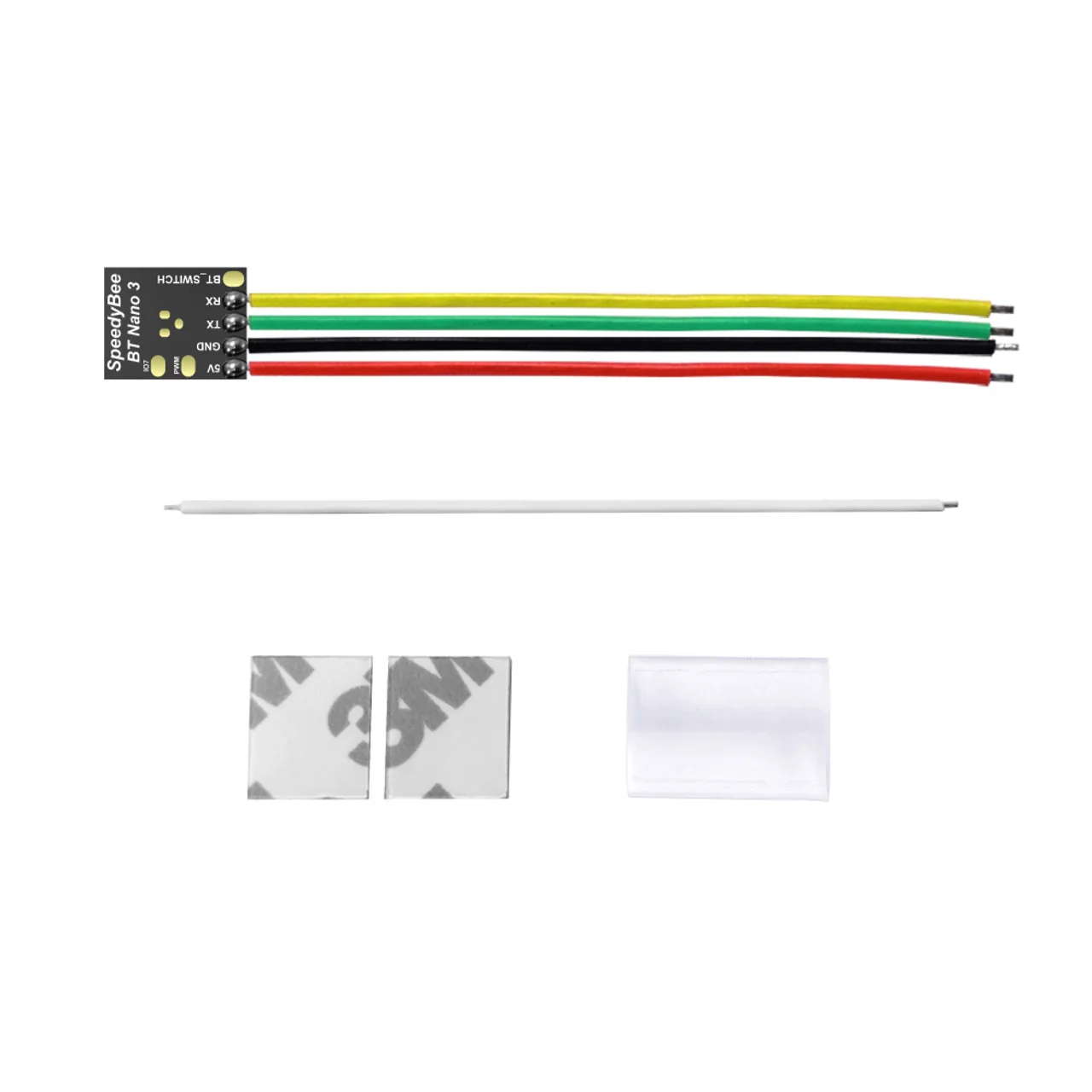

Includes
- 1x SpeedyBee BT Nano 3 W/ Pre Soldered Wires
- 1 x 29 AWG 75mm wire
- 2 x 3M Double-sided Tape 14mmx30mm
- 1 x 8mm Diameter Heat Shrink Tube
Original: $11.99
-70%$11.99
$3.60
Description
Add bluetooth functionality to any quad with the SpeedyBee BT Nano 3. This adapter lets you change ESC and Flight Controller settings wirelessly with the SpeedyBee app!
Check out all our FC Adapters and Accessories and the rest of our SpeedyBee Products!
Specifications
| Operating Voltage | 5V |
| Working Current | ~10mA |
| Bluetooth Low Energy | Supports |
| WiFi | Supports. It will be turned on automatically only when upgrading the firmware of the module itself. |
| Communication Port | UART |
| Baudrate | 115200 |
| Bluetooth Automatically Turns Off | Enabled by default, the module will automatically detect the armed/ disarmed status of the FC. During the flight of the drone, the Bluetooth function will be disabled to prevent other wireless devices from being interfered by the Bluetooth signal. |
| BT Switch Pad | The Bluetooth function will be disabled when it receives a Low signal.In the BT Switch section of the manual, you can learn about the detailed instructions |
| Power Indicator | Solid Red: Indicates that the module is powered. |
| Working Status Indicator |
Flashing white: Indicates that the UART communication with FC is abnormal, please check whether the wiring and settings are correct. Solid White: Indicates that the communication with FC is normal, you can use the App for wireless parameter adjustment Flashing green: Indicates that the wireless signal is being connected Solid Green: Indicates that the connection with the App has been successful |
| Size | 14*11*0.8mm |
| Weight | 5g |
Includes
- 1x SpeedyBee BT Nano 3 W/ Pre Soldered Wires
- 1 x 29 AWG 75mm wire
- 2 x 3M Double-sided Tape 14mmx30mm
- 1 x 8mm Diameter Heat Shrink Tube
