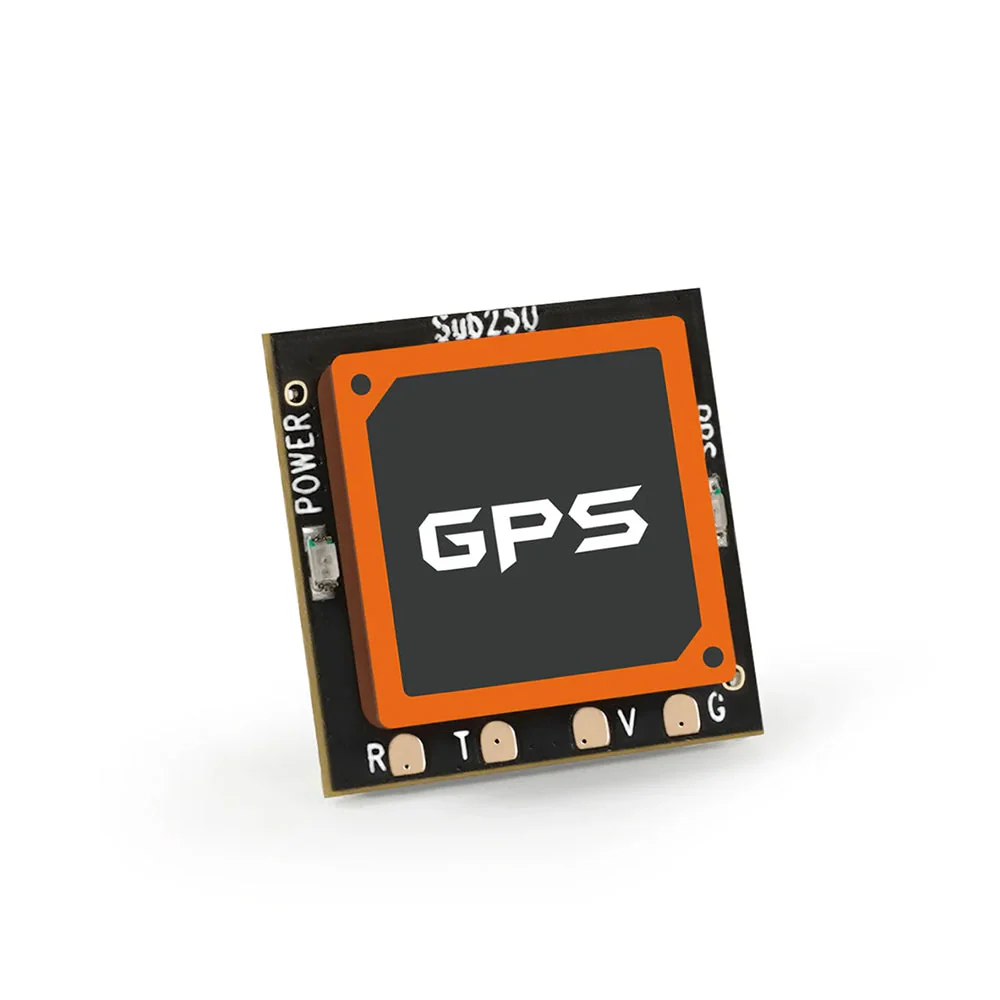

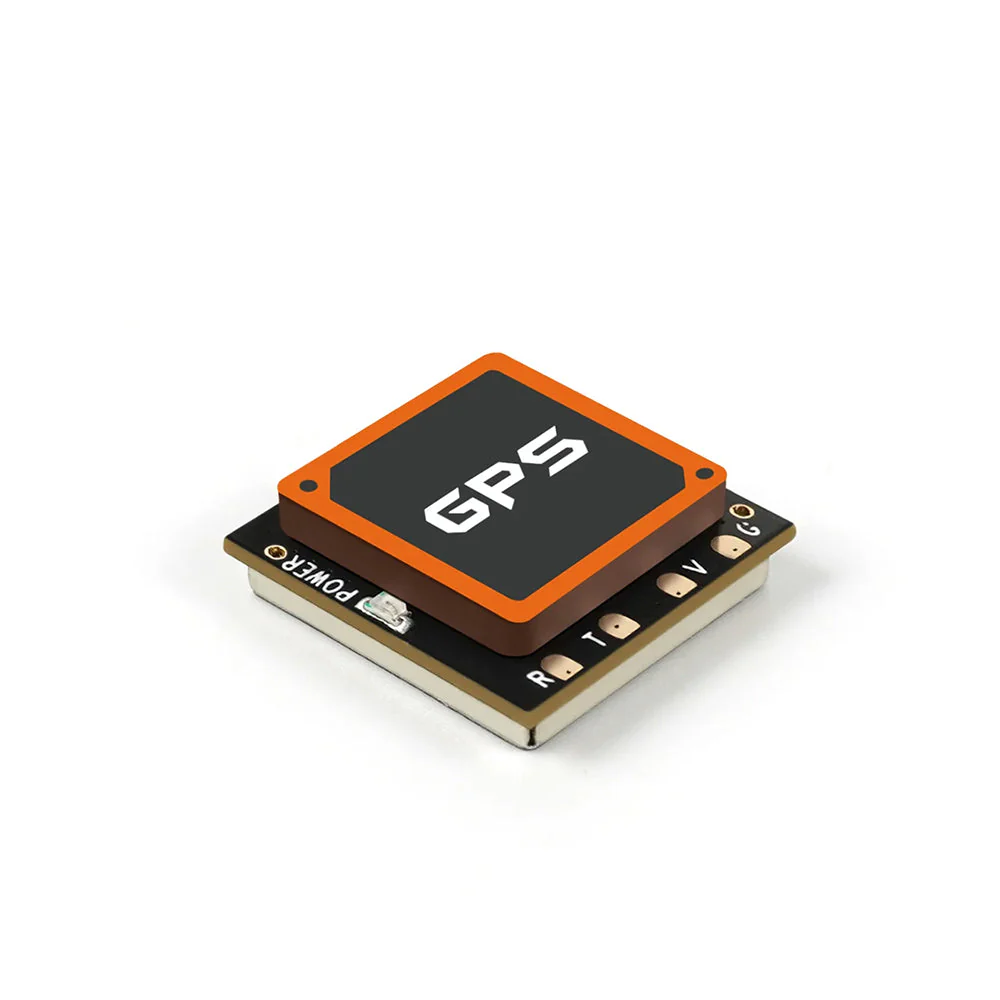

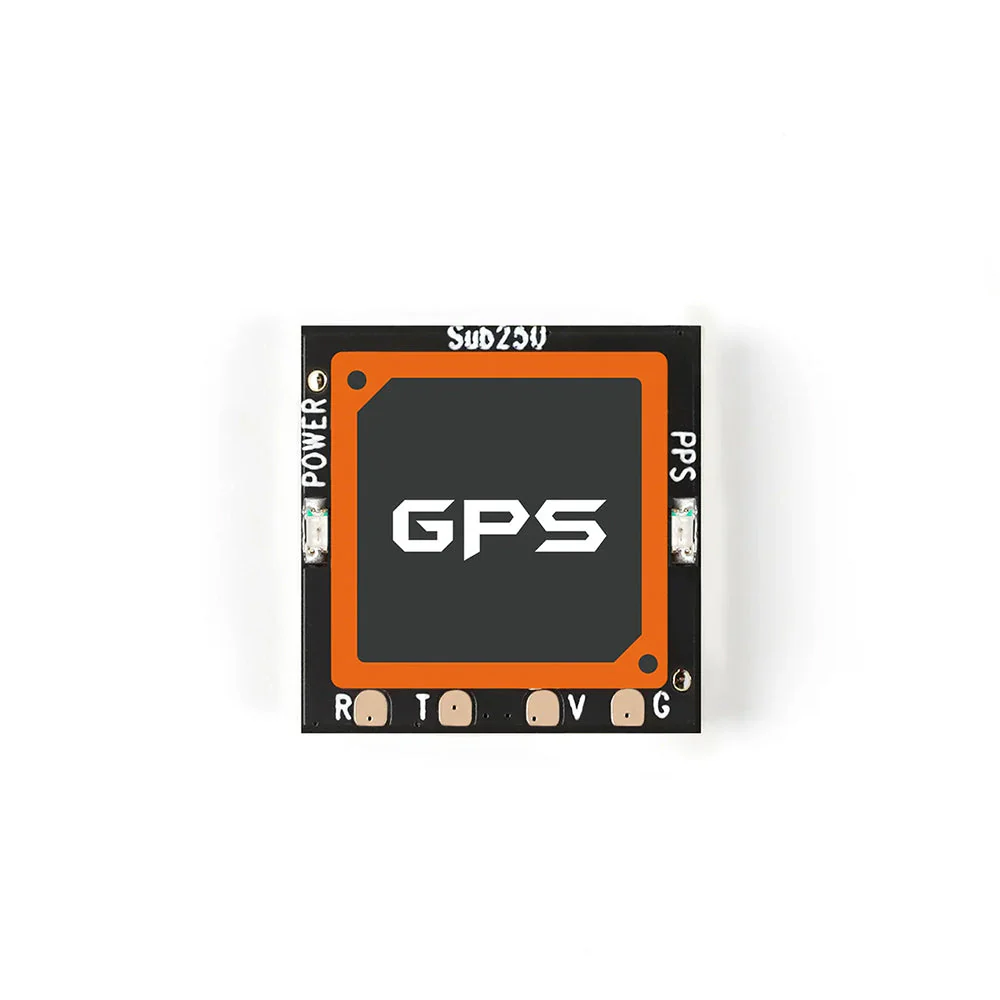

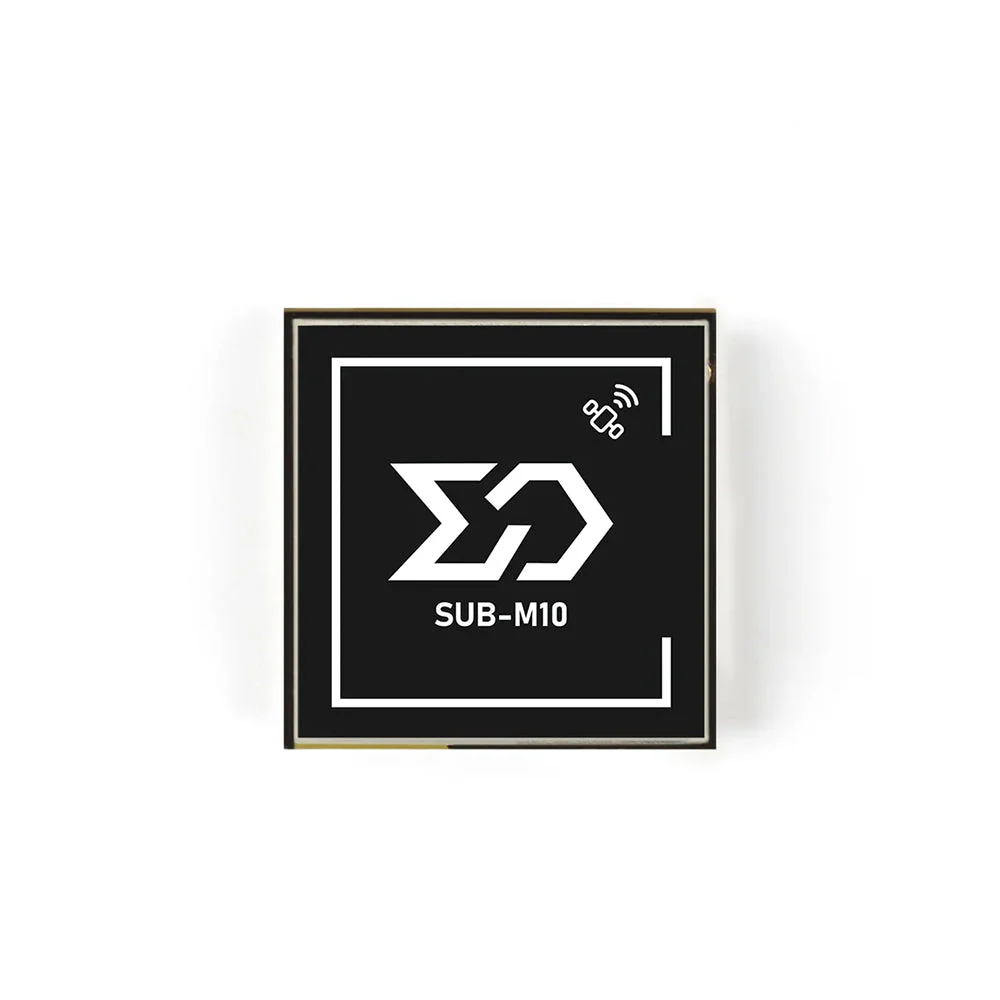

Sub250 Sub-M10 GPS Module

Sub250 Sub-M10 GPS Module

The Sub250 Sub-M10 GPS Module features the U-blox M10 series chip, providing fast positioning speeds and the ability to connect to multiple satellite systems such as GPS, BDS, Galileo, QZSS, and SBAS. With connections to up to 32 satellites, users can expect a stable connection and reliable performance. The compact and lightweight design, along with the convenient onboard indicator light, make this module easy to use and its unique appearance sets it apart from other options on the market.



Check out all our GPS and Lost Model Devices and the rest of our Sub250 Products

Features:

  • U-blox M10 series chip
  • Fast positioning speed
  • GPS+BDS+Galileo+QZSS+SBAS joint positioning
  • Up to 32 satellites
  • Stable connection quality
  • Unique appearance design
  • Small size and light weight
  • Onboard indicator light, easy to use

Specifications:

  • GPS chip: u-blox M10050
  • Input voltage: 3.3V-5V
  • Receiving frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
  • Operating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning
  • Channel: 72ch
  • Navigation satellites: Up to 32 pieces
  • Output protocol: ublox
  • Baud rate: 115200bps
  • Speed Accuracy: 0.05 m/s
  • Horizontal positioning accuracy: 2D ACC1.5m(Weather)
  • Timing accuracy: 30 ns
  • Receiver sensitivity: Trace-162dBm，Capture-160dBm
  • Dynamic characteristics: Max Height: 50000m, Max Speed: 500m/s
  • Maximum acceleration: 4G

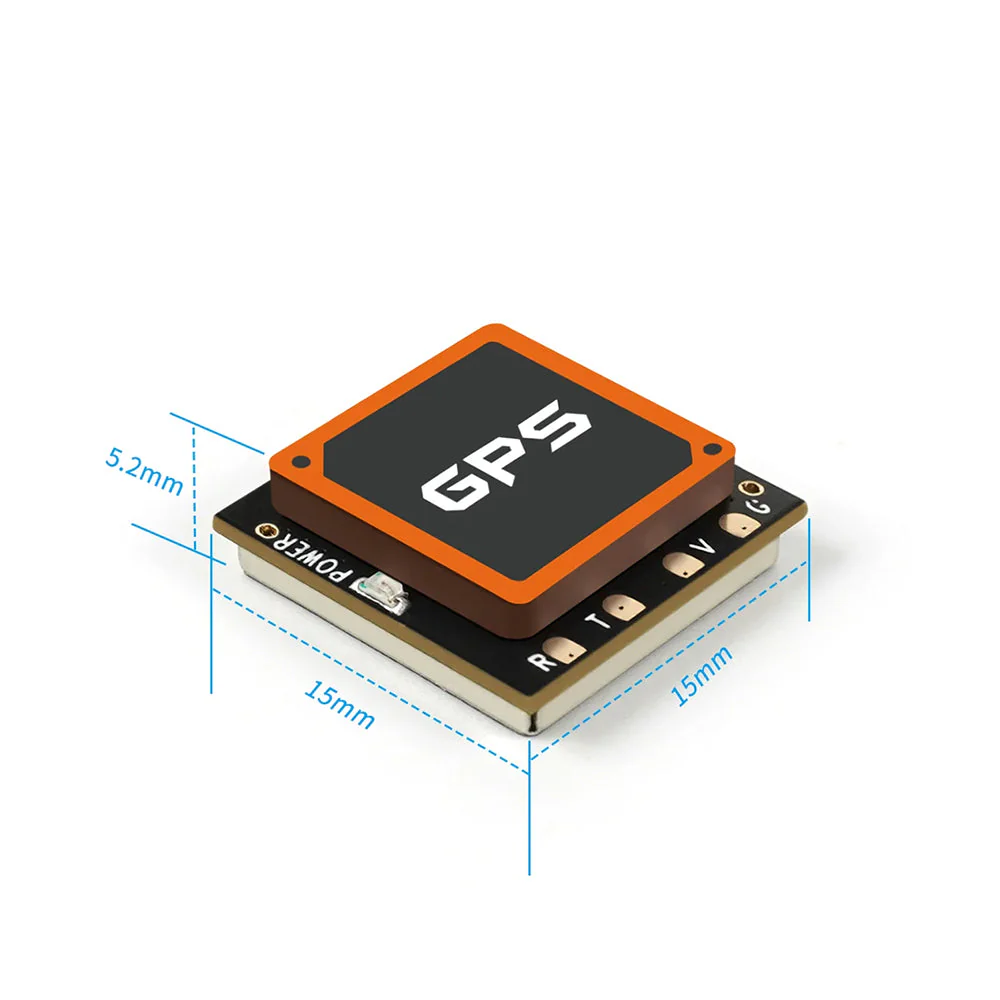

  • Size: 15*15*5.2mm

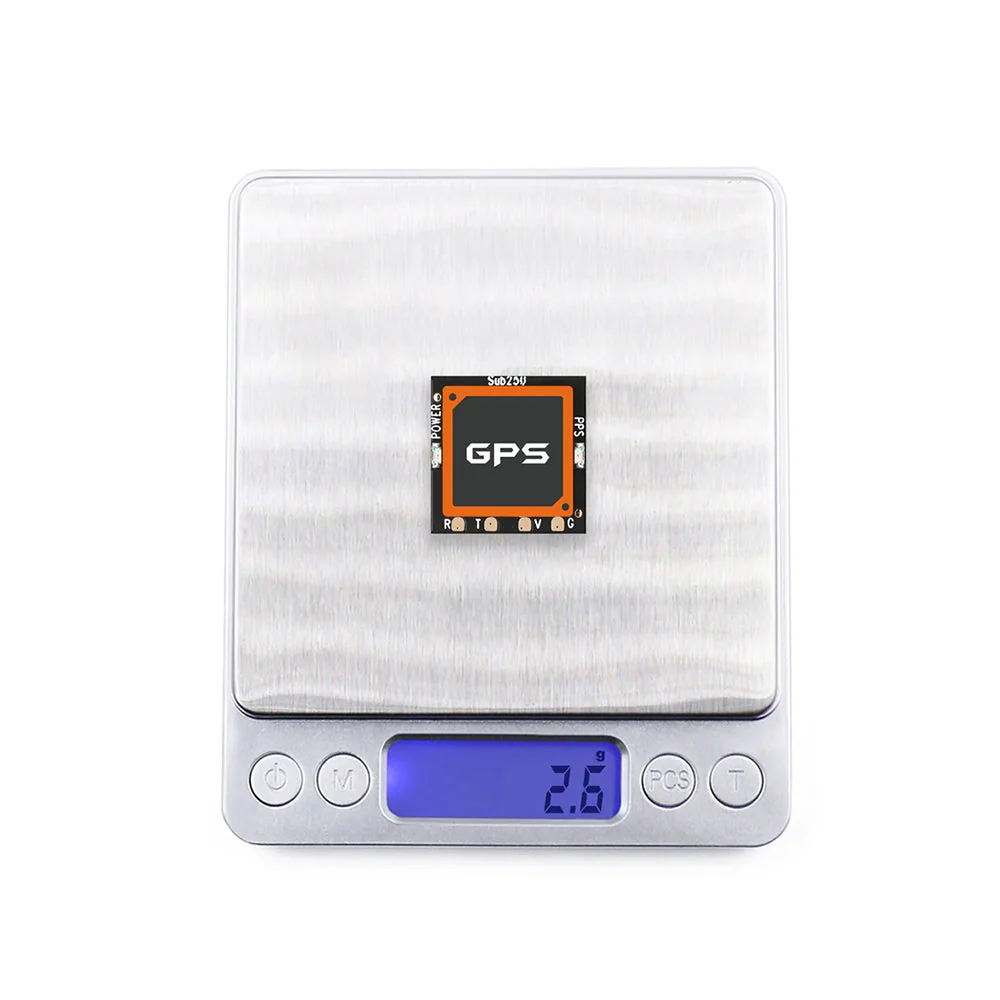

  • Weight: 2.6g

    Package Includes:

    • 1 x GPS module
    • 1 x Terminal wire
    • 1 x Instruction manual
    • 1 x Sticker
    • 1 x Heat shrink tubing
