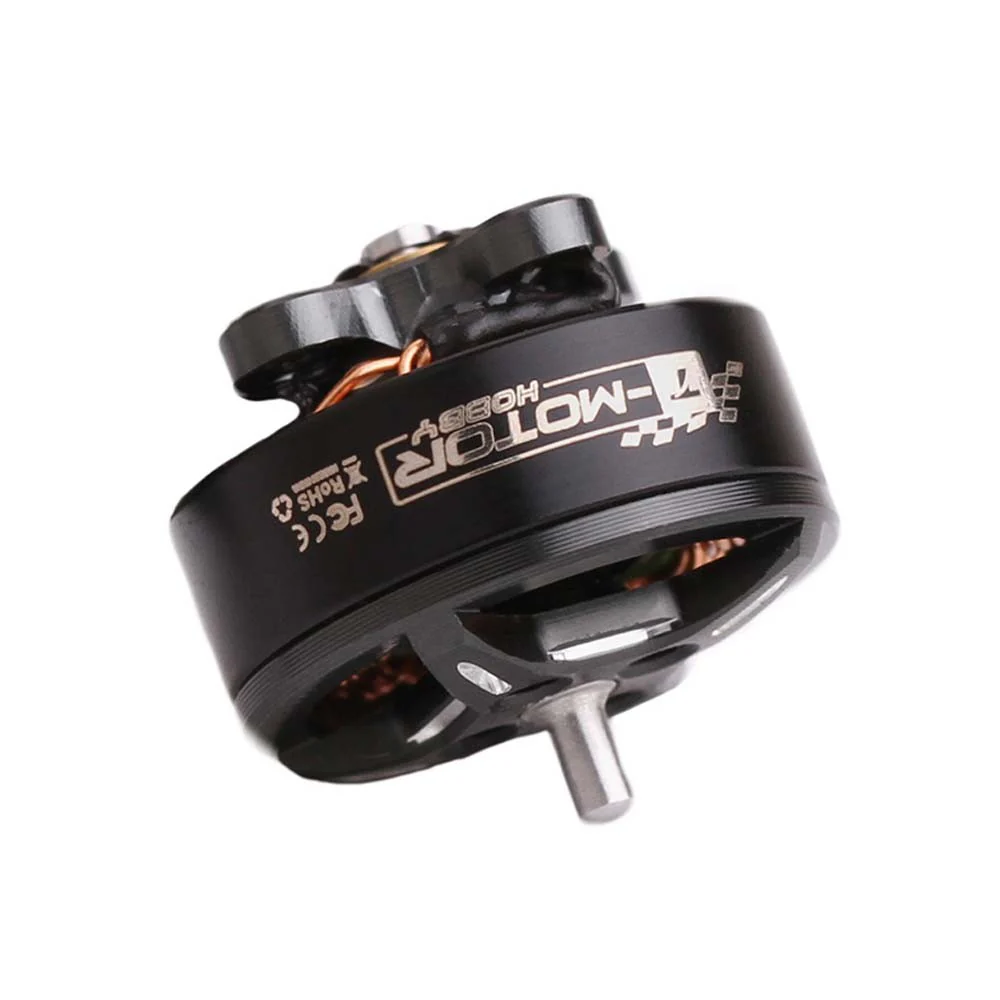

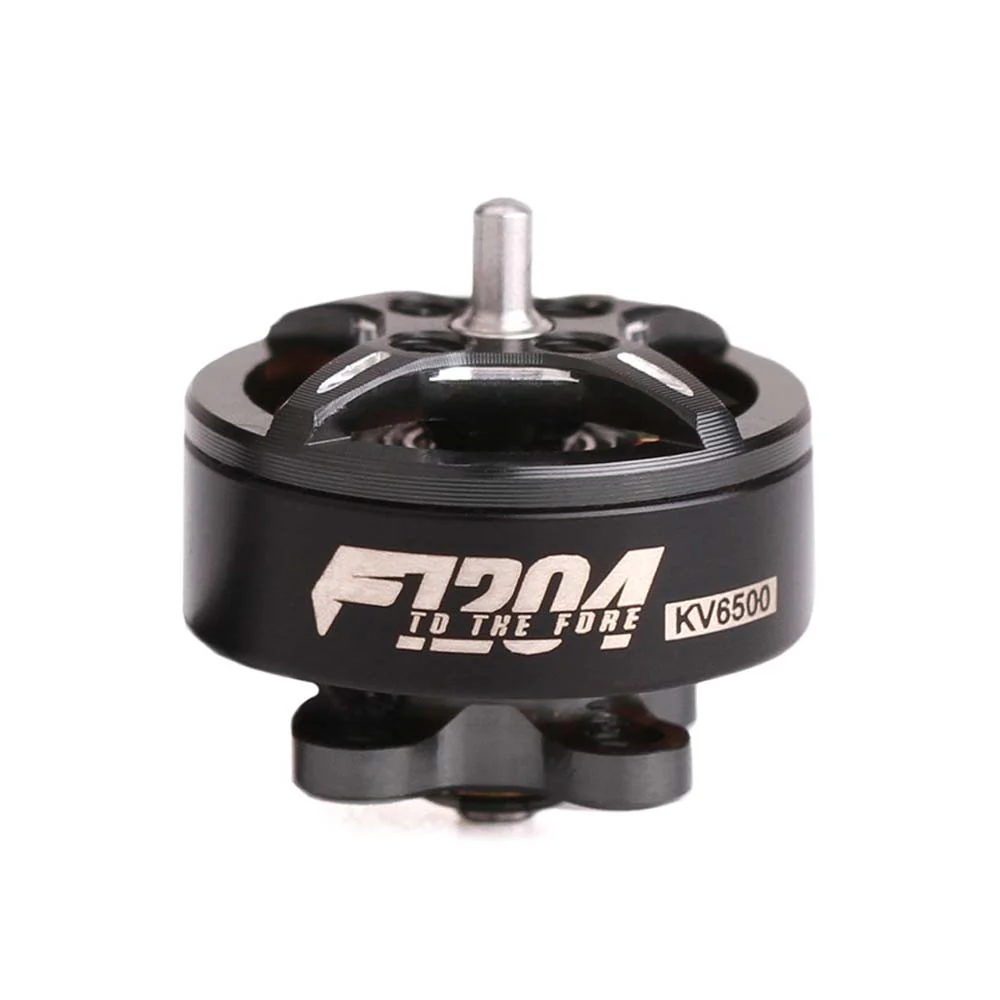

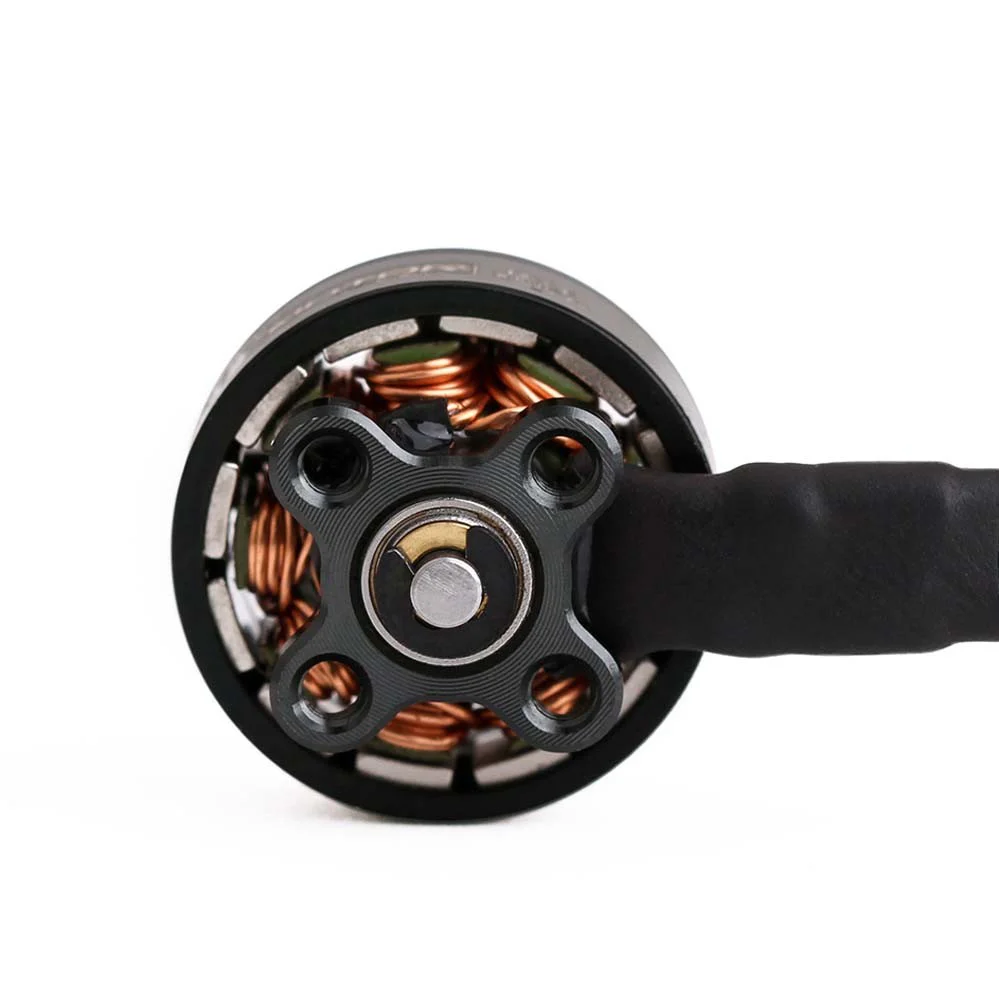

T-Motor F1204 5000KV/6500KV Motor

The F1204 motors from T-Motor are ultralight motors that are specially made for toothpicks and whoops! The F1204 motor comes with a 1.5mm shaft to fit more props and features high efficiency, better cooling, and fast response. Suitable for 2.5-3" builds!

Two KVs to choose from: 5000KV, 6500KV

Checkout all our 12XX Motors and the rest of our T-Motor collection

Specifications

KV: 5000KV

• Motor DimensionS: Φ15.5*15.6mm
• Lead: 24#AWG 100mm
• Shaft Diameter: 1.5mm
• Idle Current: 0.7A
• Max.Power (the 60s): 72W
• Weight (Excl. Cable): 6.1g
• Internal Resistance: 240mΩ
• Configuration: 9N12P
• Rated Voltage (Lipo): 2-3S
• Peak Current (60s): 6A

KV: 6500KV

• Motor DimensionS: Φ15.5*15.6mm
• Lead: 24#AWG 100mm
• Shaft Diameter: 1.5mm
• Idle Current: 0.9A
• Max.Power (the 60s): 60W
• Weight (Excl. Cable): 6.1g
• Internal Resistance: 140mΩ
• Configuration: 9N12P
• Rated Voltage (Lipo): 3-3S
• Peak Current (60s): 7A

Includes

• 1 x T-Motor F1204 5000KV/6500KV Motor
• 1 x Set crews
