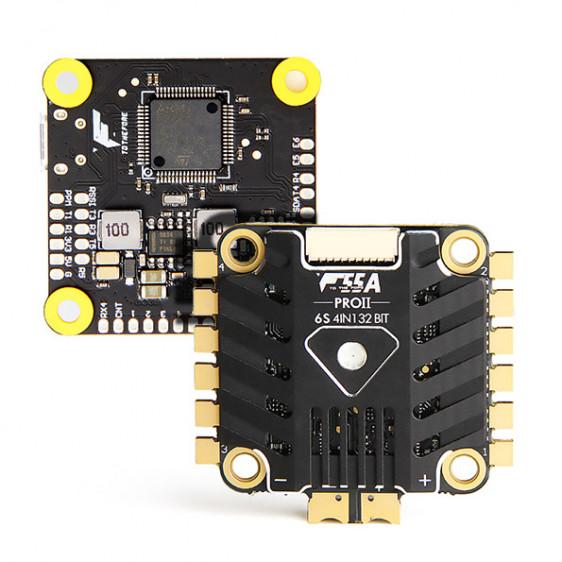

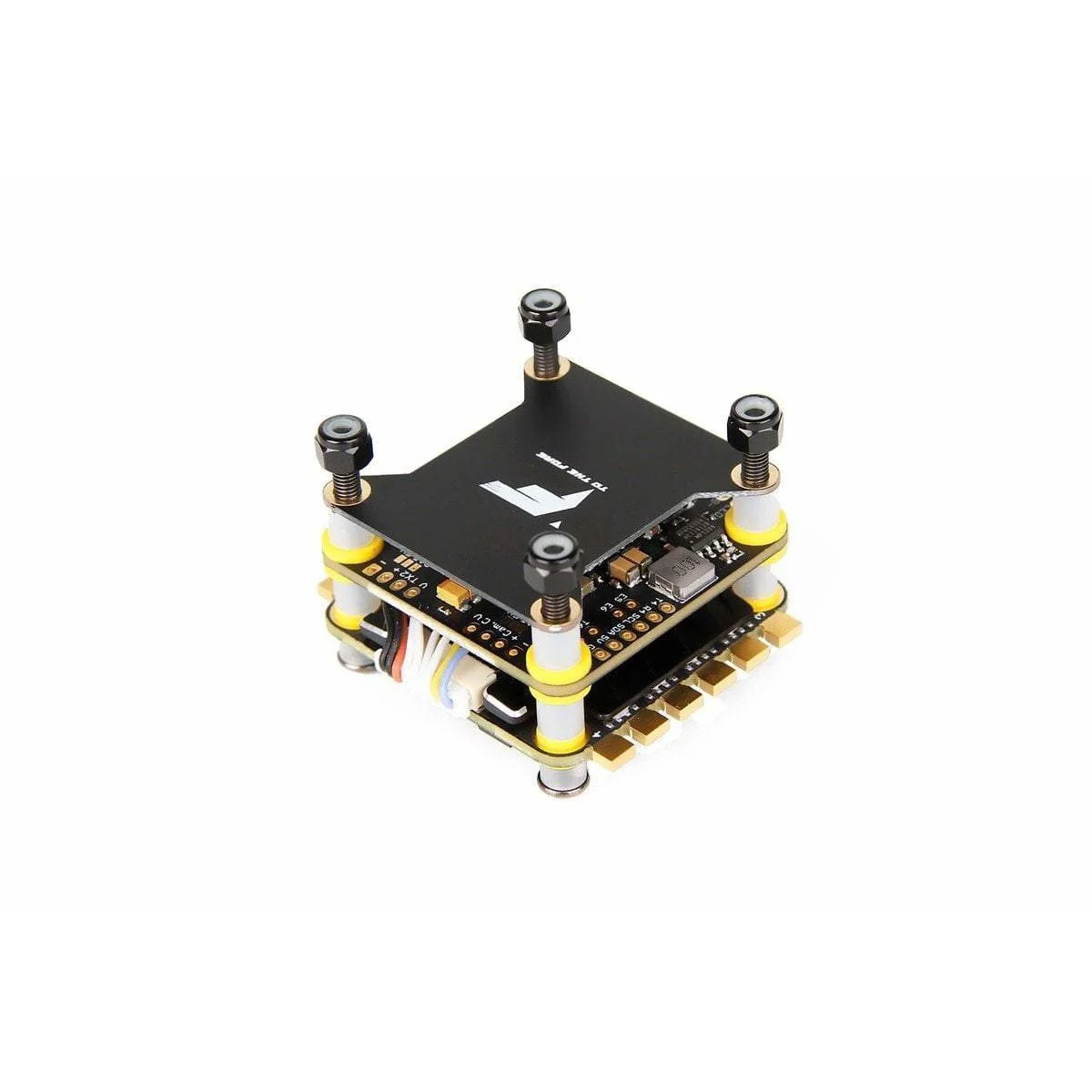

T-Motor F7 HD & AM32 F55A Pro II 3-6S 30x30 Stack/Combo for DJI

The T-Motor F7 & F55A Stack now comes in a version meant specifically for the DJI Digital FPV System! Including a plug for your Air Unit (original, not O3) and a 10V 2A BEC to power it.

Updated to AM32 ESC firmware.

Check out all our Stacks and the rest of our T-Motor Products!

Specifications:

FC:

• Input Voltage: 3-6S
• Gyro: BMI270
• Master chip: STM32F722RET6
• Flash: 16MB
• BEC: 5V 2A, 10V 2A
• Mounting hole: 30.5x30.5mm
• Weight: 8.4g
• Size: 37x37mm
• Firmware: TMOTOR F7(Betaflight)

ESC:

• Continuous current: 4*55A
• AM32
• Burst current: 4*75A
• BEC Output: 10V @2.0A
• Size: 45x41x7.3mm
• Weight: 17.3g (Including Heatsink)
• Support DSHOT150/300/600/1200

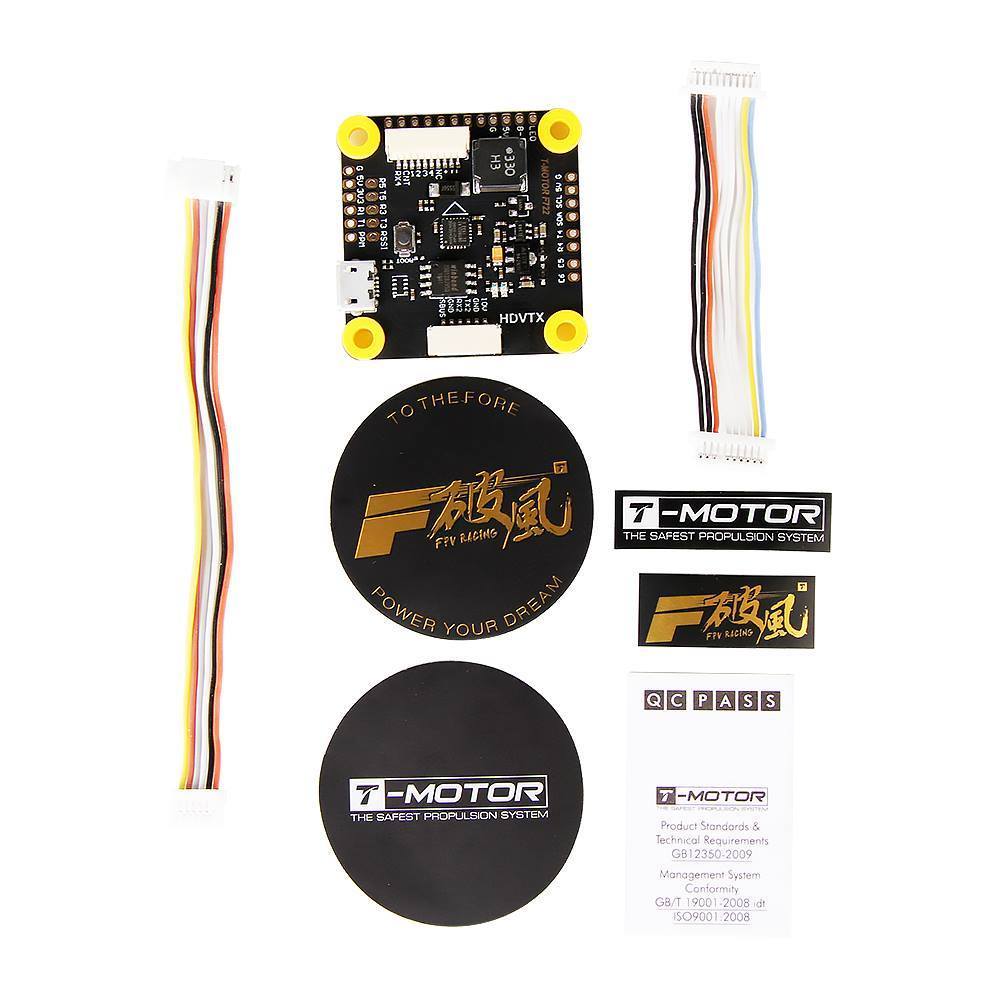

Package Includes:

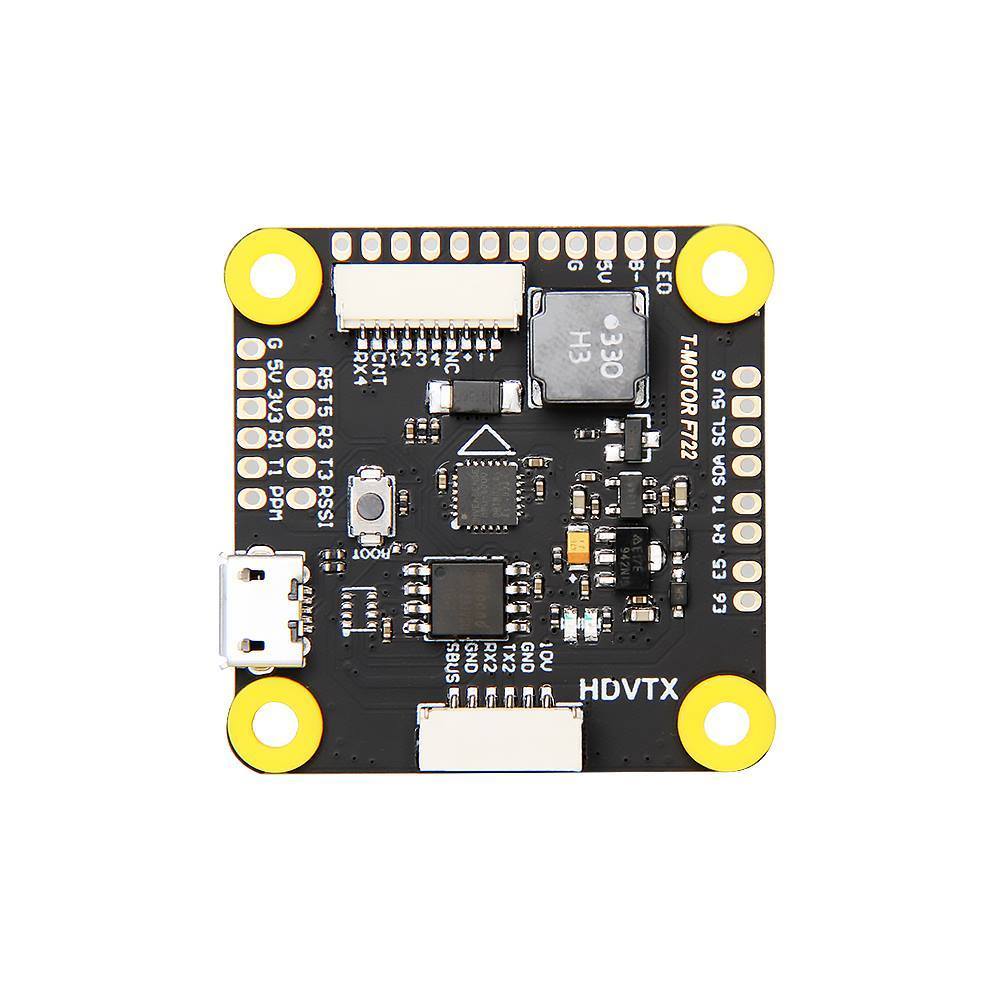

• 1 x T-Motor F7 HD 30x30 Flight Controller for DJI

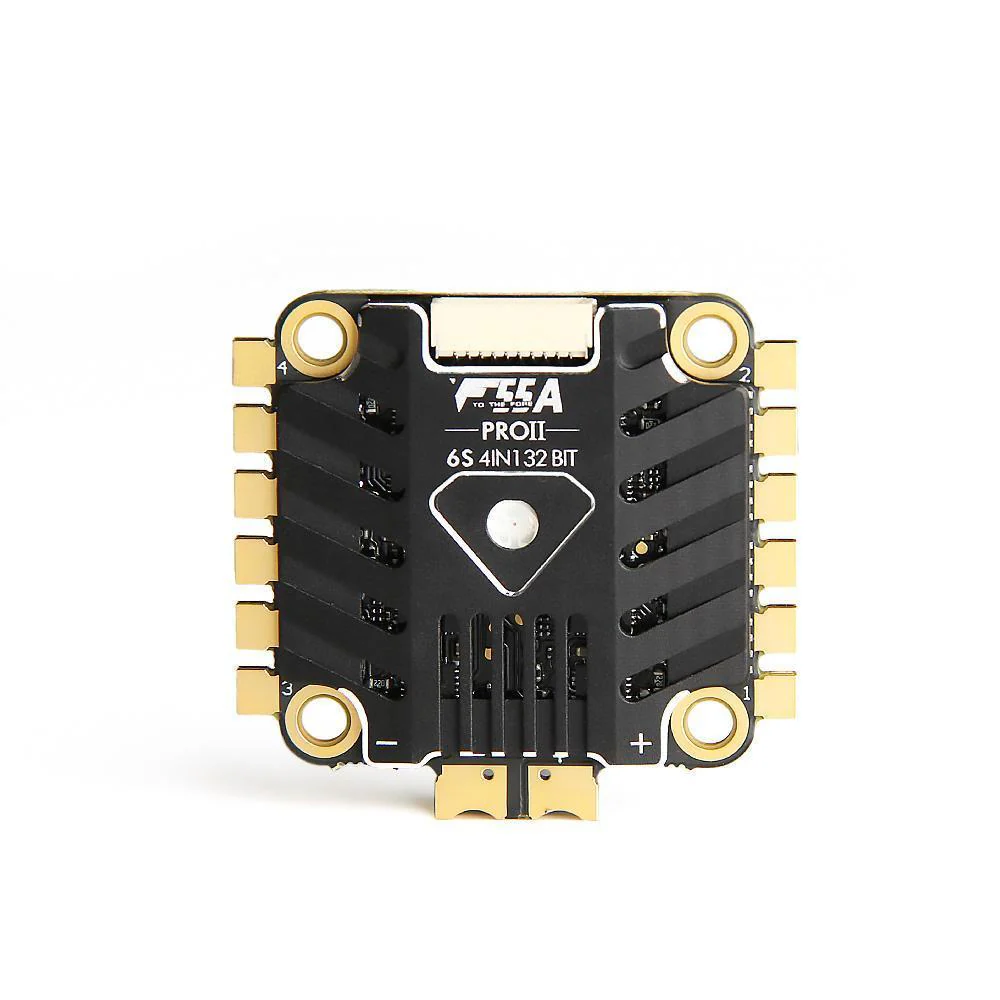

• 1 x F55A Pro II 4 in 1 Brushless ESC
