TBS Crossfire SIXTY9 - RX+VTX (New Version No Plastic Casing)

What could be better than the best Crossfire receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.

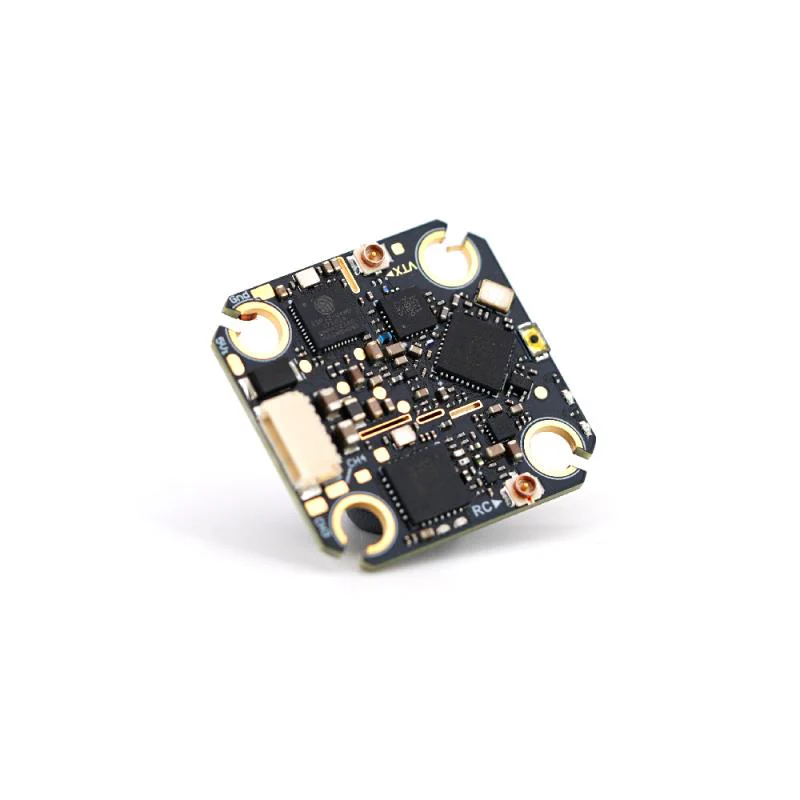

Introducing the TBS Crossfire Sixty9, a VTX and RC receiver AIO board sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Crossfire side. Mounting holes are 20x20.

Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).

Check out all our TBS Crossfire Related Products!

Features:

• Integrated video transmitter control with long range and (team-)race functions
• Dedicated low-noise power supply for receiver and video transmitter
• Sleek 20x20 mounting form factor
• Plug&play connection and solder pads connectivity
• High power analog adjustable video transmitter (up to 1W with perfect cooling)


Specifications:

CRSF	V3 ready
Weight	4.1g (board only)
Antenna ports	1x video transmitter, 1x R/C receiver
Size	24mm x 24mm
Input voltage	5V
Requires	Firmware V4.62 and above
VTX Table	VTX Table for Betaflight

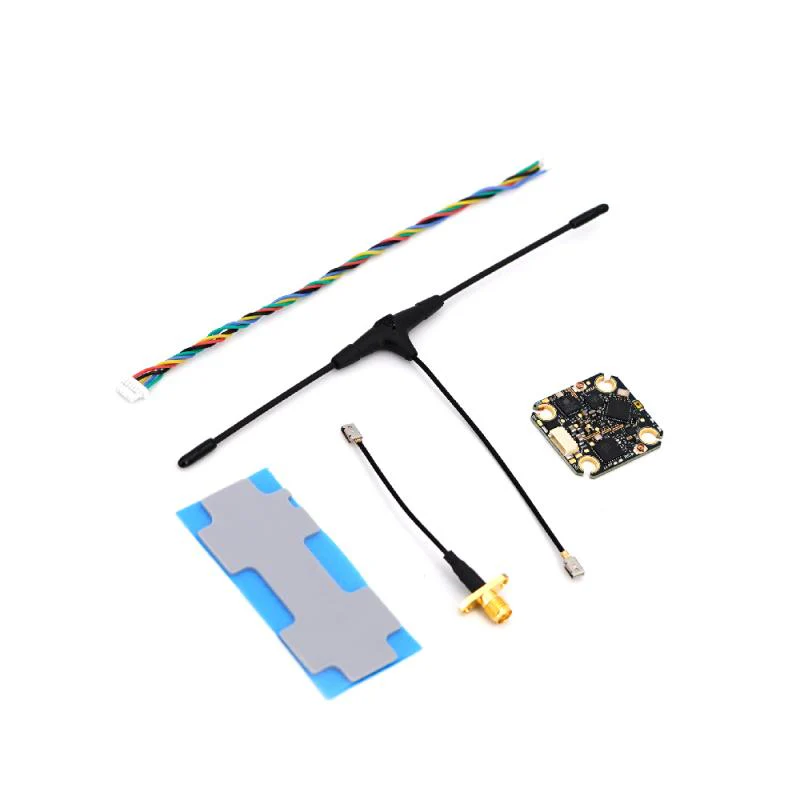

Package Includes:

• 1x TBS Crossfire Sixty9
• 1x Locking TBS Crossfire Immortal-T antenna
• 1x Locking u.FL to SMA mount (for VTx)
• 1x JST-SH x 9 connector
• 4x M3 rubber dampers


Downloads:

• TBS Crossfire - RED Declaration of Conformity
• TBS Crossfire Manual
