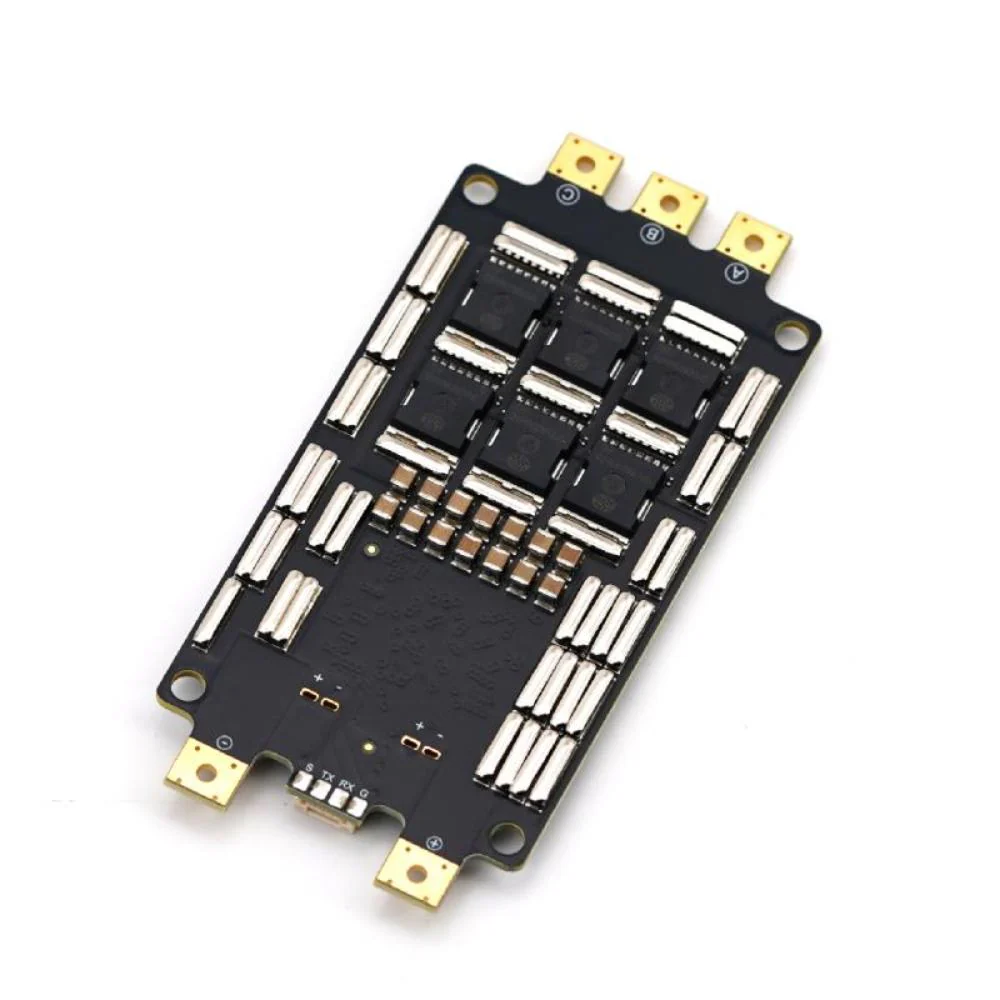

TBS Lucid 16S 120A RAWDOG AM32 ESC for X-Class/Cinelifter Drone Airplane Wing
The TBS Lucid 16S is a force to be reckoned with. Built for high voltage and high power applications that demand high reliability and power at your fingertips.
Featuring a 10 layer high current density board with excellent heat resistance the ESC is built to withstand the harshest punishment of everyday flying while delivering excellent payload capabilities. With built in TVS, voltage spikes are no longer a concern. By focusing on thermal dissipation from the ground up, the ESC achieves excellent power to weight density without the need of heavy heat sinks.
A close collaboration with AM32 allowed us to squeeze the last bit of performance without breaking the bank.
The TBS Lucid 16S 120A Rawdog ESC is the stripped-down, bare-bones version of our 200A version. Same internals, same performance DNA — just without the heatsink and capacitors.
Check out all our X-Class Electronic Speed Controllers and the rest of our TBS products!
Important notes:
- Remember to add your own capacitors. We recommend 470uF x 3 at 100V. The ESC will run up to 120A out of the box, but the moment you add your own heatsink you unlock the full potential of the underlying hardware.
- Remember to wire up the GND connection of your signal wire back to the FC. At high voltages, this is required.
Download
- STEP file for design / prototyping - [DOWNLOAD]
Specifications:
| ESC software: | AlkaMotors32 (AM32) |
| ESC target: | AM32_TBS_16S_L431 or AM32_TBS_16S_L431_CAN |
| IP Rating: | N/A (contact us for IP-rated versions) |
| Rated current: | 120A |
| Propellers: | Up to 32" (over 11" requires good airflow) |
| Input: | 3 -16S Lipo |
| Protocol: | Bi-directional Dshot 300/600, KISS ESC Telemetry |
| ESC Current sense: | Yes / Built-in |
| ESC Voltage sense: | Yes / Built-in |
| BEC: | No |
| Size: | 107mm x 57mm x 38mm |
| Weight: | 74g excl. cables |
Package includes:
- 1 x TBS Lucid 16S 120A Rawdog ESC
Original: $155.99
-70%$155.99
$46.80
