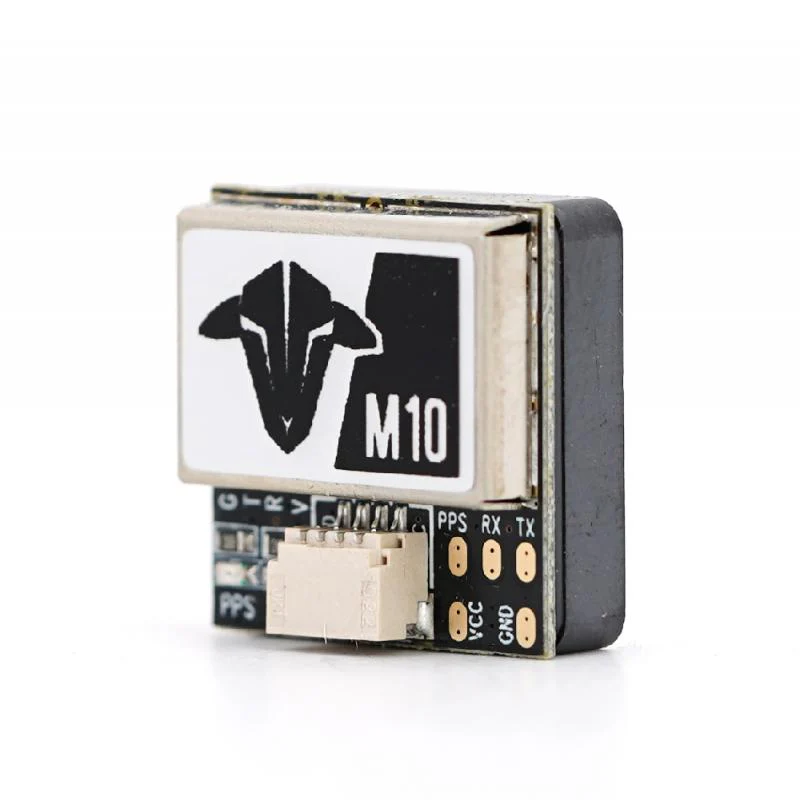

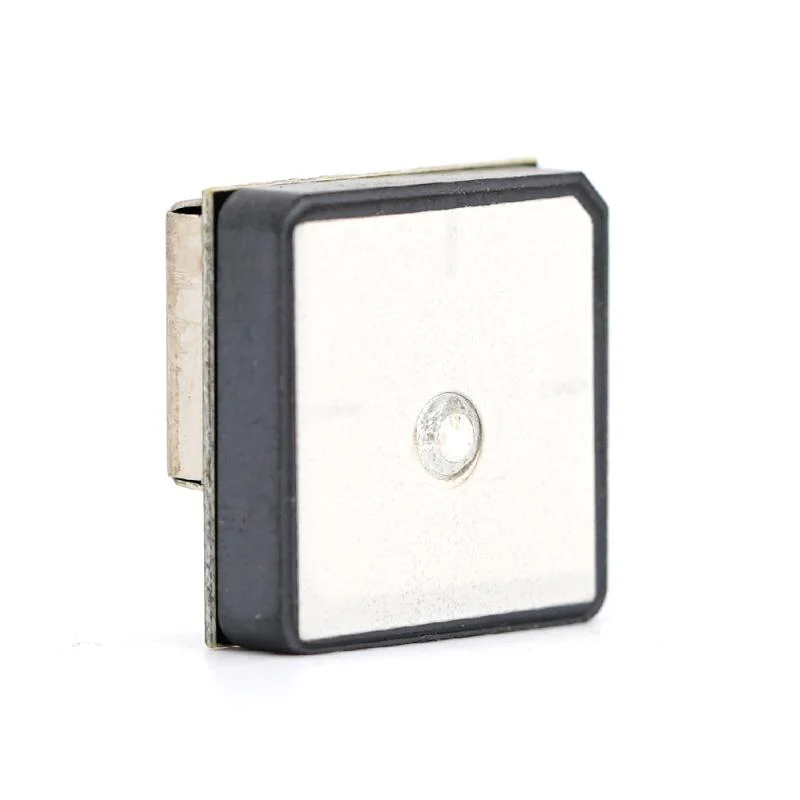

TBS M10 GPS GLONASS Module

Precision GPS / GLONASS module from TBS for Betaflight or Pixhawk.

Check out all our GPS and Lost Model Devices and the rest of our TBS Products!

SPECIFICATIONS:

• Chipset - ublox UBX-M10050
• Flash memory for saving configuration.
• Frequency - L1, 1575.42MHz ; L2,1561.10MHZ；L3,1602.00MHZ
• Baud Rate - 4800bps-921600bps, default 38400bps
• Channel - N/a
• Sensitivity - (Tracking: -166dBm) | (Capture: -160dBm) | (Cold Start - 148dBm)
• Cold start - Average 26 seconds
• Warm start - Average 24 seconds
• Hot start - Average 1 second
• Accuracy - (HorizontalPosition:Autonomous<2m average) | (SBAS < 2.0m average) | (Timepulse signal: RMS 30 ns)
• Maximum height - 50000m
• Maximum speed - 500 m/s
• Maximum acceleration - ≦ 4G
• Refresh Rate - 0.25Hz-18Hz, default 1Hz
• Size - 18 x 18 x 6.1 mm
• Weight - 4.9g
• Input Voltage - 5V

Package Includes:

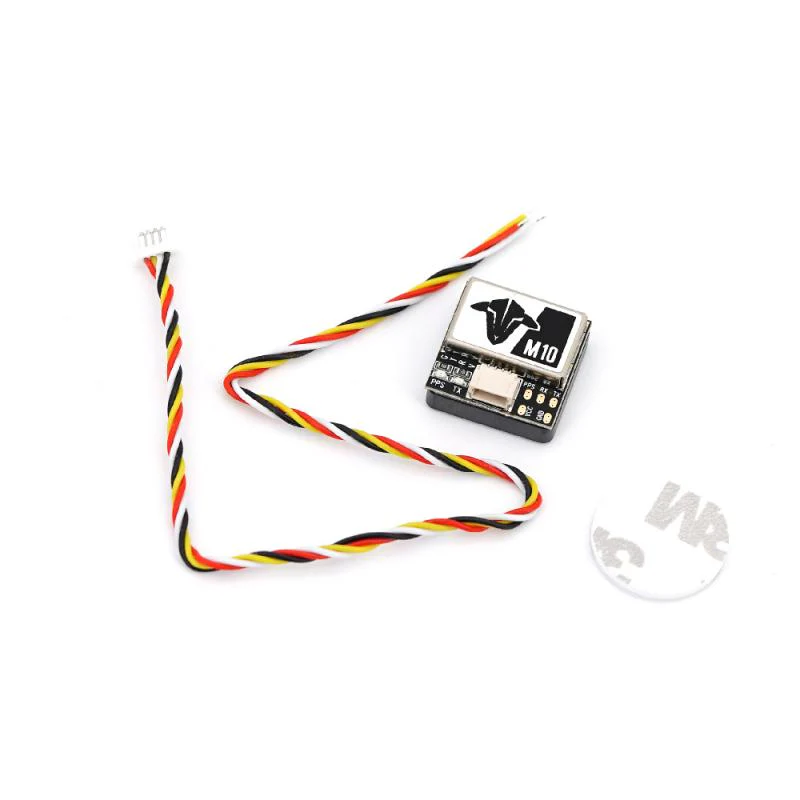

• 1 x TBS M10 GPS GLONASS Module
