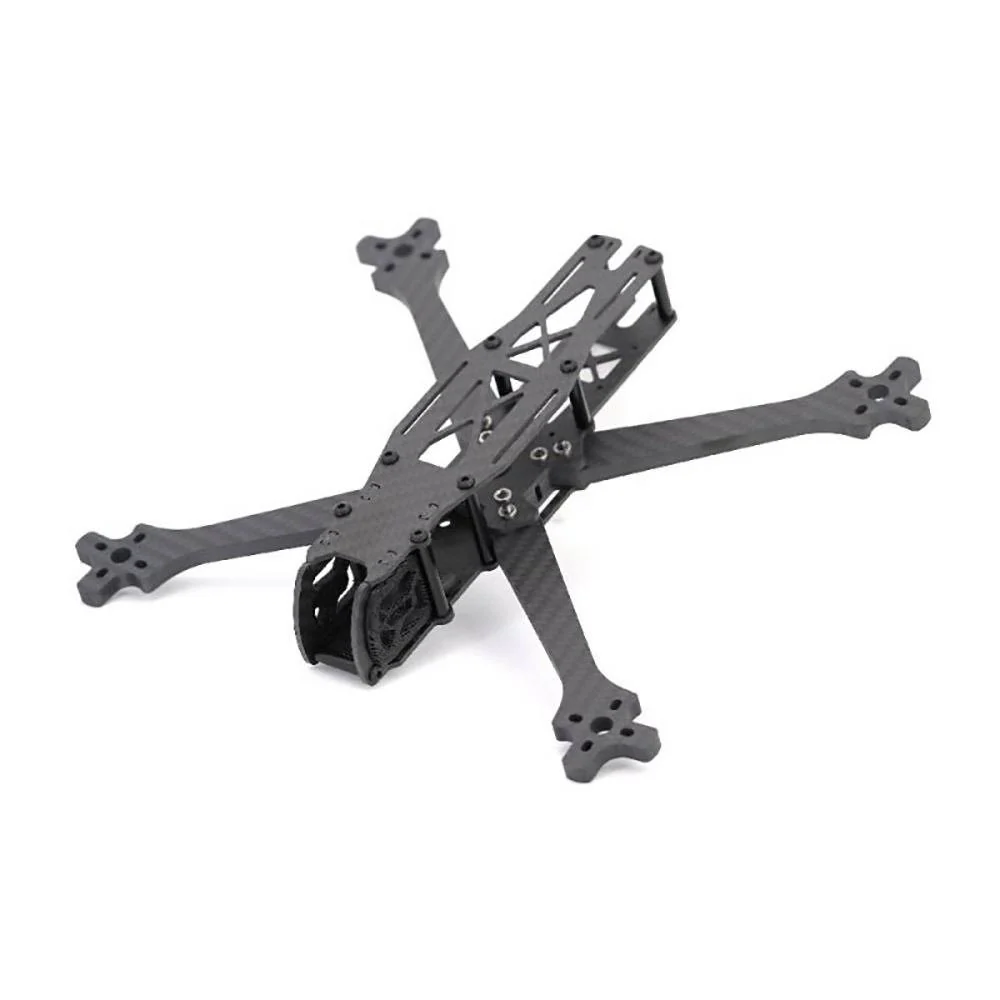

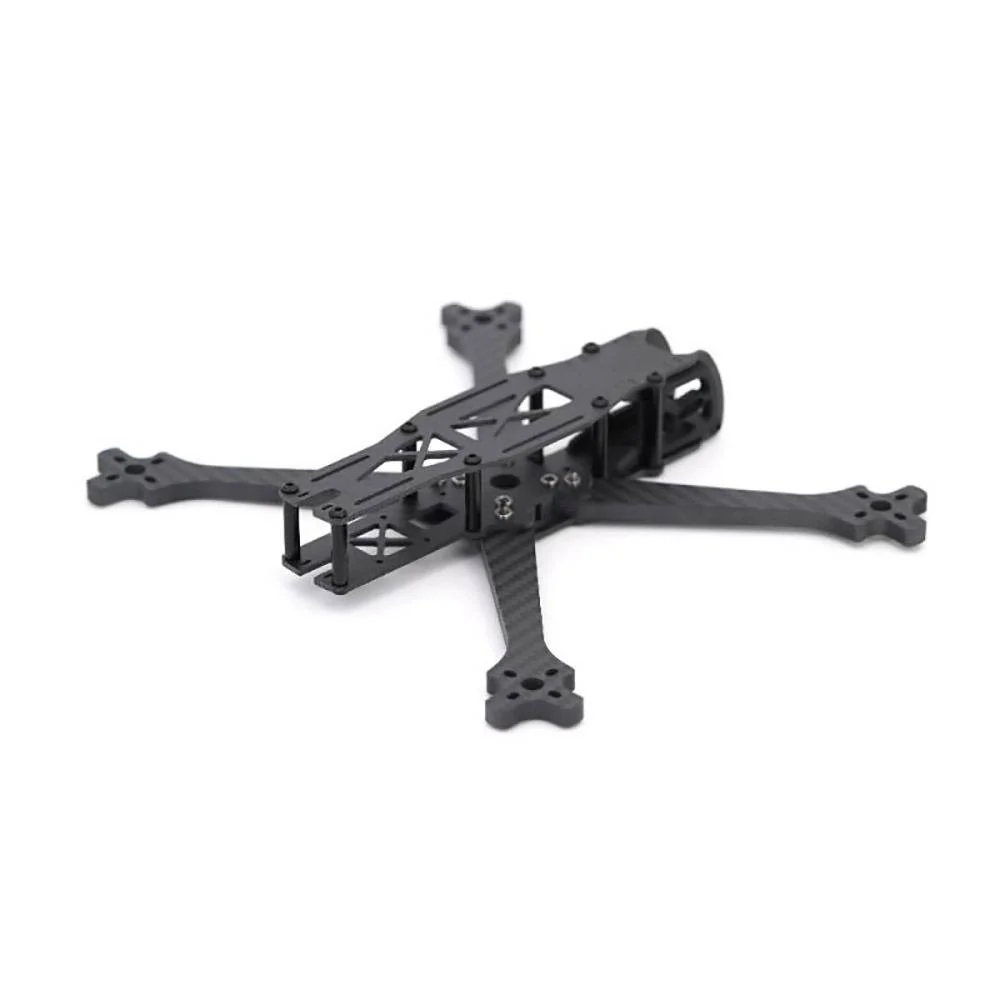

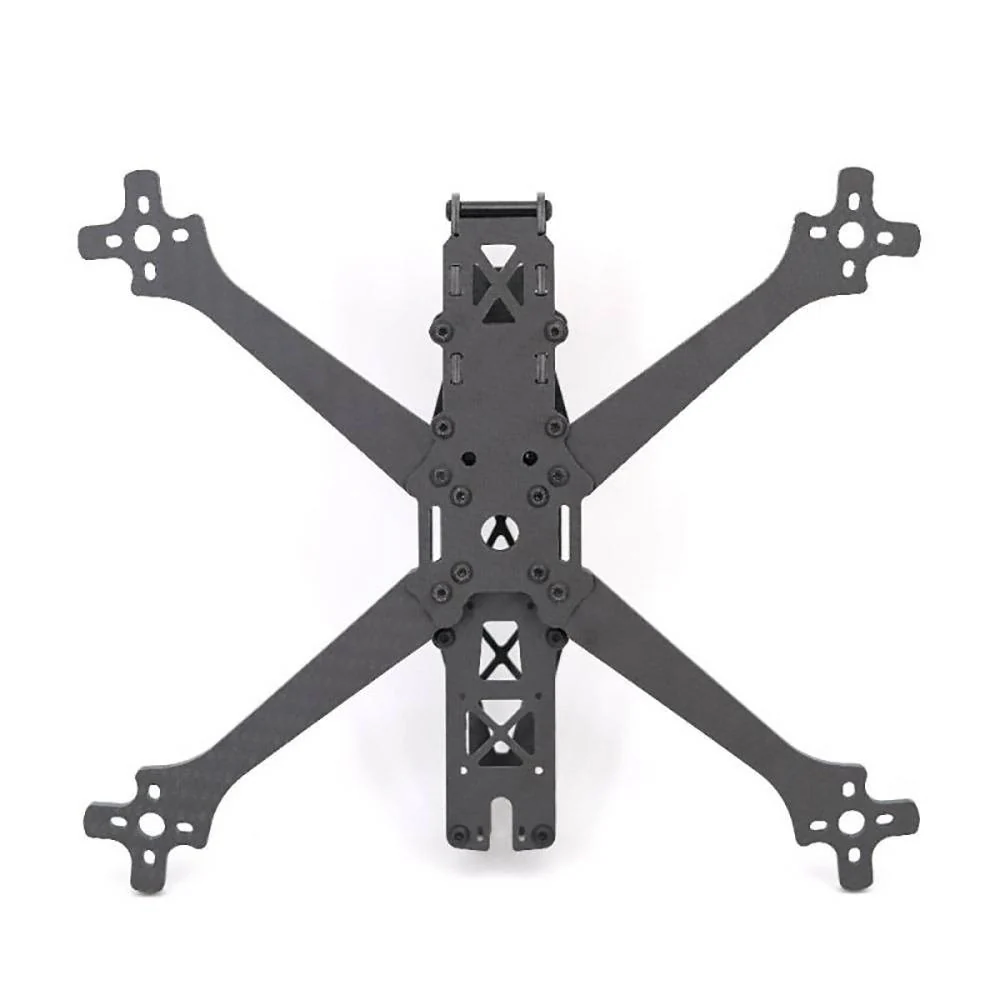

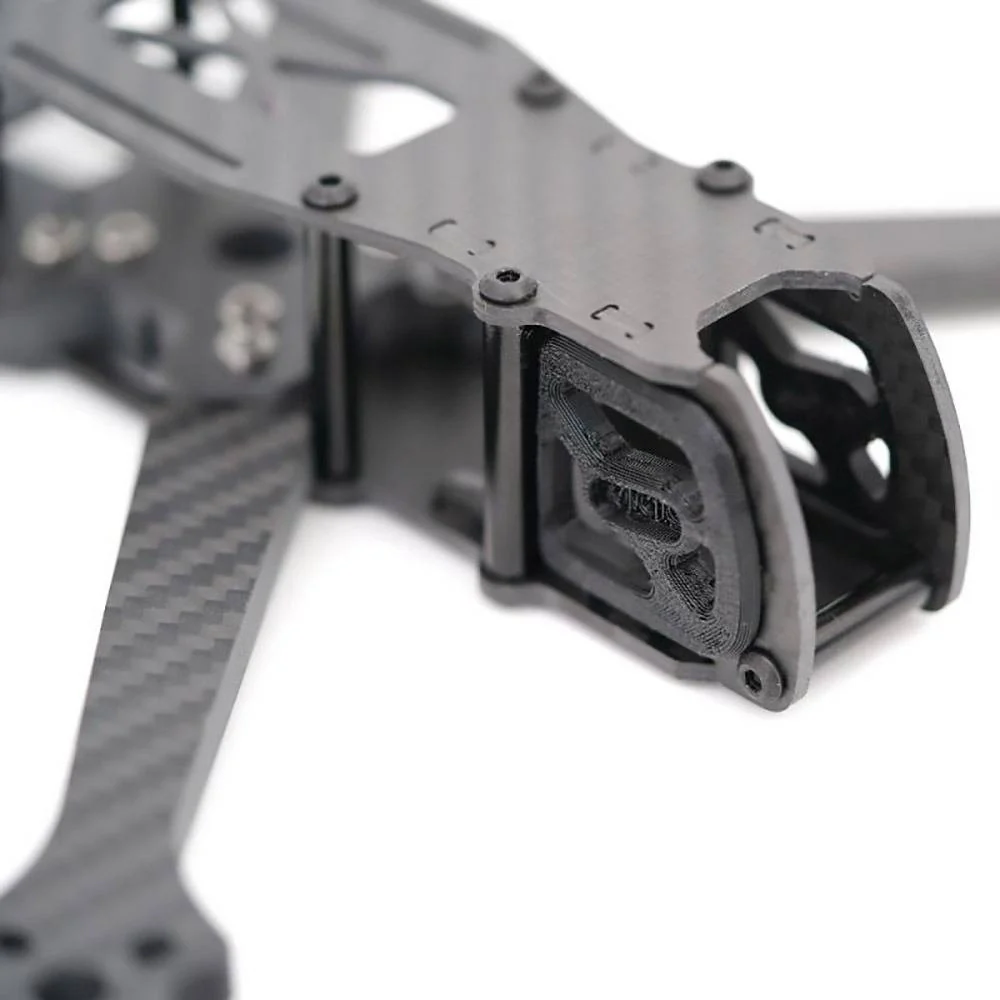

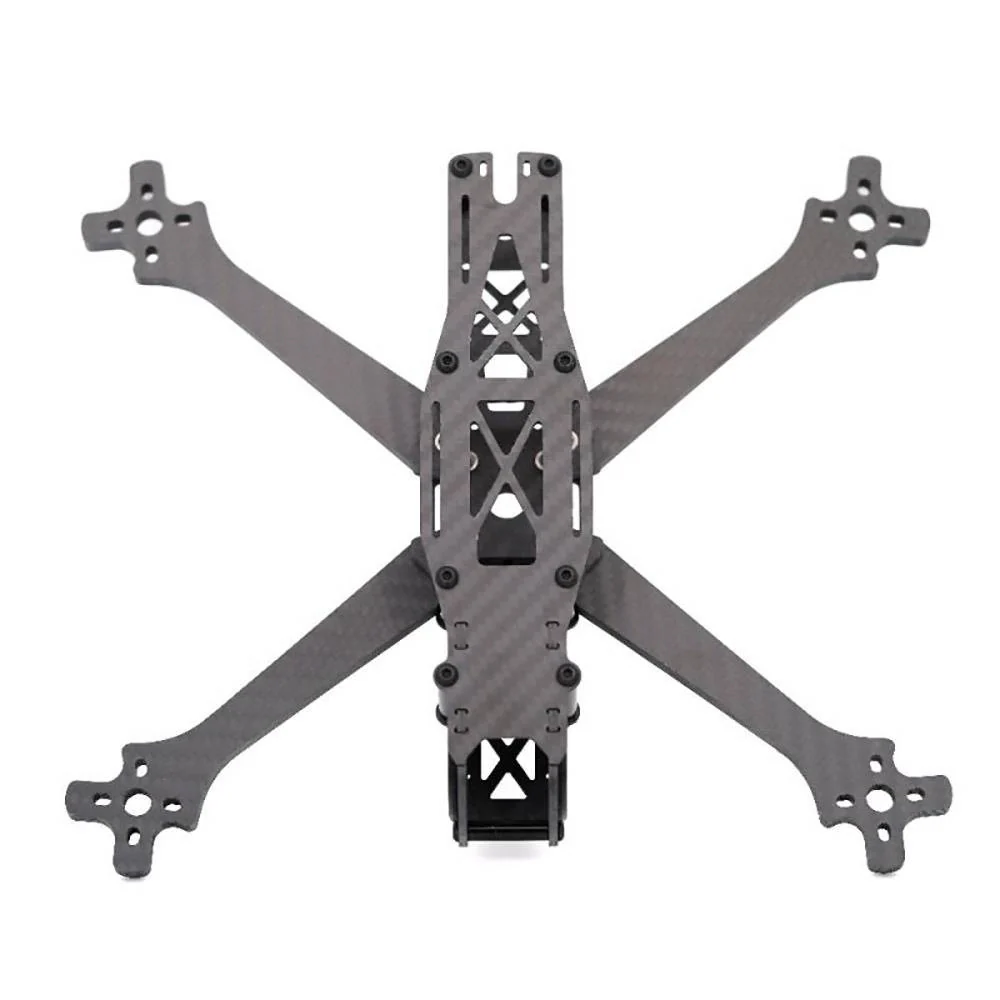

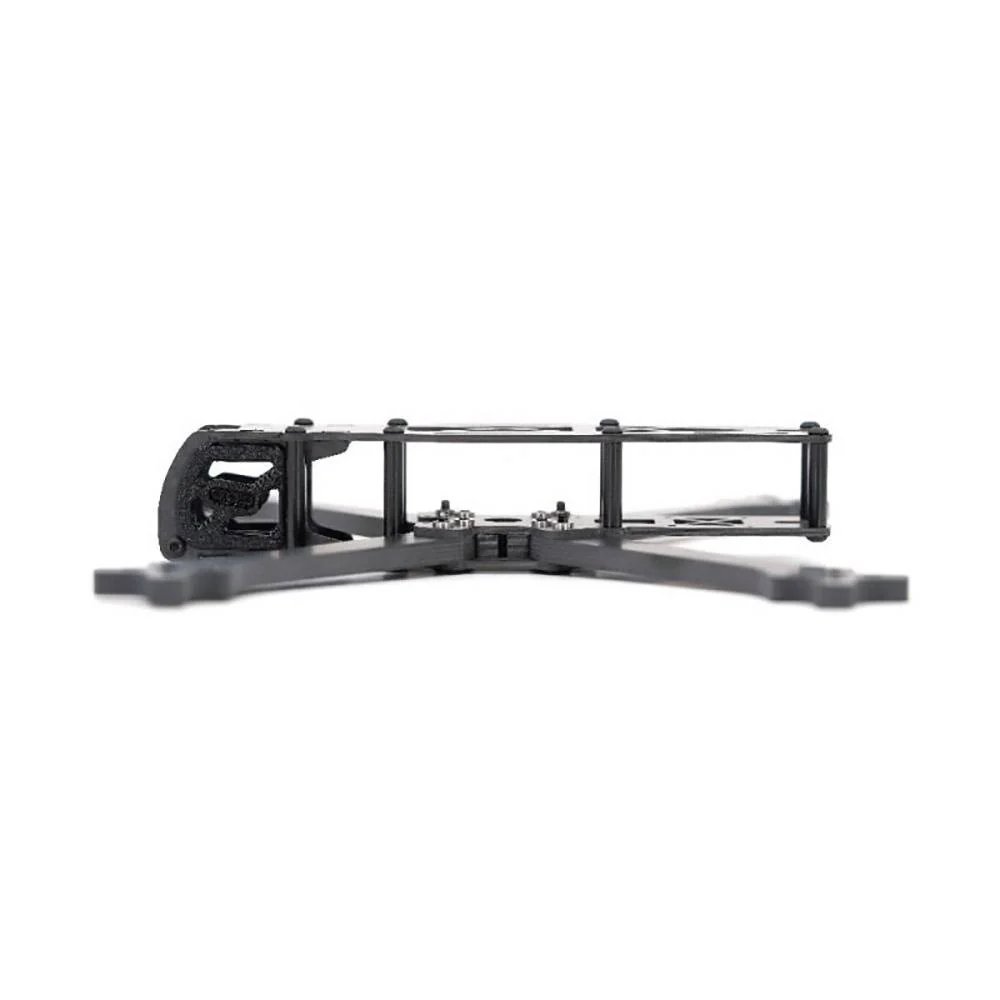

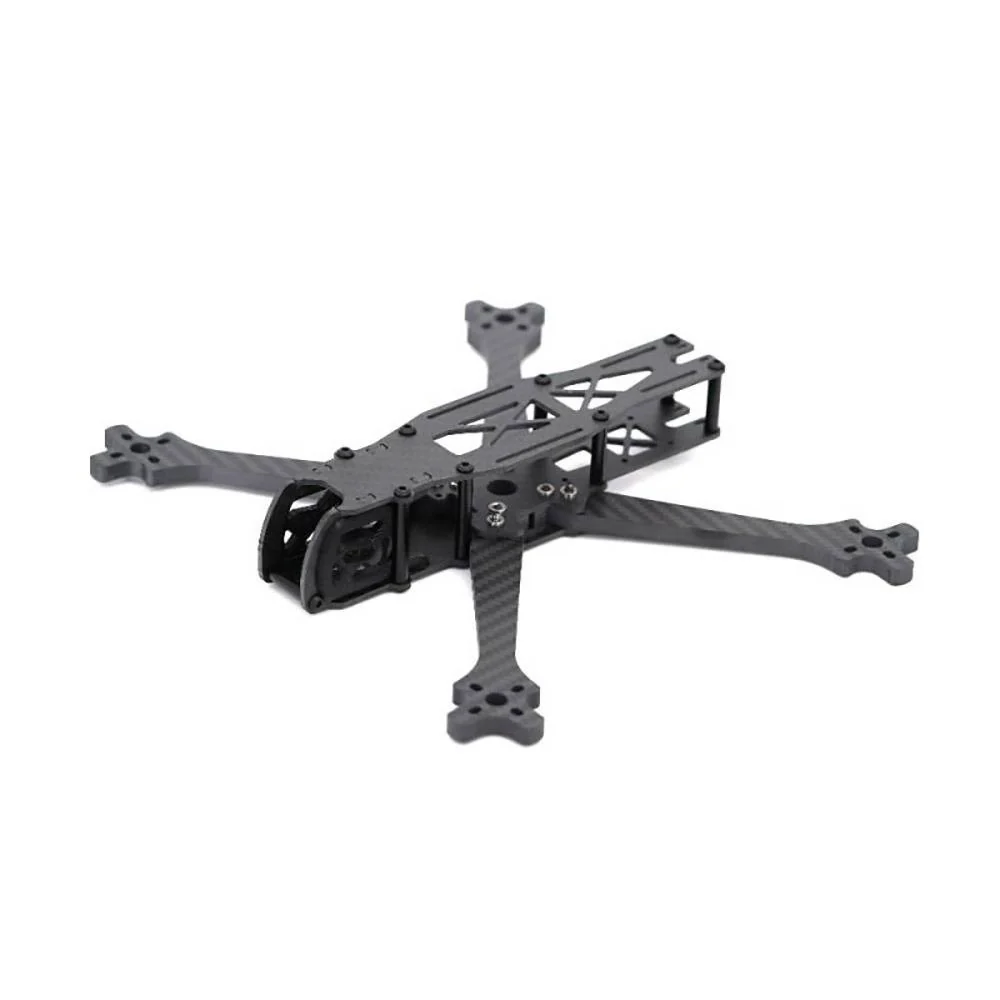

TBS SOURCE ONE V6 5" Frame Kit
The SOURCE ONE V6 5" is a wide-stance X configuration frame, popular for freestyle or free-range acrobatic flying. It is built to withstand harsh crashes and abuse. It fits and protects all the classic FPV components and is optimized for light weight. The SOURCE ONE is a perfect everyday workhorse for casual FPV flying and competitive freestyle.
The SOURCE ONE project is a first of its kind collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers, and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them compete in an increasingly predatory marketplace.
Check out all our Frames and the rest of our TBS Products!
Find all parts and accessories in our TBS Source One HD Collection!
Features
- Open Source - Ultimate Compatibility
- Reinforced 6mm Arms
- Wide-X configuration
- Fits most standard camera & vtx options
- Thickened 2.5mm bottom plate for enhanced protection
- Improved internal space for digital FPV systems (DJI/Caddx/Walksnail)
- Dual standoff options (30mm and 22mm) included for custom build geometry
Specifications
- Wheelbase 5": 240mm
- Top Plate: 2mm
- Middle Plate: 2mm
- Bottom Plate: 2.5mm
- Arms Spacer: 6mm
- Camera plate: 2mm
- Standoff height: 30 and 22mm
- Arm thickness 5": 6mm
- Stack Mounting: 30.5 × 30.5mm & 20 x 20mm
- Motor Mounting: 16 x 16mm (M3)
- Weight 5": 136.5g
Compatibility
- Supports 30.5x30.5 and 20x20 flight controller/ESC stacks
- Fits most standard FPV cameras and VTX options
- Compatible with DJI, Caddx, and Walksnail digital VTX systems
- VTX mounting holes: 20x20mm M2
- 3D Printed files on Thingiverse: https://www.thingiverse.com/tag:sourceone
Package Includes
- 1x Top plate
- 1x Middle plate
- 1x Bottom plate
- 2x Brace
- 2x Camera plate
- 4x Arms
- 1x Arms spacer
- 1x Screw & Standoff set
- 20x M3x10 allen screw
- 4x M3x12 allen screw
- 4x M3x14 allen screw
- 4x OD 5mm M3 30mm standoff
- 4x OD 5mm M3 22mm standoff
- 1x OD 5mm M3 20mm standoff
- 8x M3 press insert nut
- 1x TPU 3D Printed Camera Mount
Critical Notes
-
V5 and V6 arms are NOT compatible. The mounting tab, bolt pattern, and locking wedge design have been updated for the V6; only V6-specific arms will fit this frame.
-
Ensure proper standoff selection (30mm vs 22mm) based on your specific stack height and VTX requirements.
Original: $41.99
-70%$41.99
$12.60
